REVISION BU
DO NOT
SCALE FROM
THIS PRINT
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
No OF POSITIONS
2. PARTS MAY BE CUT TO POSITION.
-02 THRU -50
3. MAXIMUM CUT FLASH: .010[0.25] ON TAIL SIDE, ALL OTHER AREAS
(PER ROW)
AT .015[0.38]. LOOSE CUT FLASH MUST BE REMOVED.
4. MINIMUM PUSHOUT FORCE: 1.0 LB.
LEAD STYLE
5. TERMINALS TO BE SHEARED TO MEET DIMENSION SPECIFICATION.
-01: .120 [3.05]
6. LAYER PACKAGE 2 - 4 POSITIONS AND TUBE 5 - 50 POSITIONS.
-02: .075 [1.91]
7. MAXIMUM BURR ALLOWANCE: .003[0.08].
-03: .065 [1.65]
8. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE -EC OPTION
-04: .150 [3.81]
IS NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDS
MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH THE -EC OPTION.
9. MAXIMUM HEIGHT VARIATION BETWEEN ROWS: .005[0.13].
PLATING SPECIFICATION
FTSH-1XX-XX-XXX-D-XXX-XX
OPTIONS
-ES: END SHROUDS (SEE FIG 2, SHT 2)
(MOLDED 5 POS MIN; -02 & -03 LEAD STYLE ONLY)
(MUST USE FTSH-XX-ES-XX-X)
(SNAP SHROUDS 9 POS MIN; -02 & -03 LEAD STYLE ONLY)
(MUST USE FTSH-50-D)
-EJ: EJECTOR SHROUDS: (SEE FIG 3, SHT 2)
(10 POS MIN; -01 LEAD STYLE ONLY)
(MUST USE FTSH-50-D)
-EC: LOCKING CLIP (SEE FIG 4, SHT 2; SEE NOTE 8)
(9 POS MIN; -02 & -03 LEAD STYLES ONLY)
(MUST USE FTSH-50-D)
-EP: GUIDE POST (SEE FIG 5, SHT 2)
(9 POS MIN; -02 & -03 LEAD STYLES ONLY)
(USE ONLY WHEN MATING WITH CLP)
(MUST USE FTSH-50-D)
-EL: BOARD LOCKS (SEE FIG 6, SHT 2)
(9 POS MIN; -02 & -03 LEAD STYLES ONLY)
(USE ONLY WHEN MATING WITH CLP)
(MUST USE FTSH-50-D)
-K: KEYING OPTION FOR MATING WITH FFSD
(05 THRU 25 ONLY)
(POSITION 13, 17, 20 & 25 AVAILABLE WITH -EJ OPTION)
(LEAD STYLE -01 ONLY, SEE FIG 7, SHT 3)
(MUST USE FTSH-XX-CN-XX)
-LC: LOCKING CLIP: (SEE FIG 8, SHT 3)
(5 POS MIN, ONLY AVAILABLE IN -01 LEAD STYLE)
(IN COMBINATION WITH -K, USE FTSH-XX-CN-XX,
10 POSITION MINIMUM, ONLY AVAILABLE IN
-01 LEAD STYLE)
(MUST USE FTSH-50-D)
(SINGLE MATING CYCLE ONLY)
(MUST BE MATED TO SAMTEC FFSD SERIES)
(No OF POS x .0500[1.270]) - .003[0.08] .006 [0.15]
(No OF POS x .0500[1.270]) - .0500[1.270]
02
50
01
49
-G:10µ" GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
-F: 3µ" FLASH SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-L: 10µ" LIGHT SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-H: 30µ" HEAVY GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
-FM: 3µ" FLASH SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-LM: 10µ" LIGHT SELECTIVE GOLD IN CONTACT
.135 3.43
AREA, MATTE TIN TAIL
REF
-SM: 30µ" HEAVY SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-LTL: 10µ" LIGHT GOLD IN CONACT AREA,
TIN/LEAD (90%/10 +/-5%) ON TAIL
FTSHC-50-D
ROW SPECIFICATION
-D: DOUBLE ROW
(USE **FTSHC-1XX-XX-XXX-D UNLESS
OPTION
IS SPECIFIED ABOVE. WHEN OPTION IS
SPECIFIED, BUILD PER PRINT USING BODY
SPECIFIED FOR REQUIRED
OPTION)
** = SEE FTSHC-1XX-XX-XXX-DX-XX PRINT FOR
DETAILS
C
POLARIZING OPTION
XXX INDICATES POSITION TO BE OMITTED
(NOT AVAILABLE WITH EX OPTIONS)
(ONLY AVAILABLE WITH -F, -FM, -L, -LM PLATING OPTIONS)

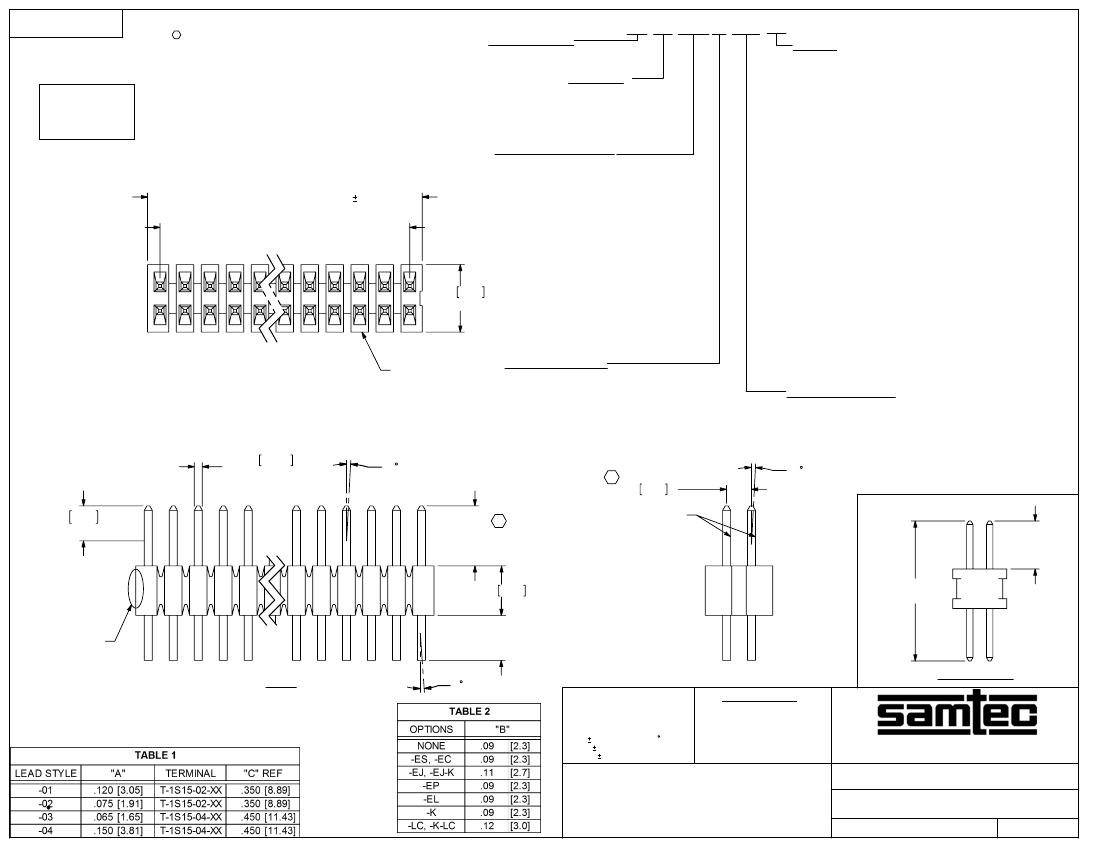

.0160 0.406 SQ
REF (TYP)
2 MAX SWAY
(EITHER DIRECTION)
.050 1.27
2 MAX SWAY
(EITHER DIRECTION)
.070 1.78 REF
(CONTACT AREA)
"A" C
(SEE TABLE 1)
(SEE NOTE 9)
T-1S15-XX-XXX
SEE TABLE 1
"A"
(SEE TABLE 1)
(SEE NOTE 9)
"C" REF
(SEE TABLE 1)
.099 2.51
SEE NOTE 3
(2 PLCS)
"B"
(SEE TABLE 2)
(SEE NOTES 5 & 7)
(SEE FTSHC-1XX-XX-XXX-DX-XX-PRINT FOR DETAILS)
FIG 1
2 MAX SWAY
(EITHER DIRECTION)
IN-PROCESS
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
1
.XXX: .005 [.13]
.XXXX: .0010 [.025]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 5:1
INSULATOR: LCD UL 94-V0
TERMINAL: PHOSPHOR BRONZE
.050 x .050 CL THROUGH HOLE TERMINAL STRIP
FTSH-1XX-XX-XXX-D-XXX-XX
02/27/1996
SHEET
1
OF
3
F:\DWG\MISC\MKTG\FTSH-1XX-XX-XXX-D-XXX-XX-MKT.SLDDRW
BY:
J. FERRY
REVISION BU
02
.188 4.78
REF
01
(No OF POS x .050[1.27])+.101[2.57] .008[0.20]

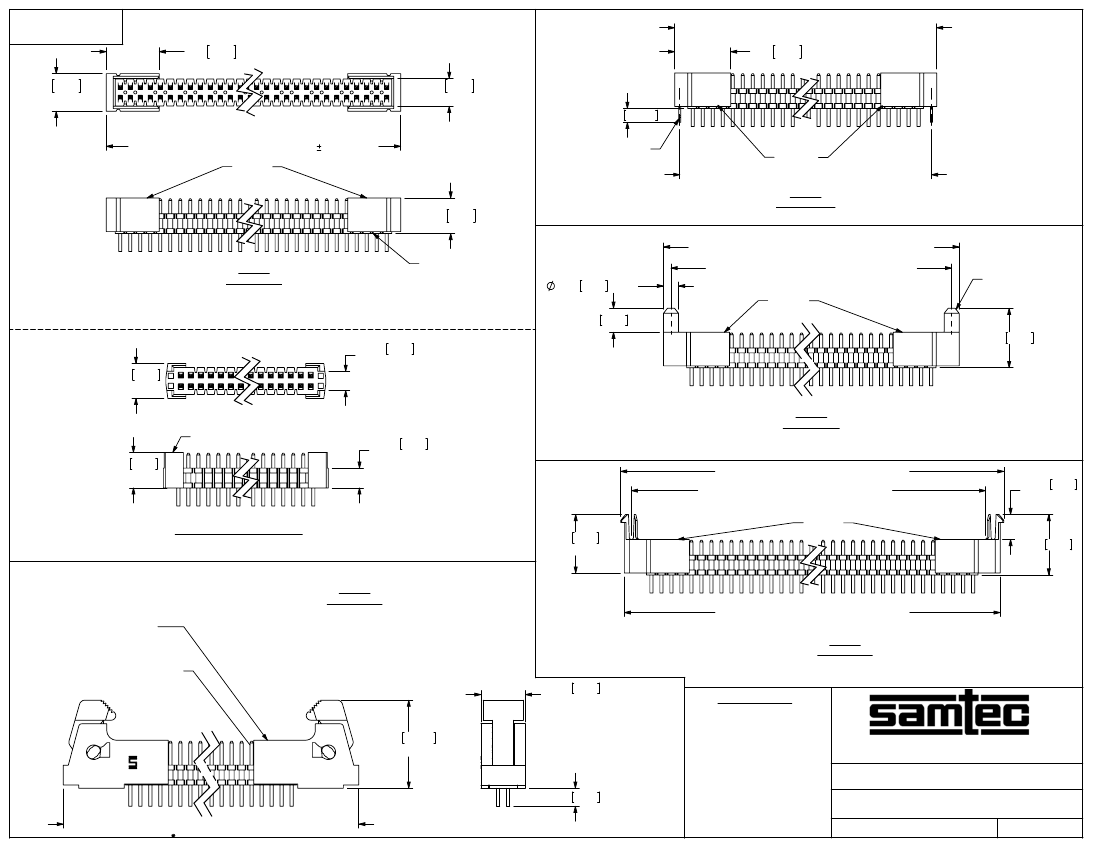

ES-FTSH
.265 6.73 REF
.139 3.53
REF
.0699 1.775
LC-05-TM
(No OF POS x .050[1.27])+.131[3.32]±.008[0.20]
.280 7.11 REF
FTSH-EC
(No OF POS x .050[1.27])+.079[3.30]±.008[0.20]
.178 4.51
-EC OPTION
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 2)
(No OF POS x .050[1.27])+.231[5.87]±.008[0.20]
FIG 4
-ES OPTION
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
(-02 OR -03 LEAD STYLE ONLY)
(9 POS MIN FOR SNAP SHROUDS)
(5 POS MIN FOR MOLDED SHROUDS)
02
.175 4.45
REF
01
FTSH-49-ES-XX-X
.178 4.51
REF
.099 2.51
REF
.096 2.44
REF
FIG 2
FTSH-XX-D
.075 1.91 REF
(No OF POS x .050[1.27])+.156[3.96] REF
FTSH-EP
.120 3.05 REF
.032[0.81] REF
CHAMFER
.298 7.56
-EP OPTION
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 2)
(USE ONLY WHEN MATING WITH CLP)
(No OF POS x .050[1.27])+.257[6.53]
(No OF POS x .050[1.27])+.153[3.89]
.125 3.18
REF
FIG 5
(MOLDED SHROUDS)
FTSH-EL
.293 7.44
REF
.303 7.68
USE SUB-FTSH-EJEHA
(2 REQ'D PER ASSEMBLY
EACH USES 1 EHA-02,
1 FTSH-EJ)
POST SIDE OF CONNECTOR
-EJ OPTION
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
(-01 LEAD STYLE ONLY)
FIG 3
(No OF POS x .050[1.27])+.223[1.26]
-EL OPTION
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 2)
(USE ONLY WHEN MATING WITH CLP)
.222 5.65
REF
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
FIG 6
.440 11.18
REF
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DO NOT SCALE DRAWING
.090 2.29
((No OF POS x .050[1.27]) + .621[15.77])±.010[0.25]
F:\DWG\MISC\MKTG\FTSH-1XX-XX-XXX-D-XXX-XX-MKT.SLDDRW
.050 x .050 CL THROUGH HOLE TERMINAL STRIP
DWG. NO.
SHEET SCALE: 2:1
FTSH-1XX-XX-XXX-D-XXX-XX
02/27/1996
BY:
J. FERRY
SHEET
2
OF
3
REVISION BU
((No OF POS x .0500[1.270])
-.003[0.08]±.006[0.15]
.200 5.08
REF
.085 2.16
REF
C
L
.085 2.16 REF
.200 5.08 REF
.126 3.20 REF

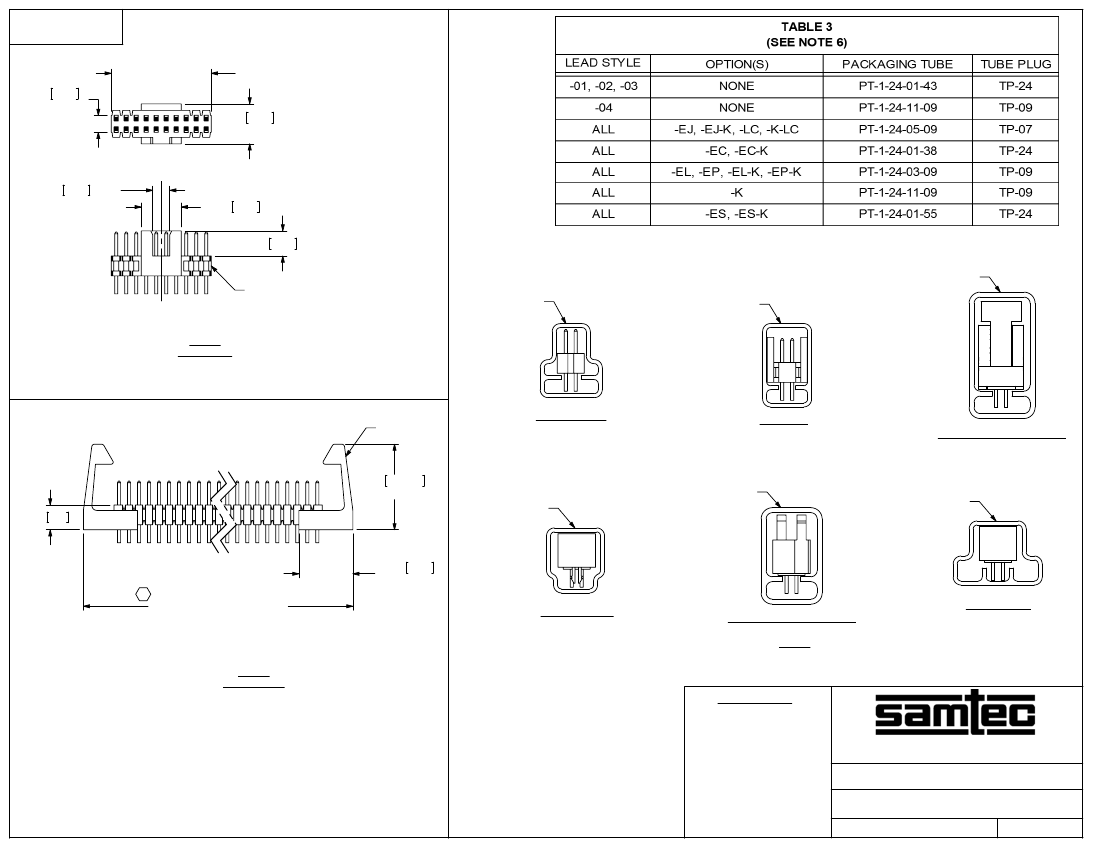

PT-1-24-05-09
PT-1-24-01-43
PT-1-24-11-09
FTSH-50-CN-XX
-K OPTION
(LEAD STYLE -01)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
(POSITION 13, 17, 20 & 25 AVAILABLE WITH -K & -EJ OPTION)
FIG 7
LTC-31-01
-01, -02, -03
-04 & -K
-EJ, EJ-K, -LC & -LC-K
.428 10.874
REF
.12 3.1
PT-1-24-01-38
PT-1-24-03-09
PT-1-24-01-55
C
.270 6.86
REF (TYP)
((No OF POS x .050[1.27])
+ .306[7.77])±.008[0.20]
-EC & -EC-K
-EL, -EP, -EL-K & -EP-K
TUBE VIEWS
-ES & -ES-K
FIG 9
-LC OPTION
(LEAD STYLE -01)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 8
F:\DWG\MISC\MKTG\FTSH-1XX-XX-XXX-D-XXX-XX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.050 x .050 CL THROUGH HOLE TERMINAL STRIP
FTSH-1XX-XX-XXX-D-XXX-XX
02/27/1996
SHEET
3
OF
3
BY:
J. FERRY
