225MPW250K: DescriptionFilm Capacitor, Polypropylene, 250V, 10% +Tol, 10% -Tol, 2.2uF, Through Hole Mount, AXIAL LEADED, LEAD FREE; CategoryPassive components capacitor; File Size463KB，2 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/; Environmental Compliance

Download Datasheet Parametric View All

225MPW250K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	225MPW250K	-	-	View	Buy Now

225MPW250K Overview

Film Capacitor, Polypropylene, 250V, 10% +Tol, 10% -Tol, 2.2uF, Through Hole Mount, AXIAL LEADED, LEAD FREE

225MPW250K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1968540672
package instruction	AXIAL LEADED, LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Manufacturer	ILLINOIS CAPACITOR
Samacsys Modified On	2022-01-07 01:52:53
Other features	RATED AC VOLTAGE (V): 160
capacitance	2.2 µF
Capacitor type	FILM CAPACITOR
Custom functions	Tape & Reel
dielectric materials	POLYPROPYLENE
JESD-609 code	e3
Manufacturer's serial number	MPW
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
Package form	Axial
positive tolerance	10%
Rated (AC) voltage (URac)	200 V
Rated (DC) voltage (URdc)	250 V
series	MPW
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE

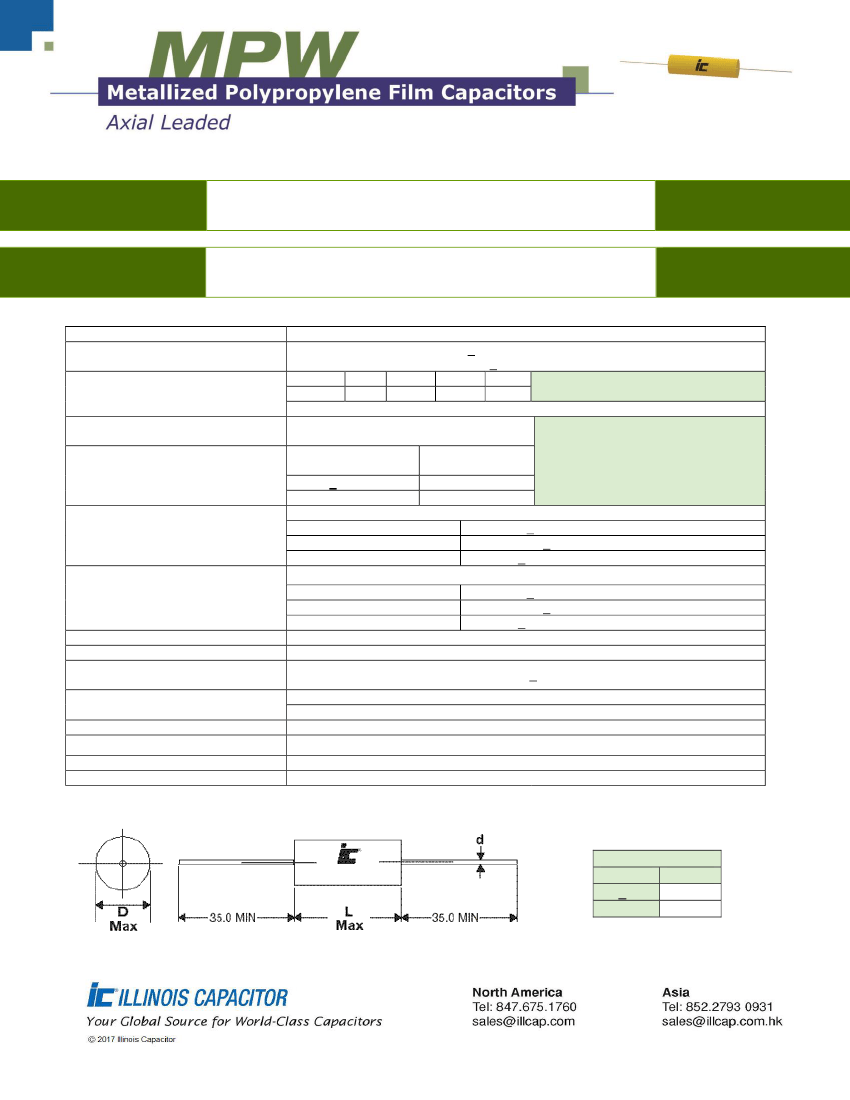

Preview

Download Datasheet

View All

FEATURES

APPLICATIONS

Low ESR

-

High AC/Ripple Current

-

Stable with frequency and

temperature

Switching Power Supplies

–

General Purpose

–

AC

Applications ( Not across the Line)

Operating Temperature Range

Capacitance Tolerance

AC Voltage

Dissipation Factor (MAX)

1 kHz, 25°C

Insulation Resistance

@25°C (<70% RH)for 1 minute at

100VDC applied

WVDC

VAC

-55°C to +105°C

+10% at 1 kHz, 25°C

+5% optional

160

250

400

630

90

200

220

250

For T>+85°C , The voltage must be decreased by 1.5% per °C

0.001

Load Life

Damp Heat test

Self Inductance

Capacitance Drift Factor

Capacitance Temperature

Coefficient

Dielectric Strength

Dielectric

Construction

Coating

Leads

Insulation

Resistance

<0.33μF

30000 MΩ

>0.33μF

10000 MΩxμF

2000 Hours, +85C with 125% of rated voltage

Capacitance Change

<3% of initially measured value

Dissipation Factor

<0.001 at 1kHz and 25°C

Insulation Resistance

>50% of maximum specified value

56 days at40°C with 90 to 95%RH, +40°C and no voltage applied

Capacitance Change

<5% of initially measured value

Dissipation Factor

<0.005 at 1kHz and 25°C

Insulation Resistance

>50% of maximum specified value

<1 nano-Henry per mm of body length and lead length

<0.5% after 2 years at 40°C

Capacitance

-200 ppm/°C, +100ppm/°C

Terminal to Terminal

200% of rated VDC or VAC applied for 10 Seconds and 25°C

Polypropylene

Metallized film

Flame Retardant Polyester tape wrap (UL 510) with epoxy resin end fills(UL94V0)

Lead free tinned copper leads

Lead Diameter

D

d

<9

0.6

>9

0.8

Feb-17
