FILAMENT REPLACEMENT LEDs - Multi-LED Cluster

Preview

Download Datasheet

View All

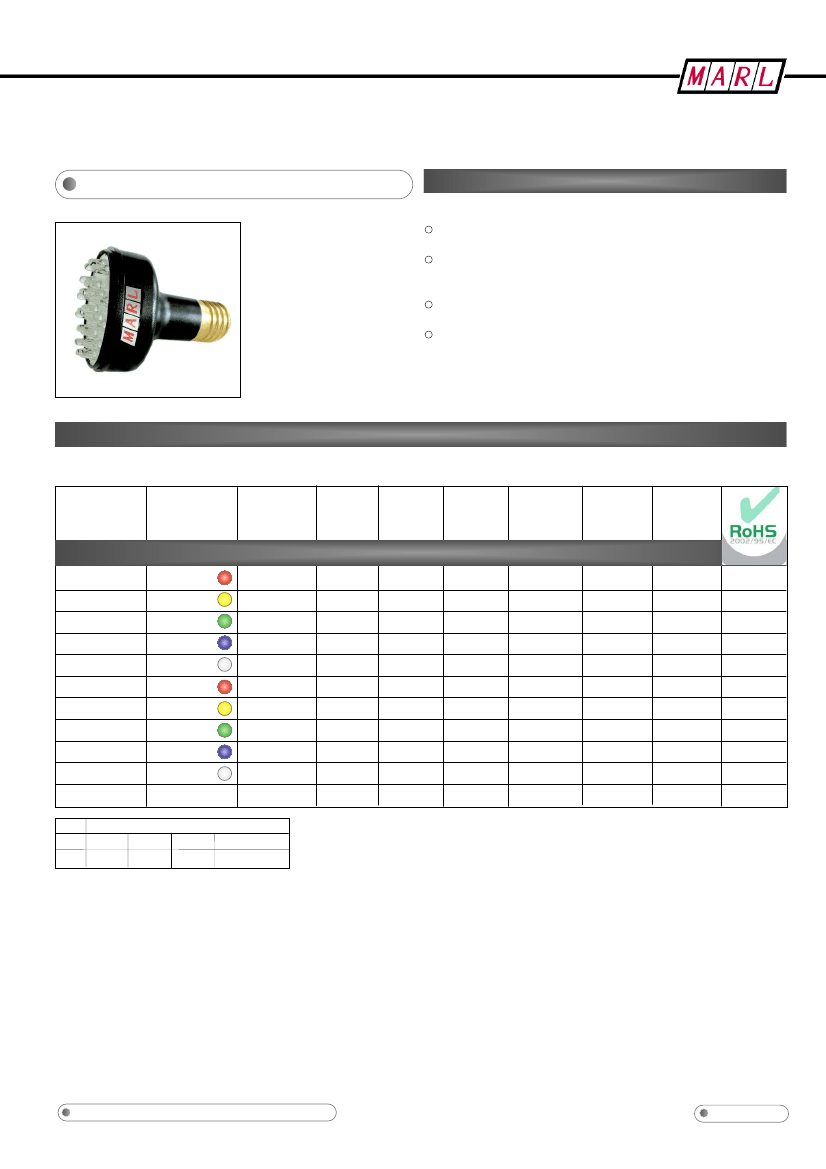

FILAMENT REPLACEMENT LEDs - Multi-LED Cluster

FEATURES

217 SERIES

PACK QUANTITY = 1 PIECE

Direct replacement for E27 (European Standard)

BA22 (UK) and E26 (North American Standard) also

available

20 LED Cluster

Optional polycarbonate lens

SPECIFICATIONS

Ordering Information & Typical T

echnical Characteristics (T

a = 25°C)

Mean Time Between Failure = 100,000 Hours.

PART NUMBER

COLOUR

Luminous intensity figures refer to the unmodified discrete LED.

VOLTAGE

Vopr

CURRENT

lopr

LUMINOUS

lv@20mA

WAVE

λp

OPERATING

opr

STORAGE

stg

LENS

AC/DC

INTENSITY

LENGTH

TEMP

HIGH INTENSITY

217-501-22-65

217-521-22-65

217-532-22-65

217-930-22-65

217-997-22-65

217-501-75-65

217-521-75-65

217-532-75-65

217-930-75-65

217-997-75-65

UNITS

Red

Yellow

Green

Blue

Cool White

Red

Yellow

Green

Blue

Cool White

Water Clear

24 Vdc

110 Vac

11000

16000

23000

7000

14000

11000

16000

23000

7000

14000

mcd

643

591

527

470

*See below

643

591

527

470

*See below

-40 ~ +95^

-40 ~ +100

Yes

997

0.296

0.276

*Typical

emission colour cool white

0.283

0.330

^ = Products must be derated according to the derating information. Each derating graph refers to

specific LEDs.

Appropriate LED numbers shown. - Refer to page 3.

0.305

0.360

0.318

Intensities (lv) and colour shades of white (x,y co-ordinates) may vary between LEDs within a batch.

How to Order:

website: www.marl.co.uk • email: sales@marl.co.uk

•

elephone +44 (0)1229 582430

•

Fax: +44 (0)1229 585155

relating to either products or service.

for products or service.

The information contained in this datasheet does not constitute part of any order or contract and should not be regarded as a representation

Marl International reserve the right to alter without notice the specification or any conditions of supply

Issue 1

Page 1 of

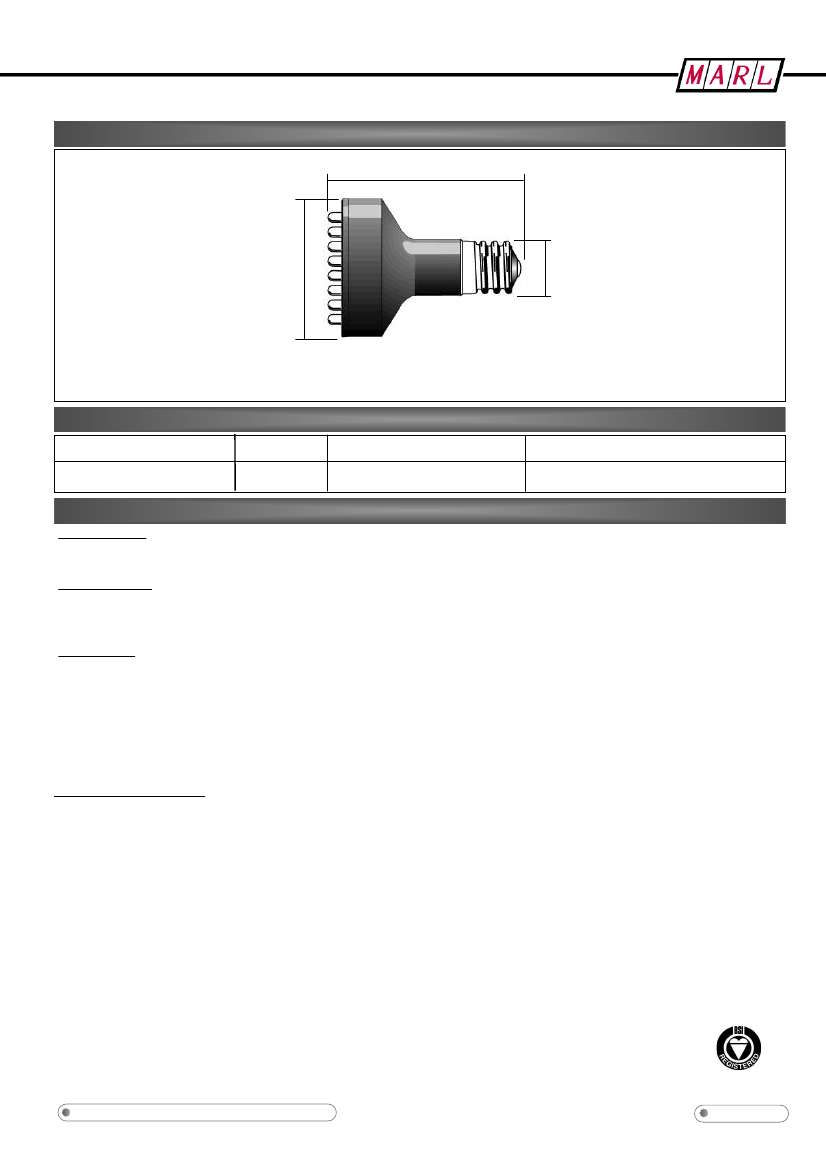

217 Series

Dimensions in mm (Typical)

Not to scale

Ø68.5

TECHNICAL INFORMATION

Lamp Base Style

E27 Filament Base

Series

217

Metric Equivalent (mm)

Maximum Power Dissipation (mW)

2500

DESIGN CONSIDERATIONS

Single-Chip LEDs

All devices feature water clear high intensity LEDs as standard.

Product Evaluation

Filament Replacement LEDs have been specifically designed to meet the primary objective of providing improved reliability. As this product range

is suitable for both new-build and retro-fit, (sometimes in very old systems), a wide range of illuminated lamp holders can be encountered. Due to

subjectivity, evaluation of the LED

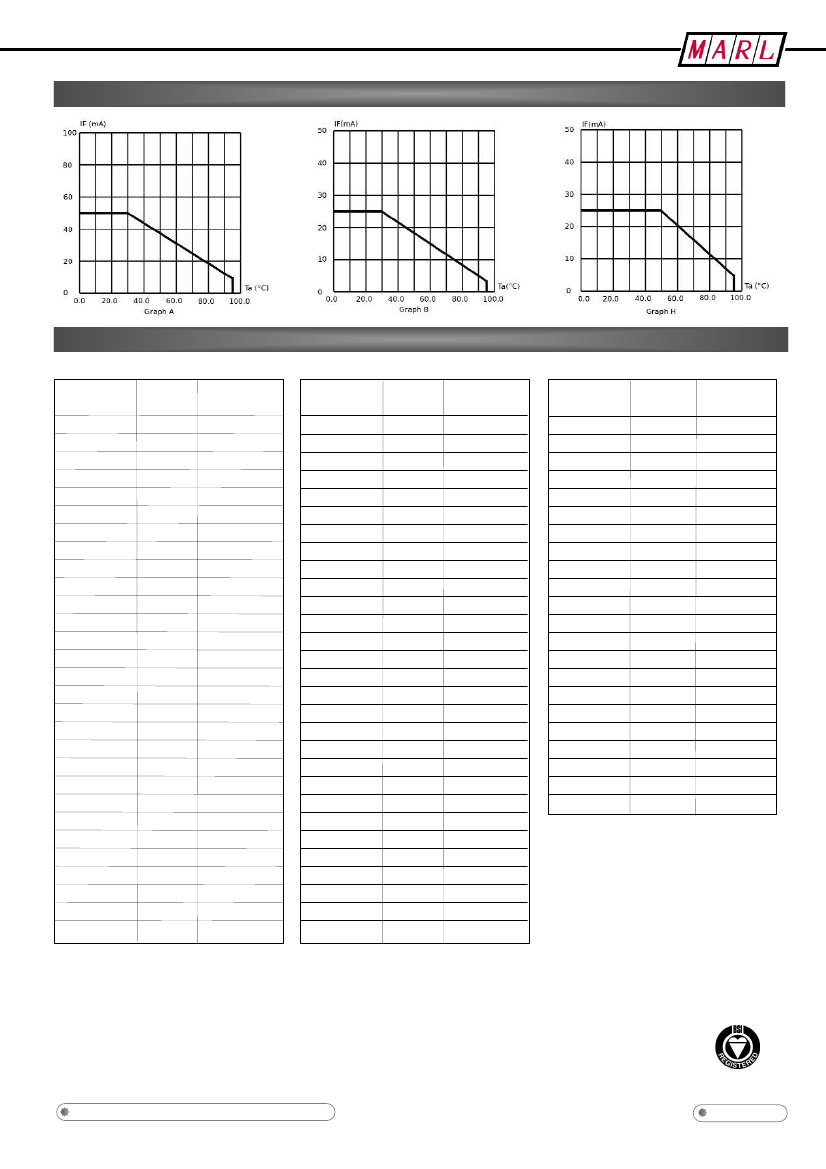

Power Derating

The forward voltage/current value of an LED is dependant upon the ambient temperature of the environment in which it is operated. Therefore,

recommendation regarding operating voltages and currents is given in order to address these temperature effects. This recommendation is

care must be taken to operate the LED at the correct voltage/current values, depending upon the ambient temperature. Consequently, a

termed ‘de-rating’.

It is usual for forward voltages and currents to be specified for ambient temperature of 25°C. However, because the values of these qualities vary

with temperature, Marl should be contacted if the device is to be operated at a temperature significantly higher than 25°C.

Marl accept no liability for any product that is operated higher than the stated voltage.

Electro-static Discharge (ESD)

Build up of electrostatic discharge occurs in many situations involving people moving and handling products. The range of possible situations is

very diverse but voltage levels as high as several thousand volts can and do arise in many individual situations. When an operator charged up to

these levels handles a ‘static sensitive device’, there is a very probable likelihood that the device will be irreversibly damaged. It is essential that

precautions are taken at all stages during manufacture and assembly of these products. Although LEDs were never considered to be static

sensitive devices, changes in manufacturing technology and materials used to produce higher intensity products over a large range of the

despatch. We recommend all users of LED based products follow the guidelines of BS 100015.

Note:

All luminous intensity figures refer to the unmodified discrete LED.

wavelength spectrum have changed this. Marl has an approved system of ESD control from goods in, through production and into final packing and

How to Order:

website: www.marl.co.uk • email: sales@marl.co.uk

•

elephone +44 (0)1229 582430

•

Fax: +44 (0)1229 585155

relating to either products or service.

for products or service.

The information contained in this datasheet does not constitute part of any order or contract and should not be regarded as a representation

Marl International reserve the right to alter without notice the specification or any conditions of supply

Ø22.1

Approved Manufacturer

BS EN ISO 9001:2000

Issue 1

Page 2 of
