PLP5-2-125RD datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PLP5-2-125RD

Preview

PLP5-2-125RD: DescriptionOptical Pipe,; CategoryLED optoelectronic/LED photoelectric; File Size106KB，2 Pages; ManufacturerBivar

Download Datasheet Parametric View All

PLP5-2-125RD Overview

Optical Pipe,

PLP5-2-125RD Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Optoelectronic device types	OPTICAL PIPE
Base Number Matches	1

Preview

Download Datasheet

View All

REV.

DESCRIPTION

DATE

APPROVED

G

Mounting Hole Tolerance Update

H

Updated General Specifications Note 1.

J

Updated For Concavity Face Clarification.

K

Added Panel Thickness.

L

Added Color Options, Sheet #2.

01/14/10

10/01/12

07/29/14

05/01/15

01/22/16

T. Y.

J. C.

X

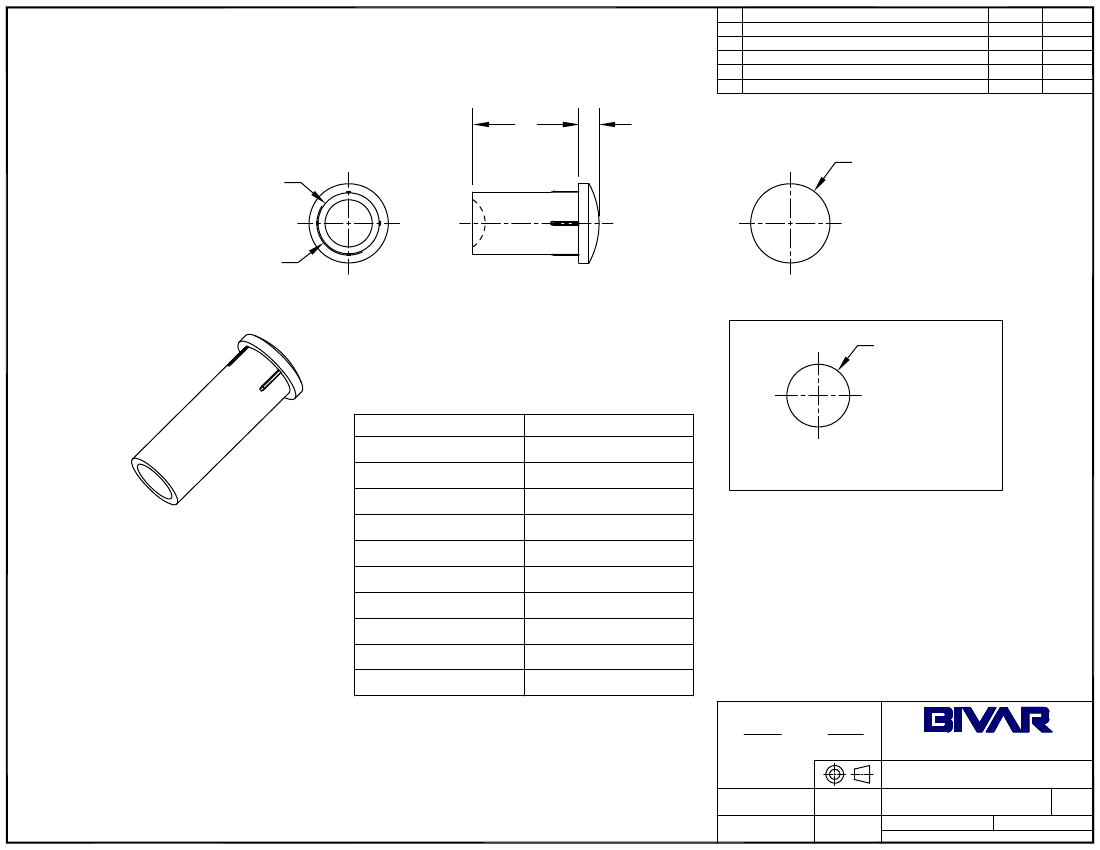

Ø.152 [Ø3.9mm]

LIGHT PIPE

Ø.158 [Ø4.0mm]

REF.

0.050 [1.3mm]

Ø.197 [Ø5.0mm]

FLANGE

Ø.156+.001

-.002

Part No.

PLP5-2-125

PLP5-2-250

PLP5-2-350

PLP5-2-375

PLP5-2-500

PLP5-2-625

PLP5-2-750

PLP5-2-1000

PLP5-2-1250

PLP5-2-1500

X = Body Length

0.125 (3.2mm)

0.250 (6.4mm)

0.350 (8.9mm)

0.375 (9.5mm)

0.500 (12.7mm)

0.625 (15.9mm)

0.750 (19.0mm)

1.000 (25.4mm)

1.250 (31.8mm)

1.500 (38.1mm)

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

Recommended Mounting Holes

Panel Thickness: 0.047"-0.093"

®

2. MATERIAL: POLYCARBONATE, 94V-0, CLEAR.

1. GENERAL SPECIFICATIONS: BIVAR MOLDED COMPONENT SPECIFICATION BV00-E101

and BSMC-1001.

.X

.XX

.XXX

DESIGNED:

± .1

± .01

± .005

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

TITLE:

PRESS-FIT PANEL MOUNT

LIGHT PIPE, LOW PROFILE ROUND, 5mm

DATE:

Michael Chen

CHECKED:

03/05/03

DATE:

PART NO:

REVISION:

PLP5-2-XXX

L

D. Green

03/05/03

CAGE CODE : 32559

SHEET #

1

OF

2

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
