228RCZ025M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 228RCZ025M

228RCZ025M: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 25V, 2200uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size82KB，4 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/

Download Datasheet Parametric View All

228RCZ025M Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 25V, 2200uF, THROUGH HOLE MOUNT, RADIAL LEADED

228RCZ025M Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	2200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
Custom functions	Special Tol., Pack, Leads Also Available
diameter	12.5 mm
dielectric materials	ALUMINUM (WET)
leakage current	0.55 mA
length	40 mm
Manufacturer's serial number	RCZ
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	Ammo Pack; Tape
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
ripple current	2390 mA
series	RCZ(25V)
surface mount	NO
Delta tangent	0.18
Terminal pitch	5 mm
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

Electrolytic Capacitors

RCZ

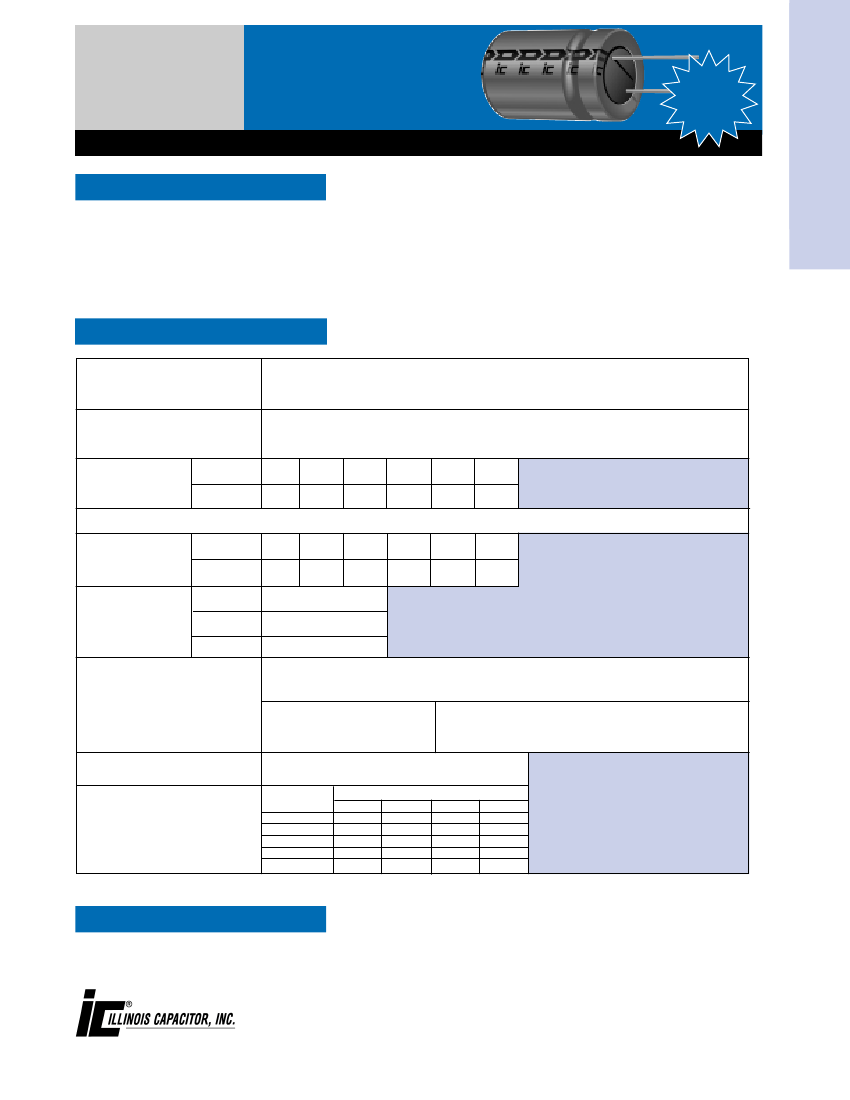

FEATURES

+ 105°C High Frequency

Low Impedance Radial

Lead Aluminum

Electrolytic Capacitors

NEW!

For all high frequency switching power supplies

Highest Reliability, up to 5000 hours

Low Impedance

Wide capacitance range 10 µF to 8200 µF

Voltage Range: 10 WVDC to 63 WVDC

SPECIFICATIONS

Solvent tolerant end seals standard

Capacitance Tolerance

± 20% at 120Hz, 20°C

Operating Temperature Range

Dissipation Factor

120Hz, 20°C

WVDC

tan

.19

-55°C to +105°C

.16

.14

.12

.10

Note:

For above D.F. specifications, add .02 for every 1,000 µF above 1,000 µF

Impedance Ratio

(Max.) @120Hz

WVDC

-55°C/20°C

WVDC

63 WVDC

2 minutes

.01 CV

Leakage Current

Time

5,000 hours, at +105°C with rated WVDC and ripple current for D>10 mm

(2000 hrs. for D 6.3 mm, 3000 hrs. for D = 8 and 10 mm.)

Load Life

Capacitance change

Dissipation factor

Leakage current

20% of initial measured value

200% of initial specified value

100% initial specified value

Shelf Life

1,000 hours at +105°C with no voltage applied.

Units will meet load life specifications

Capacitance

(µF)

Frequency (Hz)

Ripple Current Multipliers

C 180

180<C 560

560<C 1800

1800<C 3900

C>3900

120

0.40

0.50

0.60

0.75

0.85

0.75

0.85

0.87

0.90

0.95

10k

0.90

0.94

0.95

0.98

100k

1.00

SPECIAL ORDER OPTIONS

•

Special tolerances: ±10% (K),-10% + 30% (Q)

•

Epoxy end seal

(See pages 7 thru 11)

Tape and Reel/Ammo Pack

•

Cut, Formed, Cut and Formed Leads and Snap In Leads

3757 W. Touhy Ave., Lincolnwood, IL 60712 • (847) 675-1760 • Fax (847) 673-2850 • www.illcap.com
