REVISION E
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. BURR ALLOWANCE: .003[.08] MAX.
3. PARTS TO BE MOLDED TO POSITION.
4. MINIMUM PULLOUT FORCE: 5 lbs[22.24 N].
5. CONTACT MUST BE INSERTED UNTIL RETENTION FEATURE LOCKS INTO PLACE.
6. ALL FINISHED GOODS ARE TO BE LAYER PACKAGED IN SHIPPING.
7. ONLY AVAILABLE IN TIN PLATING.
C3
8. ALL PARTS TO PASS ELECTRICAL TEST UPON ASSEMBLY (INCLUDING HI-POT
TESTAT 1000 VOLTS DC).
9. APPLICATIONS INVOLVING SEVERE BENDING REQUIRE 6" MINIMUM
CABLE LENGTH.
10. SEE DWL-01-XXX-X-XX.XX-XX-XX FOR WIRE PROCESSING AND CRIMP
DIMENSIONS
11. NOTE DELETED.
No OF POSITIONS
-02 THRU -10
PMSS-XX-XXXX-XX-XX.XX-X-XXX
OPTION
[AVAILABLE ON -D END OPTION ONLY
& APPLIES TO END 2 HOUSING]
-LUS: LATCH UP, STRAIGHT
(SEE FIG. 3, SHEET 2)
-LDS: LATCH DOWN, STRAIGHT
(SEE FIG. 4, SHEET 2)
END OPTION
-S: SINGLE END
-D: DOUBLE END (SELECT OPTION)
ASSEMBLED LENGTH
SPECIFY IN INCHES (03.00 INCH MINIMUM)
[USE DWC-XX-XX-XXX]
DO NOT
SCALE FROM
THIS PRINT
WIRE GAUGE (AWG)
[SEE TABLE 1]
-16
-18
-206
-203
-22
-24
WIRE COLOR
LEAVE BLANK FOR ALL BLACK WIRE
C: COLOR CODED WIRE
[SEE COLOR SEQUENCE TABLE,
SHEET 2]
LEAD STYLE
-SP: STANDARD POWER (C-169-XX-SP-T)
-HP: HIGH POWER (C-169-XX-HP-T)
12. FOR LENGTHS LESS THAN 12 IN, TOLERANCE SHALL
BE ±.125[3.18]. FOR OTHER LENGTHS, TOLERANCES SHALL BE ±2%.
(No OF POS x .165[4.19])
+ .040[1.02]) REF
02
01
.313 7.95 REF
.213 5.41 REF

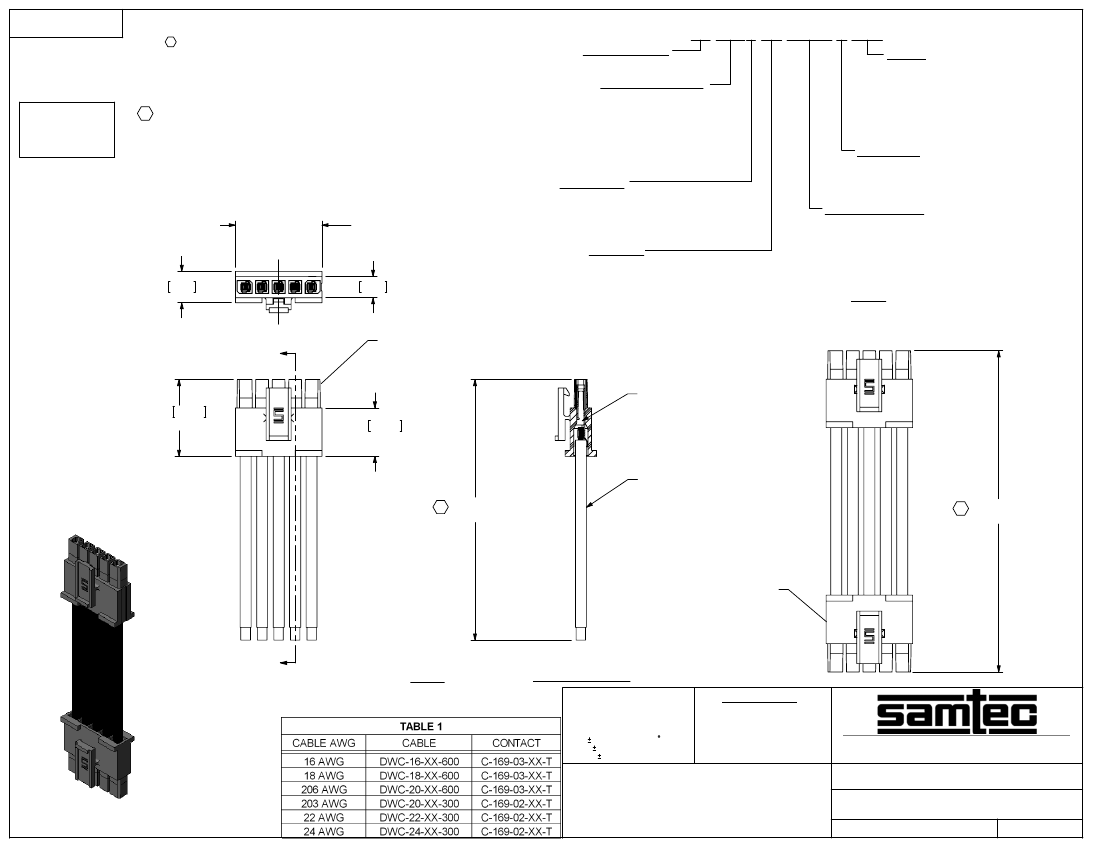

PMSS-05-22-XX-XX.XX-D-LUS SHOWN
[DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1]
"A"
IPBD-XX-S
FIG. 2
.770 19.56
REF
C-169-XX-XX-T
(SEE TABLE 1)
.485 12.32
REF
DWC-XX-10-600
(SEE TABLE 1)
C2
C1
XX.XX
(SEE NOTE 12)
XX.XX
(SEE NOTE 12)
IPBD-XX-S
"A"
FIG. 1
PMSS-05-22-XX-XX.XX-S SHOWN
SECTION "A"-"A"
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
c:\enterprisevault\DWG\MISC\MKTG\PMSS-XX-XXXX-XX-XX.XX-X-XXX-MKT.SLDDRW
HOUSING: VALOX 457, COLOR: NATURAL
CONTACT: PHOS BRONZE
CABLE; INSULATION: PVC
WIRE: TINNED COPPER
(NOT LEAD FREE)
.165[4.19] SOCKET DISCREET CABLE ASSEMBLY
BY:
DEAN P
PMSS-XX-XXXX-XX-XX.XX-X-XXX
04/14/2005
SHEET
1
OF
2
REVISION E

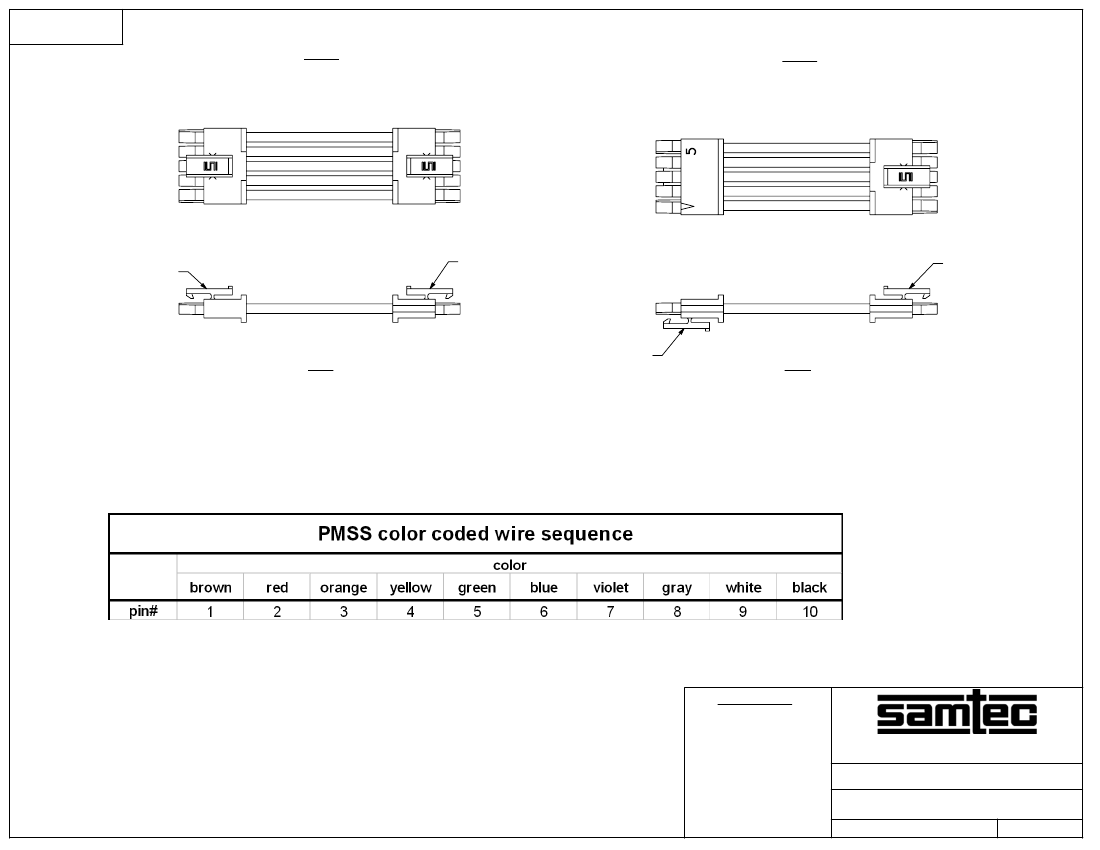

FIG. 3
PMSS-05-22-XX-XX.XX-D-LUS SHOWN
[DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1]
FIG. 4
PMSS-05-22-XX-XX.XX-D-LDS SHOWN
[DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1]
LATCH-
END 2
LATCH-
END 1
LATCH-
END 1
[LATCH UP]
-LUS
LATCH-
END 2
[LATCH DOWN]
-LDS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 0.875:1
.165[4.19] SOCKET DISCREET CABLE ASSEMBLY
c:\enterprisevault\DWG\MISC\MKTG\PMSS-XX-XXXX-XX-XX.XX-X-XXX-MKT.SLDDRW
BY:
DEAN P
PMSS-XX-XXXX-XX-XX.XX-X-XXX
04/14/2005
SHEET
2
OF
2
