BH6512FS-E2 datasheet, PDF - EEWORLD Datasheet

BH6512FS-E2: DescriptionAnalog Circuit, 1 Func, CMOS, PDSO32, SSOP-32; CategoryAnalog mixed-signal IC The signal circuit; File Size126KB，7 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BH6512FS-E2 Overview

Analog Circuit, 1 Func, CMOS, PDSO32, SSOP-32

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SSOP
package instruction	SSOP, SOP32,.3,32
Contacts	32
Reach Compliance Code	compliant
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT
JESD-30 code	R-PDSO-G32
JESD-609 code	e3/e2
length	13.6 mm
Number of functions	1
Number of terminals	32
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SOP32,.3,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	3 V
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply current (Isup)	6.5 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.4 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	5.4 mm
Base Number Matches	1

Optical disc ICs

4-channel PWM driver for CD

and MD use

BH6512FS / BH6513FS

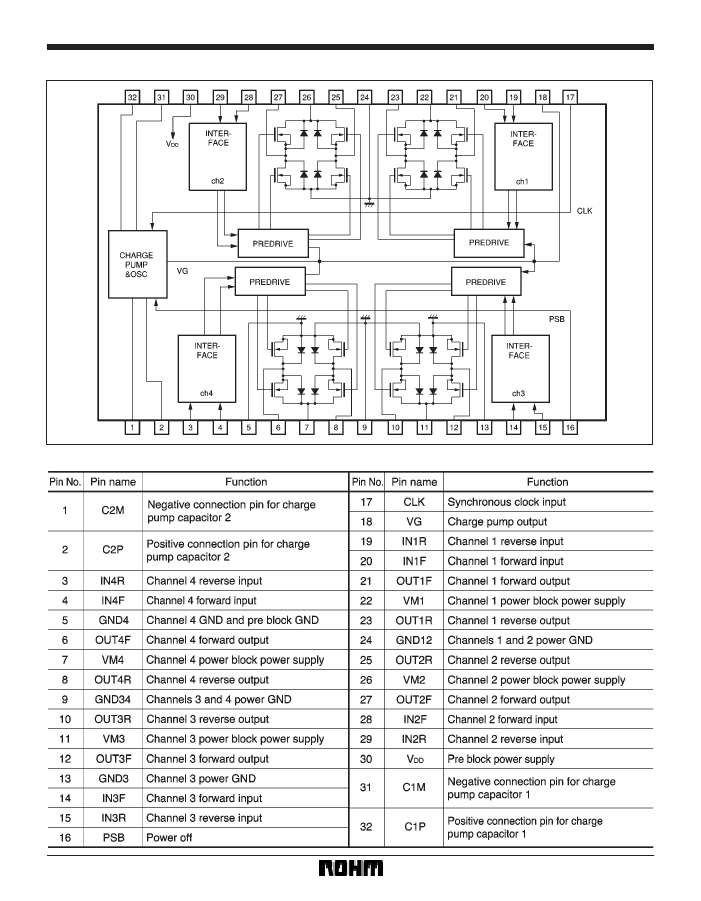

The BH6512FS / BH6513FS are 4-channel PWM drivers for driving the motors and actuators in CD and MD players.

MOSFET output stages are employed to keep power consumption down, and a charge pump circuit is included to multi-

ply the VG voltage.

FApplications

CD and MD players (portable units)

FFeatures

1) Four power MOS H-bridges.

2) Charge pump ( 3).

3) PWM input.

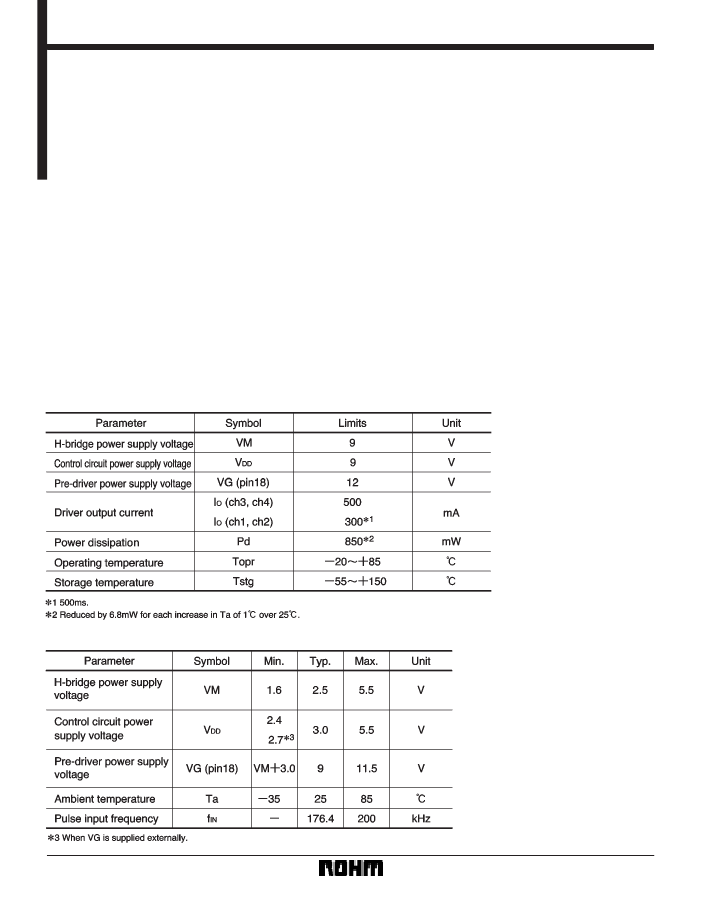

FAbsolute

maximum ratings (Ta = 25_C)

4) Low on-resistance.

5) Low power consumption.

6) Compact SSOP-A32 package.

FRecommended

operating conditions (Ta = 25_C)
