25JXA820M10X16 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 25JXA820M10X16

25JXA820M10X16: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 820uF, Through Hole Mount; CategoryPassive components capacitor; File Size93KB，4 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/

Download Datasheet Parametric View All

25JXA820M10X16 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 820uF, Through Hole Mount

25JXA820M10X16 Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	820 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	0.205 mA
Manufacturer's serial number	JXA
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
ripple current	1440 mA
surface mount	NO
Delta tangent	0.14
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

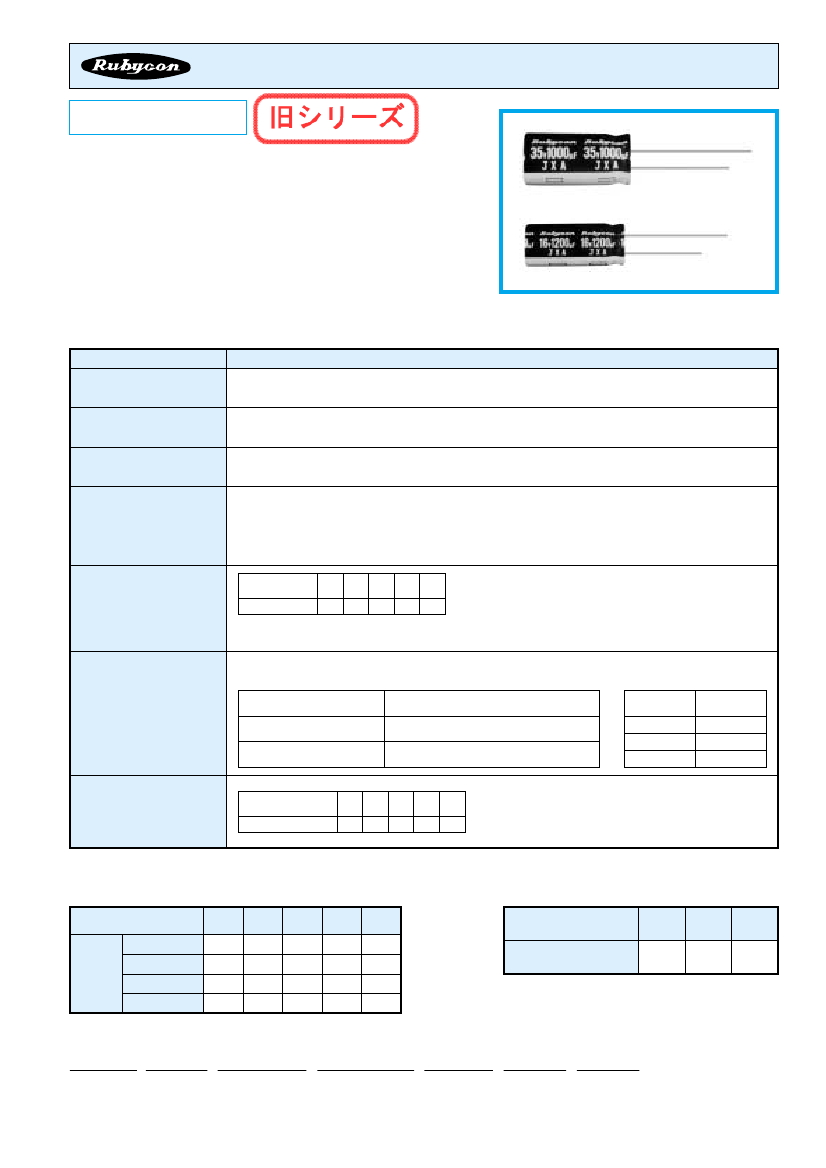

[最終受注期日

[2006/09]

小½アルミニウム電解コンデンサ

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

JXA

シリーズ

SERIES

105℃ ½インピーダンス品

105℃ Low impedance.

•

高周波インピーダンス規格を設定。

Low impedance at 100kHz with selected materials.

◆特長 FEATURES

◆規格表 SPECIFICATIONS

項目

Items

カテゴリ温度範囲

Category Temperature Range

特性

Characteristics

−55∼＋105℃

6.3∼35V.DC

±20％（20℃，120Hz）

I＝0.01CV又は3μAのいずれか大なる値以下（定格電圧印加2分後)

定格電圧範囲

Rated Voltage Range

静電容量許容差

Capacitance Tolerance

漏

れ

電

流

I＝0.01CV

or 3μA whichever is greater.

(After 2 minutes)

Leakage Current(MAX)

I＝漏れ電流(μA)

C＝定格静電容量(μF) V＝定格電圧(V)

Leakage Current Rated Capacitance Rated Voltage

定格電圧(V)

6.3 10 16 25 35

Rated Voltage

tanδ

0.22 0.19 0.16 0.14 0.12

（20℃，120Hz）

損失角の正接 (tanδ)

Dissipation Factor(MAX)

1000μFを越えるものは1000μF増す毎に上表の値に0.02を加えた値とする。

When rated capacitance is over 1000μF, tanδ shall be added 0.02 to the listed value with increase of every 1000μF.

105℃, 右表の時間定格電圧（リプル重畳）印加後、下記項目を満足すること。

After life test with rated ripple current at conditions stated in the table below, the capacitors shall meet the following requirements.

耐

Endurance

久

性

静電容量変化率

Capacitance Change

損失角の正接

Dissipation Factor

漏

れ

電

流

Leakage Current

初期値の±20％以内

Within ±20％ of the initial value.

規格値の200％以下

Not more than 200％ of the specified value.

規格値以下

Not more than the specified value.

ケース外径

Case Dia

φD≦6.3

φD=8

φD≧10

時間(hrs)

Life Time

2000

3000

5000

温

特

性

Low Temperature Stability

（インピーダンス比）

Impedance Ratio(MAX)

定格電圧(V)

6.3

Rated Voltage

（−55℃）（20℃） 4

（120Hz）

◆リプル電流補正係数 MULTIPLIER FOR RIPPLE CURRENT

（1）

周波数係数 Frequency coefficient

周波数

（Hz）

Frequency

（2）

周囲温度係数 Temperature coefficient

10k 100k≦

0.90

0.95

0.98

1.00

Ambient Temperature

Coefficient

60 50） 120

（

0.45

0.60

0.65

0.55

0.70

0.75

0.80

0.75

0.85

0.90

0.95

周囲温度

（℃）

係数

105

1.0

1.7

65≧

2.1

33μF

Coefficient

係数

47∼330μF

470∼1000μF

1200∼18000μF 0.75

◆呼称方法 PART NUMBER

□□□

定格電圧

Rated Voltage

JXA

シリーズ名

Series

□□□□□

定格静電容量

Rated Capacitance

□

静電容量許容差

Capacitance Tolerance

□□□

副記号

Option

□□

D×L

リード加工記号ケースサイズ

Lead Forming

Case Size
