10 Gb/s Dual Drive Mach-Zehnder (DDMZ) Modulator

Key Features

• Low differential drive voltage, typically 2 V

• Matching electro-optic amplitude and phase responses

• Wide optical bandwidth, compatible with full band

tunable lasers

• 12 GHz electro-optic (E/O) bandwidth

• Single-sided electrical I/O

Applications

• Long reach (LR) and very long reach

(VR) metro networks

• Long haul (LH), ultra long haul

(ULH), and submarine optical

transport networks

• Optical field processing for active

dispersion compensation at the

transceiver

• Duo-binary transmission at 40 Gb/s

• Bandwidth grooming

The JDSU Agile Optical Components family includes modulators, switches,

attenuators and tunable filters. These products provide the basis for spectrally

efficient DWDM transmission utilizing dispersion tolerant modulation, channel

monitoring, wavelength switching, remote power control and dynamic channel

selection. They support a wide range of flexible functionalities at lower

operational expenses for the Agile Optical Network. In addition, we have a

complete line of tunable lasers assemblies and sub-assemblies in our Agile

Transmission Module family.

The 10 Gb/s Dual Drive Mach-Zehnder (DDMZ) modulator is ideally suited for

use in long reach (LR) and very long reach (VR) metro network applications as

well as in long haul (LH) transmission systems. DDMZ modulators have been

specifically designed to yield well-behaved and matching electro-optic amplitude

and phase responses over a broad RF frequency range. They are ideally suited for

the processing of the optical field of a transceiver’s laser. This application can be

useful for active dispersion compensation.

In addition, DDMZ modulators have a wide optical bandwidth. They are compatible

with full band tunable lasers in either C or L band. Their low drive voltages make

them compatible with low power dissipating differential modulator drivers.

For mounting convenience and space efficiency, the DDMZ modulator is packaged

using JDSU’s compact (6-mm high) hermetic packaging technology. For

transceiver integration and mounting efficiency, the entire electrical I/O is located

on one side of the modulator. The RF inputs use GPO-style RF input connectors.

Compliance

• Telcordia GR-468

NORTH AMERICA

:

800 498-JDSU (5378)

WORLDWIDE

:

+800 5378-JDSU

WEBSITE

:

www.jdsu.com

10 GB/S DUAL DRIVE MACH-ZEHNDER (DDMZ) MODULATOR

2

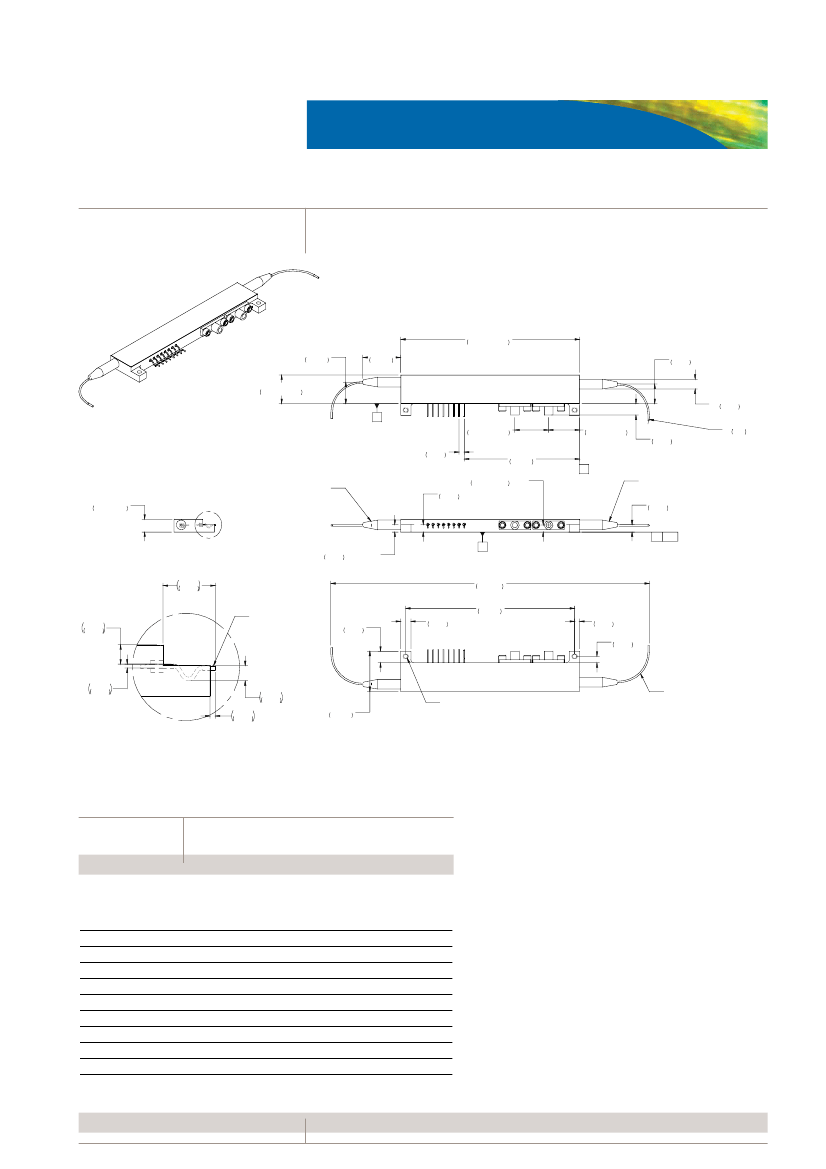

Dimensions Diagram

(Specifications in mm unless otherwise noted.)

3.450 ±.002

87.63 ±0.05

.42

10.54

.73

18.54

2 PL

.38

9.54

.552 ±.002

14.02 ±0.05

.19

4.72

2 PL

O

B

.650 ±.005

16.51 ±0.13

.100

2.54

7 PL

.132 ±.005

3.35 ±0.13

GPO

2.225

56.52

2 PL

.598 ±.005

15.19 ±0.13

.22

5.66

GPO

2 PL

R

MIN

.59 2 PL

15

C

INPUT

.14

3.49

2 PL

OUTPUT

.246 ±.004

6.25 ±0.1

.144

3.66

8 PL

r

.010

A

.25

6.37

.146 2 PL

3.71

MOUNTING FOOT

A

6.14

156.04

3.255

82.68

.09

2.36

DC PIN

MOUNTING AREA

.225

5.72

2 PL

.195

4.95

2 PL

10 9 8 7 6 5 4 3

.097

2.46

2

1

.125

3.18

2 PL

O

.018

0.46

MOUNTING FOOT

.03

0.65

.07

1.87

.78

19.74

#4-40 UNC-2B

2 PL

O

900um HYTREL

150mm/125mm HYTREL LENGTH

2 PL

DETAIL A

4:1

Pinout

1

2

3

4

5

6

7

8

9

10

Description

GPO RF port 1

GPO RF port 2

N/A

DC bias 2

DC bias 1

GND

N/A

10 GB/S DUAL DRIVE MACH-ZEHNDER (DDMZ) MODULATOR

3

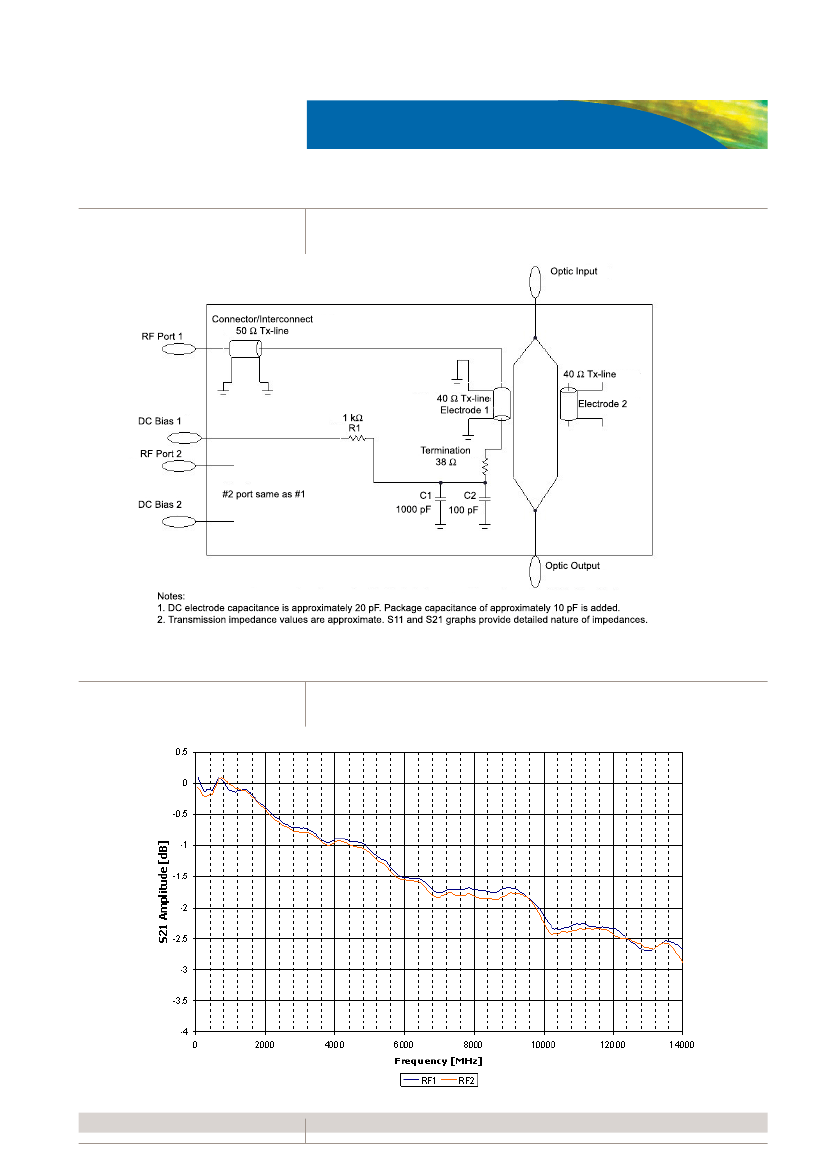

DDMZ Modulator Bias Circuit Diagram

DDMZ S21 Electro-optic Amplitude

Response Characteristics

10 GB/S DUAL DRIVE MACH-ZEHNDER (DDMZ) MODULATOR

4

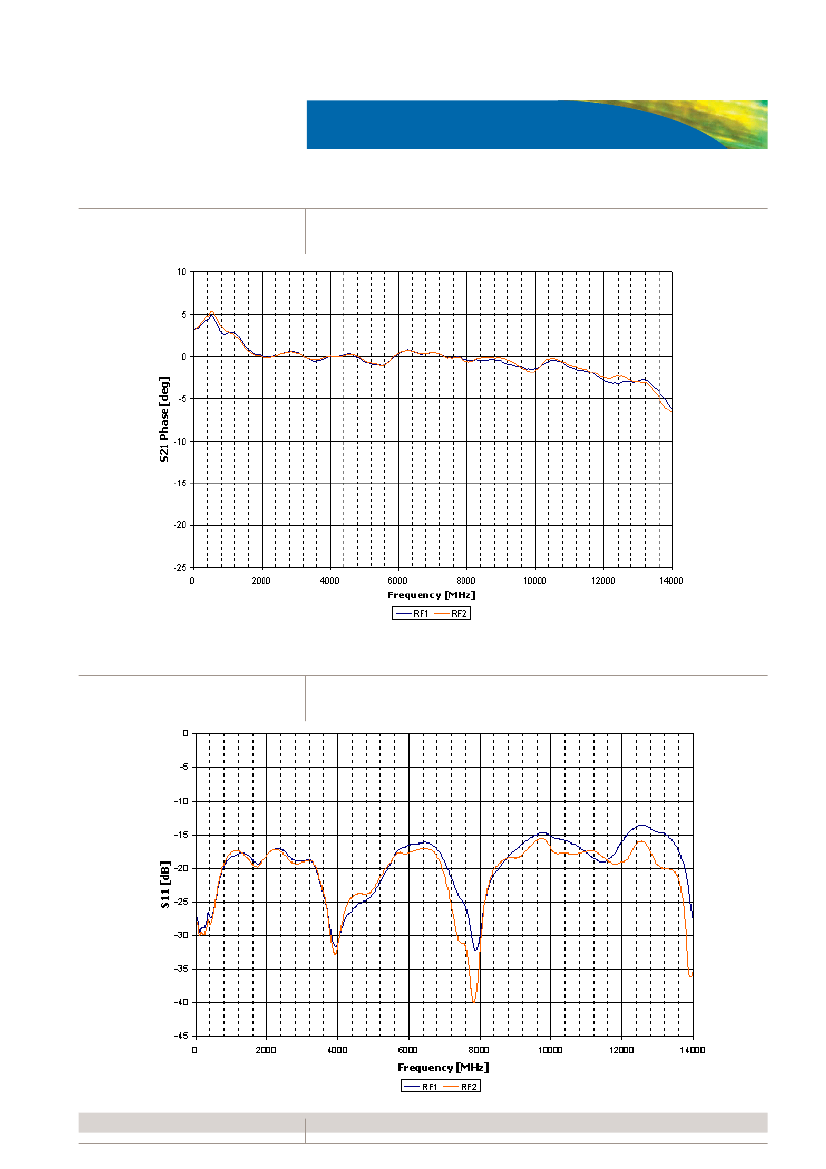

DDMZ S21 Electro-optic Phase

Response Characteristics

DDMZ S11 Characteristics

10 GB/S DUAL DRIVE MACH-ZEHNDER (DDMZ) MODULATOR

5

Absolute Maximum/Minimum Ratings

Parameter

Operating temperature

Storage temperature

RF input power

Optical input power

Minimum

0 °C

-40 °C

-

Maximum

75 °C

85 °C

24 dBm

16 dBm

Specifications

Parameter

Wavelength

Optical insertion loss

1

Optical return loss

S11

MZ extinction ratio

RF drive voltage

2

Δ

RF drive voltage

DC Vπ

DC bias voltage range

3

RF bandwidth

Amplitude ripple

S21 difference

Δ

from linear phase

RF timing skew

Condition

Minimum

1528 nm

2.5 dB

35 dB

-

25 dB

-

-15 V

12 GHz

-1.5 dB

-1 dB

-0.5 dB

-0.4 dB

-0.75 dB

-8°

-5 ps

Maximum

1564 nm

5 dB

-

-10 dB

-

2.6 V

0.2 V

2V

+15 V

-

1.5 dB

1 dB

0.5 dB

0.4 dB

0.75 dB

8°

5 ps

Input and output ports

130 MHz - 10 GHz

At 2 GHz

At 2 GHz (difference between RF1 and RF2)

Differential drive

EOL voltage rail

Linear fit (2 GHz - 15 GHz)

S21 amplitude difference (300 kHz - 2 GHz)

S21 amplitude difference (2 GHz - 12 GHz)

RF1 to RF2 (300 kHz - 2 GHz)

RF1 to RF2 (2 GHz - 8 GHz)

RF1 to RF2 (8 GHz - 12 GHz)

Deviation from a least squares fit line

(50 MHz - 12 GHz)

1. Measured at peak of DC bias transmission with no RF input and no optical connectors.

2. Maximum driving voltage to achieve 15 dB ER for 12.5 Gb/s 2

31

-1 PRBS signal over the operating wavelength and temperature ranges.

3. Maximum voltage range required to maintain optimum bias point over life and temperature.

Mechanical Specifications

Parameter

RF port connector

Input fiber type

Output fiber type

21105245

21084655

Cabling

Qualification standard

Qualification document references

Specification

GPO connectors

Fujikura PANDA-type single-mode polarization maintaining (PMF) fiber, silica, self mode stripping

SM-28

Fujikura PANDA-type single-mode polarization-maintaining (PMF) fiber, silica, self mode stripping

900 µm diameter loose tube Hytrel over buffered fiber

Telcordia GR-468

21105245-010
