BC23S03 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BC23S03

BC23S03: DescriptionPCB Connector; CategoryThe connector The connector; File Size56KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

BC23S03 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BC23S03	-	-	View	Buy Now

BC23S03 Overview

PCB Connector

BC23S03 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Connector type	PCB CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL (100)
Contact completed and terminated	TIN (200) OVER NICKEL (100)
DIN compliance	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	BC23S03
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

Amphenol

Battery Connector

1. Material:

Pin: Beryllium Copper

Insulator: Glass filled high temperature Engineering Plastics UL94V-

0, black

2. Finish:

15 mirco-inch(0.38 micron) Min gold plateing at mating area, 100-200

micro-inch(2.54-5.08 micron) pure tin at solder tail and 50-100 micro-

inch (1.27-2.54 micron) nickel under plated.

3. Electrical specifications:

Voltage rating: 250 Vac min

Current rating: 2.0 A min

Dielectric strength: 1000 Vac for 1 minute min

Insulation resistance: 1000 MEG ohm min

Contact resistance: 30 milliohm max

Operation temperature: -55°C to +125°C

4. Mechanical specifications:

Durability: 5,000 cycles

Normal force at mated position: 80g min

5. Packaging:

Parts to be packaged in anti-static tape and reel. All packaging

materials to be approved by Amphenol engineering.

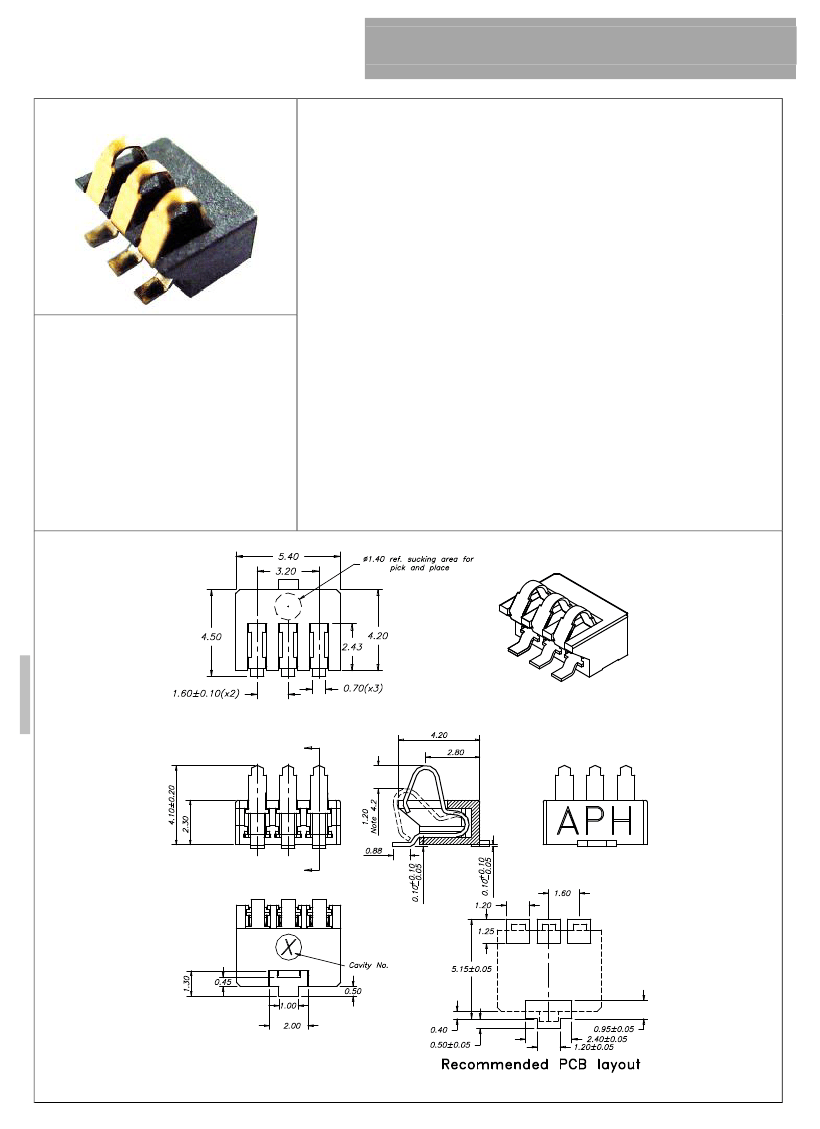

Part Number : BC23S03

3 Contacts Battery Connector

Straight SMT Mounting

- 2.3 mm height, 1.6 mm pitch

- 1.2 mm compression height

- Additional solder pad for force

balance

- Accept top press down and side

sliding battery mating

Battery

ASCA
