BC-25S-04: DescriptionPCB CONNECTOR, ROHS COMPLIANT; CategoryThe connector The connector; File Size61KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

BC-25S-04 Overview

PCB CONNECTOR, ROHS COMPLIANT

BC-25S-04 Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	PCB CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL (100)
Contact completed and terminated	TIN (200) OVER NICKEL (100)
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	BC25S04
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

Amphenol

Battery Connector

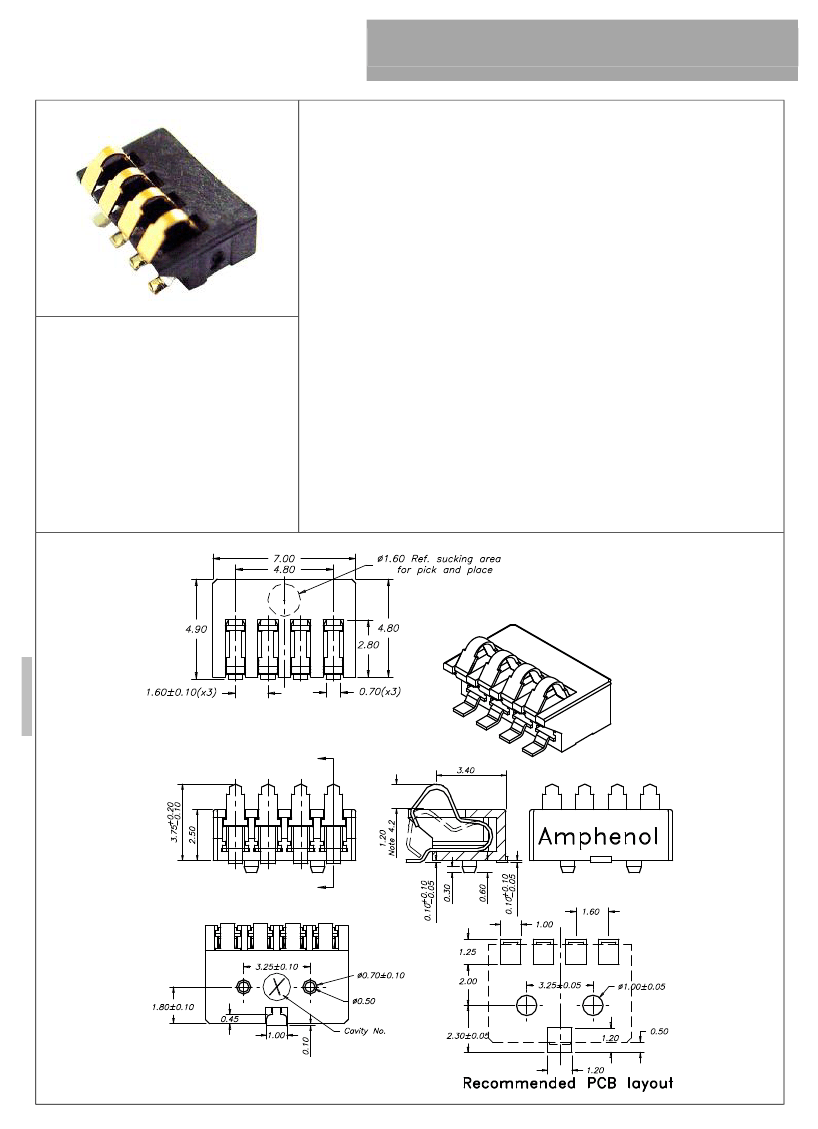

1. Material:

Pin: Beryllium Copper

Insulator: Glass filled high temperature Engineering Plastics UL94V-

0, black

2. Finish:

15 mirco-inch(0.38 micron) Min gold plateing at mating area, 100-200

micro-inch(2.54-5.08 micron) pure tin at solder tail and 50-100 micro-

inch (1.27-2.54 micron) nickel under plated.

3. Electrical specifications:

Voltage rating: 250 Vac min

Current rating: 2.0 A min

Dielectric strength: 1000 Vac for 1 minute min

Insulation resistance: 1000 MEG ohm min

Contact resistance: 30 milliohm max

Operation temperature: -55°C to +125°C

4. Mechanical specifications:

Durability: 5,000 cycles

Normal force at mated position: 80g min

5. Packaging:

Parts to be packaged in anti-static tape and reel. All packaging

materials to be approved by Amphenol engineering.

Part Number : BC25S04

4 Contacts Battery Connector

Straight SMT Mounting

- 2.5 mm height, 1.6 mm pitch

- 1.2 mm compression height

- Additional solder pad for force

balance

- Accept top press down and side

sliding battery mating

Battery

ASCA
