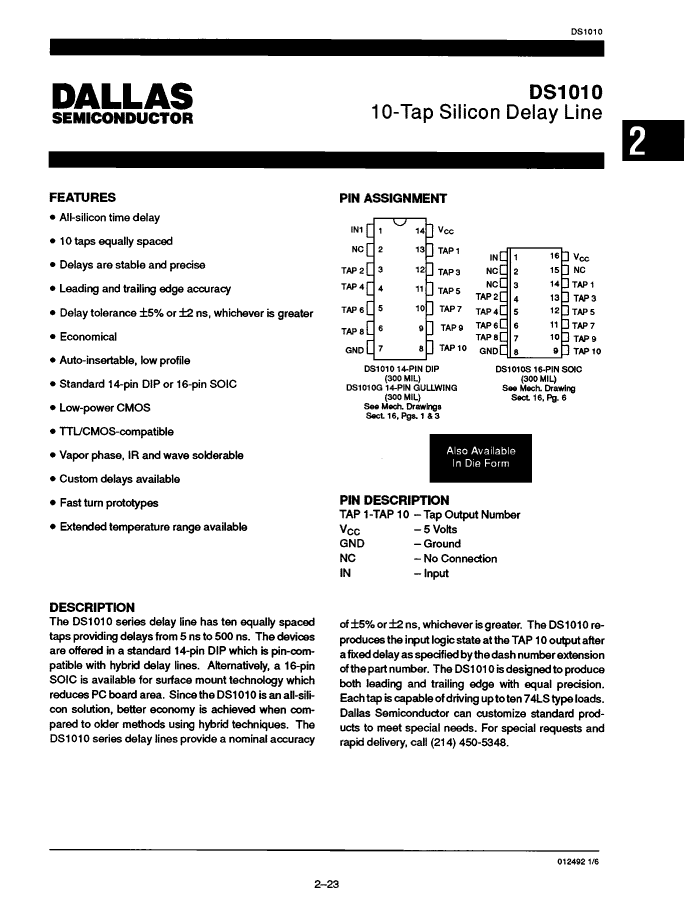

DS1010(DIE)-75 datasheet, PDF - EEWORLD Datasheet

DS1010(DIE)-75: DescriptionSilicon Delay Line, 1-Func, 10-Tap, True Output, CMOS, DIE; Categorylogic logic; File Size145KB，6 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric View All

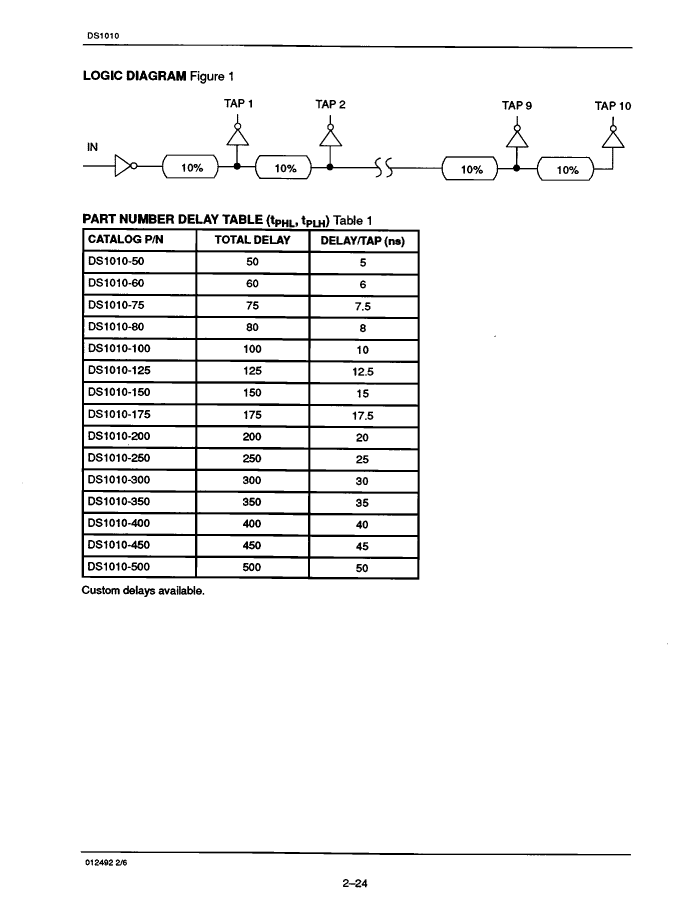

DS1010(DIE)-75 Overview

Silicon Delay Line, 1-Func, 10-Tap, True Output, CMOS, DIE

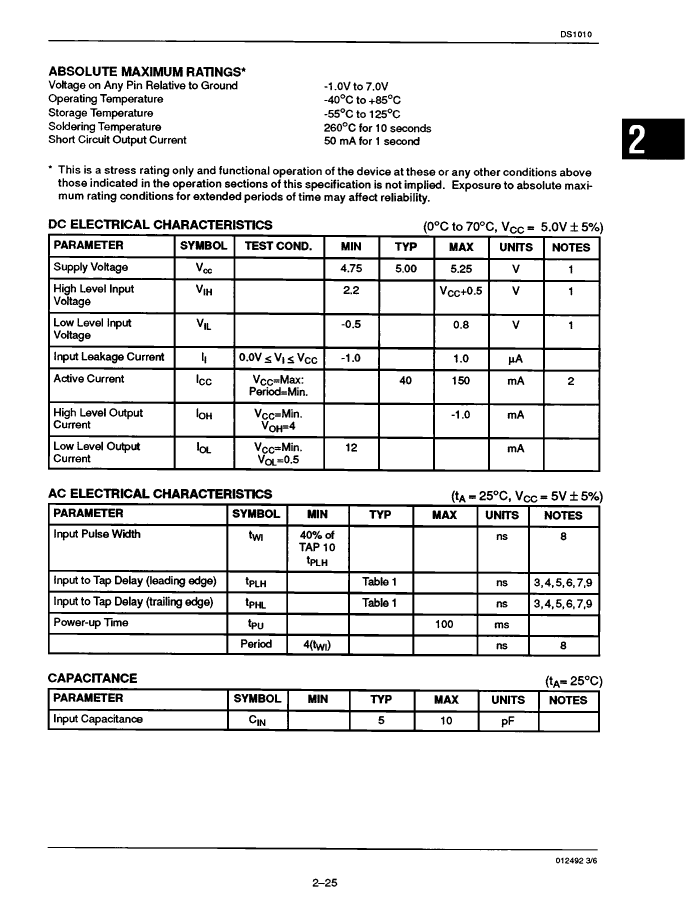

Parameter Name	Attribute value
package instruction	DIE
Reach Compliance Code	unknown
Other features	BOTH LEADING & TRAILING EDGE ACCURACY; MAX FAN OUT OF 10 74LS LOAD PER OUTPUT
series	CMOS/TTL
Input frequency maximum value (fmax)	8.33333 MHz
JESD-30 code	X-XUUC-N
Logic integrated circuit type	SILICON DELAY LINE
Number of functions	1
Number of taps/steps	10
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	TRUE
Package body material	UNSPECIFIED
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
programmable delay line	NO
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	NO LEAD
Terminal location	UPPER
Total delay nominal (td)	75 ns
Base Number Matches	1
