1241.2625.4

Description
Piezo Switch, SPST, Momentary, 0.1A, 60VDC, Wire Terminal, Panel Mount-threaded
CategoryMechanical and electronic products    switch
File Size206KB，2 Pages
ManufacturerSCHURTER
Websitehttp://www.schurterinc.com/
Download Datasheet Parametric Compare View All

1241.2625.4 Overview

Piezo Switch, SPST, Momentary, 0.1A, 60VDC, Wire Terminal, Panel Mount-threaded

1241.2625.4 Parametric

Parameter NameAttribute value
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresSPECIAL FUNCTION
body height24.5 mm
Body length or diameter27 mm
Maximum contact current (DC)0.1 A
Contact (DC) maximum rated R load.1A@60VDC
Maximum contact voltage (DC)60 V
Electrical life1000000 Cycle(s)
Manufacturer's serial number1241
Installation featuresPANEL MOUNT-THREADED
Maximum operating temperature60 °C
Minimum operating temperature-20 °C
sealIK02; IP67
surface mountNO
Switch actionMOMENTARY
switch functionSPST
Switch typePIEZO SWITCH
Termination typeWIRE
Base Number Matches1

Preview

Download Datasheet

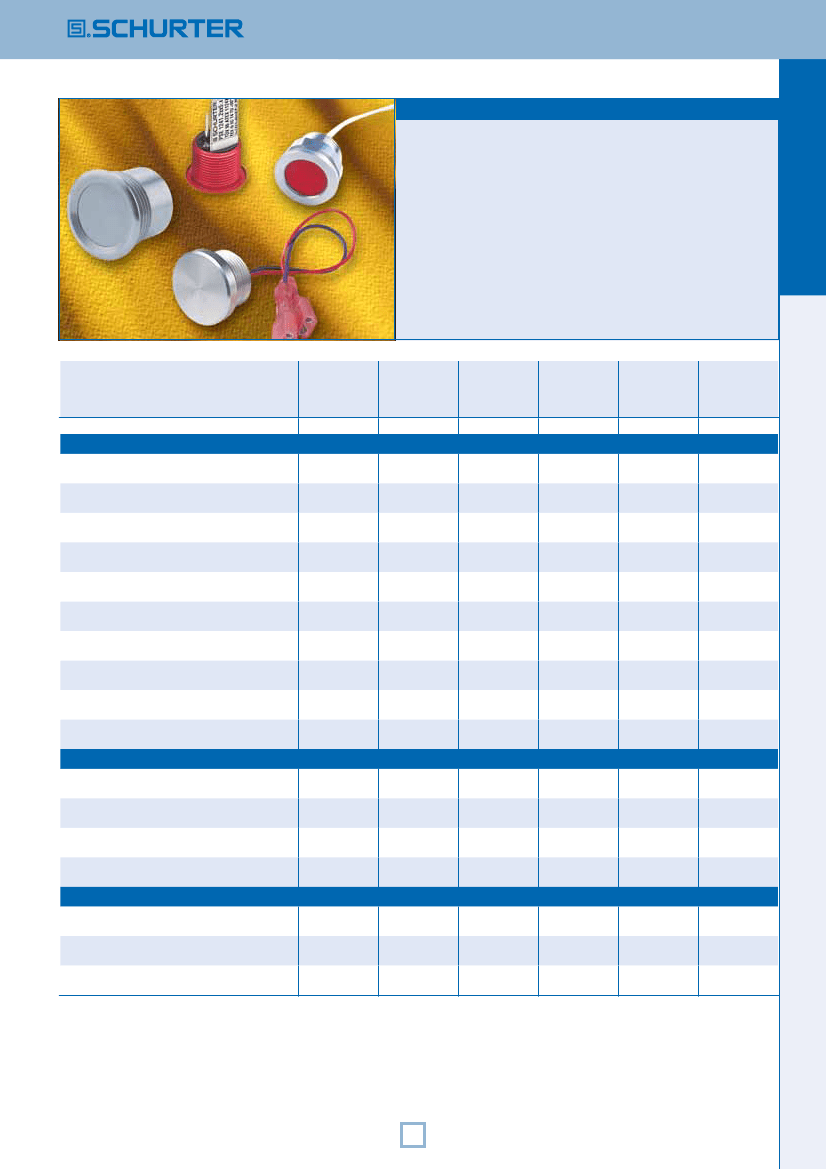

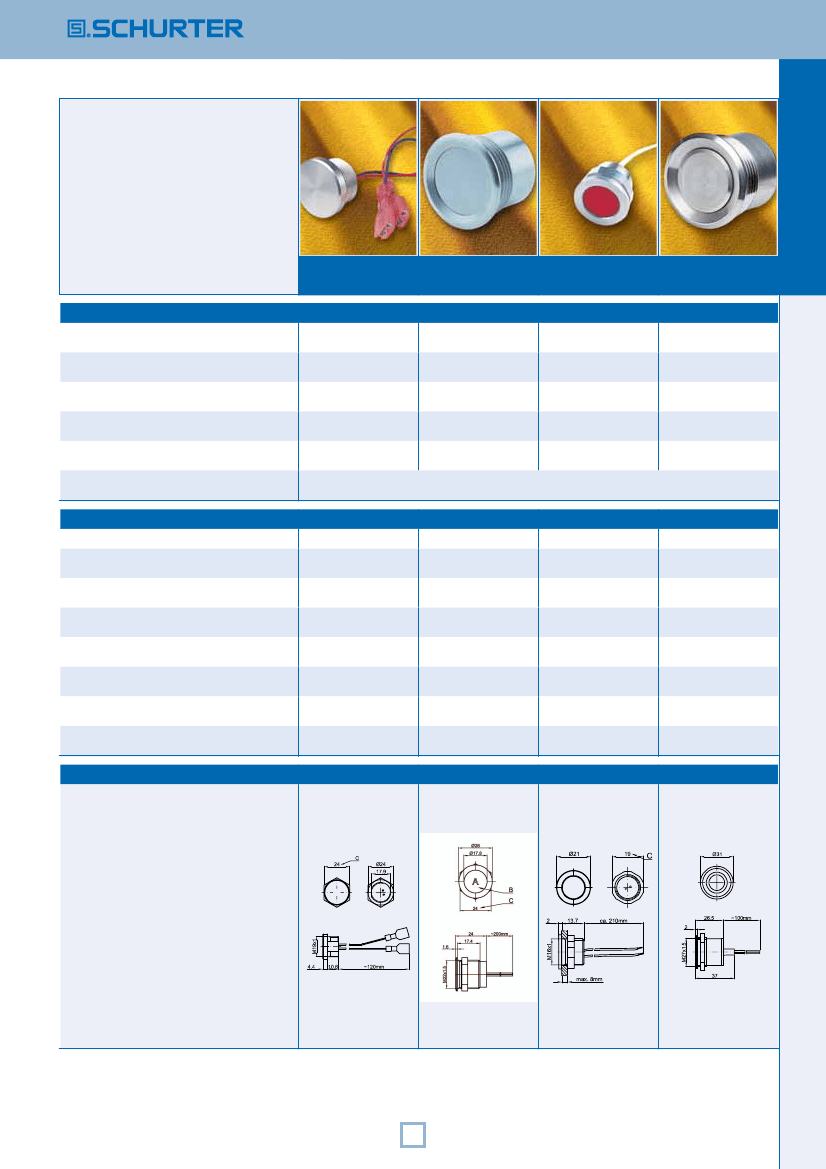

DATA PIEZO SWITCHES WITH SPECIAL FUNCTIONS
FEATURES
EX for use in explosive environment
IV for longer duration of actuation signal
ET for extended temperature range
HI with enhanced vandalism protection
Piezo switches with tactile feedback
Piezo switches with stroke
PIEZO SWITCHES
PSE
with Stroke
42 / 60
100
1
1
> 10
< 20
30
20 - 1000
free polarity
N.O.
4.25
2
2.5
IK 02
-20 to +60
-20 to +60
IP 67
Type
Electrical Data
Switching Voltage max.
Switching Current max.
Breaking Capacity max.
[VAC/DC]
[mA]
[W]
PSE
EX-Version
PSE
Prolonged
Signal
IV
PSE
Extended
Temperature
Range ET
PSE
High Impact
HI
PSE
with Tactile
Feedback
24 / 24
40
0.96
20
> 10
< 20
30
20 - 1000
free polarity
N.O.
42 / 60
2600
15.6
20
> 10
<5
30
20 - 50.000
free polarity
N.O.
50
150
0.4
10
>5
< 7.5
25
min. 40
poled
N.O.
42 / 60
100
1
20
> 10
< 20
30
20 - 1000
free polarity
N.O.
42 / 60
100
1
1
> 10
< 20
30
20 - 1000
free polarity
N.O.
Lifetime (at Rated Breaking Capacity) [mill.]
Insulation Resistance (OFF = not actuated)
[MΩ]
Initial Contact Resistance (ON = actuated)
[Ω]
Capacity
[pF]
N.O. Closing Impulse Duration (depending
on actuating force, time, speed)
[ms]
Contact Configuration
Switching Function
Mechanical Data
Actuating Force
Actuating Travel
Starting Torque
[N]
[mm]
[Nm]
1-3
0.002
2.5
IK 02
1-3
0.002
2.5
IK 02
1-3
0.002
2.5
IK 02
1.5 - 3
0.002
2.5
IK 06
3.8
0.8
2.5
IK 02
IK Protection Class (Shock Protection) [IK]
Climatical Data
Operating Temperature
Storage Temperature
IP Protection Class
[°C]
[°C]
[IP]
-20 to +60
-20 to +60
IP 69K
-20 to +60
-20 to +60
IP 69K
-40 to +85
-40 to +85
IP 69K
-40 to +85
-40 to +85
IP 67
-20 to +60
-20 to +60
IP 67
13

1241.2625.4 Related Products

1241.2625.4 1241.2625.1 PS3BM20-215GDBOOT-U CR254-00.5T2R84 1241.2625.7 1241.3994 1241.2625.5
Description Piezo Switch, SPST, Momentary, 0.1A, 60VDC, Wire Terminal, Panel Mount-threaded Piezo Switch, SPST, Momentary, 0.1A, 60VDC, Wire Terminal, Panel Mount-threaded Board Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Plug Fixed Resistor, Wire Wound, 3W, 2.84ohm, 0.5% +/-Tol, 20ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT Piezo Switch, SPST, Momentary, 0.1A, 60VDC, Wire Terminal, Panel Mount-threaded Piezo Switch, SPST, Momentary, 0.1A, 60VDC, Wire Terminal, Panel Mount-threaded Piezo Switch, SPST, Momentary, 0.1A, 60VDC, Wire Terminal, Panel Mount-threaded
Reach Compliance Code compli compli unknown compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Other features SPECIAL FUNCTION SPECIAL FUNCTION ROHS COMPLIANT PRECISION SPECIAL FUNCTION SPECIAL FUNCTION SPECIAL FUNCTION
Manufacturer's serial number 1241 1241 PS3BM20 CR 1241 1241 1241
Maximum operating temperature 60 °C 60 °C 105 °C 350 °C 60 °C 85 °C 60 °C
Minimum operating temperature -20 °C -20 °C -40 °C -55 °C -20 °C -40 °C -20 °C
body height 24.5 mm 24.5 mm - - 24.5 mm 22.4 mm 24.5 mm
Body length or diameter 27 mm 27 mm - - 27 mm 22 mm 27 mm
Maximum contact current (DC) 0.1 A 0.1 A - - 0.1 A 0.1 A 0.1 A
Contact (DC) maximum rated R load .1A@60VDC .1A@60VDC - - .1A@60VDC .1A@60VDC .1A@60VDC
Maximum contact voltage (DC) 60 V 60 V - - 60 V 60 V 60 V
Electrical life 1000000 Cycle(s) 1000000 Cycle(s) - - 1000000 Cycle(s) 20000000 Cycle(s) 1000000 Cycle(s)
Installation features PANEL MOUNT-THREADED PANEL MOUNT-THREADED - THROUGH HOLE MOUNT PANEL MOUNT-THREADED PANEL MOUNT-THREADED PANEL MOUNT-THREADED
seal IK02; IP67 IK02; IP67 - - IK02; IP67 IK06; IP67 IK02; IP67
surface mount NO NO - NO NO NO NO
Switch action MOMENTARY MOMENTARY - - MOMENTARY MOMENTARY MOMENTARY
switch function SPST SPST - - SPST SPST SPST
Switch type PIEZO SWITCH PIEZO SWITCH - - PIEZO SWITCH PIEZO SWITCH PIEZO SWITCH
Termination type WIRE WIRE SURFACE MOUNT - WIRE WIRE WIRE
Base Number Matches 1 1 - - 1 1 1
