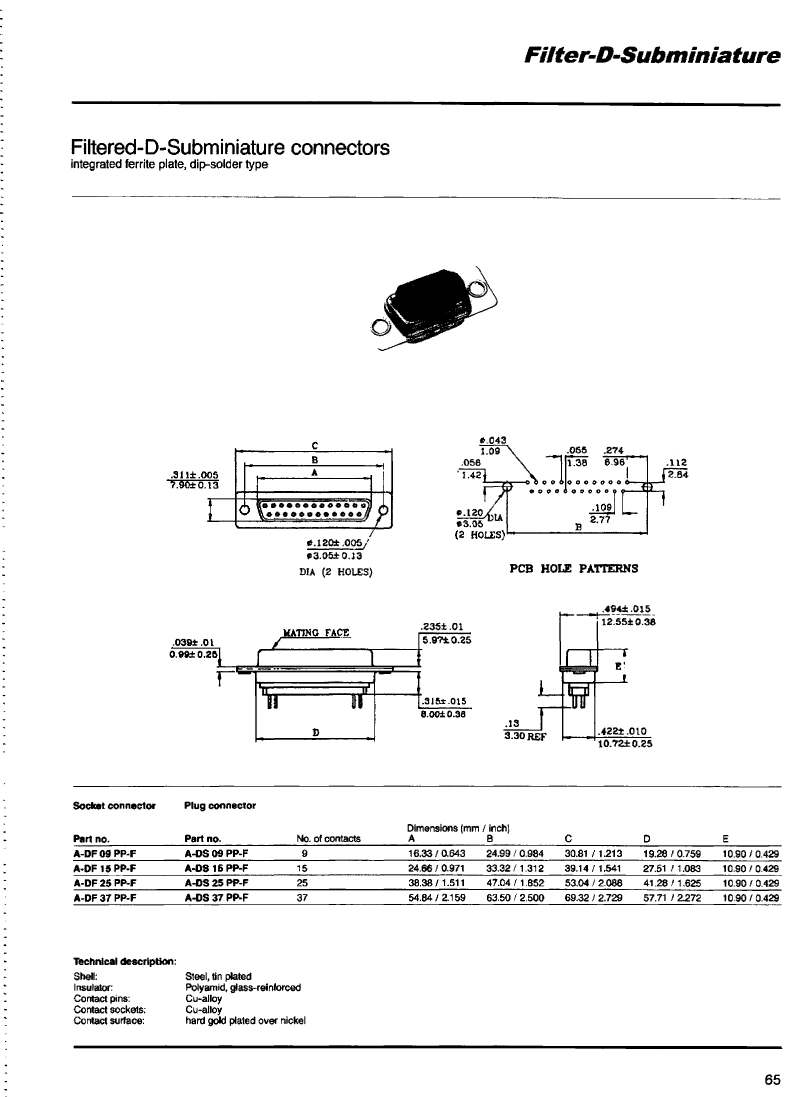

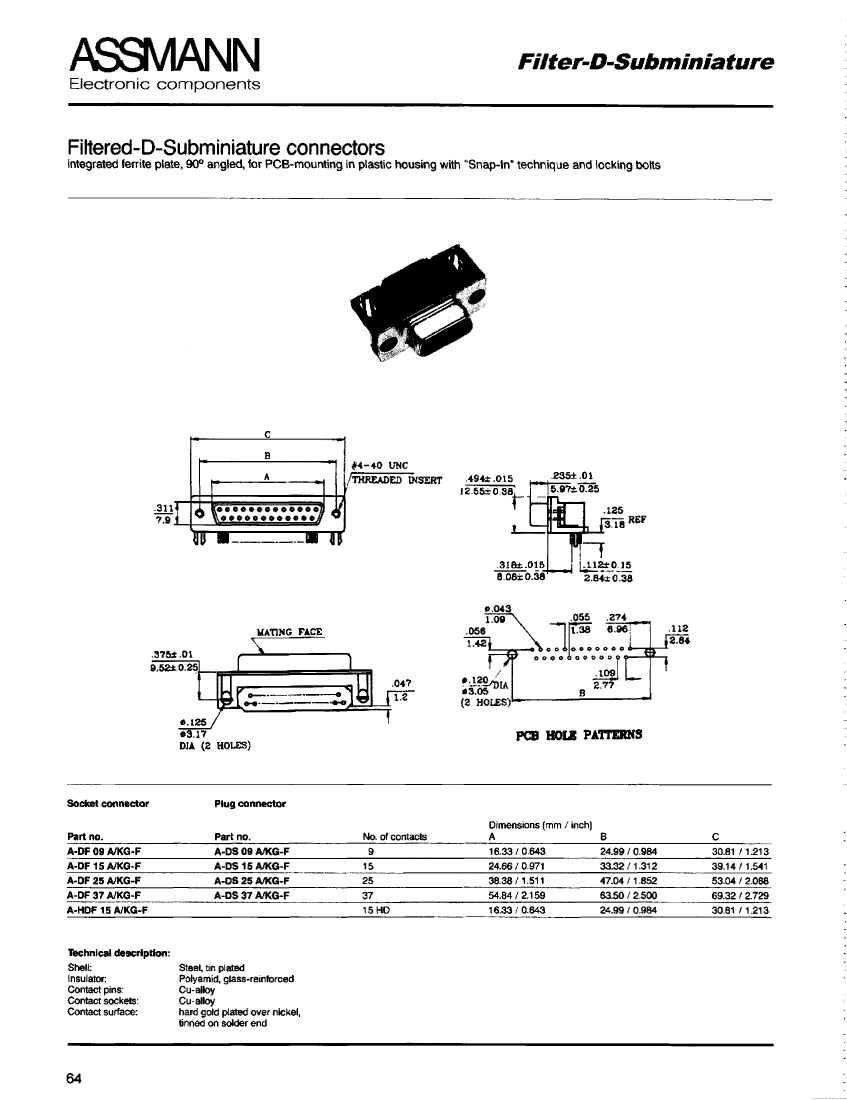

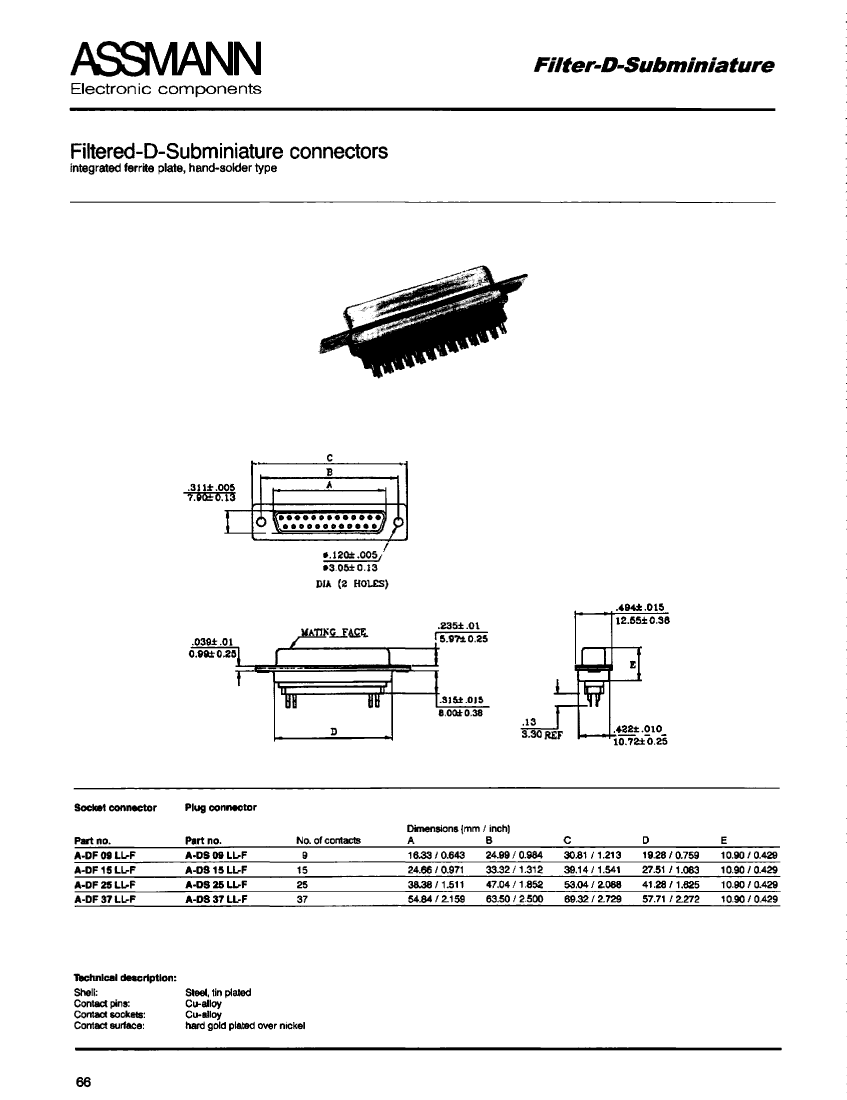

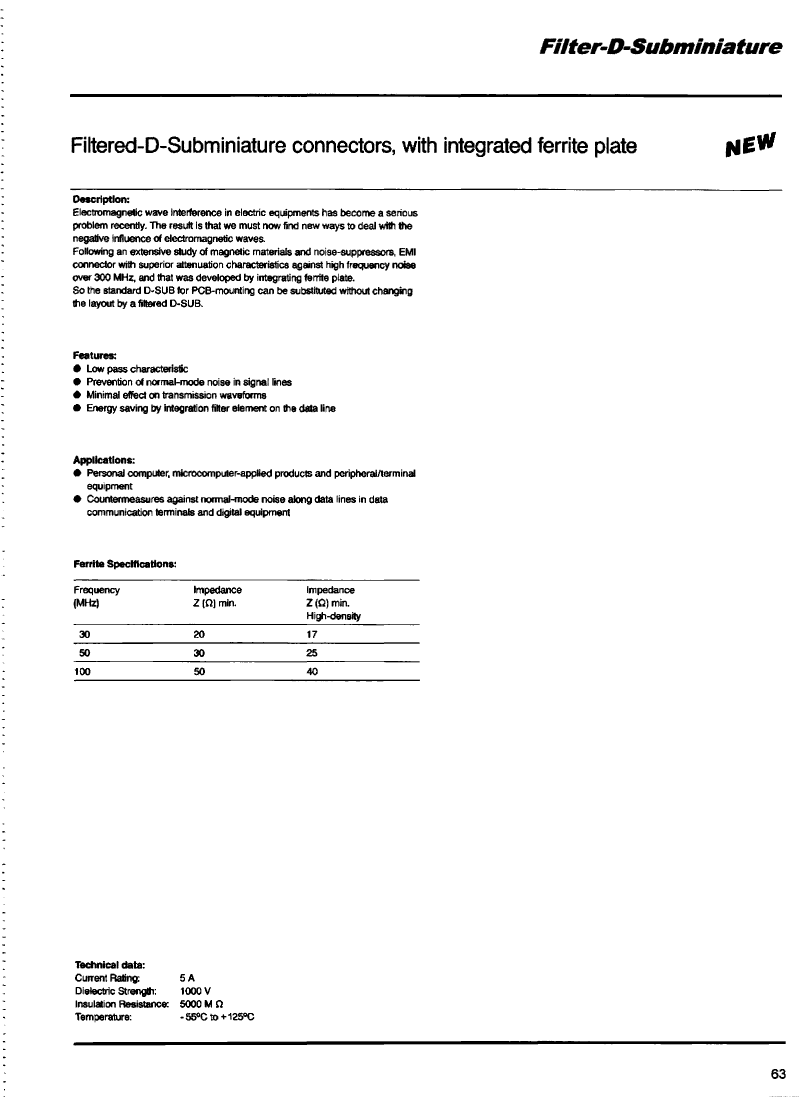

D Subminiature Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | PLUG |
| body width | 0.494 inch |
| body length | 1.541 inch |
| Body/casing type | RECEPTACLE |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact point gender | MALE |
| contact mode | STAGGERED |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| empty shell | NO |
| Filter function | YES |
| IEC compliance | NO |
| insulator material | POLYBUTYLENE TEREPHTHALATE |
| MIL compliance | NO |
| Plug contact pitch | 0.109 inch |
| Match contact row spacing | 0.112 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | HOLE .112-.124 |
| Installation option 2 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.8448 mm |
| Rated current (signal) | 5 A |
| Guideline | UL,VDE |
| reliability | COMMERCIAL |
| Shell surface | TIN |
| Shell material | STEEL |
| Housing size | 2/A |
| Terminal length | 0.15 inch |
| Terminal pitch | 2.7686 mm |
| Termination type | SOLDER |
| Total number of contacts | 15 |
| Base Number Matches | 1 |
