AHDF15A-KG-TG-R datasheet, PDF

Datasheet> All Categories > The connector> The connector> AHDF15A-KG-TG-R

AHDF15A-KG-TG-R: DescriptionD Type Connector, 15 Contact(s), Female, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size62KB，1 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/

Download Datasheet Parametric View All

AHDF15A-KG-TG-R Overview

D Type Connector, 15 Contact(s), Female, Solder Terminal, Locking, Plug

AHDF15A-KG-TG-R Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.494 inch
subject depth	0.64 inch
body length	1.213 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
Manufacturer's serial number	A-HDF
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	15
Base Number Matches	1

Preview

Download Datasheet

View All

AHDFxxA-KG-Txxx-R

B - Boardlocks

G - Grounding straps

X - Without

S - Hex stand-offs

X - Without

A - Threaded inserts

X - Without

XX - Number of contacts

Material:

• Shell: Tin plated steel

• Insulator: PBT thermo plastic, black color, 30% glass

filled self-extinguishing, UL94V-0 rated

• Contact material: Pin: Brass

Socket: Phosphor Bronze

• Contact Plating: Gold over nickel

Electrical:

• Current rating: 5.0 Amps

• Dielectric strength: 1000Vac min.

• Insulation Resistance: 5000 Min.

• Operating Temperature: -55°C to 125°C

2.29

0.090

2.29

0.090

2.29

0.090

2.41

0.095

# of pins

16.33

0.643

24.66

0.971

38.38

1.511

54.84

2.159

24.99

0.984

33.32

1.312

47.04

1.852

63.50

2.500

30.81

1.213

39.14

1.541

53.04

2.088

69.32

2.729

7.04

0.277

6.88

0.271

6.88

0.271

6.99

0.275

- 15 pins in a 9 position shell

- 26 pins in a 15 position shell

- 44 pins in a 25 position shell

- 62 pins in a 37 position sheel

- Hardware options include: threaded inserts, hex stand-offs,

board locks and grounding straps

- Gold plated contacts

- Tin plated shell

Name

Drawn

11.18.11

Chappell

Item No.

Scale

1:1

TOLERANCE

X.X

X.XX

X.XXX

±0.40

±0.25

±0.15

±3°

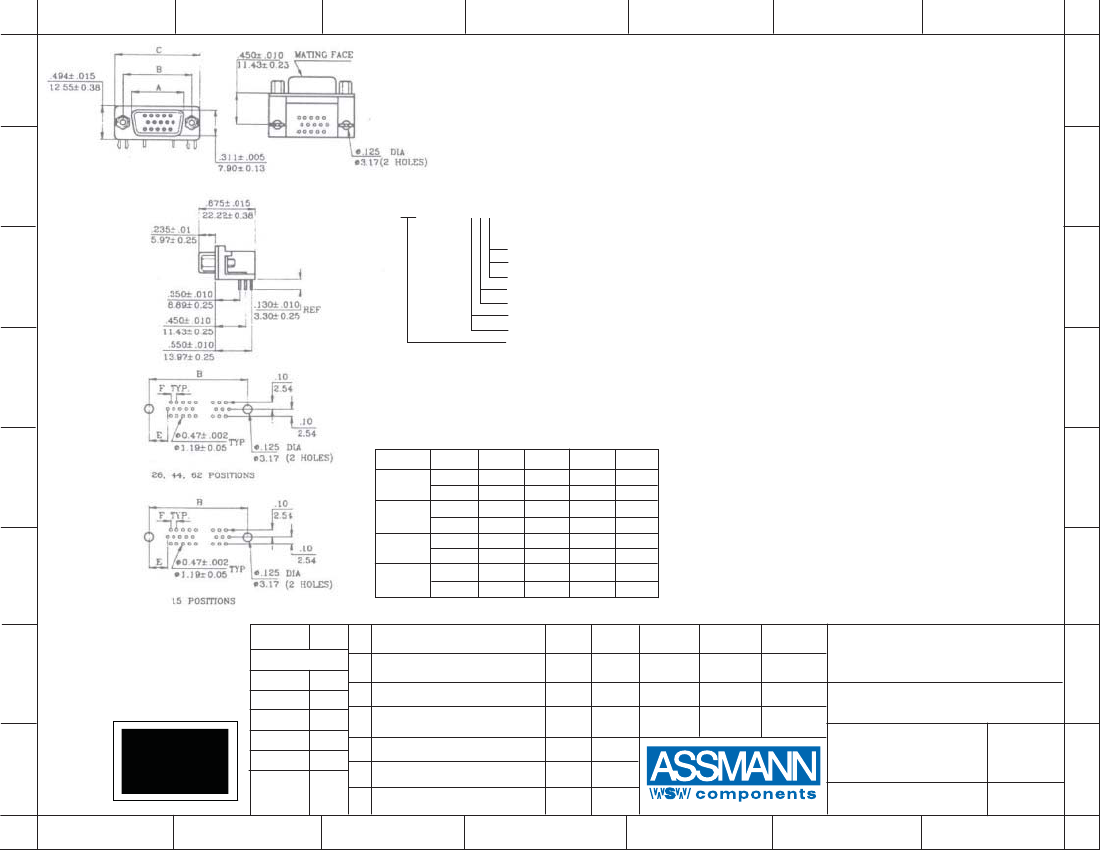

AHDFxxA-KG-Txxx-R

Title

D-Subminature Connector, Right Angle

Shrouded, High Density

Approved

RoHS

Complaint

Angle

Drawing No.

rev00

Sheet

Modification

Date

Name

Replace
