CONSTANT PHASE-LIMITING AMPLIFIERS
MODEL: LCPM SERIES
FEATURES
•
•
•
•
Up to 70 dB dynamic range
±3° phase variation
±5 dB amplitude variation
Fast recovery
OPTIONS
•
•
•
•
Customized center frequencies
Custom packaging
High-reliability screening
Matched sets
MODEL
NUMBER
LCPM-3010-70
LCPM-6020-70
LCPM-7030-70
LCPM-12020-70
LCPM-14040-70
LCPM-16040-70
LCPM-200100-70
LCPM-400100-60
CENTER
FREQUENCY
(MHz)
30
60
70
120
140
160
200
400
3 dB
BANDWIDTH
(dBm)
10
20
30
20
40
40
100
100
DYNAMIC
RANGE
(dBm)
-70
-70
-70
-65
-65
-65
-65
-60
to
to
to
to
to
to
to
to
0
0
0
+5
+5
+5
+5
0
OUTPUT POWER
VARIATION
(±dB)
0.5
0.5
0.5
0.5
1
1
1
1
PHASE
VARIATION
(±Deg.)
3
3
3
5
5
5
5
5
ADDITIONAL SPECIFICATIONS
The above models are available in ‘A, B and G’ housings.
Custom housings and electrical specifications are also
available. Contact factory for details.
Phase variation is measured at center frequency and 25°C.
Add ±3° over operating temperature of -40 to +85°C.
Output power is 10 dBm nominal at center frequency
and 25°C.
Additional output power variation of ±1 dB will occur over
operating temperature of -40 to +85°C.
Input/output impedance is 50
Ω.
Input VSWR is < 1.5:1 typical.
Output VSWR is < 2.0:1 typical.
Noise figure is typically less than 15 dB at center frequency
and 25°C.
Power: -12 VDC at 150 mA typical.
ORDER OPTIONS
For -15 VDC, add suffix “C”.
Matching up to three channels to within ±3° at 25°C is
available. Contact factory for details.
Typical part number: LCPM-16040-70BC (for ‘B’ housing
at -15 VDC).

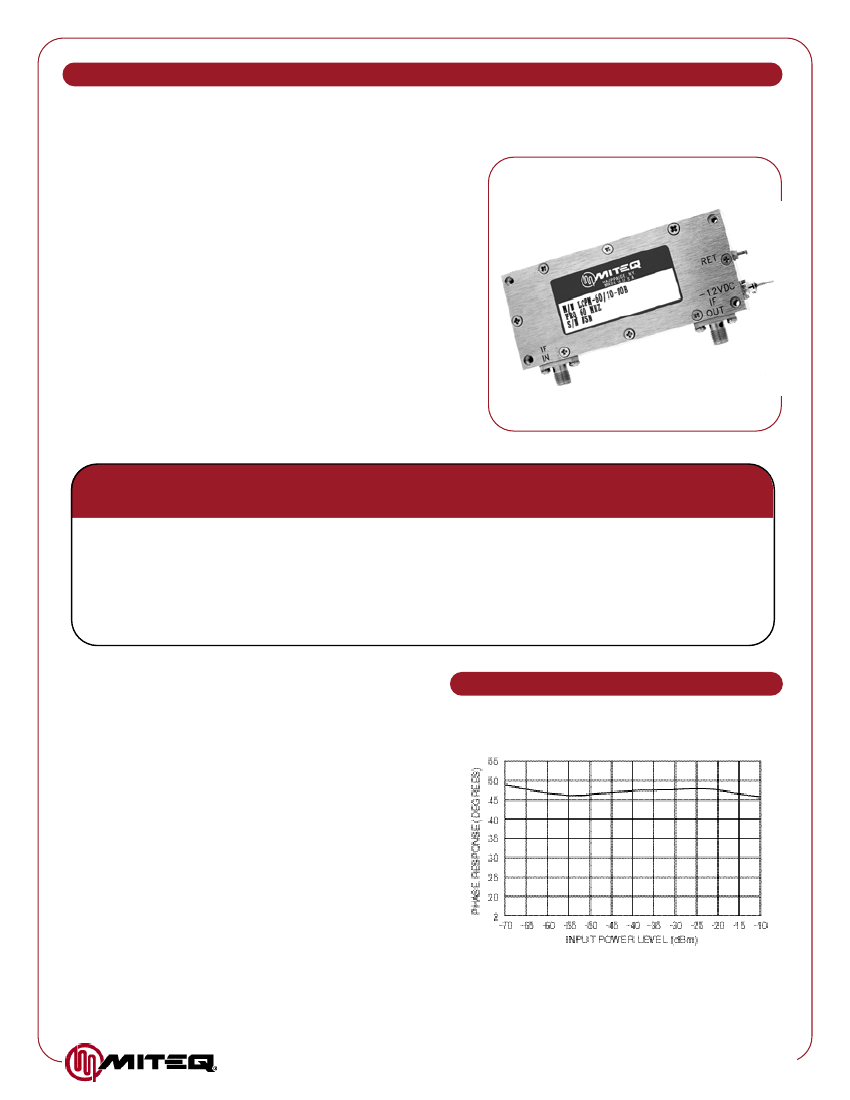

TYPICAL TEST DATA
TYPICAL PHASE RESPONSE
VS. INPUT POWER
NOTE: FOR MODIFICATION OF OUR STANDARD MODELS, PLEASE CONSULT FACTORY.
100 Davids Drive, Hauppauge, NY 11788 • TEL: (631) 439-9220 • FAX: (631) 436-7430 •
www.miteq.com
C-17B/17 08-14-07

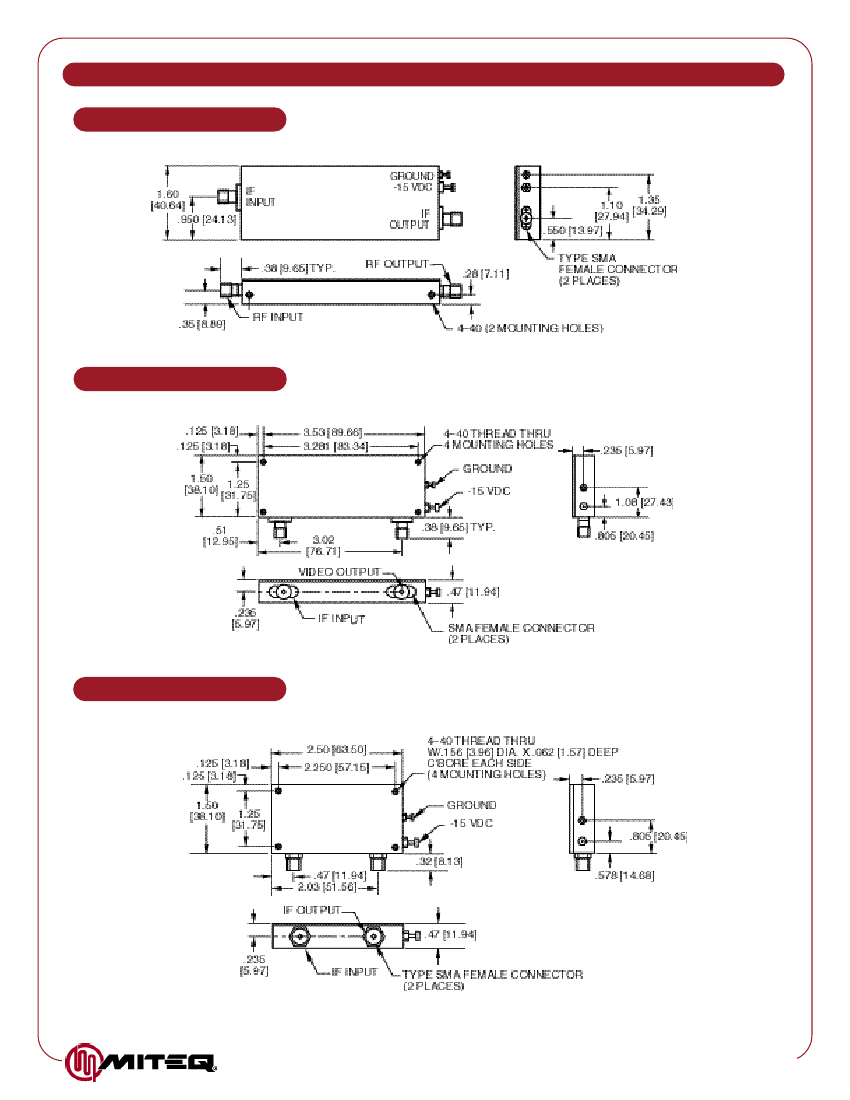

LCPM SERIES OUTLINE DRAWINGS
OUTLINE A
OUTLINE B
OUTLINE G
NOTE: DIMENSIONS SHOWN IN BRACKETS [ ] ARE IN MILLIMETERS.
