ADG428TQ/883B datasheet, PDF - EEWORLD Datasheet

ADG428TQ/883B: DescriptionIC 8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP18, CERDIP-18, Multiplexer or Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size389KB，12 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric View All

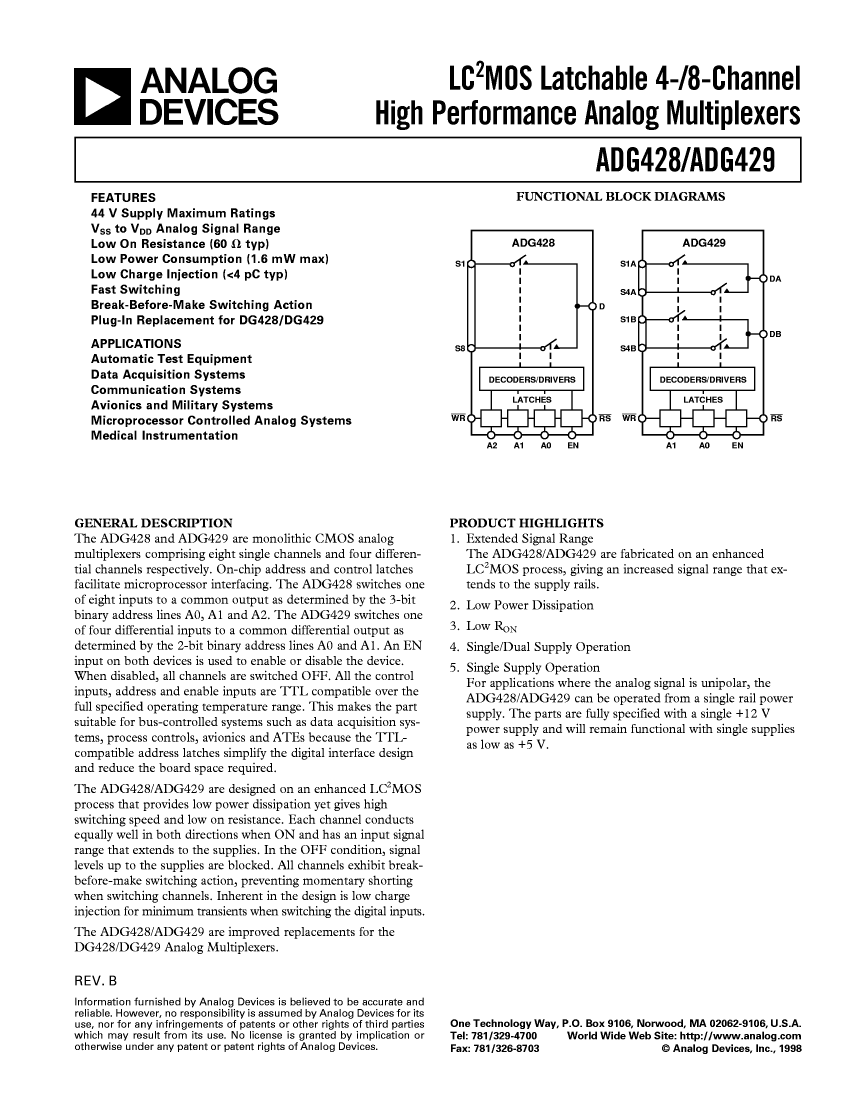

ADG428TQ/883B Overview

IC 8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP18, CERDIP-18, Multiplexer or Switch

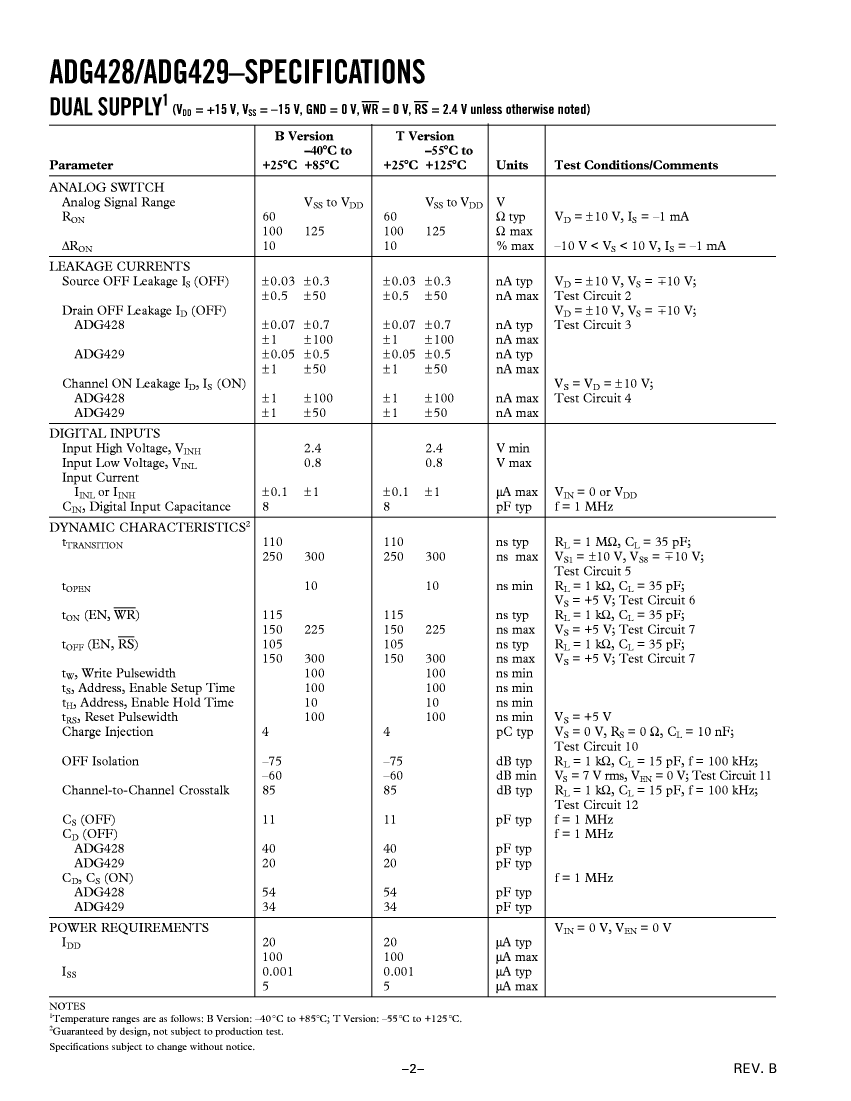

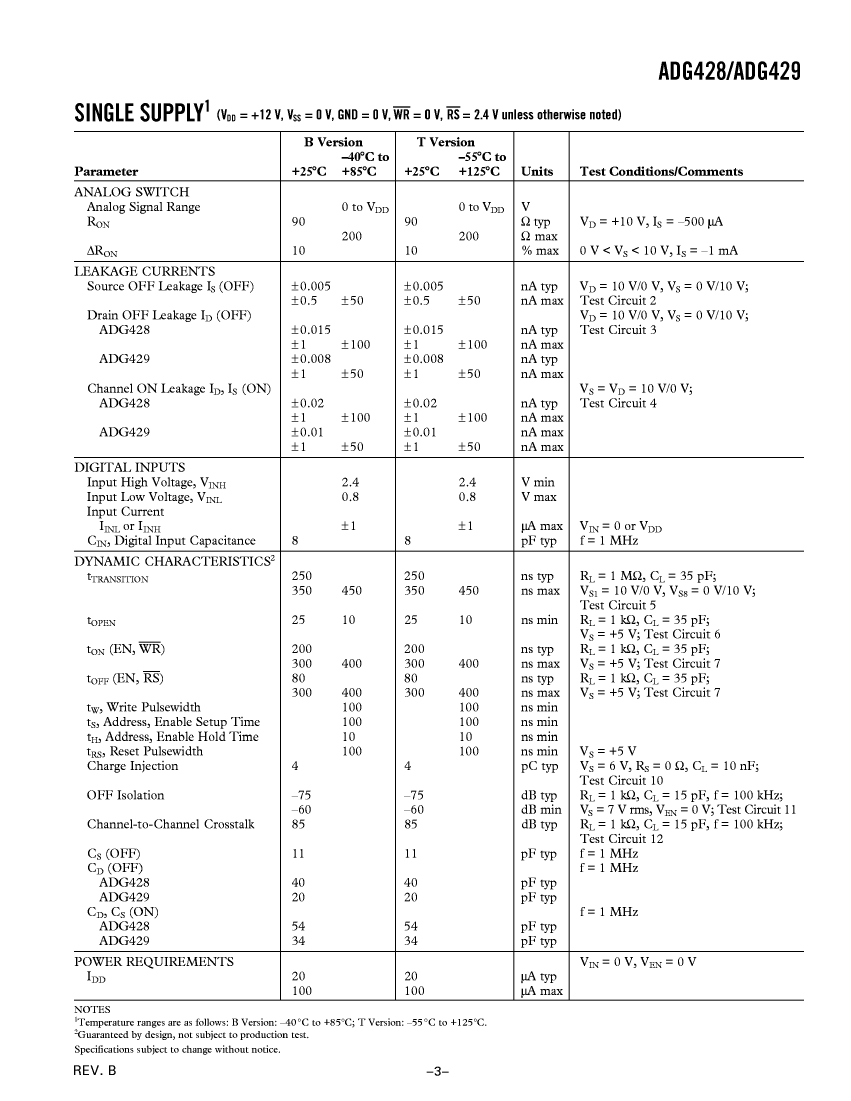

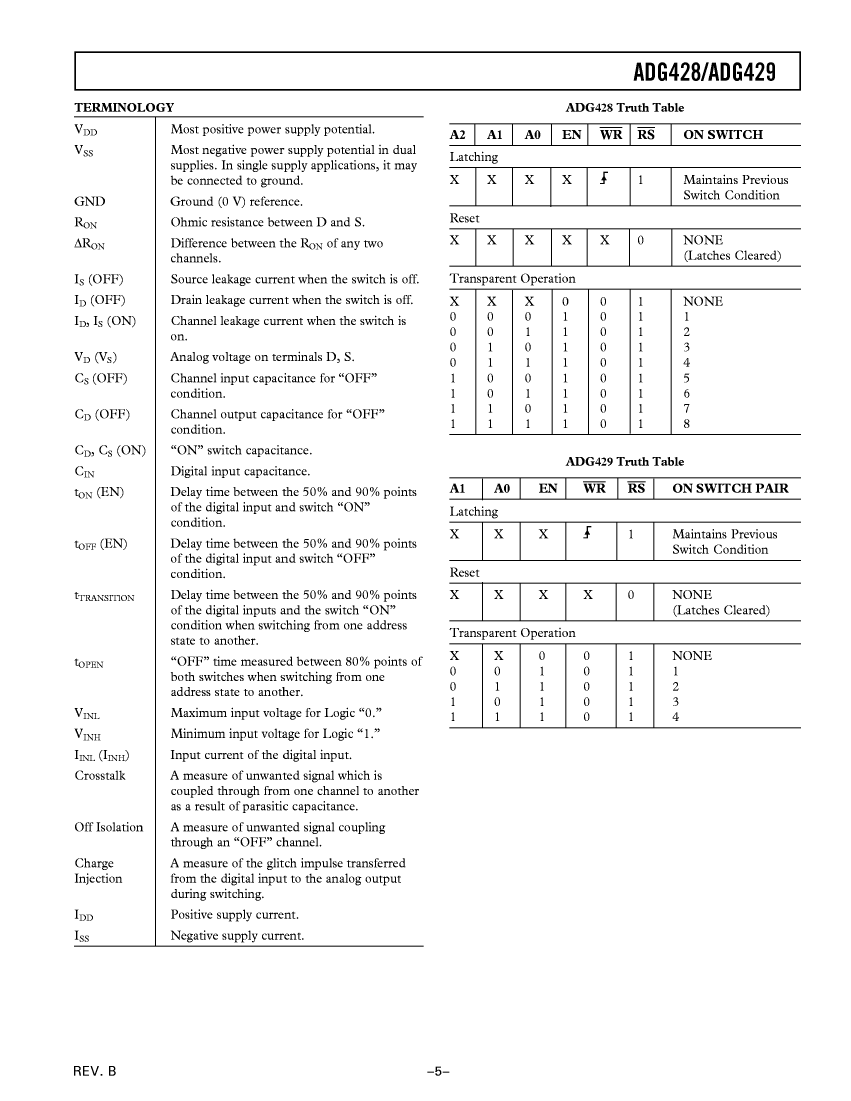

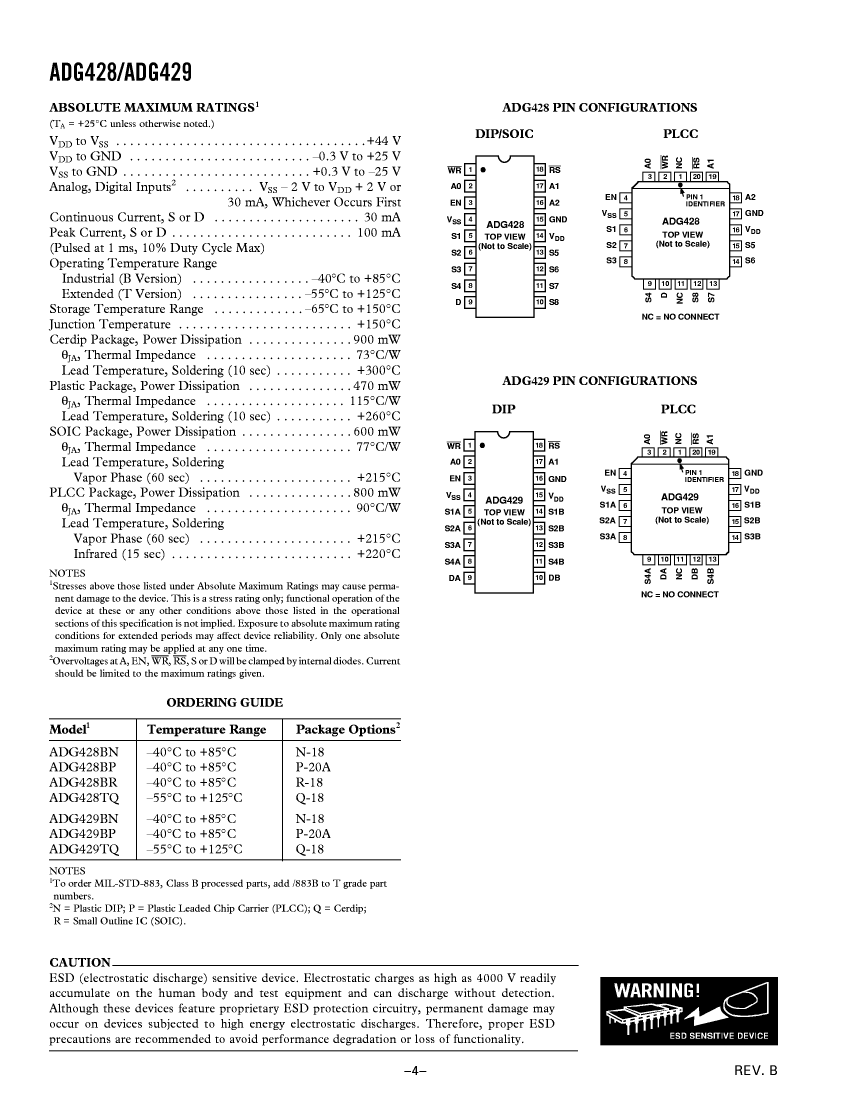

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	CERDIP-18
Contacts	18
Reach Compliance Code	not_compliant
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-GDIP-T18
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	8
Number of functions	1
Number of terminals	18
Nominal off-state isolation	75 dB
Maximum on-state resistance (Ron)	100 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum signal current	0.03 A
Maximum supply current (Isup)	0.1 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	250 ns
Maximum connection time	250 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1
