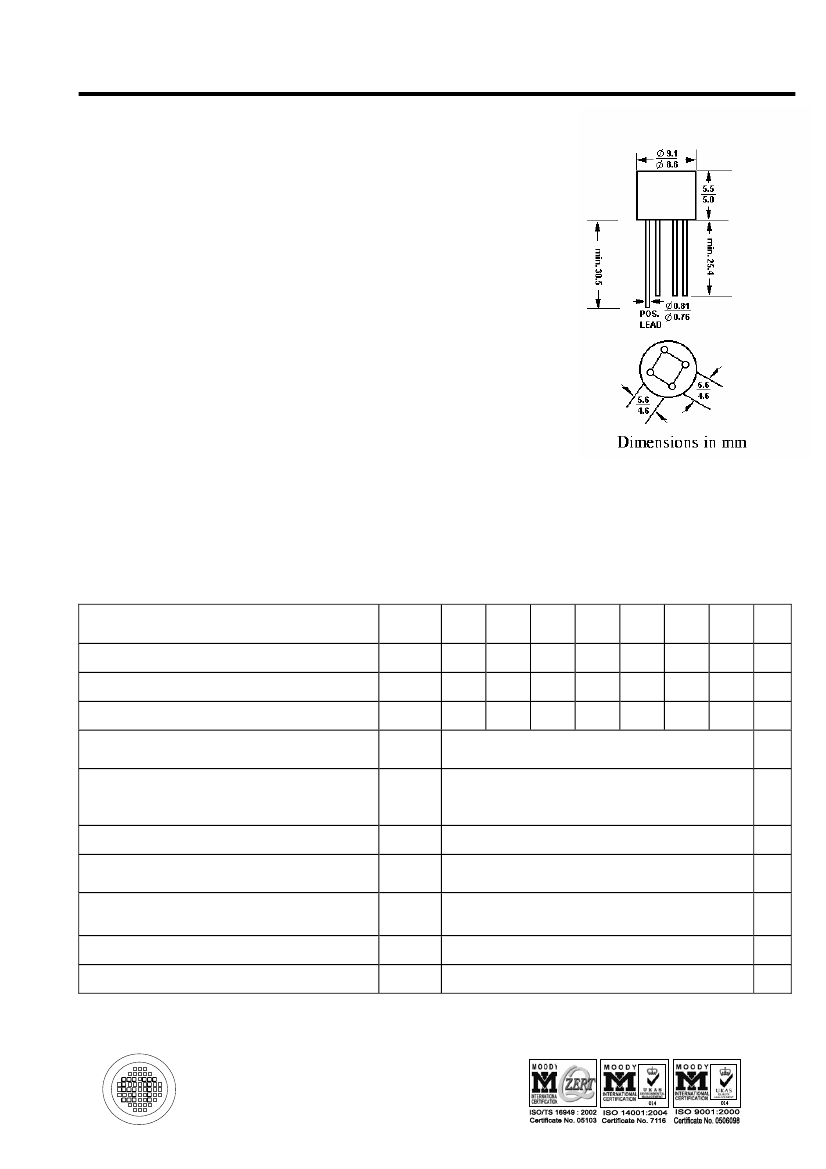

2W005M THRU 2W10M
SINGLE-PHASE SILICON BRIDGE RECTIFIERS
Reverse Voltage – 50 to 1000 Volts
Forward Current – 2.0 Amperes
Features
•
Surge overload ratings to 50 amperes peak
•
Ideal for printed circuit board
•
Reliable low cost construction technique results
in inexpensive product
•
High temperature soldering guaranteed:
250oC/10 seconds/0.375”(9.5mm) lead
length at 5 lbs., (2.3kg) tension.
Mechanical Data
•
Case:
Molded plastic
•
Lead:
Solder plated
•
Polarity:
As marked
Absolute Maximum Ratings and Characteristics
Rating at 25
o
C ambient temperature unless otherwise specified. Single-phase, half wave, 60Hz, resistive or
inductive load. For capacitive load, derate current by 20%.
Symbols
Maximum recurrent peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
O
at T
A
= 50 C
Peak forward surge current ,
8.3ms single half sine-wave superimposed
on rated load (JEDEC method)
Maximum instantaneous forward voltage @ 2A
Maximum DC reverse current
at rated DC blocking voltage
@ T
A
= 25
O
C
O
@ T
A
= 100 C
V
RRM
V
RMS
V
DC
I
(AV)
2W
005M
50
35
50
2W
01M
100
70
100
2W
02M
200
140
200
2W
04M
400
280
400
2
2W
06M
600
420
600
2W
08M
800
560
800
2W
10M
1000
700
1000
Units
V
V
V
A
I
FSM
V
F
I
R
I
R
R
θ
JA
R
θ
JL
50
A
1.1
10
500
40
15
-55 to +125
-55 to +150
O
O
V
uA
uA
C/W
C/W
O
Typical thermal resistance(Note 1)
Operating temperature range
Storage temperature range
T
J
T
S
C
C
O
Note: (1) Thermal resistance from junction to ambient and from junction to lead at 0.375” (9.5mm) lead length for
P.C.B. mounting.
SEMTECH ELECTRONICS LTD.
(Subsidiary
of Sino-Tech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
®
Dated : 26/09/2003
2W005M THRU 2W10M

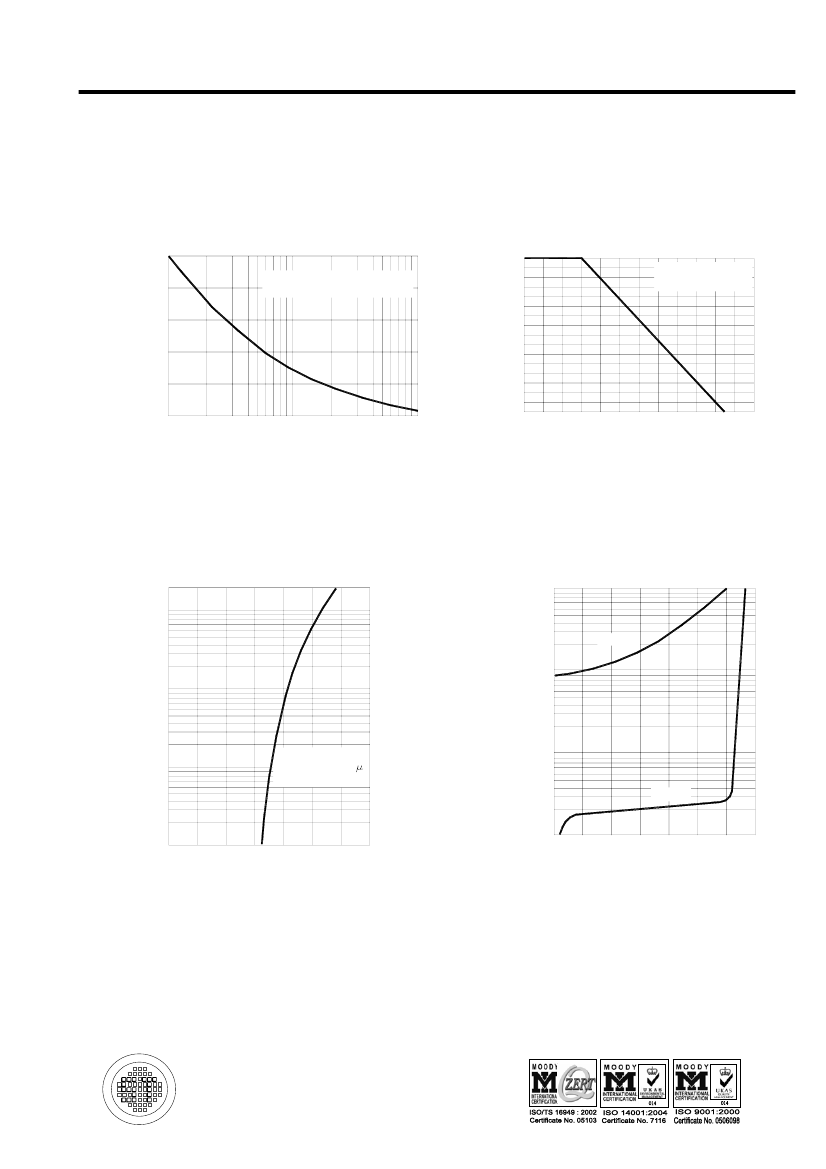

RATINGS AND CHARACTERISTIC CURVES
PEAK FORWARD SURGE CURRENT.(A)
FIG. 1-MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT PER BRIDGE ELEMENT
50
FIG. 2-MAXIMUM CURRENT DERATING CURVE
OUTPUT RECTIFIED CURRENT
AVERAGE FORWARD CURRENT.(A)
2.0
40
8.3 ms Single Half Sine Wave
JEDEC Method
RESISTIVE
INDUCTIVE LOAD
1.5
30
1.0
20
10
1
0.5
0
1
10
100
0
20
40
60
80
100
120
140
NUMBER OF CYCLES AT 60Hz
AMBIENT TEMPERATURE,
o
C
FIG. 3-TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS PER BRIDGE ELEMENT
FIG. 4-TYPICAL REVERSE CHARACTERISTICS
PER BRIDGE ELEMENT
10
INSTANTANEOUS FORWARD
CURRENT.(A)
10
INSTANTANEOUS REVERSE CURRENT
T
J
=100 oC
1.0
1.0
0.1
T
J
=25o C
PULSE WIDTH-300 S
2% DUTY CYCLE
0.1
T
J
=25oC
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
0.01
0
20
40
60
80
100
120
140
INSTANTANEOUS FORWARD VOLTAGE, (V)
PERCENT OF RATED PEAK
REVERSE VOLTAGE.(%)
SEMTECH ELECTRONICS LTD.
(Subsidiary
of Sino-Tech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
®
Dated : 26/09/2003
