2SMC-2-XX-1-GT-SMT: DescriptionSCREW MACHINE SOCKETS & TERMINAL STRIPS; File Size148KB，2 Pages; ManufacturerAdam Tech

Download Datasheet View All

2SMC-2-XX-1-GT-SMT Overview

SCREW MACHINE SOCKETS & TERMINAL STRIPS

Preview

Download Datasheet

View All

Adam Technologies, Inc.

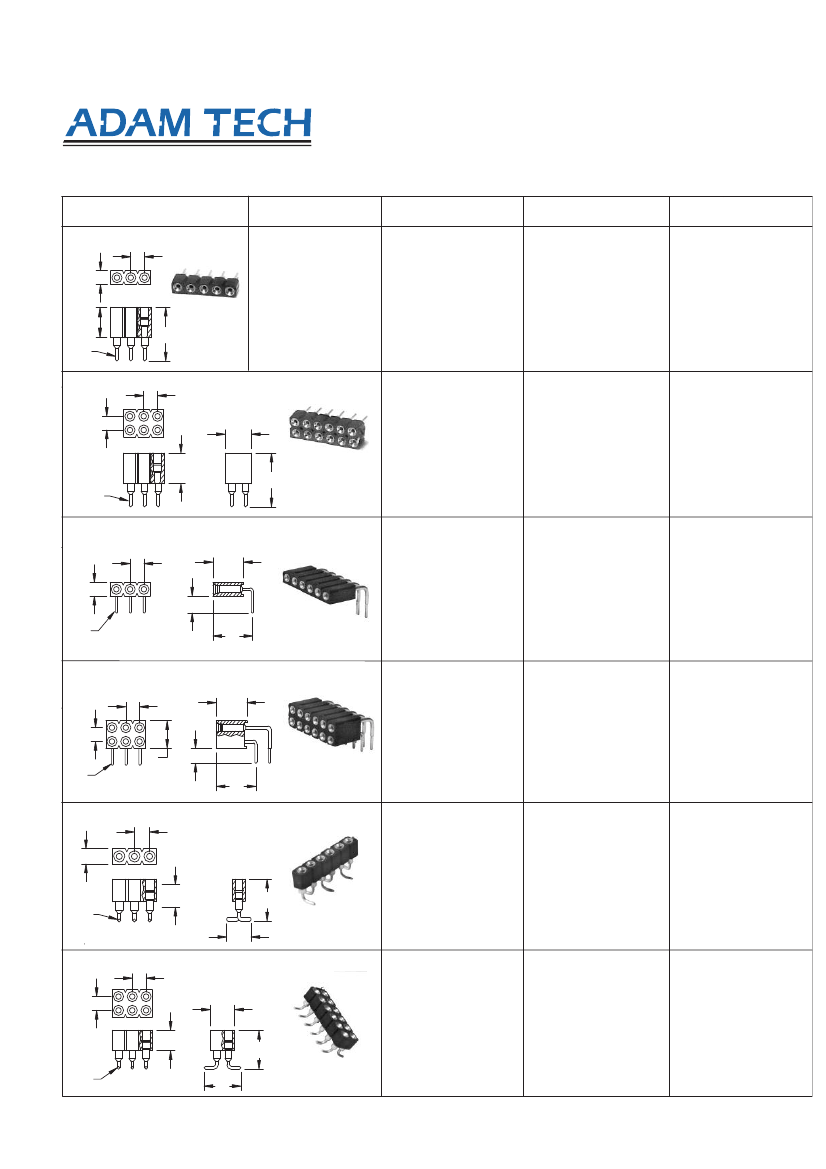

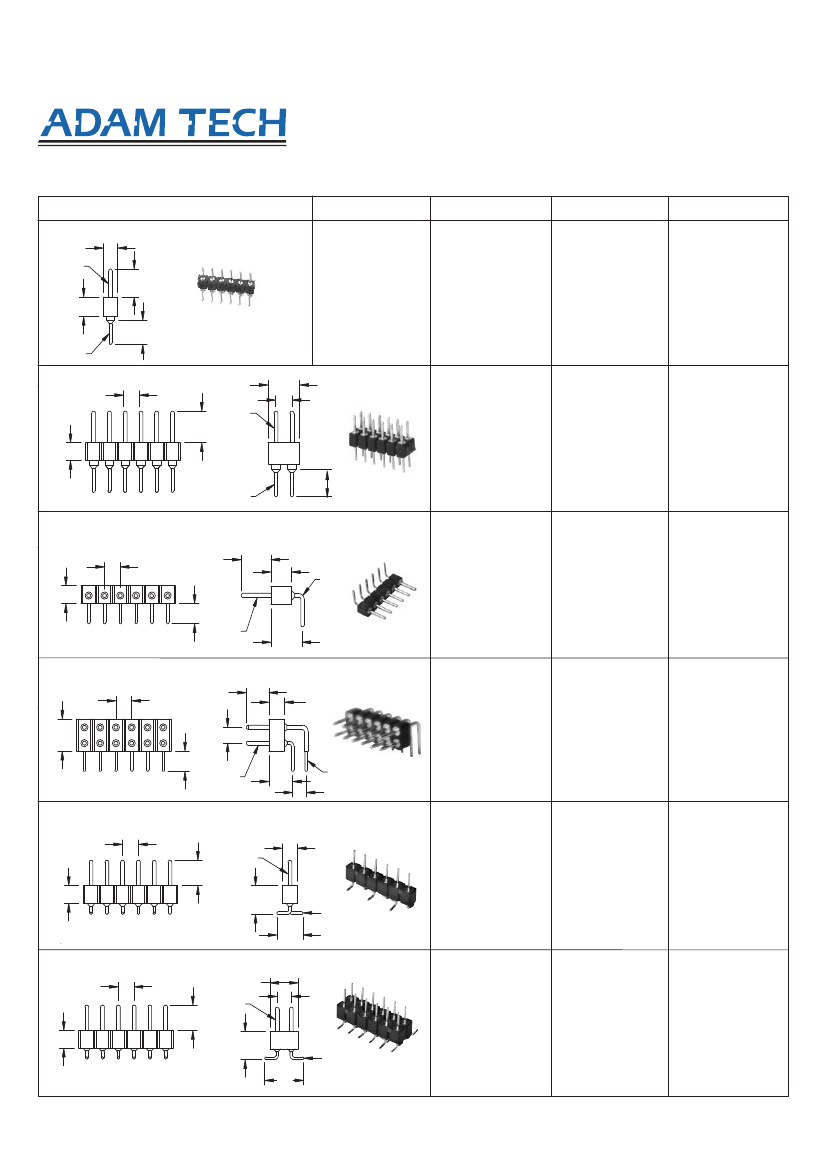

CONFIGURATIONS

SINGLE ROW STRAIGHT

øX

øY

DUAL ROW STRAIGHT

øX

SCREW MACHINE SOCKETS

& TERMINAL STRIPS

ICM SERIES

Order Information pg.183

.039 [1.00] Pitch

.050 [1.27] Pitch

1MCT-1-XX-1-G

A = .095 [2.43]

B = .098 [2.50]

C = .047 [1.20]

D = .086 [2.20]

øX = .015 [0.40]

øY = .015 [0.40]

POSITIONS: 1 THRU 40

.078 [2.00] Pitch

2MCT-1-XX-1-G

A = .141 [3.60]

B = .114 [2.90]

C = .110 [2.80]

D = .086 [2.20]

øX = .018 [0.47]

øY = .019 [0.50]

POSITIONS: 1 THRU 40

.100 [2.54] Pitch

MCT-1-XX-1-G

A = .197 [5.00]

B = .118 [3.00]

C = .118 [3.00]

D = .100 [2.54]

øX = .030 [0.76]

øY = .029 [0.60]

POSITIONS: 1 THRU 40

HMCT-1-XX-1-G

A = .118 [3.00]

B = .118 [3.00]

C = .086 [2.20]

D = .086 [2.20]

øX = .017 [0.43]

øY = .017 [0.43]

POSITIONS: 1 THRU 40

.050 [1.27] Pitch

HMCT-2-XX-1-G

A = .118 [3.00]

B = .118 [3.00]

C = .078 [2.00]

D = .128 [3.25]

E = .050 [1.27]

øX = .017 [0.43]

øY = .017 [0.43]

POSITIONS: 2 THRU 80

.078 [2.00] Pitch

2MCT-2-XX-1-G

A = .141 [3.60]

B = .114 [2.90]

C = .110 [2.80]

D = .165 [4.20]

E = .078 [2.00]

øX = .018 [0.47]

øY = .019 [0.50]

POSITIONS: 2 THRU 80

.100 [2.54] Pitch

MCT-2-XX-1-G

A = .197 [5.00]

B = .118 [3.00]

C = .118 [3.00]

D = .200 [5.08]

E = .100 [2.54]

øX = .030 [0.76]

øY = .023 [0.60]

POSITIONS: 2 THRU 80

øY

SINGLE ROW RIGHT ANGLE

.050 [1.27] Pitch

HMCT-1R-XX-1-G

A = .118 [3.00]

B = .118 [3.00]

C = .086 [2.20]

D = .086 [2.20]

E = .050 [1.27]

F = .133 [3.40]

øX = .017 [0.43]

øY = .017 [0.43]

POSITIONS: 1 THRU 40

.078 [2.00] Pitch

2MCT-1R-XX-1-G

A = .141 [3.60]

B = .126 [3.20]

C = .110 [2.80]

D = .086 [2.20]

E = .078 [2.00]

F = .177 [4.50]

øX = .018 [0.47]

øY = .019 [0.50]

POSITIONS: 1 THRU 40

.100 [2.54] Pitch

MCT-1R-XX-1-G

A = .197 [5.00]

B = .126 [3.20]

C = .118 [3.00]

D = .100 [2.54]

E = .100 [2.54]

F = .177 [4.50]

øX = .030 [0.76]

øY = .023 [0.60]

POSITIONS: 1 THRU 40

øX

DUAL ROW RIGHT ANGLE

øY

.050 [1.27] Pitch

HMCT-2R-XX-1-G

A = .118 [3.00]

B = .118 [3.00]

C = .082 [2.10]

D = .128 [3.25]

E = .050 [1.27]

F = .122 [3.10]

øX = .017 [0.43]

øY = .017 [0.43]

POSITIONS: 2 THRU 80

.078 [2.00] Pitch

2MCT-2R-XX-1-G

A = .141 [3.60]

B = .126 [3.20]

C = .110 [2.80]

D = .165 [4.20]

E = .078 [2.00]

F = .177 [4.50]

øX = .018 [0.47]

øY = .019 [0.50]

POSITIONS: 2 THRU 80

.100 [2.54] Pitch

MCT-2R-XX-1-G

A = .197 [5.00]

B = .126 [3.20]

C = .118 [3.00]

D = .200 [5.08]

E = .100 [2.54]

F = .177 [4.50]

øX = .030 [0.76]

øY = .023 [0.60]

POSITIONS: 2 THRU 80

øX

SINGLE ROW SURFACE MOUNT

øY

.050 [1.27] Pitch

HMCT-1-XX-1-G-SMT

A = .118 [3.00]

B = .132 [3.35]

C = .078 [2.00]

D = .086 [2.20]

E = .050 [1.27]

G = .182 [4.63]

øX = .017 [0.43]

øY = .017 [0.43]

POSITIONS: 1 THRU 40

.078 [2.00] Pitch

2MCT-1-XX-1-G-SMT

A = .141 [3.60]

B = .189 [4.80]

C = .110 [2.80]

D = .086 [2.20]

E = .078 [2.00]

G = .173 [4.40]

øX = .016 [0.47]

øY = .019 [0.50]

POSITIONS: 1 THRU 40

.100 [2.54] Pitch

MCT-1-XX-1-G-SMT

A = .197 [5.00]

B = .189 [4.80]

C = .118 [3.00]

D = .100 [2.54]

E = .100 [2.54]

G = .173 [4.40]

øX = .030 [0.76]

øY = .023 [0.60]

POSITIONS: 1 THRU 40

øX

øY

DUAL ROW SURFACE MOUNT

øX

øY

.050 [1.27] Pitch

HMCT-2-XX-1-G-SMT

A = .118 [3.00]

B = .132 [3.35]

C = .078 [2.00]

D = .128 [3.25]

E = .050 [1.27]

G = .232 [5.90]

øX = .017 [0.43]

øY = .017 [0.43]

POSITIONS: 2 THRU 80

.078 [2.00] Pitch

2MCT-2-XX-1-G-SMT

A = .141 [3.60]

B = .189 [4.80]

C = .110 [2.80]

D = .165 [4.20]

E = .078 [2.00]

G = .252 [6.40]

øX = .016 [0.47]

øY = .019 [0.50]

POSITIONS: 2 THRU 80

.100 [2.54] Pitch

MCT-2-XX-1-G-SMT

A = .197 [5.00]

B = .189 [4.80]

C = .118 [3.00]

D = .200 [5.08]

E = .100 [2.54]

G = .315 [8.00]

øX = .030 [0.76]

øY = .023 [0.60]

POSITIONS: 2 THRU 80
