CMLT3820G
SURFACE MOUNT SILICON
VERY LOW VCE(SAT)
NPN TRANSISTOR
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CMLT3820G is
a very low VCE(SAT) NPN Transistor, designed for
applications where small size and efficiency are the
prime requirements. Packaged in a space saving
SOT-563 surface mount package, this component
provides performance characteristics suitable for the
most demanding size constrained applications.
MARKING CODE: 38G
SOT-563 CASE
APPLICATIONS:
•
DC/DC Converters
•
Voltage Clamping
•
Protection Circuits
•
Battery powered Cell Phones, Pagers,
Digital Cameras, PDAs, Laptops, etc.
MAXIMUM RATINGS:
(TA=25°C)
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Peak Collector Current
Continuous Base Current
Power Dissipation
Operating and Storage Junction Temperature
Thermal Resistance
ELECTRICAL
SYMBOL
ICBO
IEBO
BVCBO
BVCEO
BVEBO
VCE(SAT)
VCE(SAT)
VCE(SAT)
VBE(SAT)
VBE(ON)
hFE
hFE
hFE
fT
Cob
FEATURES:
•
Device is
Halogen Free
by design
•
High Current (IC=1.0A)
•
VCE(SAT)=0.28V MAX @ IC=1.0A
•
SOT563 surface mount package
•
Complementary PNP device
CMLT7820G
SYMBOL
VCBO
VCEO
VEBO
IC
ICM
IB
PD
TJ, Tstg
Θ
JA
80
60
5.0
1.0
2.0
300
250
-65 to +150
500
MAX
100
100
UNITS
V
V
V
A
A
mA
mW
°C
°C/W
UNITS
nA
nA
V
V
V
V
V
V
V
V
CHARACTERISTICS:
(TA=25°C unless otherwise noted)
TEST CONDITIONS
MIN
VCB=60V
VEB=5.0V
IC=100μA
80
IC=10mA
60
5.0
IE=100μA
IC=100mA, IB=1.0mA
IC=500mA, IB=50mA
IC=1.0A, IB=100mA
IC=1.0A, IB=50mA
VCE=5.0V, IC=1.0A
VCE=5.0V, IC=1.0mA
200
VCE=5.0V, IC=500mA
200
VCE=5.0V, IC=1.0A
100
VCE=10V, IC=50mA
150
VCB=10V, IE=0, f=1.0MHz
0.115
0.15
0.28
1.1
0.9
10
MHz
pF
R4 (29-June 2015)
CMLT3820G
SURFACE MOUNT SILICON
VERY LOW VCE(SAT)
NPN TRANSISTOR

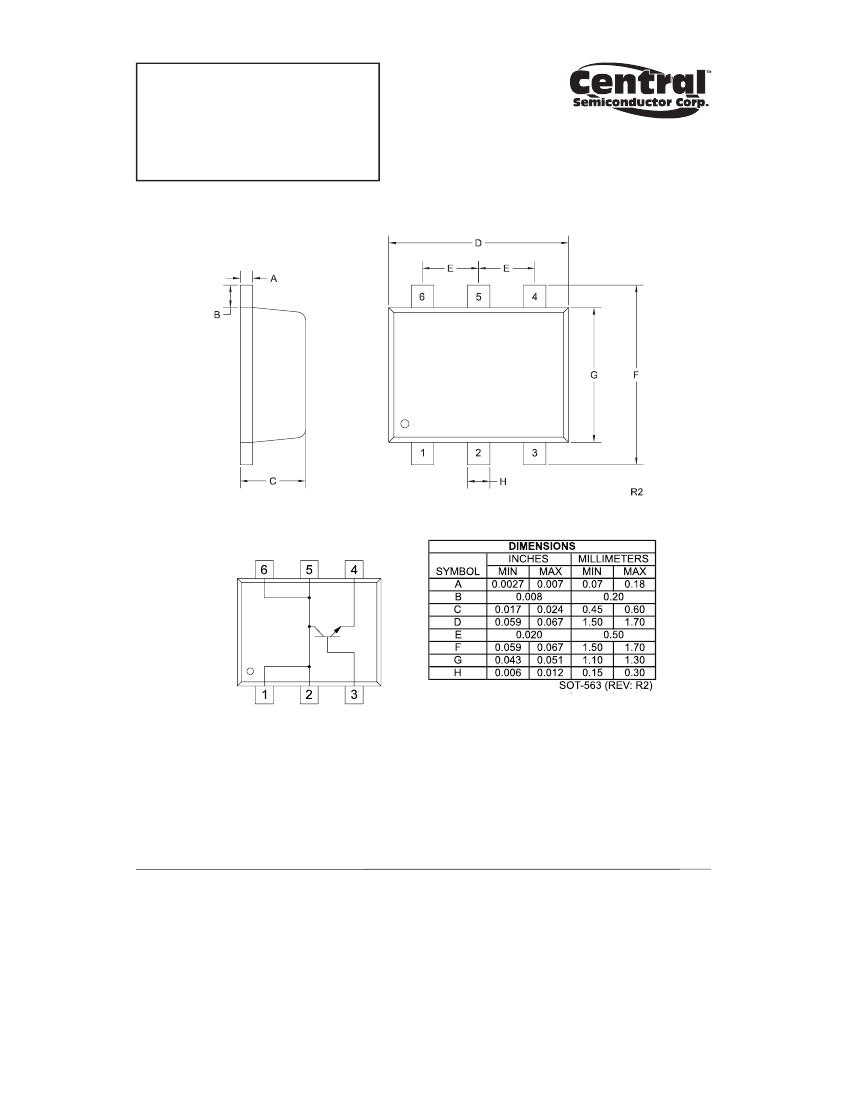

SOT-563 CASE - MECHANICAL OUTLINE
PIN CONFIGURATION
LEAD CODE:
1) Collector
2) Collector
3) Base
4) Emitter
5) Collector
6) Collector
Pins 1, 2, 5 and 6 are common.
MARKING CODE: 38G
R4 (29-June 2015)
