S87C51FB-5B44 datasheet, PDF - EEWORLD Datasheet

S87C51FB-5B44: DescriptionIC 8-BIT, OTPROM, 8 MHz, MICROCONTROLLER, PQFP44, Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size873KB，36 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric View All

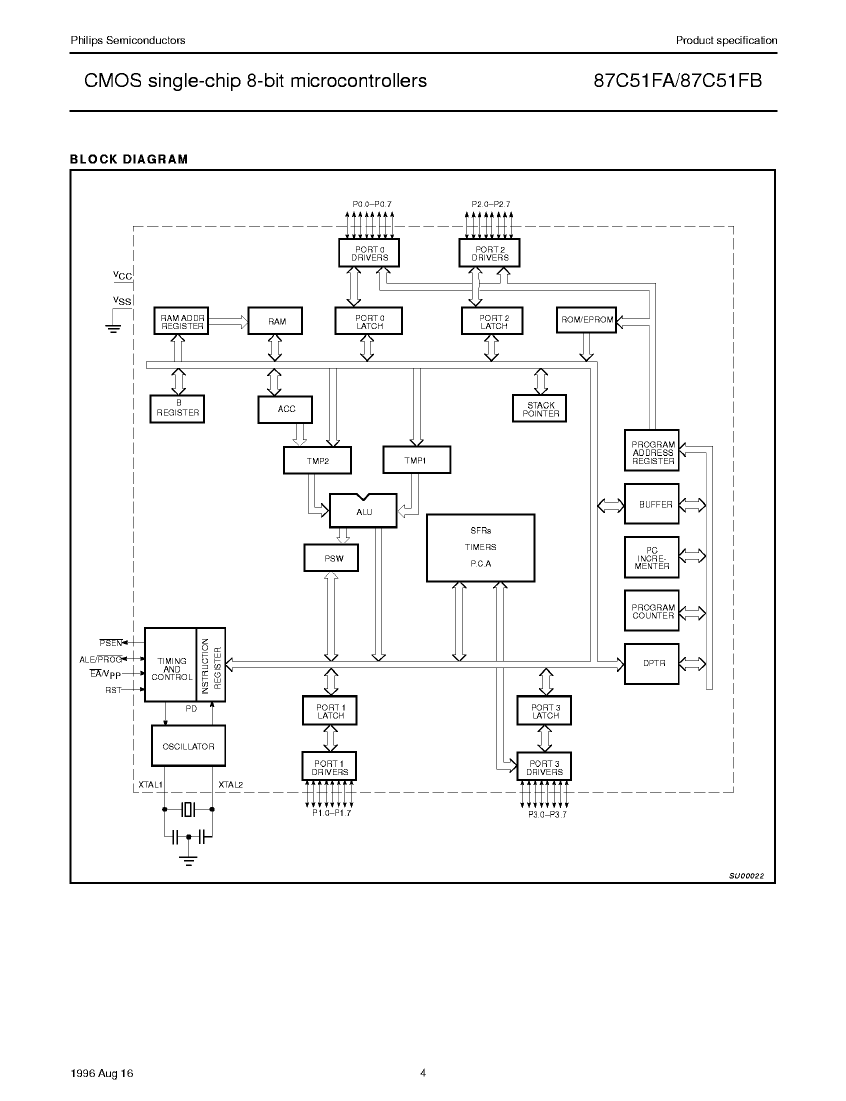

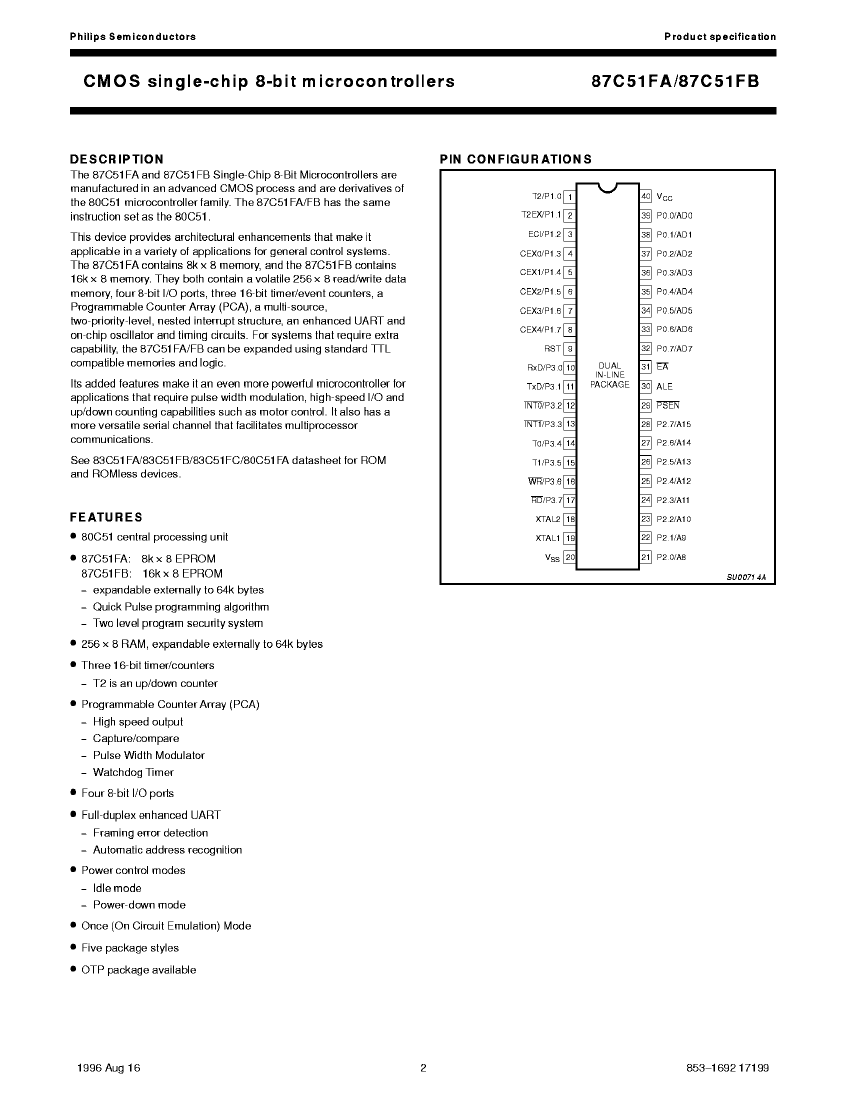

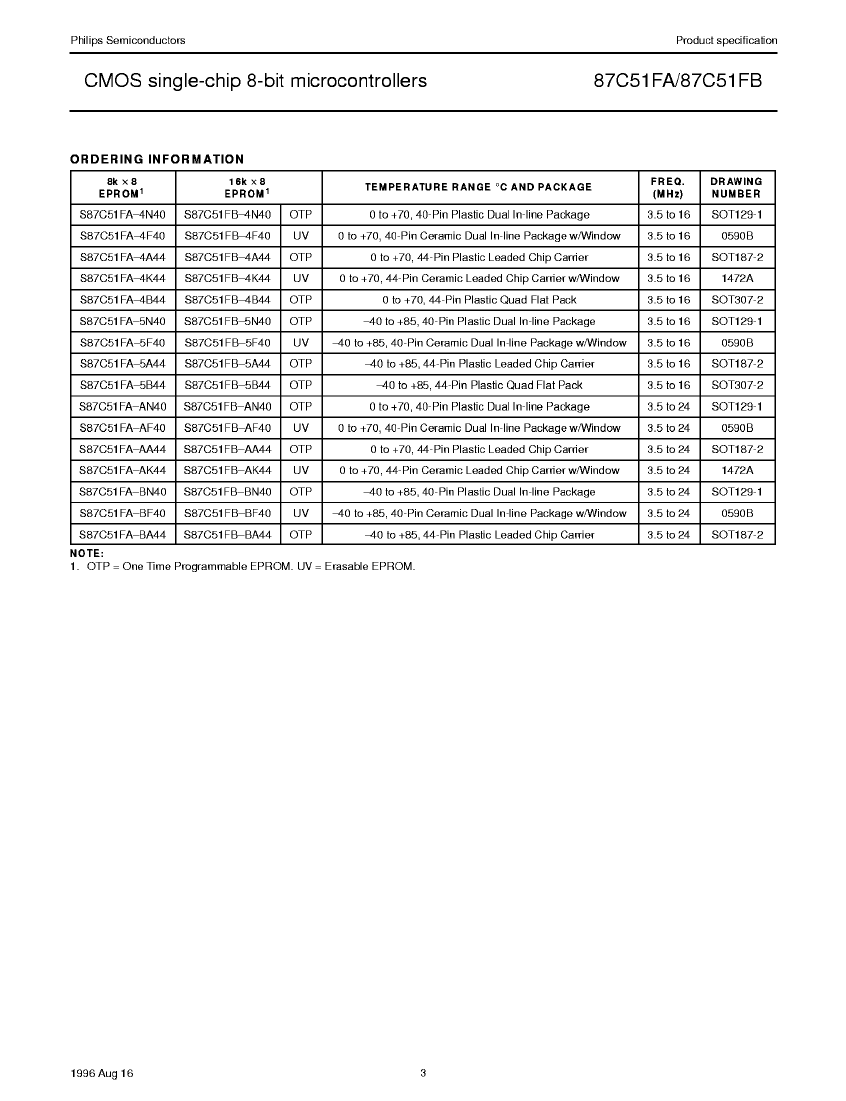

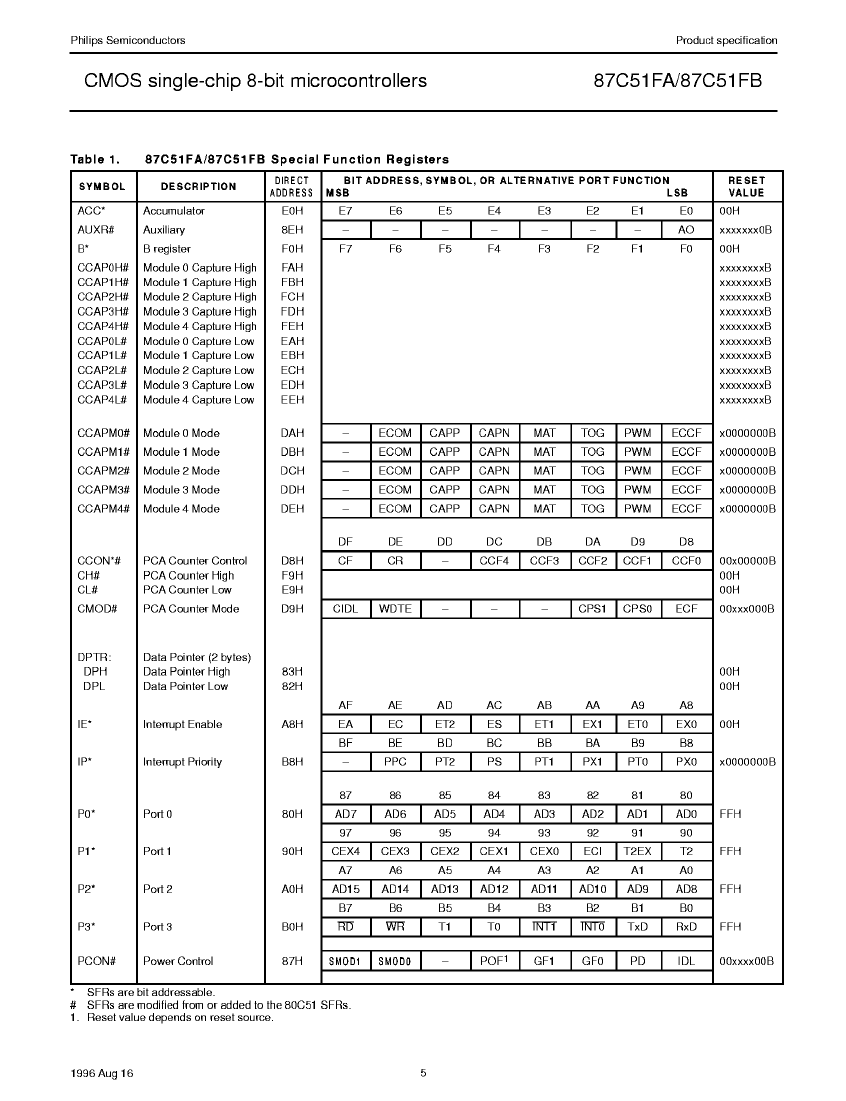

S87C51FB-5B44 Overview

IC 8-BIT, OTPROM, 8 MHz, MICROCONTROLLER, PQFP44, Microcontroller

Parameter Name	Attribute value
package instruction	QFP,
Reach Compliance Code	unknown
Has ADC	NO
Other features	PROGRAMMABLE COUNTER ARRAY; ON-CIRCUIT EMULATION
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQFP-G44
length	10 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	2
Number of I/O lines	32
Number of serial I/Os	1
Number of terminals	44
Number of timers	3
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
RAM (number of words)	256
rom(word)	16000
ROM programmability	OTPROM
Maximum seat height	2.1 mm
speed	8 MHz
Maximum slew rate	32 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1
