2SA1577 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SA1577

2SA1577: DescriptionGeneral Purpose PNP Bipolar Transistor; Polarity: PNP; V(BR)CEO Min (V): 32V; IC (A): 0.5A; HFE Min: 82; HFE Max: 390; VCE (V): 3V; IC (mA): 10mA; VCE(SAT) (V): 0.4V; IC (mA)1: 100mA; IB (mA): 10mA; FT Min (MHz): 200+ MHz; PTM Max (W): 0.2W; Package: SOT-323; package_code: SOT-323; mfr_package_code: SOT-323; CategoryDiscrete semiconductor The transistor; File Size198KB，4 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric Compare View All

2SA1577 Overview

General Purpose PNP Bipolar Transistor; Polarity: PNP; V(BR)CEO Min (V): 32V; IC (A): 0.5A; HFE Min: 82; HFE Max: 390; VCE (V): 3V; IC (mA): 10mA; VCE(SAT) (V): 0.4V; IC (mA)1: 100mA; IB (mA): 10mA; FT Min (MHz): 200+ MHz; PTM Max (W): 0.2W; Package: SOT-323; package_code: SOT-323; mfr_package_code: SOT-323

2SA1577 Parametric

Parameter Name	Attribute value
Parts packaging code	SOT-323
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown
Maximum collector current (IC)	0.5 A
Collector-emitter maximum voltage	32 V
Configuration	SINGLE
Minimum DC current gain (hFE)	82
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	PNP
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Transistor component materials	SILICON
Nominal transition frequency (fT)	200 MHz
Base Number Matches	1
category
polarity	PNP
V(BR)CEO (V) min.	32
IC (A)	0.5
hFE min	82
hFE max	390
Condition1_VCE (V)	3
Condition1_IC (mA)	10
VCE (sat) (V)	0.6
Condition2_IC (mA)	300
Condition2_IB (mA)	30
fT (MHz) min.	200(typ)
PD (W) max.	0.2
AEC Qualified	No
Maximum operating temperature	150
Minimum operating temperature	-55
Is it lead-free?	Yes
Comply with Reach	Yes
RoHS compliant	Yes
ECCN code	EAR99

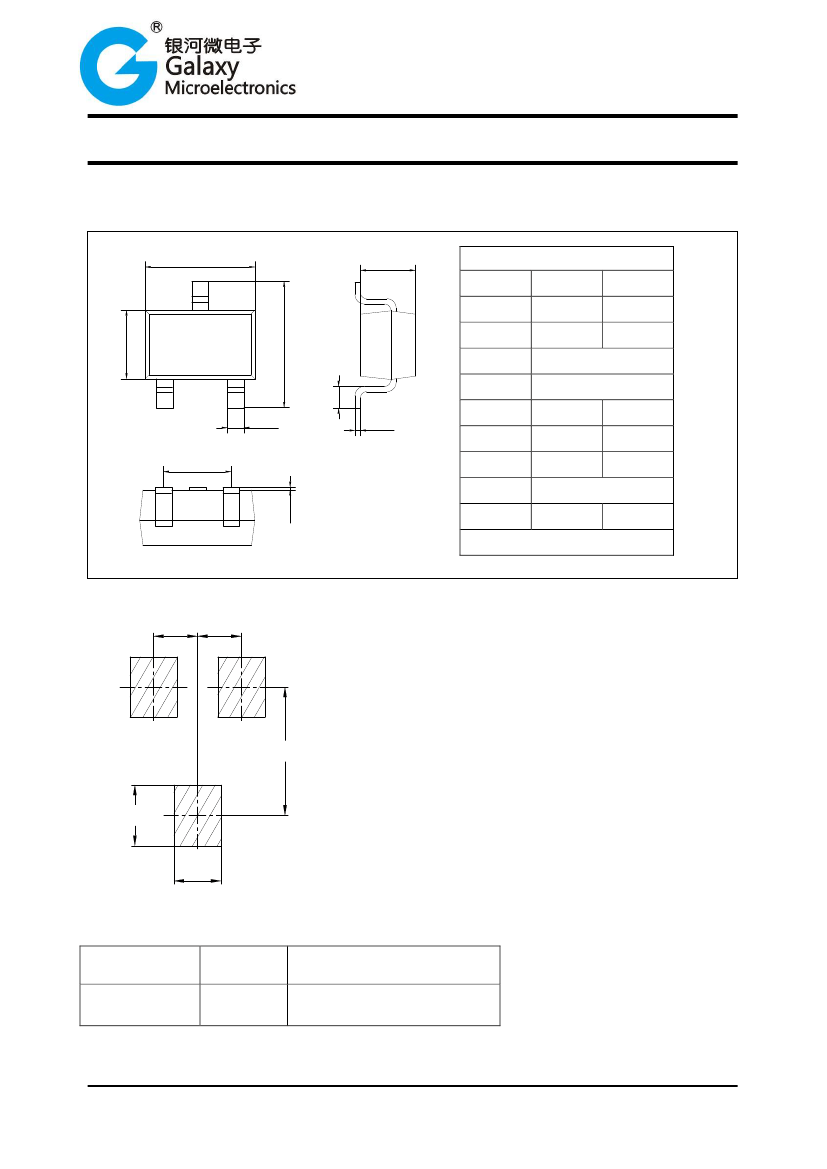

Package Outlines	SOT-323

Preview

Download Datasheet

View All

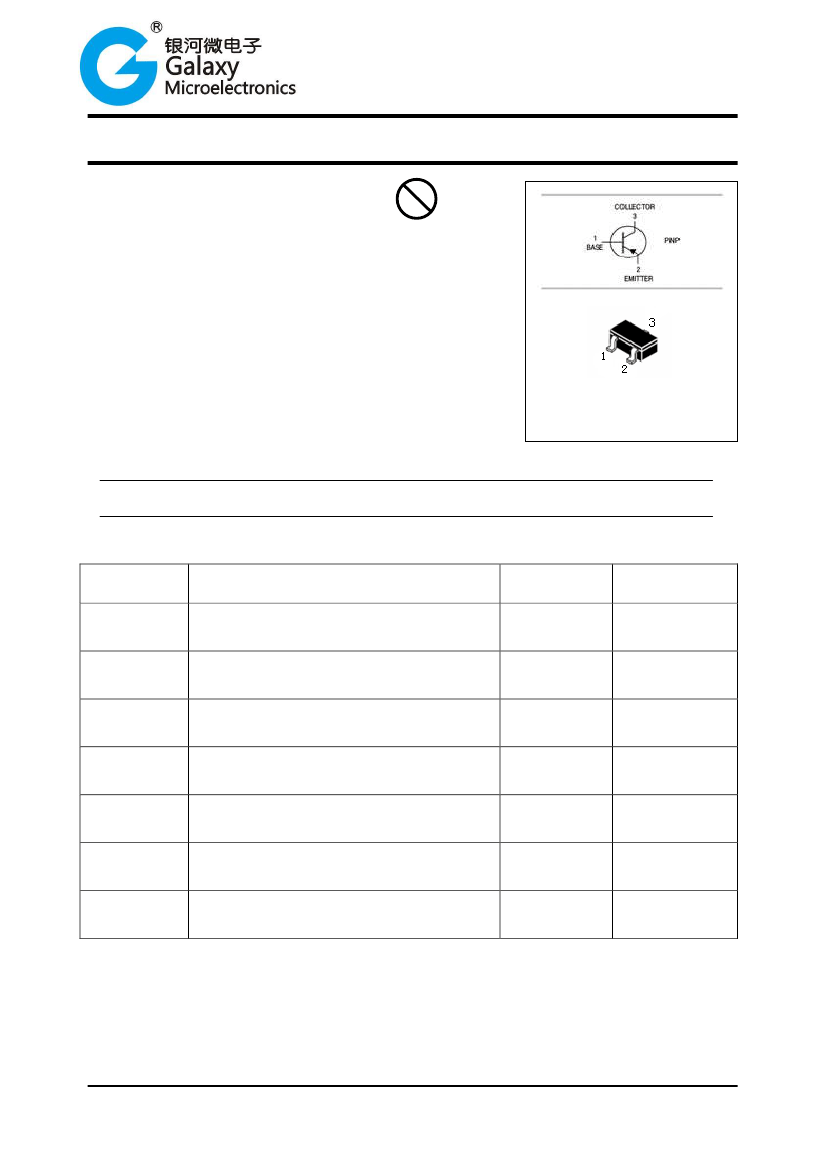

Production specification

PNP Silicon Epitaxial Planar Transistor

FEATURES



Large Ic. I

CMAX

=-500mA

2SA1577

Lead-free

Low V

CE(sat).

Ideal for low-voltage operation.

Complements the 2SC4097.

APPLICATIONS



General purpose application.

SOT-323

ORDERING INFORMATION

Type No.

2SA1577

Marking

HP/HQ/HR

Package Code

SOT-323

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Symbol

CBO

CEO

EBO

stg

Parameter

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Collector Current -Continuous

Collector Dissipation

Junction Temperature

Storage Temperature

Value

-40

-32

-5

-500

200

150

-55 to +150

Units

℃

F030

Rev.A

www.gmesemi.com

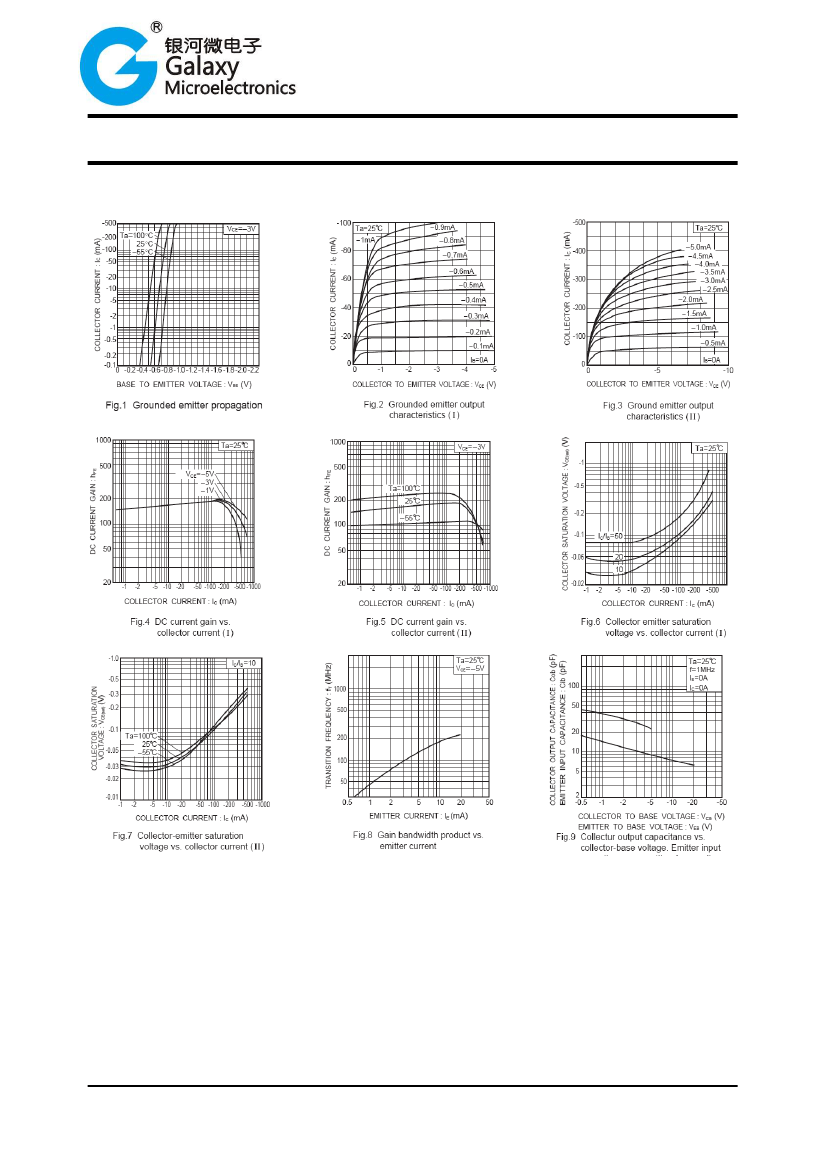

2SA1577 Related Products

	2SA1577	2SA1577P
Description	General Purpose PNP Bipolar Transistor; Polarity: PNP; V(BR)CEO Min (V): 32V; IC (A): 0.5A; HFE Min: 82; HFE Max: 390; VCE (V): 3V; IC (mA): 10mA; VCE(SAT) (V): 0.4V; IC (mA)1: 100mA; IB (mA): 10mA; FT Min (MHz): 200+ MHz; PTM Max (W): 0.2W; Package: SOT-323; package_code: SOT-323; mfr_package_code: SOT-323	Small Signal Bipolar Transistor, 0.5A I(C), 32V V(BR)CEO, 1-Element, PNP, Silicon,
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown	unknown
Maximum collector current (IC)	0.5 A	0.5 A
Collector-emitter maximum voltage	32 V	32 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	82	82
JESD-30 code	R-PDSO-G3	R-PDSO-G3
Number of components	1	1
Number of terminals	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	PNP	PNP
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	200 MHz	200 MHz
Base Number Matches	1	1
Maximum operating temperature	150	150 °C
Minimum operating temperature	-55	-55 °C
