TC524265TR-60: DescriptionIC 256K X 16 VIDEO DRAM, 60 ns, PDSO64, 0.400 INCH, PLASTIC, TSOP-70/64, Dynamic RAM; Categorystorage storage; File Size2MB，60 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC524265TR-60 Overview

IC 256K X 16 VIDEO DRAM, 60 ns, PDSO64, 0.400 INCH, PLASTIC, TSOP-70/64, Dynamic RAM

TC524265TR-60 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	TSOP
package instruction	TSOP2,
Contacts	70/64
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST EDO AND PIPELINED PAGE
Maximum access time	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-G64
JESD-609 code	e0
length	23.45 mm
memory density	4194304 bit
Memory IC Type	VIDEO DRAM
memory width	16
Number of functions	1
Number of ports	2
Number of terminals	64
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
refresh cycle	512
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10.16 mm
Base Number Matches	1

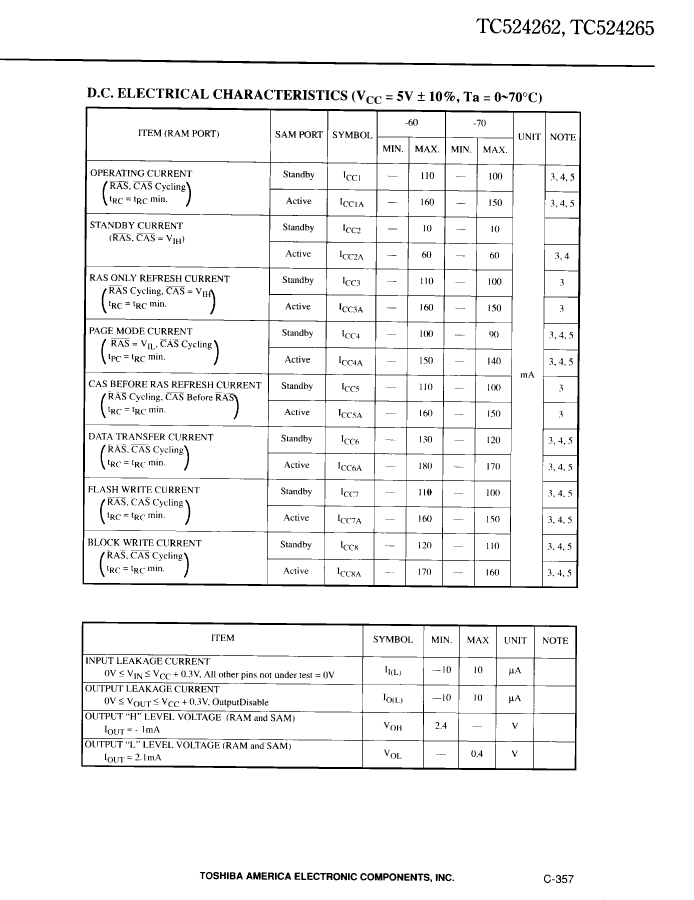

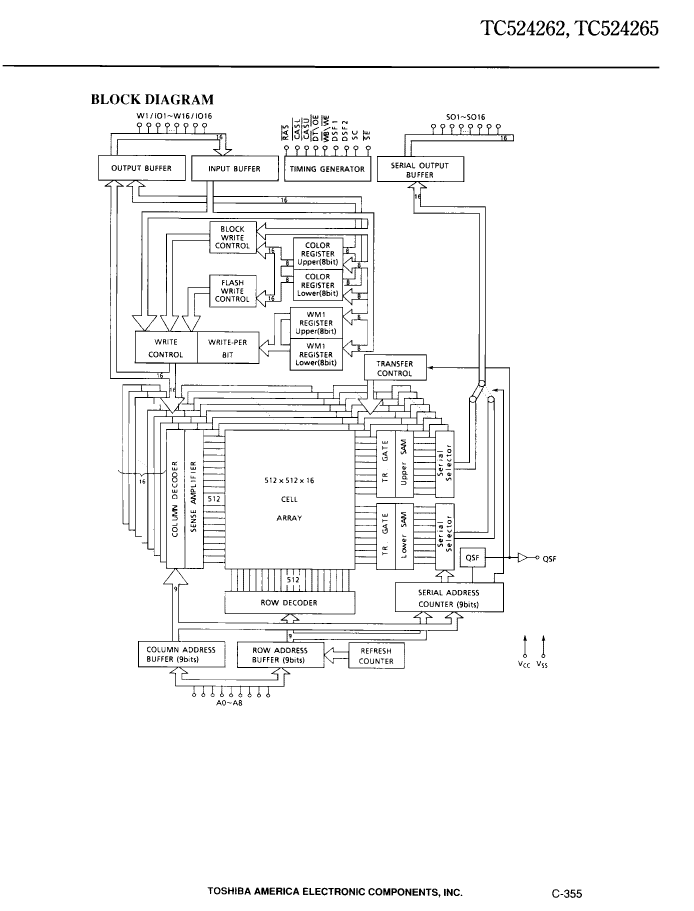

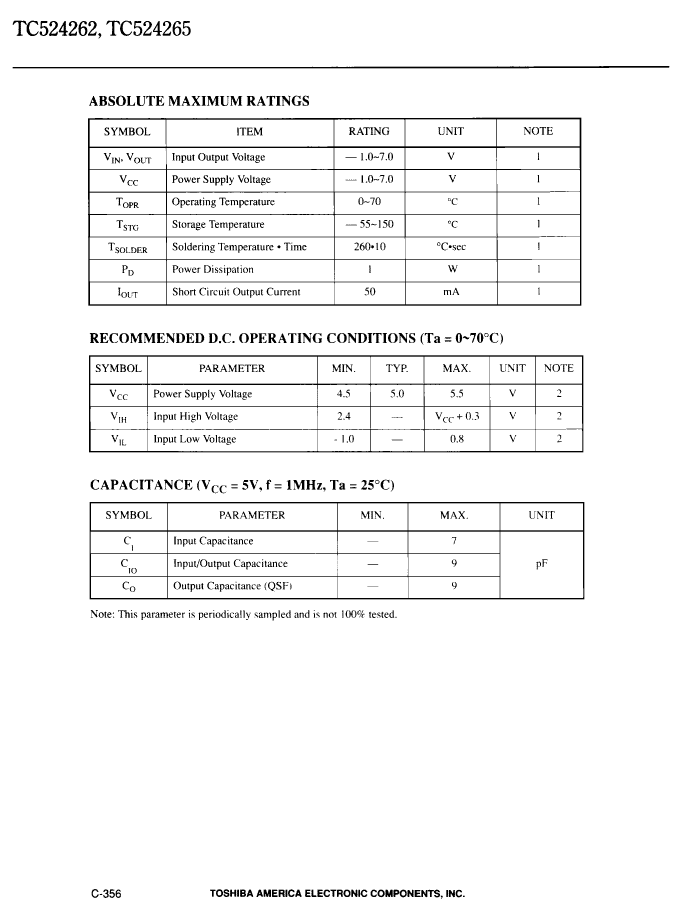

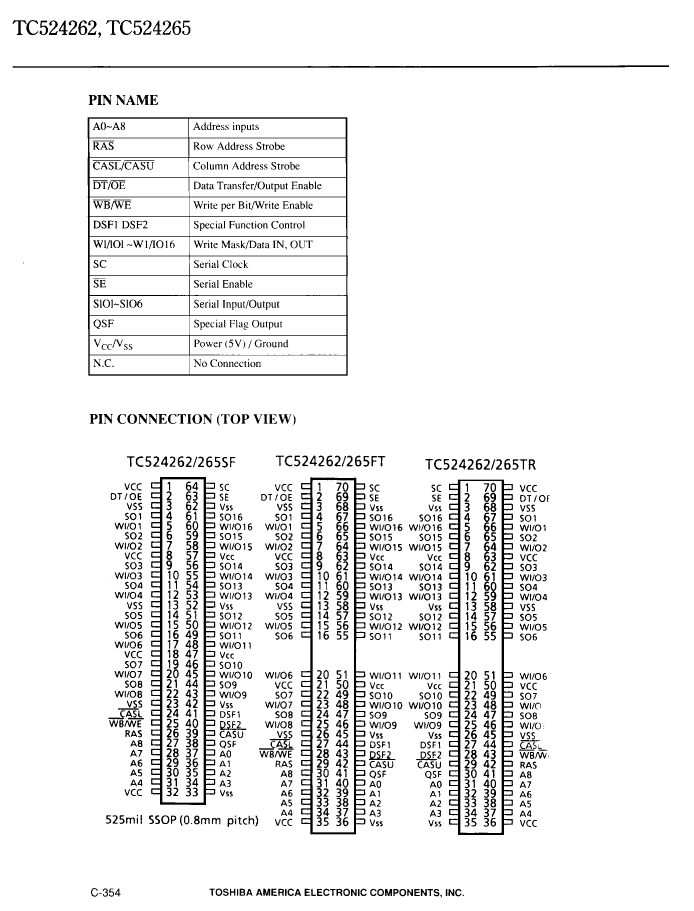

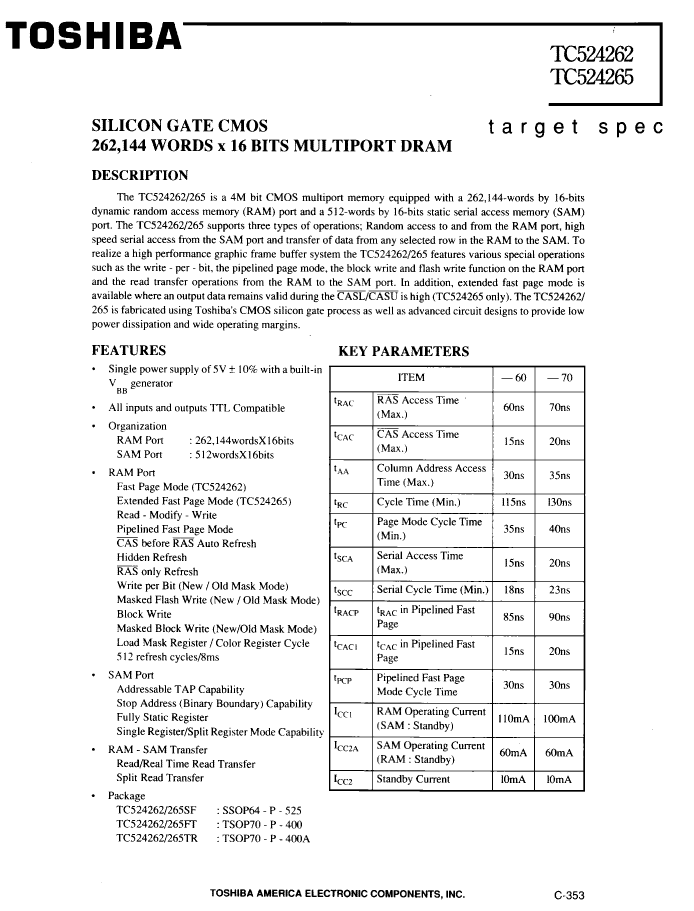

Preview

Download Datasheet

View All

TC524265TR-60 Related Products

	TC524265TR-60	TC524262TR-60	TC524265TR-70	TC524262TR-70
Description	IC 256K X 16 VIDEO DRAM, 60 ns, PDSO64, 0.400 INCH, PLASTIC, TSOP-70/64, Dynamic RAM	IC 256K X 16 VIDEO DRAM, 60 ns, PDSO64, 0.400 INCH, PLASTIC, TSOP-70/64, Dynamic RAM	IC 256K X 16 VIDEO DRAM, 70 ns, PDSO64, 0.400 INCH, PLASTIC, TSOP-70/64, Dynamic RAM	IC 256K X 16 VIDEO DRAM, 70 ns, PDSO64, 0.400 INCH, PLASTIC, TSOP-70/64, Dynamic RAM
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	TSOP	TSOP	TSOP	TSOP
package instruction	TSOP2,	TSOP2,	TSOP2,	TSOP2,
Contacts	70/64	70/64	70/64	70/64
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
access mode	FAST EDO AND PIPELINED PAGE	FAST AND PIPELINED PAGE	FAST EDO AND PIPELINED PAGE	FAST AND PIPELINED PAGE
Maximum access time	60 ns	60 ns	70 ns	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-G64	R-PDSO-G64	R-PDSO-G64	R-PDSO-G64
JESD-609 code	e0	e0	e0	e0
length	23.45 mm	23.45 mm	23.45 mm	23.45 mm
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM
memory width	16	16	16	16
Number of functions	1	1	1	1
Number of ports	2	2	2	2
Number of terminals	64	64	64	64
word count	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	256KX16	256KX16	256KX16	256KX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	TSOP2	TSOP2	TSOP2
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	512	512	512	512
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	10.16 mm	10.16 mm	10.16 mm	10.16 mm
Maker	-	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
