UFT15250 datasheet, PDF - EEWORLD Datasheet

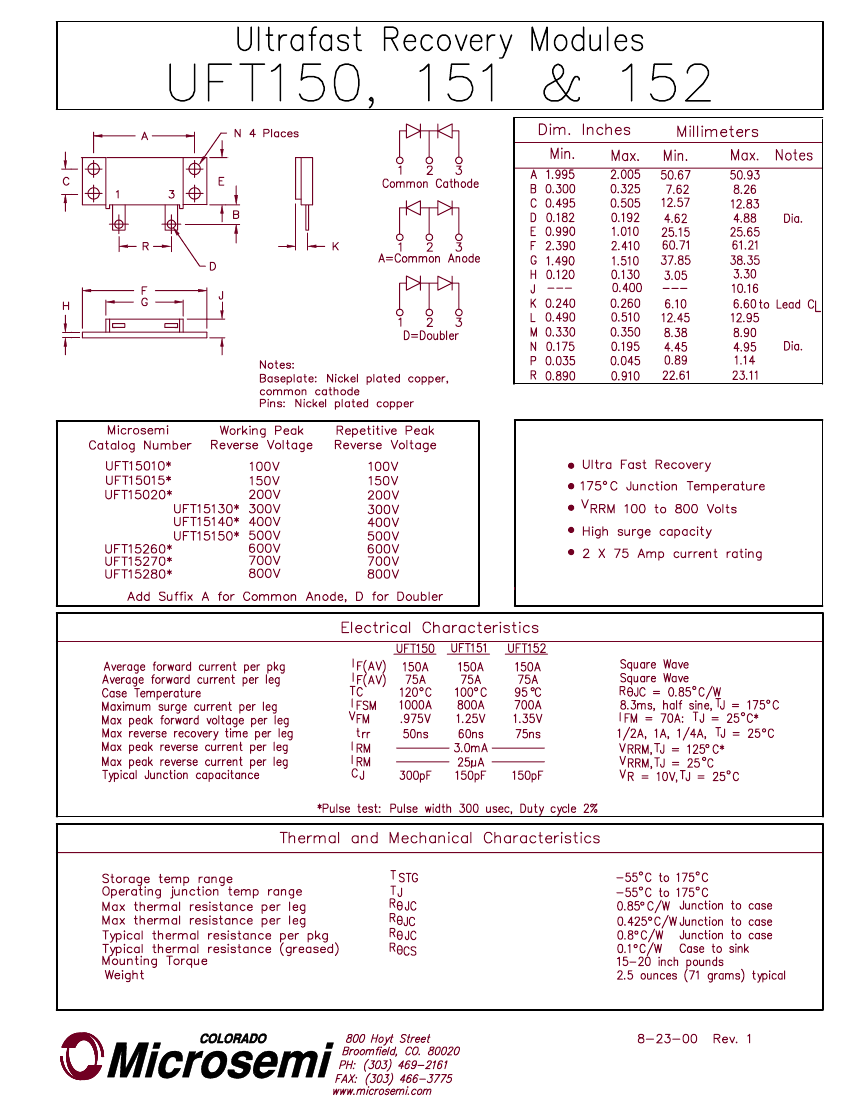

UFT15250: DescriptionRectifier Diode, 1 Phase, 2 Element, 150A, 500V V(RRM), Silicon, TO-249,; CategoryDiscrete semiconductor diode; File Size230KB，4 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

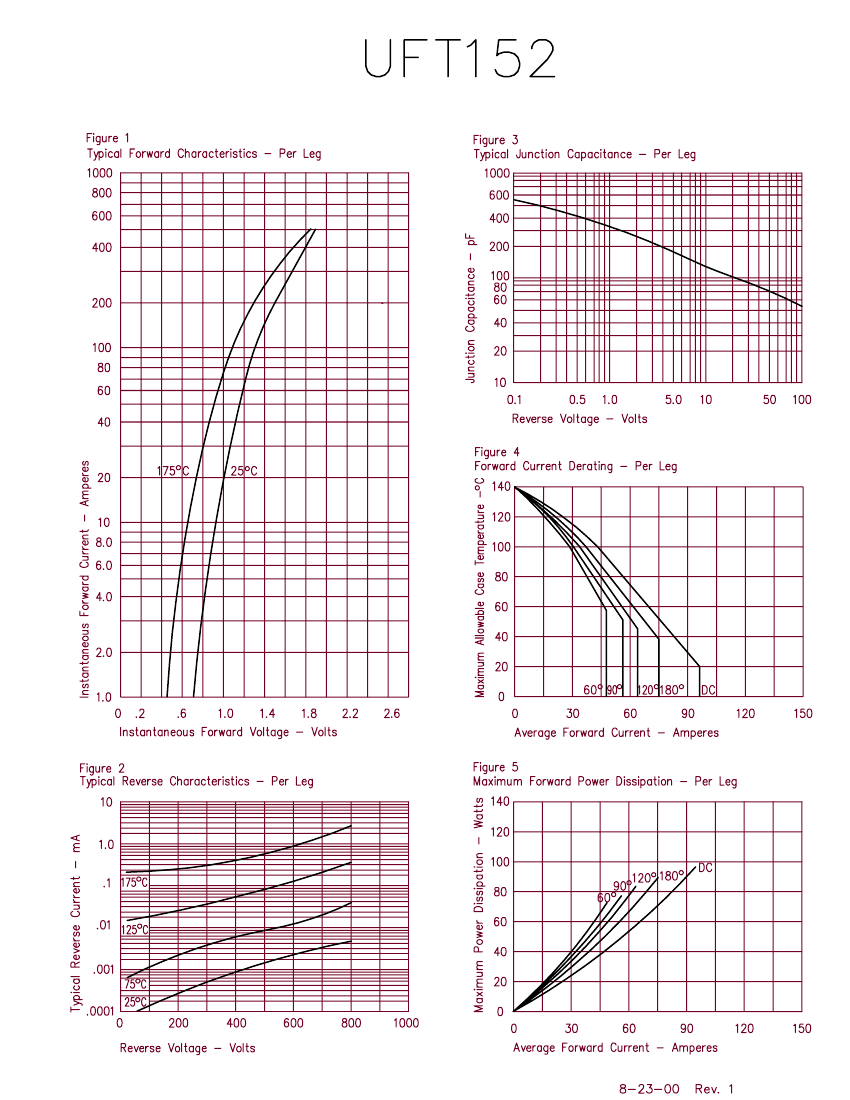

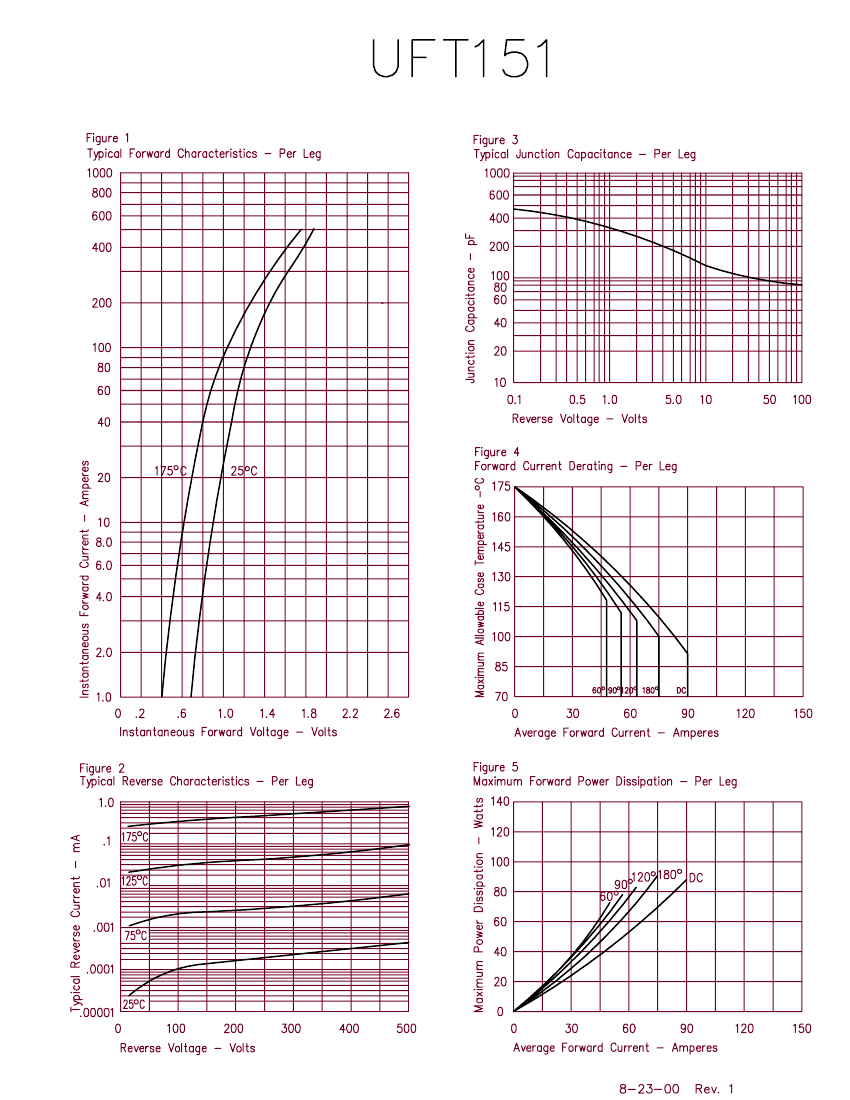

UFT15250 Overview

Rectifier Diode, 1 Phase, 2 Element, 150A, 500V V(RRM), Silicon, TO-249,

Parameter Name	Attribute value
package instruction	R-PSFM-D3
Reach Compliance Code	compliant
ECCN code	EAR99
application	ULTRA FAST RECOVERY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.35 V
JEDEC-95 code	TO-249
JESD-30 code	R-PSFM-D3
JESD-609 code	e0
Maximum non-repetitive peak forward current	700 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	175 °C
Minimum operating temperature	-40 °C
Maximum output current	150 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	500 V
Maximum reverse current	25 µA
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	SOLDER LUG
Terminal location	SINGLE
Base Number Matches	1

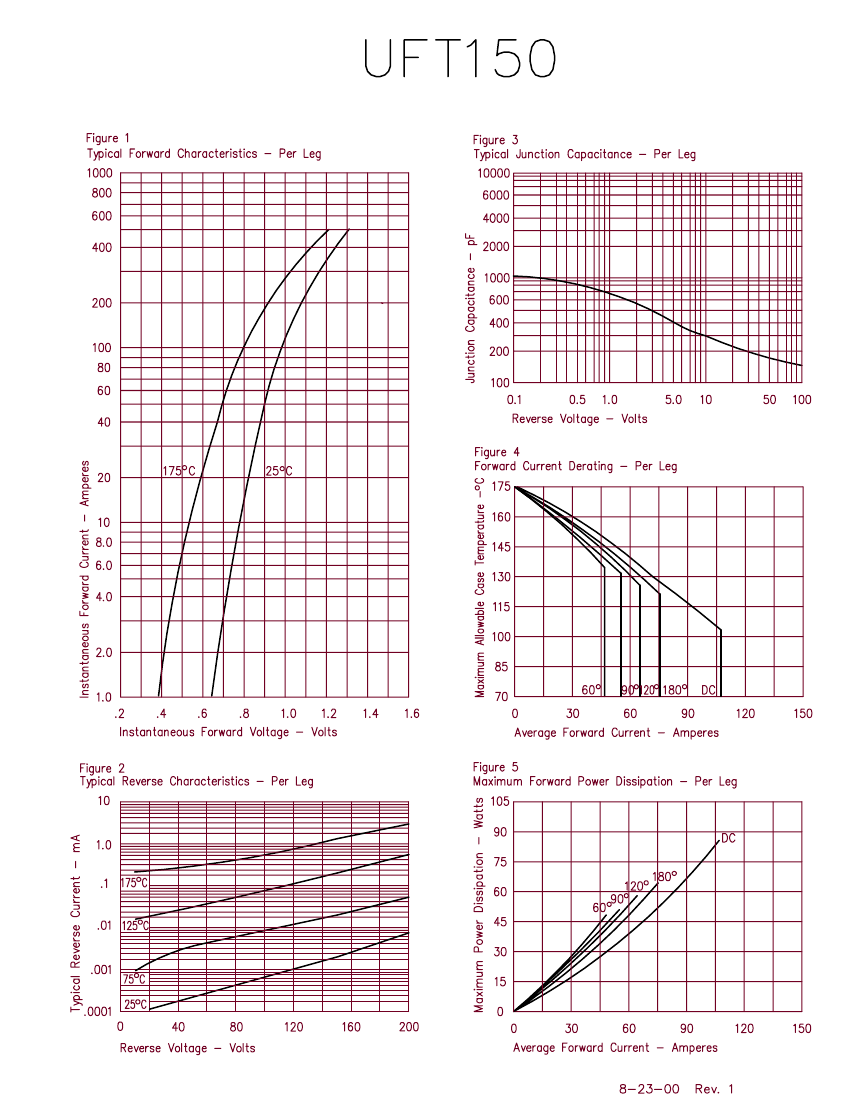

	UFT15250	UFT15005
Description	Rectifier Diode, 1 Phase, 2 Element, 150A, 500V V(RRM), Silicon, TO-249,	Rectifier Diode, 1 Phase, 2 Element, 150A, 50V V(RRM), Silicon, TO-249,
package instruction	R-PSFM-D3	R-PSFM-D3
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.35 V	0.975 V
JEDEC-95 code	TO-249	TO-249
JESD-30 code	R-PSFM-D3	R-PSFM-D3
JESD-609 code	e0	e0
Maximum non-repetitive peak forward current	700 A	1000 A
Number of components	2	2
Phase	1	1
Number of terminals	3	3
Maximum operating temperature	175 °C	175 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum output current	150 A	150 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	500 V	50 V
Maximum reverse current	25 µA	25 µA
Maximum reverse recovery time	0.05 µs	0.03 µs
surface mount	NO	NO
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	SOLDER LUG	SOLDER LUG
Terminal location	SINGLE	SINGLE
