A54SX32-BG208I datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> A54SX32-BG208I

A54SX32-BG208I: DescriptionField Programmable Gate Array, 230.8MHz, 2880-Cell, CMOS, PBGA208,; CategoryProgrammable logic devices Programmable logic; File Size2MB，50 Pages; ManufacturerActel; Websitehttp://www.actel.com/

Download Datasheet Parametric Compare View All

A54SX32-BG208I Overview

Field Programmable Gate Array, 230.8MHz, 2880-Cell, CMOS, PBGA208,

A54SX32-BG208I Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
maximum clock frequency	230.8 MHz
JESD-30 code	S-PBGA-B208
JESD-609 code	e0
Number of entries	246
Number of logical units	2880
Output times	246
Number of terminals	208
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Encapsulate equivalent code	BGA208,17X17,50
Package shape	SQUARE
Package form	GRID ARRAY
power supply	3.3,5 V
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	BALL
Terminal pitch	1.27 mm
Terminal location	BOTTOM
Base Number Matches	1

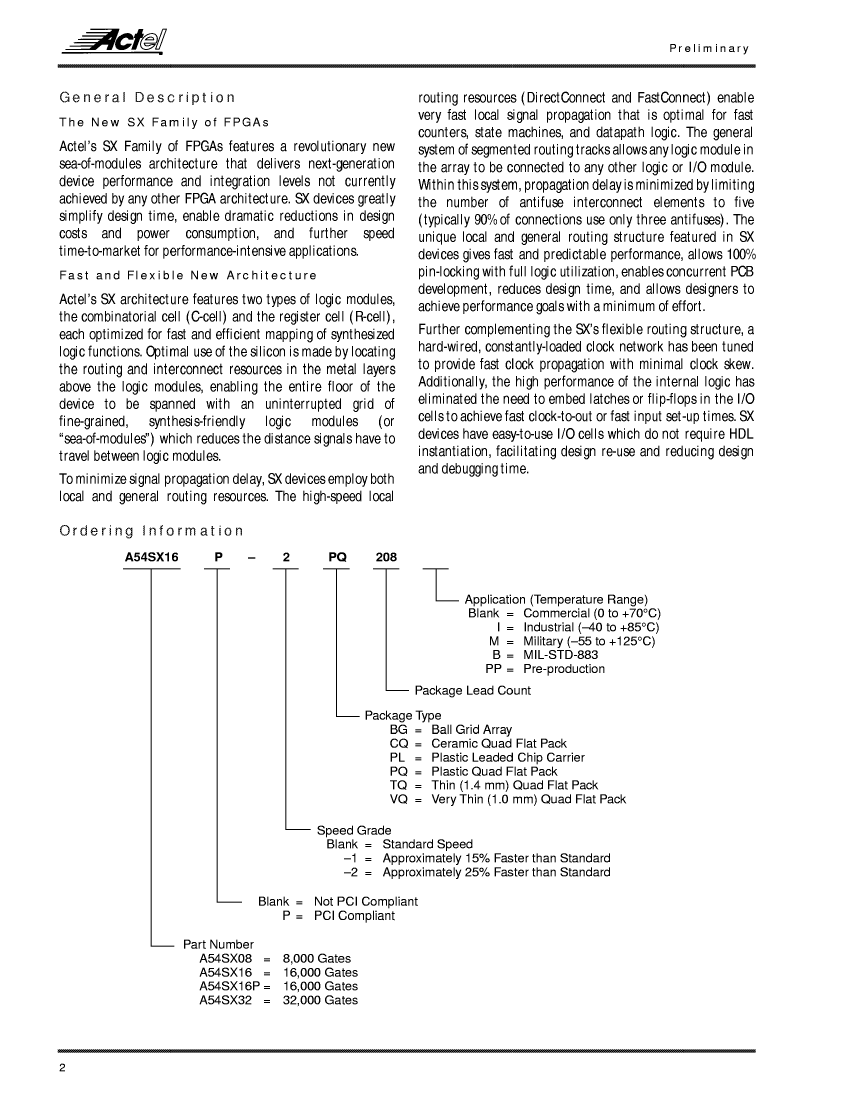

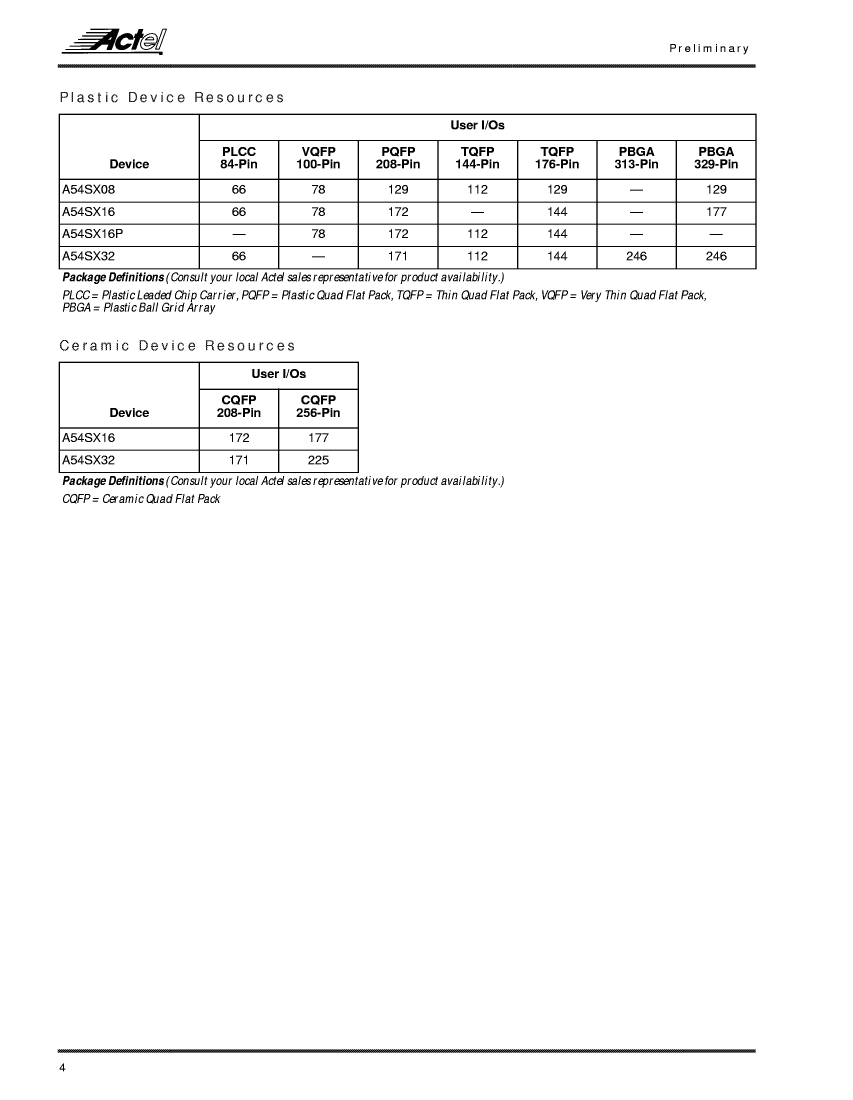

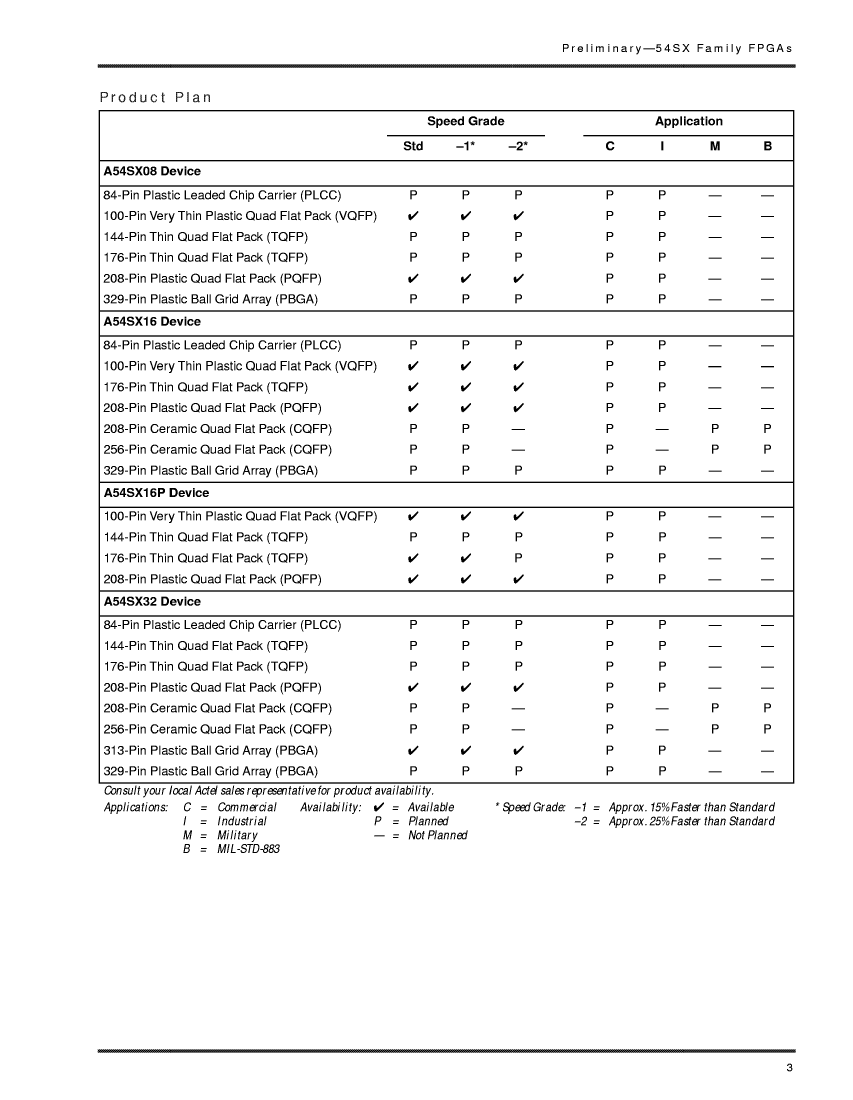

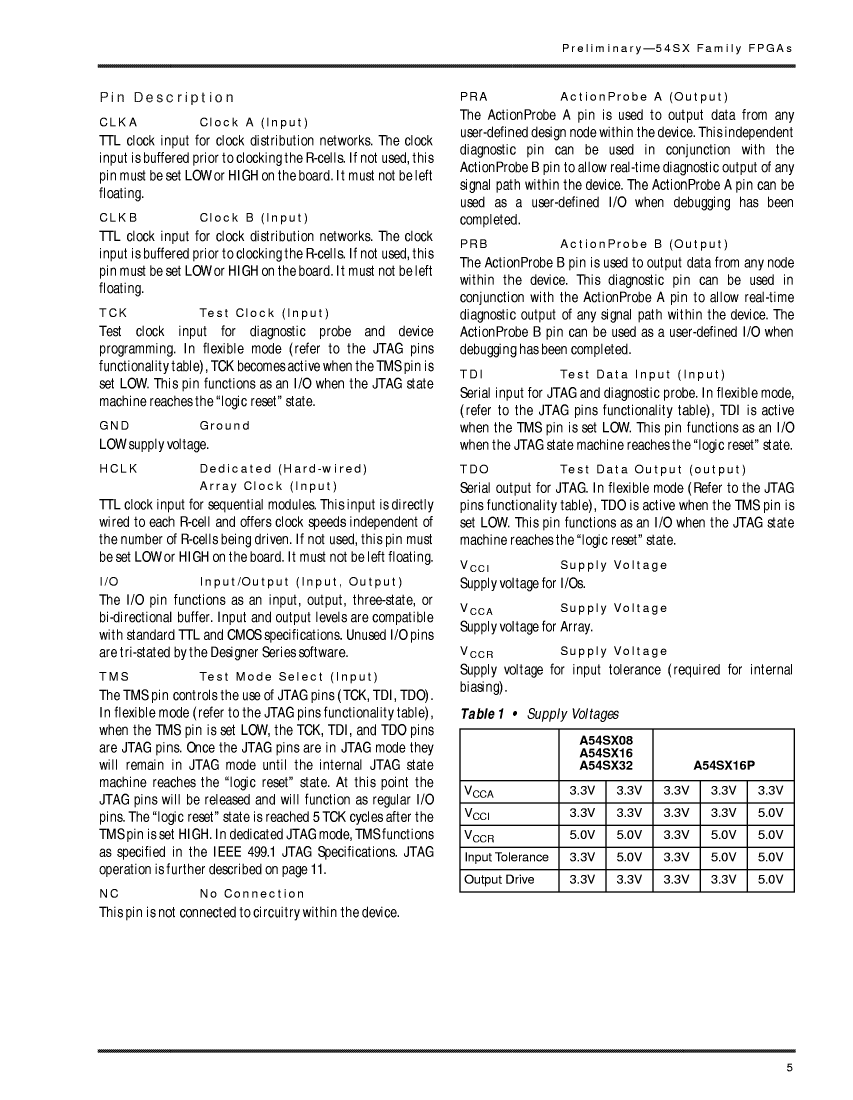

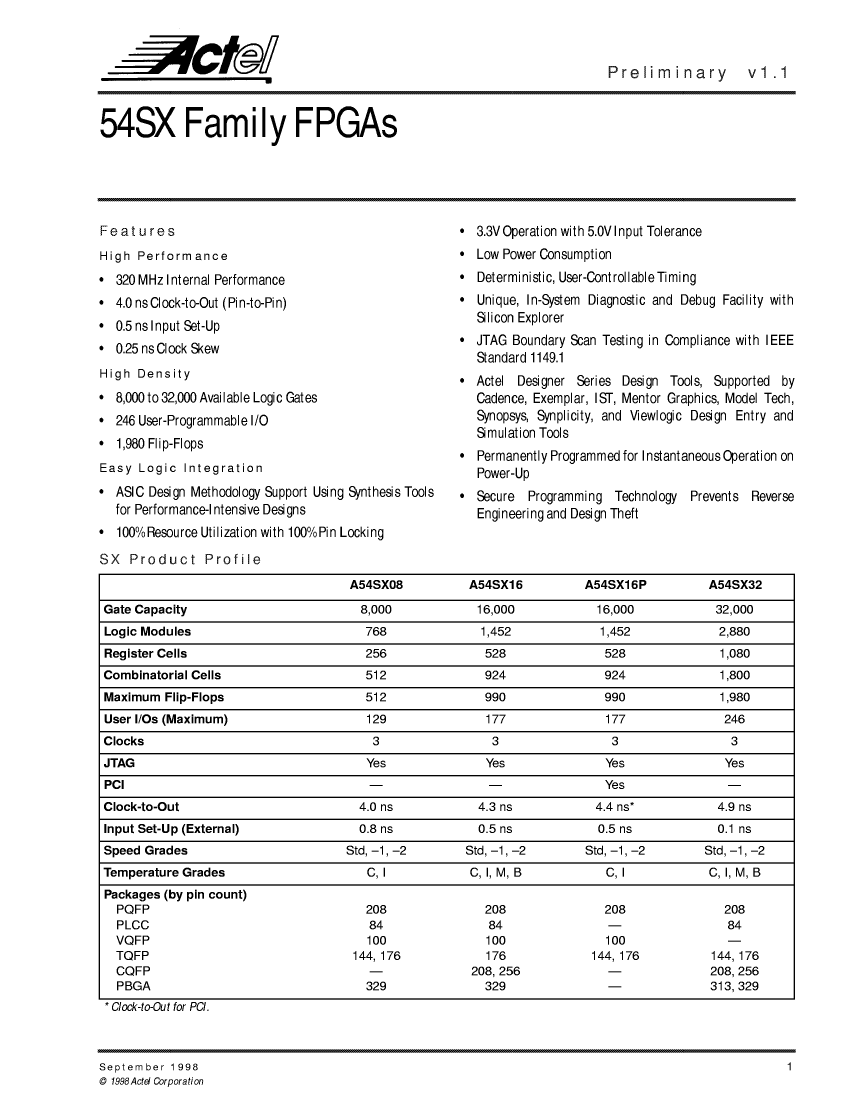

Preview

Download Datasheet

View All

A54SX32-BG208I Related Products

	A54SX32-BG208I	A54SX32-BG208	A54SX32-2BG208I	A54SX32-2BG208
Description	Field Programmable Gate Array, 230.8MHz, 2880-Cell, CMOS, PBGA208,	Field Programmable Gate Array, 240MHz, 2880-Cell, CMOS, PBGA208,	Field Programmable Gate Array, 307.7MHz, 2880-Cell, CMOS, PBGA208,	Field Programmable Gate Array, 320MHz, 2880-Cell, CMOS, PBGA208,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown
maximum clock frequency	230.8 MHz	240 MHz	307.7 MHz	320 MHz
JESD-30 code	S-PBGA-B208	S-PBGA-B208	S-PBGA-B208	S-PBGA-B208
JESD-609 code	e0	e0	e0	e0
Number of entries	246	246	246	246
Number of logical units	2880	2880	2880	2880
Output times	246	246	246	246
Number of terminals	208	208	208	208
Maximum operating temperature	85 °C	70 °C	85 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	BGA	BGA	BGA	BGA
Encapsulate equivalent code	BGA208,17X17,50	BGA208,17X17,50	BGA208,17X17,50	BGA208,17X17,50
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY
power supply	3.3,5 V	3.3,5 V	3.3,5 V	3.3,5 V
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	BALL	BALL	BALL	BALL
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Base Number Matches	1	1	1	1
