REVISION CA

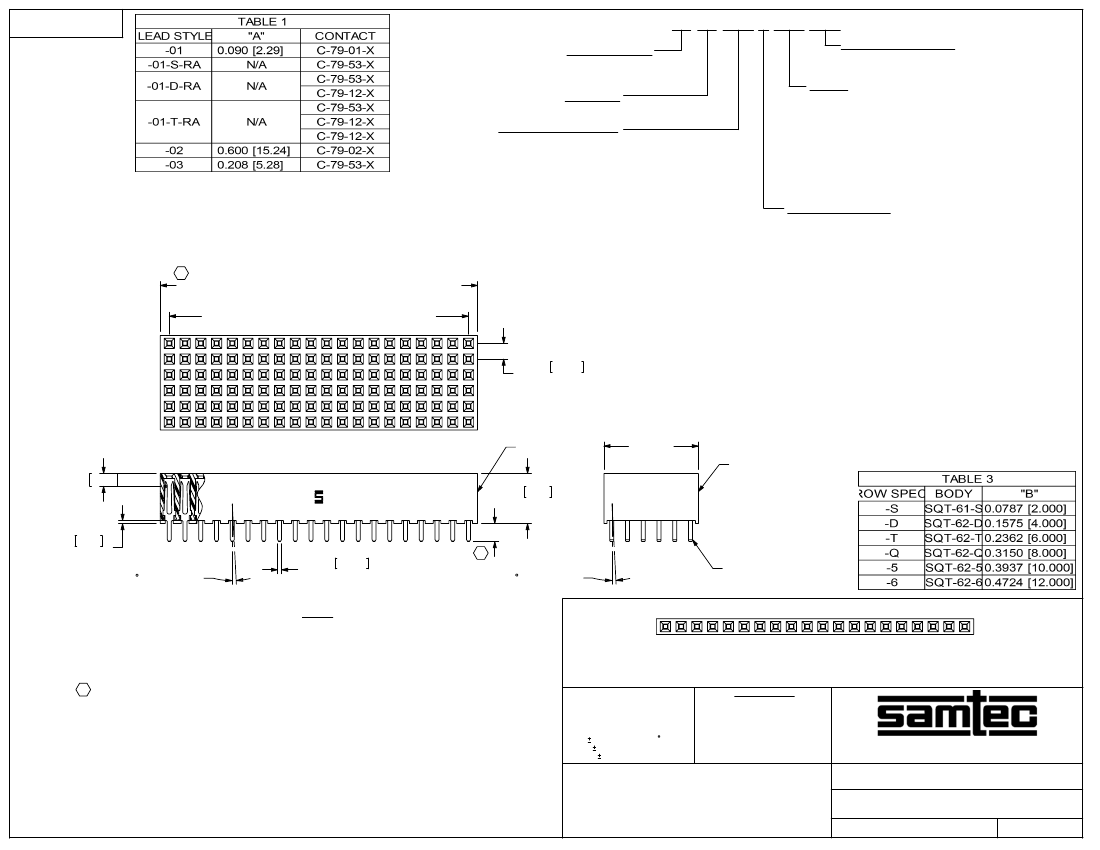

SQT-1XX-XX-XXX-X-XXX-XXX
No OF POSITIONS
-02 THRU -50
(PER ROW)
-01 (SEE NOTE 3)
LEAD STYLE
(SEE TABLE 1)
PLATING SPECIFICATION
-F: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-G: 20µ" SELECTIVE GOLD IN CONTACT AREA,
3µ" SELECTIVE GOLD ON TAIL.
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-H: 50µ" SELECTIVE GOLD IN CONTACT AREA,
3µ" SELECTIVE GOLD ON TAIL.
-FM: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-LM: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-STL: 30µ" SELECTIVE GOLD IN CONTACT AREA,
SnPb ON TAIL.
POLARIZATION OPTION
-XXX: INDICATES POSITION
(SEE NOTE 10)
OPTION
-RA: RIGHT ANGLE
(-01 LEAD STYLE, ROWS -S, -D, -T ONLY)
(NOT AVAILABLE ON -Q, -5 & -6 ROWS)
(SINGLE, DOUBLE, TRIPLE ROW: SEE FIG 2, SHT 2)
*-SD1: SOLDER DONUT (SEE FIG 3, SHT 2)
(AVAILABLE ON -S, -D, -T ONLY)
**-MW: METAL WASHER (SHT 2, SEE FIG 4)
(AVAILABLE ON LEAD STYLES -01 & -03 ONLY)
(5 POS MIN, 30 POS MAX, .300 MAX TAIL)
ROW SPECIFICATION
-S: SINGLE (USE SQT-61-S)
-D: DOUBLE (USE SQT-62-D)
-T: TRIPLE (USE SQT-62-T)
-Q: QUAD
(USE SQT-62-Q)
-5: FIVE ROW (USE SQT-62-5)
-6: SIX ROW (USE SQT-62-6)
* NOT RELEASED
C
{(No OF POS x .0787[2.000]) + .0117[0.300] ± .010[0.25]
(No OF POS x .0787[2.000] - .0787[2.000] REF
* = NOT RELEASED FOR PRODUCTION
** = MW OPTION, DO NOT DESIGN IN, SAMTEC WILL
ONLY SUPPORT EXISTING BUSINESS 02/06/2002
.0787 2.000
REF (TYP)
02
01
(SEE NOTE 7)
.064 1.63 REF
"B" REF
SQT-XX-X
(SEE TABLE 3)
.250 6.35
REF
"A"
.0197 0.500
SQ REF (TYP)
C
2 MAX SWAY
(EITHER DIRECTION)
.015 0.38
REF
2 MAX SWAY
(EITHER DIRECTION)
C-79-XX-X
(SEE TABLE 1)
SQT-120-01-XX-6 SHOWN
01 02
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM CONTACT RETENTION: .5 LB
3. -01 POSITION OFFERED FOR SINGLE ROW& ONLY FOR -S, -D, & -T
ROWS RIGHT ANGLE ONLY.
4. -01, -02, & -03 & ONLY FOR -S, -D, & -T ROWS POSITIONS TO BE
LAYER PACKAGED.
5. STOCK 62 POSITION FOR -D AND 61 POSITION FOR
-S, -01 LEAD STYLE ONLY. TO BE CUT TO POSITION FOR CUSTOMER.
6. MAXIMUM BURR: .005[0.13]
7. ENDWALL AFTER CUTTING: .033[0.84]±.004[0.10], VOIDS MAY BE PRESENT.
CONTACTS MUST NOT BE VISIBLE THROUGH THE ENDWALL.
8. MAXIMUM CUT FLASH: .020[0.50]
9. MAXIMUM HEIGHT VARIATION: .005[0.13]
10. INSERT PK-07-N INTO SPECIFIED POSITION AND BREAK OFF TAB.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
*
FIG 1
(POSITON PATTERN SINGLE ROW ONLY)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: LCP, UL 94 VO, COLOR: BLACK
CONTACT: PHOS BRONZE
MAX BOW ALLOWED: .004[.10] IN/IN
F:\DWG\MISC\MKTG\SQT-1XX-XX-XXX-X-XXX-XXX-MKT.SLDDRW
2MM SOCKET STRIP ASSEMBLY
BY:
BRATCHER 07/24/1995
SQT-1XX-XX-XXX-X-XXX-XXX
SHEET
1
OF
3
REVISION CA
90°

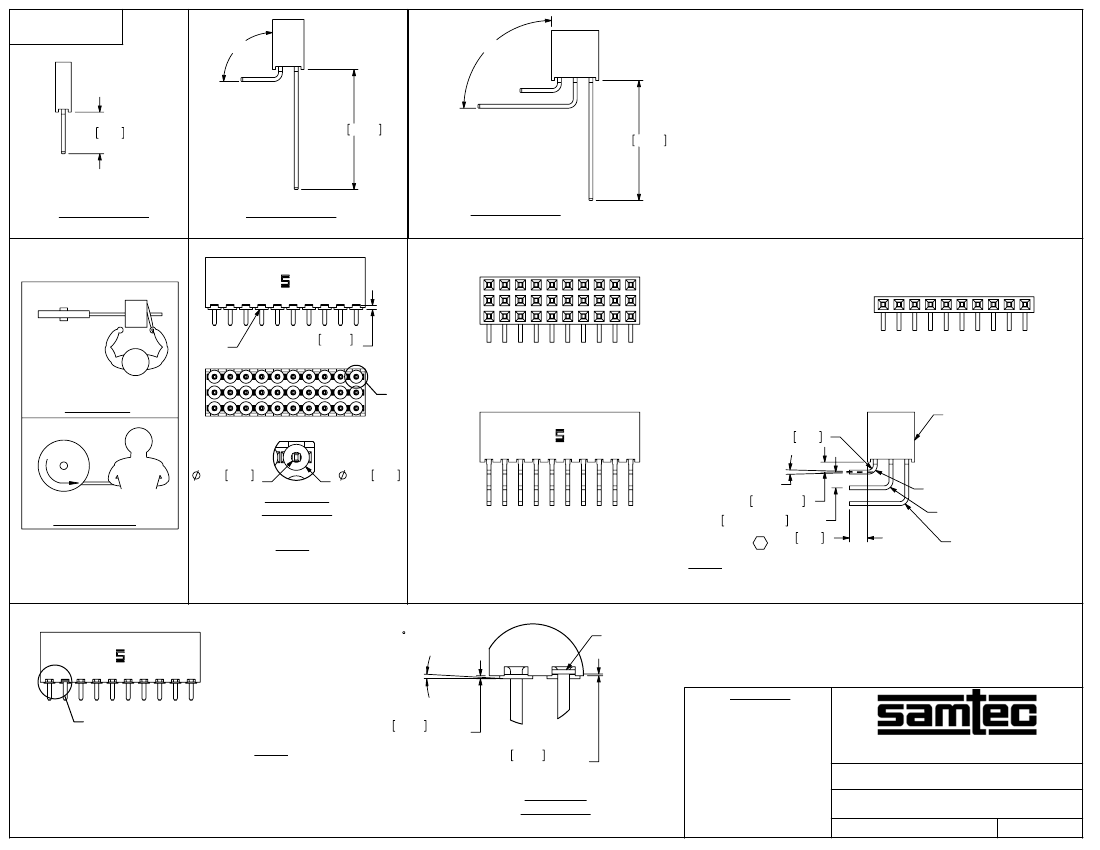

90°
.208 5.28
.600 15.24
.600 15.24
(LEAD STYLE -01-S,D,T-RA)
IN PROCESS 1
(LEAD STYLE -01-D,T-RA)
IN PROCESS 2
(LEAD STYLE -01-T-RA)
IN PROCESS 3
REEL
TOOLING
02
01
SD1
.0200 0.508
REF
01 02
(POSITON PATTERN SINGLE row ONLY)
OPERATOR
TOP VIEW
'A'
R.025 0.64
.025 0.64
REF
.065 1.65
REF
SQT-XX-X
(SEE TABLE 3)
REEL
OPERATOR
FRONT VIEW
WASHER REEL ASSEMBLY
ORIENTATION VIEW
DETAIL 'A'
SCALE 4 : 1
3° MAX
.050±.010 1.27±0.25
.0787±.0050 2.000±0.127 (TYP)
C .090 2.29
C-79-53-X
(SHEAR TO LENGTH)
C-79-12-X
(SHEAR TO LENGTH)
C-79-12-X
(SHEAR TO LENGTH)
*-SD1: SOLDER DONUT
(ONE PER POSITION)
(ROW STYLE -S,-D,-T & -Q ONLY)
*NOT ENGINEERING APPROVED
FIG 3
-RA: RIGHT ANGLE
(LEAD STYLE -01-D,T)
FIG 2
2 MAX SWAY
(EITHER DIRECTION)
SQT-01-MW-T
'B'
**-MW: METAL WASHER
(ONE PER POSITION)
(AVAILABLE ON LEADSTYLES -01 & -03 ONLY
(5 POS MIN, 30 POS MAX)
** -MW OPION, DO NOT DESIGN IN. SAMTEC WILL
ONLY SUPPORT EXISTING BUSINESS 2/06/02.
FIG 4
.0050 0.127 MAX
MEASURE AT THE TAIL
.0030 0.076 MAX
MEASURE AT THE TAIL
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
DETAIL 'B'
SCALE 6 : 1
F:\DWG\MISC\MKTG\SQT-1XX-XX-XXX-X-XXX-XXX-MKT.SLDDRW
2MM SOCKET STRIP ASSEMBLY
BY:
BRATCHER 07/24/1995
SQT-1XX-XX-XXX-X-XXX-XXX
SHEET
2
OF
3
REVISION CA

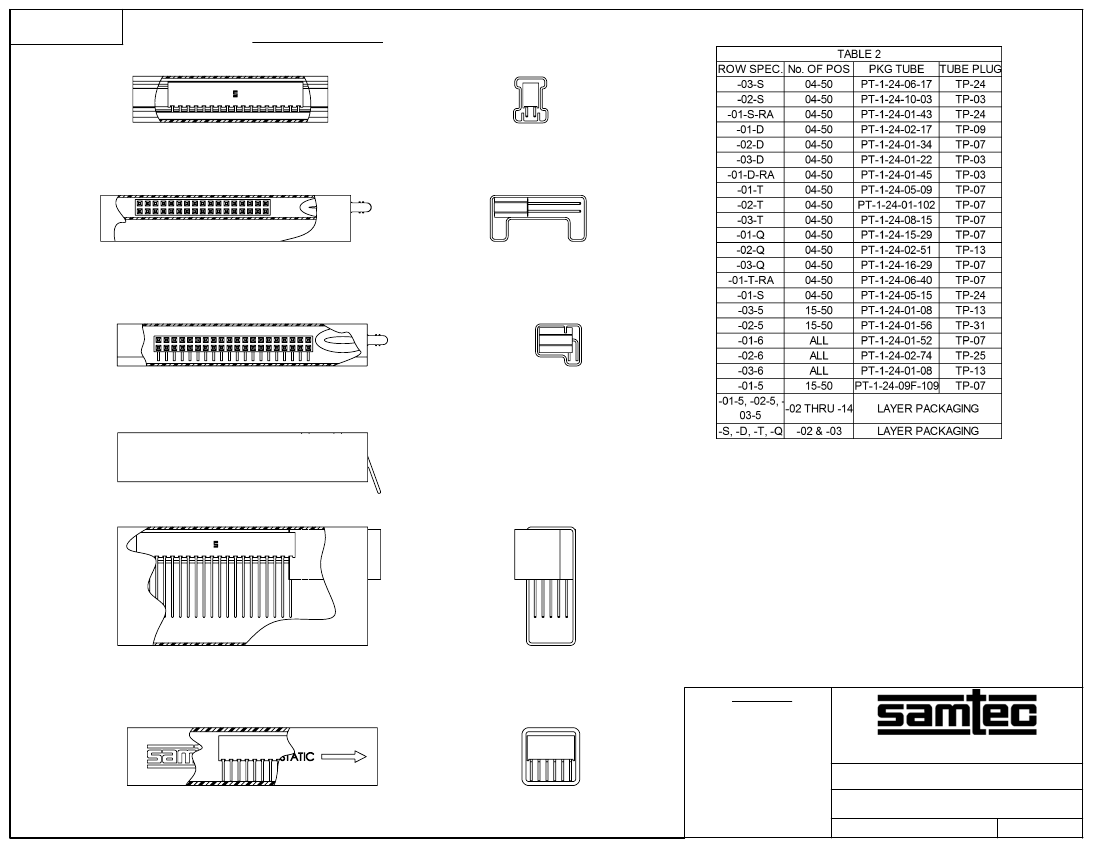

PACKAGING VIEWS
SQT-1XX-01-XX-D
(SEE TABLE 2)
SQT-1XX-02-XX-D
(LOCATE PLUG AS SHOWN)
(SEE TABLE 2)
SQT-1XX-01-XX-D-RA SHOWN
(LOCATE PLUG AS SHOWN)
(SEE TABLE 2)
SQT-1XX-05-XX-X
(LOCATE PLUG AS SHOWN)
(SEE TABLE 2)
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
2MM SOCKET STRIP ASSEMBLY
SQT-1XX-03-XX-6 SHOWN
(SEE TABLE 2)
F:\DWG\MISC\MKTG\SQT-1XX-XX-XXX-X-XXX-XXX-MKT.SLDDRW
SHEET SCALE: 1:1
BY:
BRATCHER 07/24/1995
SQT-1XX-XX-XXX-X-XXX-XXX
SHEET
3
OF
3
