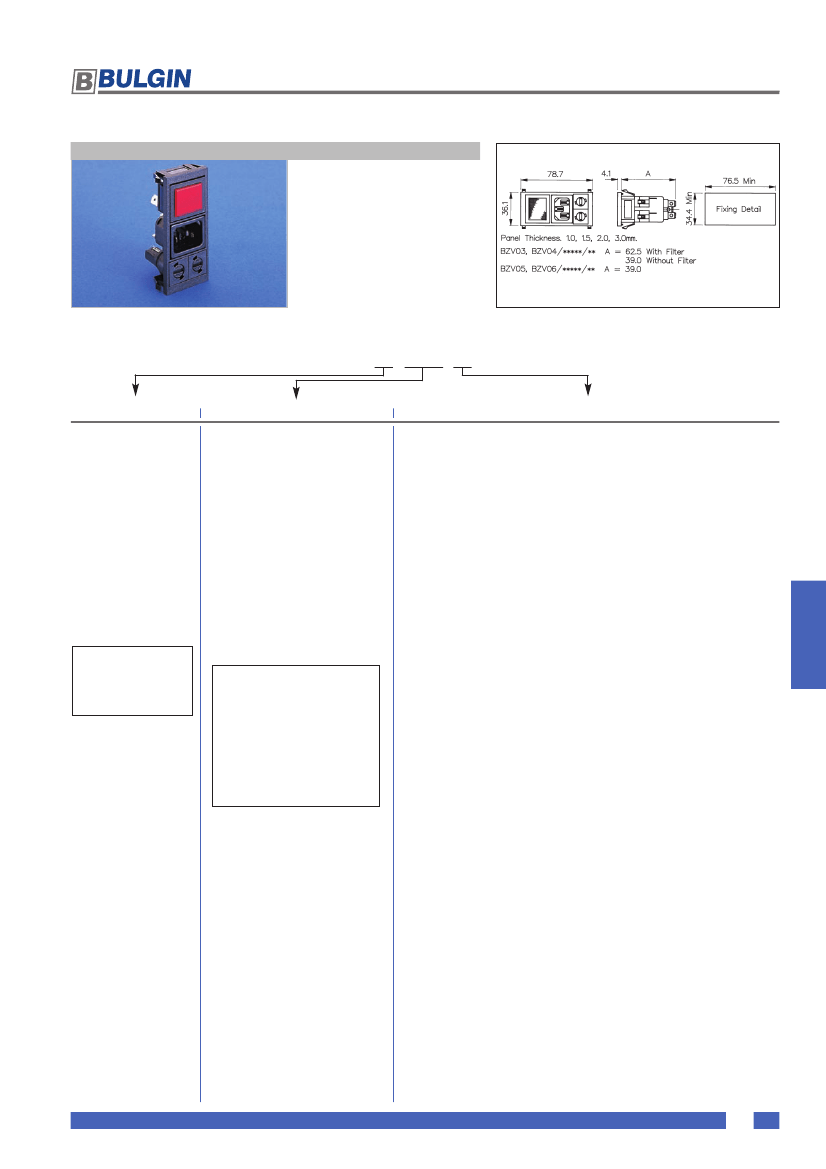

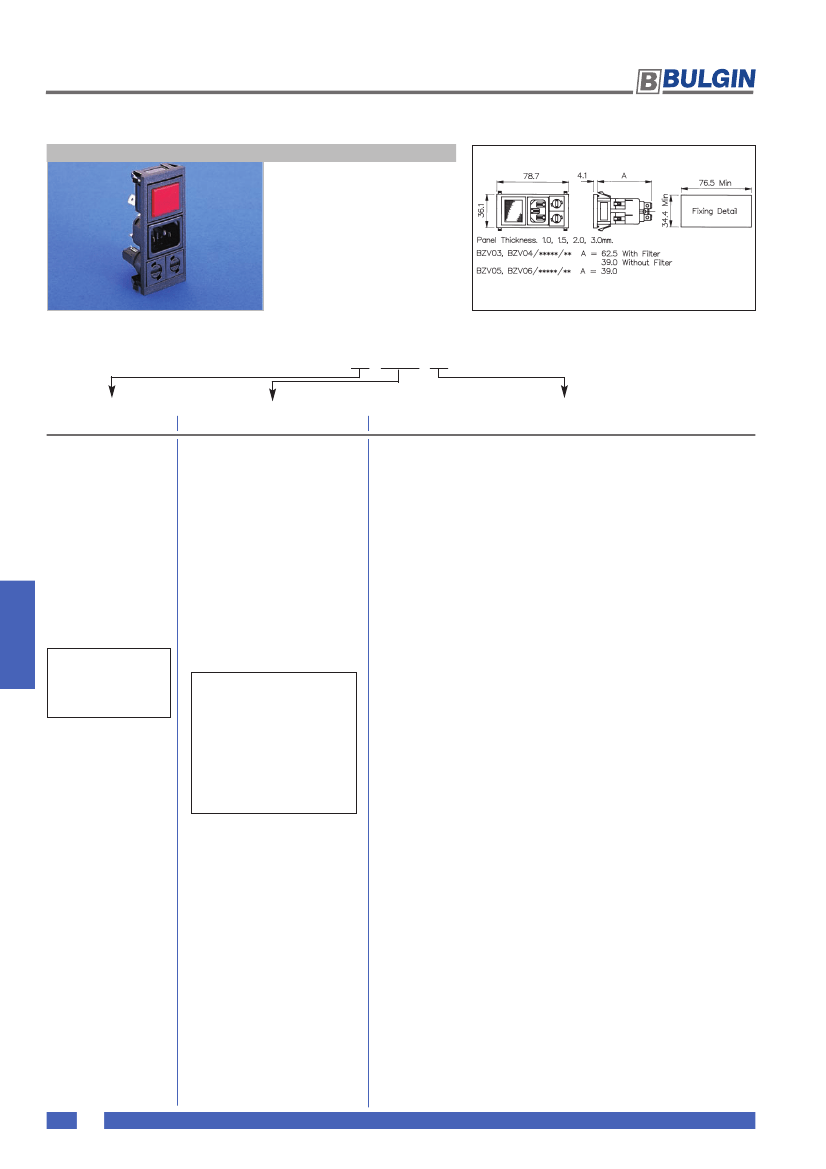

POLYSNAP
®
POWER INLET MODULES
C14 and C16 IEC Inlet - Vertical
VERTICAL MODULE ARRANGEMENT
Inlet with 2.8mm or 6.3mm
tags
Double Pole Switch/
Fuseholder/Indicator/
Voltage Selectors/
Blanking Plate
Filtered Inlet Option
Options of I/O marked
switches
BZV03/Z0000/07
How to Order
BZV xx / xxxxx / xx
Type of Inlet / Outlet
C14 Power Inlet (cold
condition), 6.3 or 2.8mm
tabs:
03
= PX0575/63
04
= PX0575/28
C16 Power Inlet (hot
condition), 6.3 or 2.8mm
tabs:
05
= PX0595/63
06
= PX0595/28
Filtered or Non Filtered Inlet
Z0000 = Non Filtered
Axxxx = Standard
Bxxxx = Medical
Combination of Other Components
Twin Fuseholder and Double Pole
Switch:
05
= 2 x FX0359 + D.P Switch
.
Twin Fuseholder and Double Pole Neon
Switch:
06
= 2 x FX0359 + D.P Red Neon
.
Switch
09
= 2 x FX0359 + D.P Green Neon
.
Switch
19
= 2 x FX0359 + D.P Red Neon
.
Switch 125V
Twin Fuseholder and Neon Indicator:
07
= 2 x FX0359 + Red Neon
Indicator
Voltage Selector, Fuseholder and Double
Pole Switch:
15
= 1 x VS0001 + 1 x FX0359 +
Double Pole switch
Voltage Selector, Fuseholder and Double
Pole Neon Switch:
16
= 1 x VS0001 + 1 x FX0359 + D.P
.
Red Neon Switch
18
= 1 x VS0001 + 1 x FX0359 + D.P
.
Green Neon Switch
Voltage Selector, Fuseholder and Neon
Indicator:
17
= 1 x VS0001 + 1 x FX0359 + Red
Neon Indicator
Twin Fuseholder and Double Pole High
Inrush Switch:
20
= 2 x FX0359 + D.P High Inrush
.
Switch
Twin Fuseholder and Double Pole High
Inrush Neon Switch:
21
= 2 x FX0359 + 1 x D.P High
.
Inrush Green Neon Switch
22
= 2 x FX0359 + 1 x D.P High
.
Inrush Red Neon Switch
Voltage Selector, Neon Indicator and
Double Pole Switch
25
= 1 x VS0001 + 1 x
DX0928/110V/Red + D.P Switch
.
26
= 1 x VS0001 + 1 x
DX0928/110V/Green + D.P Switch
.
27
= 1 x VS0001 + 1 x
DX0928/250V/Red + D.P Switch
.
28
= 1 x VS0001 + 1 x
DX0928/250V/Green + D.P Switch
.
Voltage Selector, Neon Indicator and
Double Pole High Inrush Switch:
29
= 1 x VS0001 + 1 x
DX0928/250V/Red + D.P High Inrush
.
Switch
30
= 1 x VS0001 + 1 x
DX0928/250V/Green + D.P High
.
Inrush Switch
Fuseholder, Neon Indicator and Double
Pole Switch
31
= 1 x FX0359 + 1 x
DX0928/110V/Red + D.P Switch
.
32
= 1 x FX0359 + 1 x
DX0928/110V/Green + D.P Switch
.
33
= 1 x FX0359 + 1 x
DX0928/250V/Red + D.P Switch
.
34
= 1 x Fx0359 + 1 x
DX0928/250V/Green + D.P Switch
.
Fuseholder, Neon Indicator and Double
Pole High Inrush Switch:
35
= 1 x FX0359 + 1 x
DX0928/250V/Red + D.P High Inrush
.
Switch
36
= 1 x FX0359 + 1 x
DX0928/250V/Green + D.P High
.
Inrush Switch
Fuseholder, Blanking Plate and Double
Pole High Inrush Neon Switch:
47
= 1 x FX0359 + 1 x Blanking Plate
(Right) + D.P High Inrush Green Neon
.
Switch
Fuseholder, Blanking Plate and Double
Pole Switch:
48
= 1 x FX0359 + 1 x Blanking Plate
(Right) + D.P Switch
.
Please note type 05 and
06 are not available in
filtered version
For Filtered inlet use 6th to 9th
characters from filter ordering code
see pages 125-126.
E.g. BZV03/A0120/07
www.elektron-bulgin.com
111
IEC CONNECTORS
POLYSNAP
®
POWER INLET MODULES
C14 and C16 IEC Inlet - Vertical
VERTICAL MODULE ARRANGEMENT
Inlet with 2.8mm or 6.3mm
tags
Double Pole Switch/
Fuseholder/Indicator/
Voltage Selectors/
Blanking Plate
Filtered Inlet Option
Options of I/O marked
switches
BZV03/Z0000/07
How to Order
BZV xx / xxxxx / xx
Type of Inlet / Outlet
C14 Power Inlet (cold
condition), 6.3 or 2.8mm
tabs:
03
= PX0575/63
04
= PX0575/28
C16 Power Inlet (hot
condition), 6.3 or 2.8mm
tabs:
05
= PX0595/63
06
= PX0595/28
Filtered or Non Filtered Inlet
Z0000 = Non Filtered
Axxxx = Standard
Bxxxx = Medical
Combination of Other Components
Twin Fuseholder and Double Pole Switch
Marked (I/O):
72
= 2 x FX0359 + D.P Switch (I/O)
.
Twin Fuseholder and Double Pole Neon
Switch Marked (I/O):
73
= 2 x FX0359 + D.P Red Neon
.
Switch (I/O)
75
= 2 x FX0359 + D.P Green Neon
.
Switch(I/O)
82
= 2 x FX0359 + D.P Red Neon
.
Switch 125V(I/O)
Voltage Selector, Fuseholder and Double
Pole Switch Marked (I/O):
79
= 1 x VS0001 + 1 x FX0359 +
Double Pole switch (I/O)
Voltage Selector, Fuseholder and Double
Pole Neon Switch Marked (I/O):
80
= 1 x VS0001 + 1 x FX0359 + D.P
.
Red Neon Switch (I/O)
81
= 1 x VS0001 + 1 x FX0359 + D.P
.
Green Neon Switch (I/O)
Twin Fuseholder and Double Pole High
Inrush Switch Marked (I/O):
83
= 2 x FX0359 + D.P High Inrush
.
Switch (I/O)
Twin Fuseholder and Double Pole High
Inrush Neon Switch Marked (I/O):
84
= 2 x FX0359 + 1 x D.P High
.
Inrush Green Neon Switch (I/O)
85
= 2 x FX0359 + 1 x D.P High
.
Inrush Red Neon Switch (I/O)
Voltage Selector, Neon Indicator and
Double Pole Switch Marked (I/O):
86
= 1 x VS0001 + 1 x
DX0928/110V/Red + D.P Switch (I/O)
.
87
= 1 x VS0001 + 1 x
DX0928/110V/Green + D.P Switch
.
(I/O)
88
= 1 x VS0001 + 1 x
DX0928/250V/Red + D.P Switch (I/O)
.
89
= 1 x VS0001 + 1 x
DX0928/250V/Green + D.P Switch
.
(I/O)
Voltage Selector, Neon Indicator and
Double Pole High Inrush Switch Marked
(I/O):
90
= 1 x VS0001 + 1 x
DX0928/250V/Red + D.P High Inrush
.
Switch(I/O)
91
= 1 x VS0001 + 1 x
DX0928/250V/Green + D.P High
.
Inrush Switch(I/O)
Fuseholder, Neon Indicator and Double
Pole Switch Marked (I/O)
92
= 1 x FX0359 + 1 x
DX0928/110V/Red + D.P Switch (I/O)
.
93
= 1 x FX0359 + 1 x
DX0928/110V/Green + D.P Switch
.
(I/O)
94
= 1 x FX0359 + 1 x
DX0928/250V/Red + D.P Switch (I/O)
.
95
= 1 x FX0359 + 1 x
DX0928/250V/Green + D.P Switch
.
(I/O)
Fuseholder, Neon Indicator and Double
Pole High Inrush Switch Marked (I/O):
96
= 1 x FX0359 + 1 x
DX0928/250V/Red + D.P High Inrush
.
Switch (I/O)
97
= 1 x FX0359 + 1 x
DX0928/250V/Green + D.P High
.
Inrush Switch (I/O)
Fuseholder, Blanking Plate and Double
Pole High Inrush Neon Switch Marked
(I/O):
99
= 1 x FX0359 + 1 x Blanking Plate
(Right) + D.P High Inrush Green Neon
.
Switch (I/O)
Fuseholder, Blanking Plate and Double
Pole Switch Marked (I/O):
A0
= 1 x FX0359 + 1 x Blanking Plate
(Right) + D.P Switch (I/O)
.
B2
= 1 x VS0002 + 1 x Blanking Plate
B3
= 1 x FX0359 + 1 x Blanking Plate
+ D.P High Inrush Switch (I/O)
.
IEC CONNECTORS
Please note type 05 and
06 are not available in
filtered version
For Filtered inlet use 6th to 9th
characters from filter ordering
code see pages 125-126.
E.g. BZV03/A0120/07
112
www.elektron-bulgin.com
