180-072M06-15-97-8S

Description
Fiber Optic Test Adapter
File Size172KB,2 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet View All

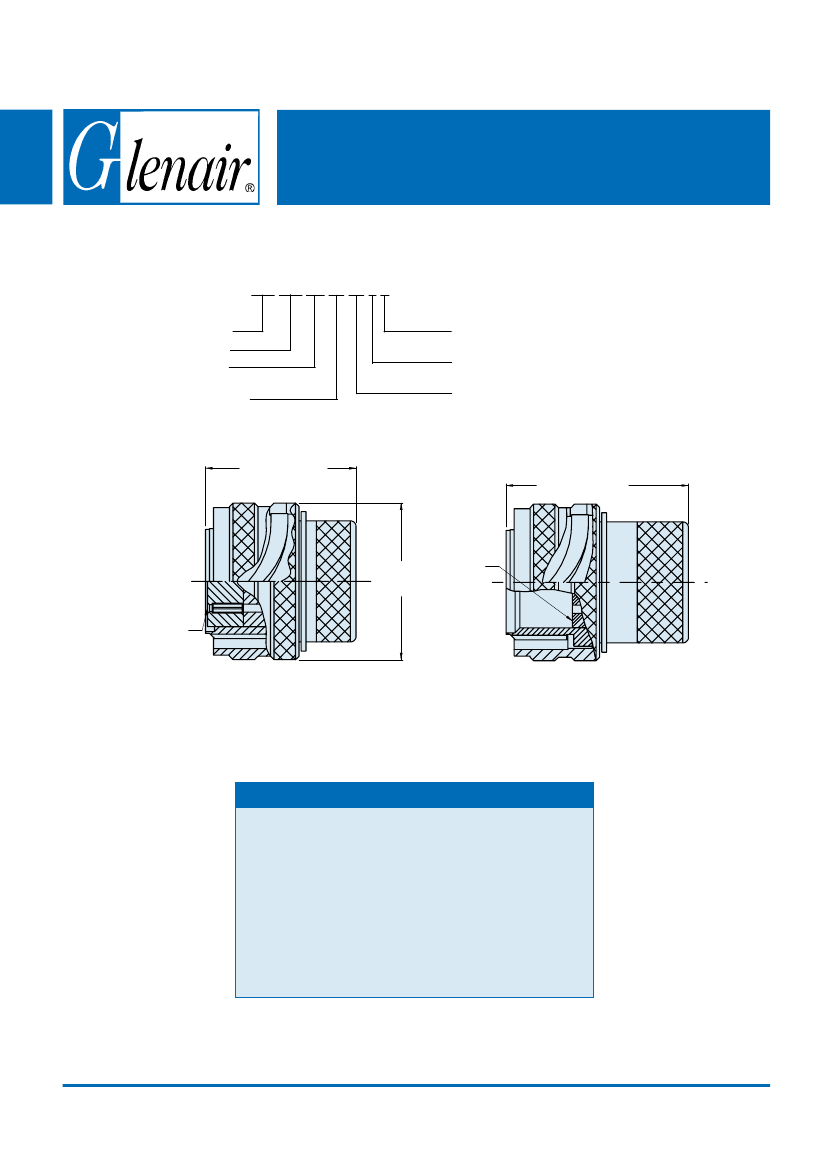

180-072M06-15-97-8S Overview

Fiber Optic Test Adapter

Test Probes
and Adapters
180-072 NF 06-17-8 P
Product Series
Basic Number
Finish Symbol
(See Table II)
06 = Plug Adapter
1.500 (38.1) Max.
A
Dia
Typ.
Socket Insert
180-072 (06 Plug)
Fiber Optic Test Adapter
MIL-DTL-38999 Series I
P = Pin Insert
S = Socket Insert (With Alignment Sleeves)
Insert Arrangement
Per MIL-STD-1560, Table I
Shell Size (Table I)
1.750 (44.5) Max.
Pin Insert
06
PLUG ASSEMBLY
U.S. PATENT NO. 5,960,137
APPLICATION NOTES
1. Assembly identified with manufacturer’s name and P/N,
Space Permitting.
2. For Fiber Optic Test Probe Terminus
See Glenair Drawing 181-006
3. Material/ Finish:
- Barrel/ Shell- Al Alloy/ See Table II
- Insert, Coupling Nut- Hi- Grade Engineering Thermoplastic/ N.A.
- Alignment Sleeve- Zirconia Ceramic/ N.A.
- Retaining Ring- Stainless Steel/ N.A.
- Retaining Clips- Beryllium Copper/ N.A.
- Lock Cap, Lock Nut- Al Alloy/ Black Anodize.
4. Metric dimensions (mm) are indicated in parentheses.
© 2006 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
E-Mail: sales@glenair.com
www.glenair.com
L-12
