180-065-50-5-M

Description
SINGLE MODE, SIMPLEX FIBER OPTIC CONNECTOR, RECEPTACLE
Categorysemiconductor    Other integrated circuit (IC)
File Size223KB,2 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet View All

180-065-50-5-M Overview

SINGLE MODE, SIMPLEX FIBER OPTIC CONNECTOR, RECEPTACLE

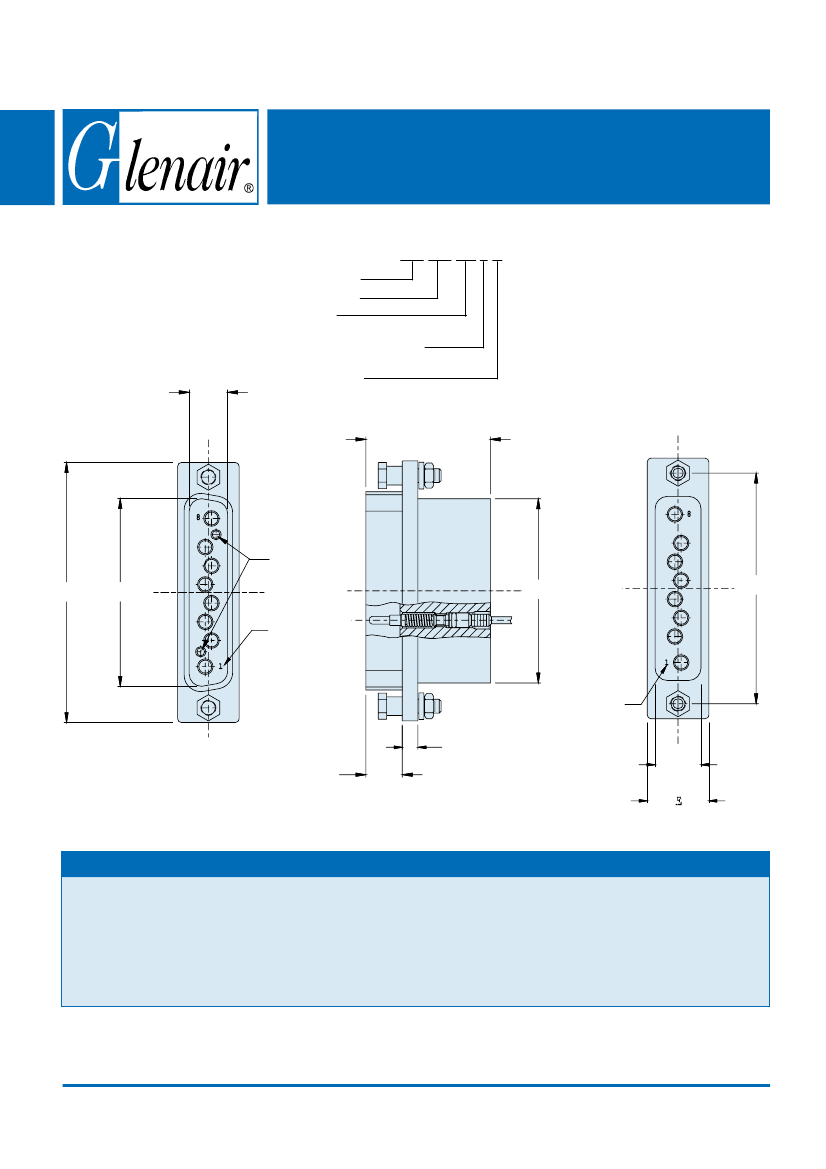

180-065
8 Channel D-Subminiature Fiber Optic Receptacle
for Glenair Front Release Pin Terminus 181-012
Custom
Connector
System
D
8
180-065-15- 5-C
Product Series
Basic Number
Shell Size
(Table I)
Number of Fiber Optic Pins
(Table I)
Finish (Table II)
1.000 (25.4)
8
Alignment Pins
A
B
G
C
1
Cavity
Identification
No.1 Location
Cavity
Identification
No.1 Location
.125 (3.2)
.293 (7.4)
1
F
E
APPLICATION NOTES
1.
2.
Assembly to be identified with Glenair's name, Part Number
and date Code.
Material/Finish:
Shell: Aluminum Alloy/Black Anodized (Standard).
Guide Pins, Hex Nut and Female Jackscrew:
Stainless Steel/Passivate
Washer: Cres.
3.
4.
5.
6.
Fiber Optic Terminus to be ordered separately
(See Glenair Drawing #181-012-XXX).
Backshell to be ordered separately (Consult Glenair for
available Backshell).
This Connector Receptacle is designed to be used with Glenair
Part Number #180-066 (See Page H-10) Plug Connector.
Metric dimensions (mm) are in parentheses.
© 2006 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
E-Mail: sales@glenair.com
www.glenair.com
H-8
