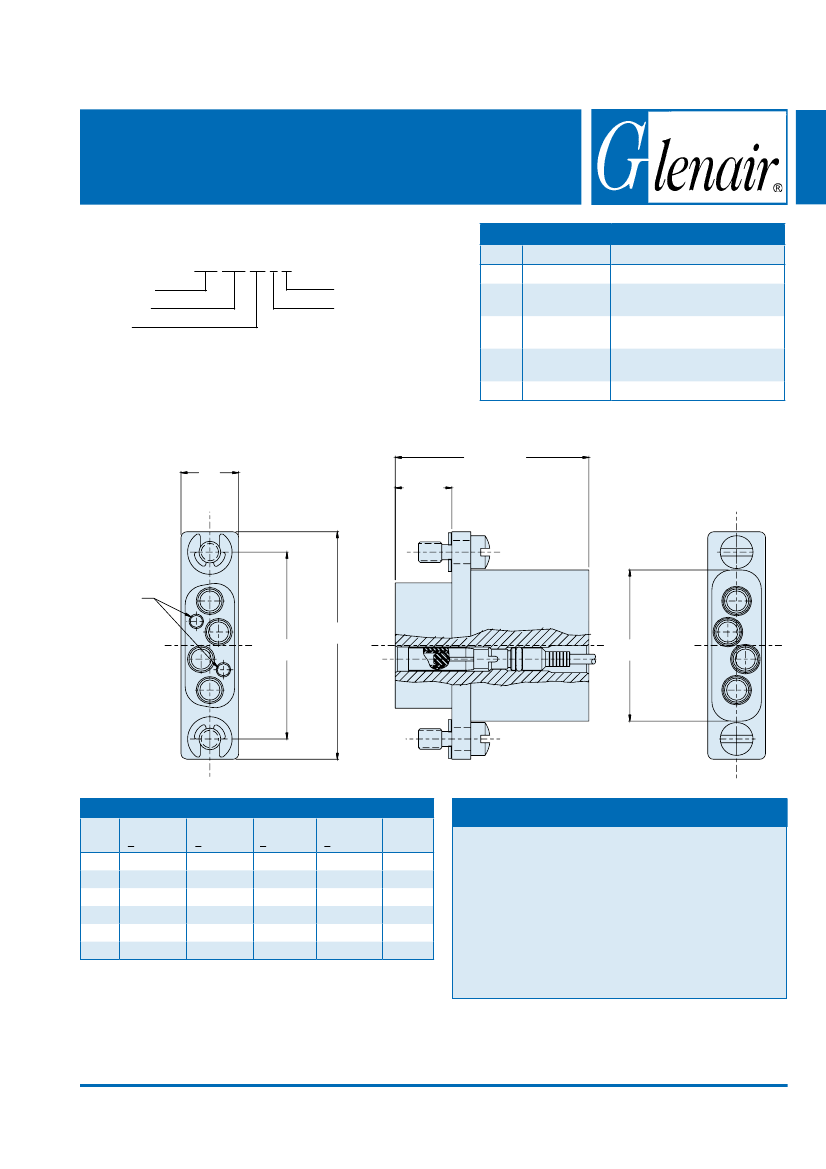

for Glenair Front Release Socket Terminus 181-011
TABLE II: FINISH
180-064-31-5 C
Product Series
Basic Number
Shell Size
(Table I)
Finish (Table II)
Number of
Pin Termini
SYM
C
M
NF
ZN
Z1
MATERIAL
Aluminum
Aluminum
Aluminum
Aluminum
Stainless Steel
FINISH
Black Anodize
Electroless Nickel
(Coupling Nut Electrodeposited)
Cadmium, Olive Drab over
Electroless Nickel
Zinc-Nickel, Olive Drab over
Electroless Nickel
Passivate
C
1.000
(25.4)
.293 (7.4)
Alignment
Pin
Cavities
B
A
D
TABLE I: SHELL SIZE
Shell
Size
9
15
21
25
31
100
A
+.010 (0.3)
.775 (19.7)
.925 (23.5)
1.075 (27.3)
1.175 (29.8)
1.325 (33.7)
2.160 (54.9)
B
+.003 (0.1)
.565 (14.4)
.715 (18.2)
.865 (22.0)
.965 (24.5)
1.115 (28.3)
1.800 (45.7)
C
+.010 (0.3)
.298 (7.6)
.298 (7.6)
.298 (7.6)
.298 (7.6)
.298 (7.6)
.384 (9.8)
D
+.010 (0.3)
.380 (9.7)
.530 (13.5)
.680 (17.3)
.780 (19.8)
.930 (23.6)
1.425 (36.2)
Max
F.O. Skt
1
2
3
4
5
8
APPLICATION NOTES
1.
2.
3.
4.
5.
6.
Assembly packaged in plastic bag and tag identified with
manufacturer's name and part number.
Material/Finish:
Shell: Aluminum Alloy (See Table II).
Fiber Optic Terminus to be ordered separately. See Glenair
drawing 181-011-XXX.
Backshell to be ordered separately (Consult factory).
This Plug is designed to be used with
Glenair P/N 180-063 Receptacle (See Page H-6).
Metric dimensions (mm) are in parentheses.
© 2006 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-Mail: sales@glenair.com
www.glenair.com
H-7
Custom
Connector
180-064
4 Channel Micro-D Fiber Optic Plug Connector
