180-044J07-15-97-8P datasheet, PDF

Datasheet> All Categories > 180-044J07-15-97-8P

Preview

180-044J07-15-97-8P: DescriptionFiber Optic Test Adapter; File Size171KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

180-044J07-15-97-8P Overview

Fiber Optic Test Adapter

Preview

Download Datasheet

View All

Test Probes

and Adapters

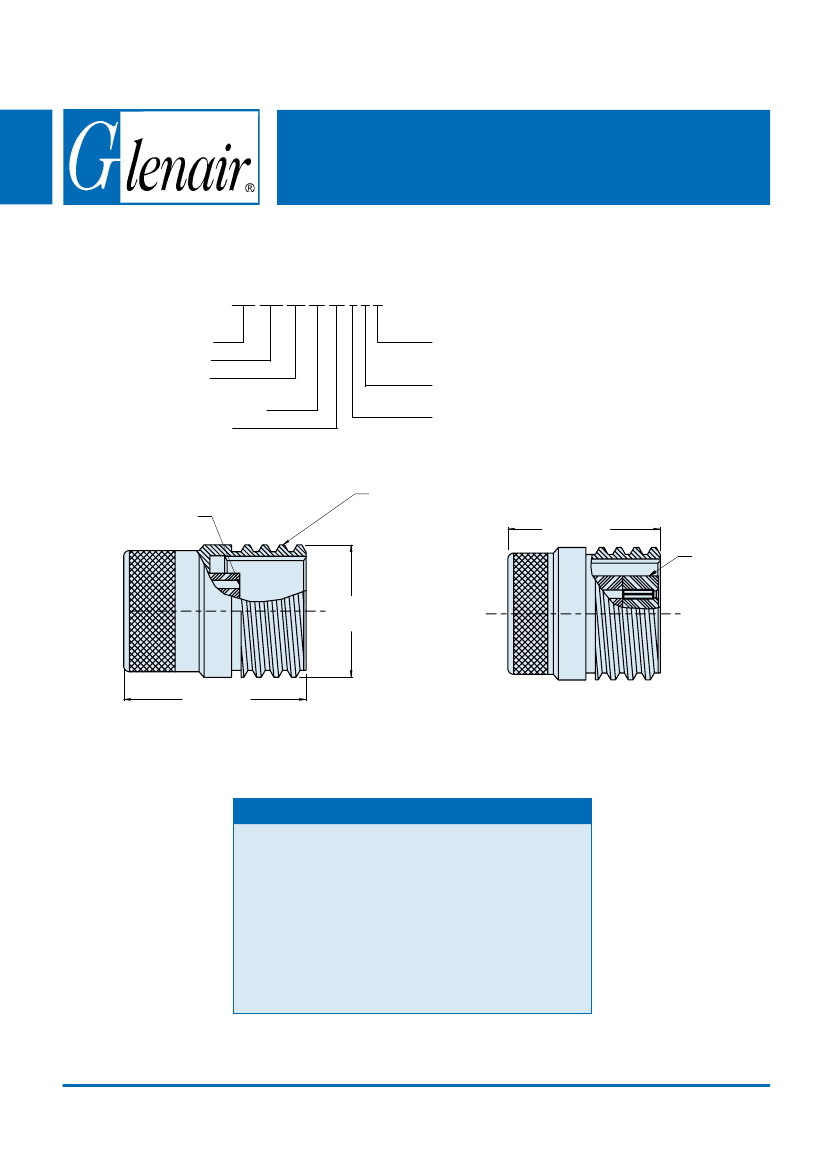

180-044 NF 07-17-8 P A

Product Series

Basic Number

Finish Symbol

(See Table II)

07 = Receptacle Adapter

Shell Size (Table I)

Pin Insert

Dia.

Typ.

1.750 (44.5)

Max.

180-044 (07 Receptacle)

Fiber Optic Test Adapter

MIL-DTL-38999 Series III

Alternate Keying Position A,B,C,D & E

Per MIL-DTL-38999, Series III (Omit for Normal)

Plug Adapter (Omit, Universal)

P = Pin Insert

S = Socket Insert (With Alignment Sleeves)

Insert Arrangement

Per MIL-STD-1560, Table I

A Thread

Table I

1.500 (38.1)

Max.

Socket Insert

RECEPTACLE ASSEMBLY

U.S. PATENT NO. 5,960,137

APPLICATION NOTES

1. Assembly identified with manufacturer’s name and P/N,

Space Permitting.

2. For Fiber Optic Test Probe Terminus

See Glenair Drawing 181-006

3. Material/ Finish:

- Barrel/ Shell- Al Alloy/ See Table II

- Insert, Coupling Nut- Hi- Grade Engineering Thermoplastic/ N.A.

- Alignment Sleeve- Zirconia Ceramic/ N.A.

- Retaining Ring- Stainless Steel/ N.A.

- Retaining Clips- Beryllium Copper/ N.A.

- Lock Cap, Lock Nut- Al Alloy/ Black Anodize.

4. Metric dimensions (mm) are indicated in parentheses.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com

L-10
