S54LS13W

Description
NAND Gate, TTL, CDFP14
Categorylogic    logic
File Size216KB,4 Pages
ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.)
Websitehttps://www.nxp.com/
Download Datasheet Parametric View All

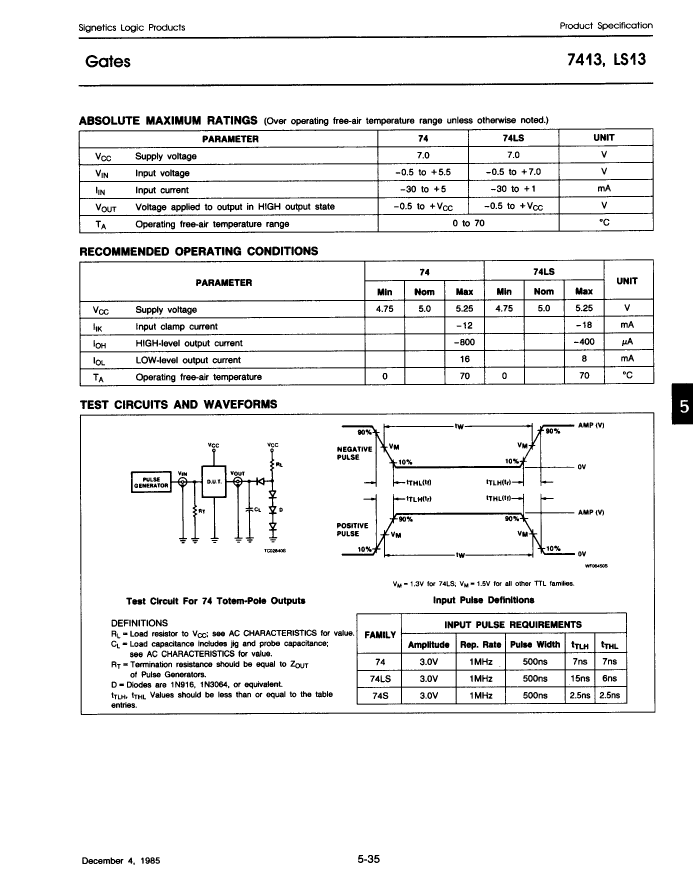

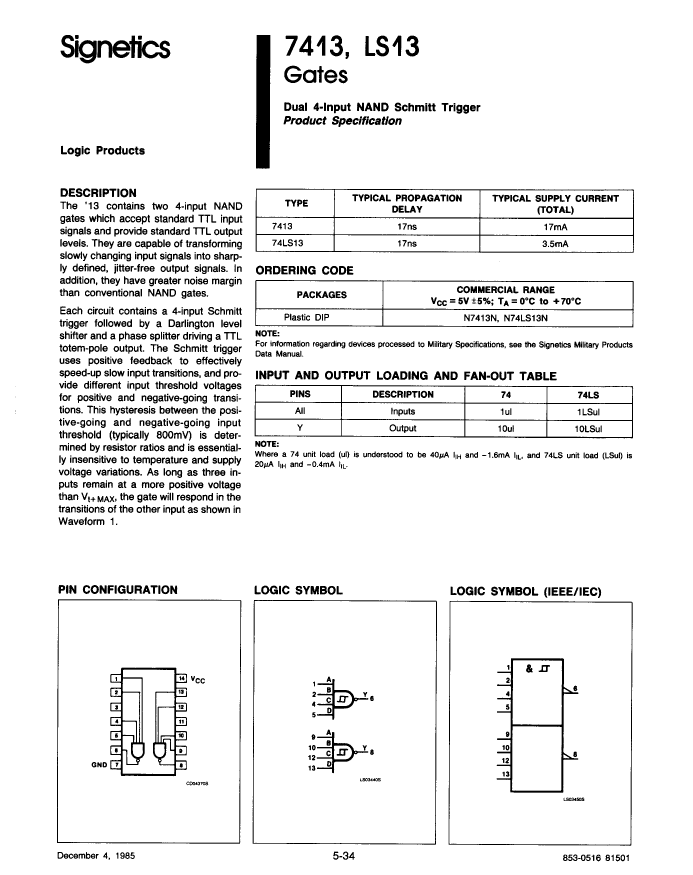

S54LS13W Overview

NAND Gate, TTL, CDFP14

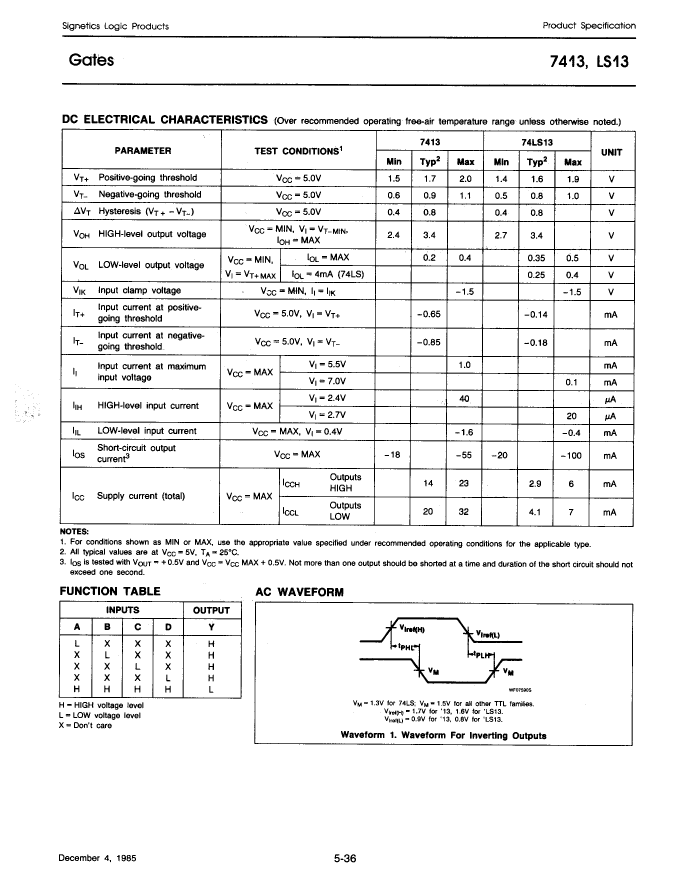

S54LS13W Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instructionDFP, FL14,.3
Reach Compliance Codeunknown
JESD-30 codeR-XDFP-F14
JESD-609 codee0
Logic integrated circuit typeNAND GATE
MaximumI(ol)0.004 A
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC
encapsulated codeDFP
Encapsulate equivalent codeFL14,.3
Package shapeRECTANGULAR
Package formFLATPACK
power supply5 V
Maximum supply current (ICC)7 mA

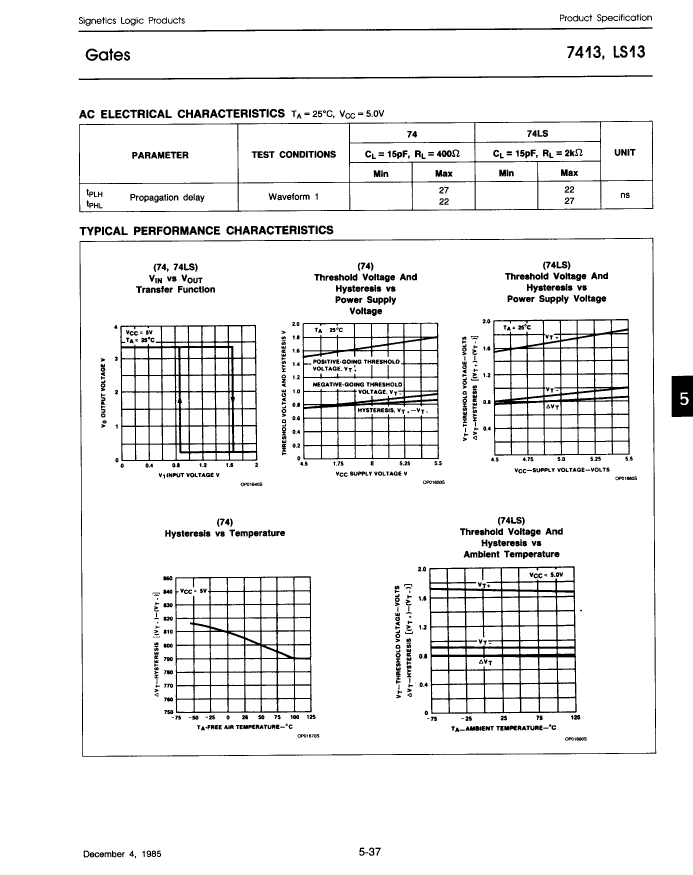

Prop。Delay @ Nom-Sup27 ns
Certification statusNot Qualified
Schmitt triggerYES
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formFLAT
Terminal pitch1.27 mm
Terminal locationDUAL
Base Number Matches1
