JK0-0032: DescriptionTelecom and Datacom Connector; CategoryThe connector The connector; File Size106KB，3 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric View All

JK0-0032 Overview

Telecom and Datacom Connector

JK0-0032 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	TELECOM AND DATACOM CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

ULSE

ACK

Description:

Gigjack T12

Designed to support Cicada Transceivers

www.pulseeng.com

Electrical Specifications @ 25°C — Operating Temperature 0°C to +70°C

New

Part

Number

Tab

Option

Insertion

Loss

TX/RX

(dB)

1-100

MHz

1-10

MHz

Return Loss

(dB TYP)

100

Ω (

Ω)

60-80

MHz

1-10

MHz

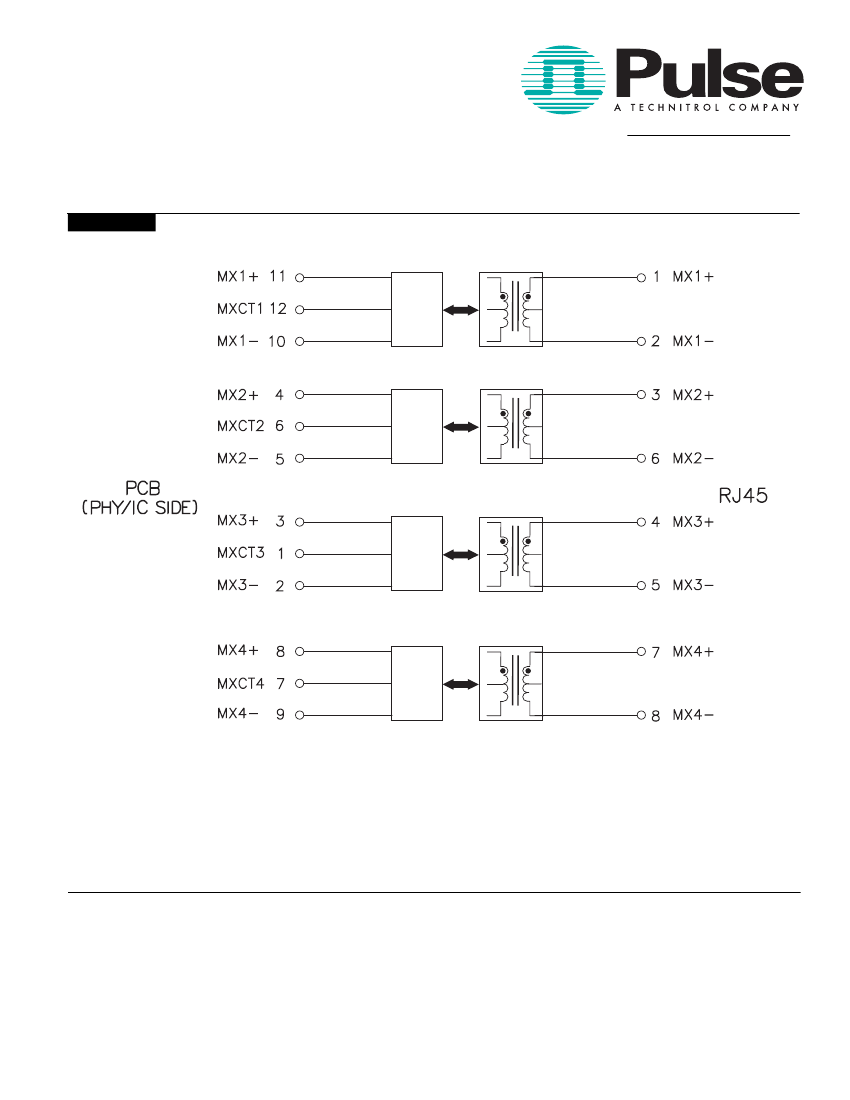

Electrical Performance Summary:

Internal magnetics options available

Meets or exceeds IEEE 802.3ab standard for 1000Base-T

350 µH minimum OCL with 8 mA bias current

High performance for maximum EMI suppression

Minimum 1500 Vrms isolation per IEEE 802.3 requirement

Crosstalk

(dB TYP)

32-65

MHz

65-100

MHz

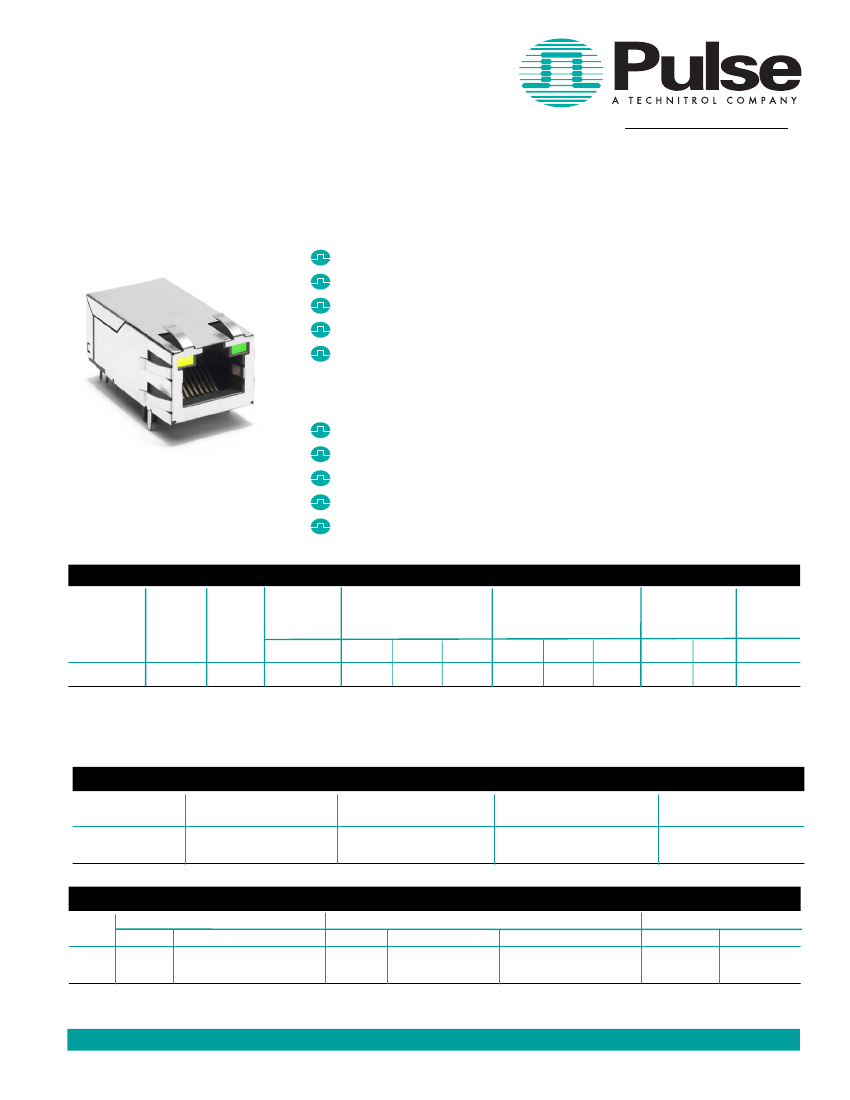

10/100/1000 Base-TX RJ45 single port (1X1) Tab-UP with or without LEDs integrated magnetics connector

(ICM), designed to support applications, such as Network Interface Cards (NIC), LAN-on-Motherboard (LOM),

and PC applications.

Features and Benefits:

SimpliPHY’d

magnetics, designed for CICADA’s Gigabit PHY

Single port Tab-UP with internal magnetics for 10/100/1000 Base-TX

Available with or without LEDs

Suitable for CAT 5 and 6 Fast Ethernet cable or better UTP

Internal magnetics are 100% electrically tested for HI-POT

and functionality

1-125

MHz

LEDs

L/R

Common

Mode

Rejection

(dB TYP)

125-500

MHz

Hipot

(MIN)

@60 Hz

1 MIN

JK0-0032

NONE

-1.0

-20

-16

-12

-40

-35

-30

-20

1500 Vrms

Mating Force

(MAX)

NOTES:

Both transmit and receive channels meet IEEE 802.3 specifications.

Different electrical and mechanical specifications can be accommodated.

Contact Pulse Applications Engineering.

RJ45 Durability Testing Rating

Unmating Force

(MAX)

5 lbs./2.268 kgs.

Durability

750 Insertions

Plug to Jack

Retention

(MIN)

20 lbs./9.072 kgs.

Part Number

JK Series

5 lbs./2.268 kgs.

RJ45 Material Specification

Part

Number

Series

Shield

Material

Brass

Finish

20-40µ inches thick nickel

over brass

Material

Phosphor

Bronze

Contact

Plating Area

15µ inches gold over

30-80µ inches nickel

Solder Area

75-300µ inches tin-lead over

75-300µ inches nickel

Material

Thermoplastic

Housing

Specification

UL 94 V-0

Notes:

1. All connector part numbers starting with the series prefix JK comply to the above limits.

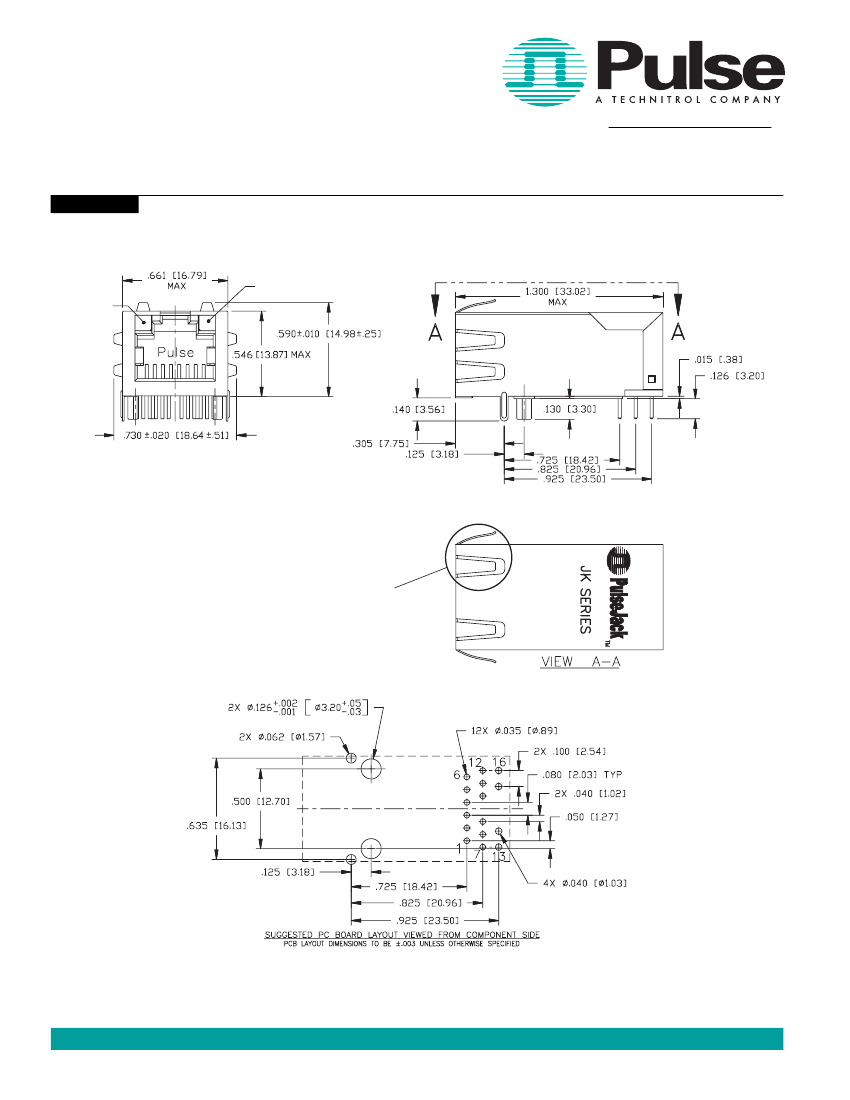

2. Connector dimensions comply with FCC dimension requirements.

US 858 674 8100

•

UK 44 1483 401 700

•

France 33 3 84 35 04 04

•

Singapore 65 6287 8998

•

Taiwan 886 2 2698 0228

•

Hong Kong 852 2788 6588

•

http://www.pulseeng.com

PRELIMINARY J419.P (5/04)
