BAS21 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAS21

BAS21: DescriptionSurface Mount Small Signal Switching Diode; Configuration: Single; VRRM Max (V): 250; IAV Max (A): 0.2; VFM Max (V): 1.25; @ IF (A): 0.2; IR Max (UA): 1; @VR (V): 200; TRR Max (NS): 50; Pin: F2; Package: SOT-23; CategoryDiscrete semiconductor diode; File Size198KB，3 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric Compare View All

BAS21 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BAS21	-	-	View	Buy Now

BAS21 Overview

Surface Mount Small Signal Switching Diode; Configuration: Single; VRRM Max (V): 250; IAV Max (A): 0.2; VFM Max (V): 1.25; @ IF (A): 0.2; IR Max (UA): 1; @VR (V): 200; TRR Max (NS): 50; Pin: F2; Package: SOT-23

BAS21 Parametric

Parameter Name	Attribute value
Parts packaging code	SOT-23
package instruction	R-PDSO-G3
Reach Compliance Code	unknown
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.25 W
Maximum repetitive peak reverse voltage	250 V
Maximum reverse recovery time	0.05 µs
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1
VRRM (V) max	200
IF (A) max	0.2
VF (V) max	1.25
Condition1_IF (A)	0.2
IFSM (A) max	2.5
IR (uA) max	0.1
Condition2_VR (V)	200
trr (ns) max	50
AEC Qualified	No
Maximum operating temperature	150
Minimum operating temperature	-65
MSL level	1
Is it lead-free?	Yes
Comply with Reach	Yes
RoHS compliant	Yes
ECCN code	EAR99
Package Outlines	SOT-23

Preview

Download Datasheet

View All

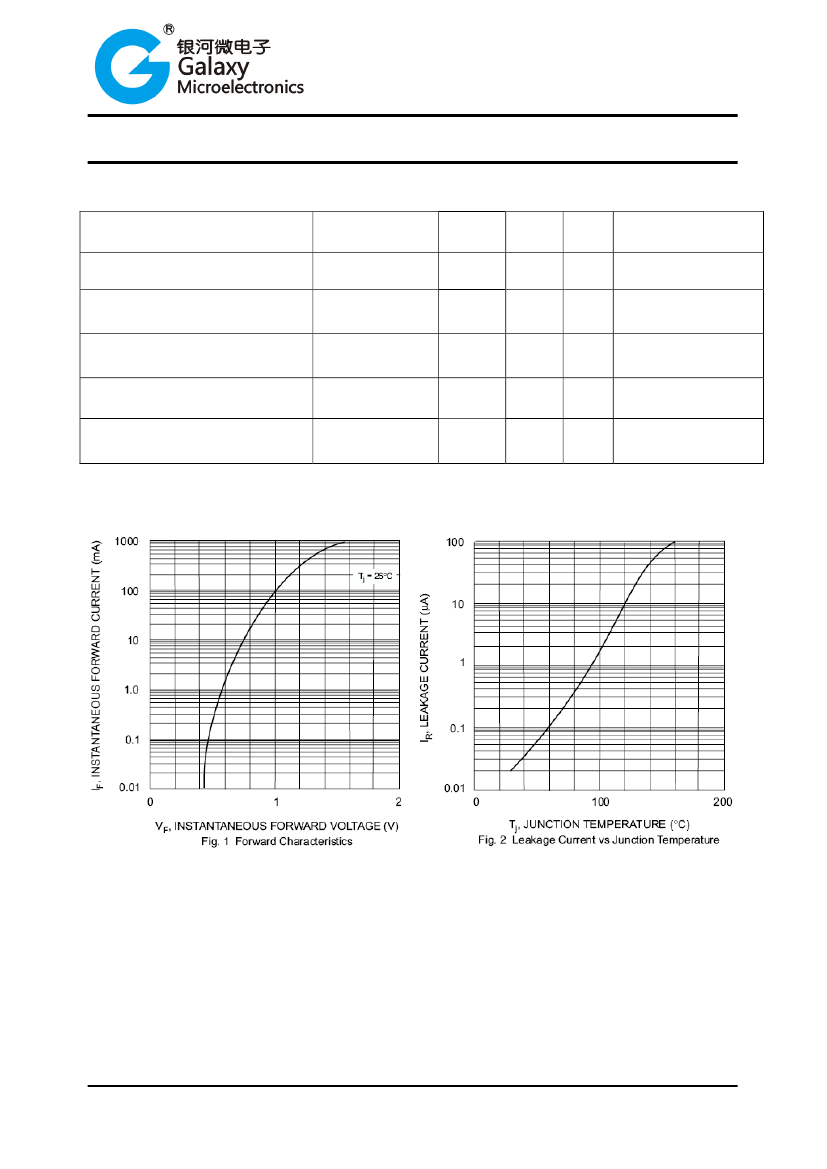

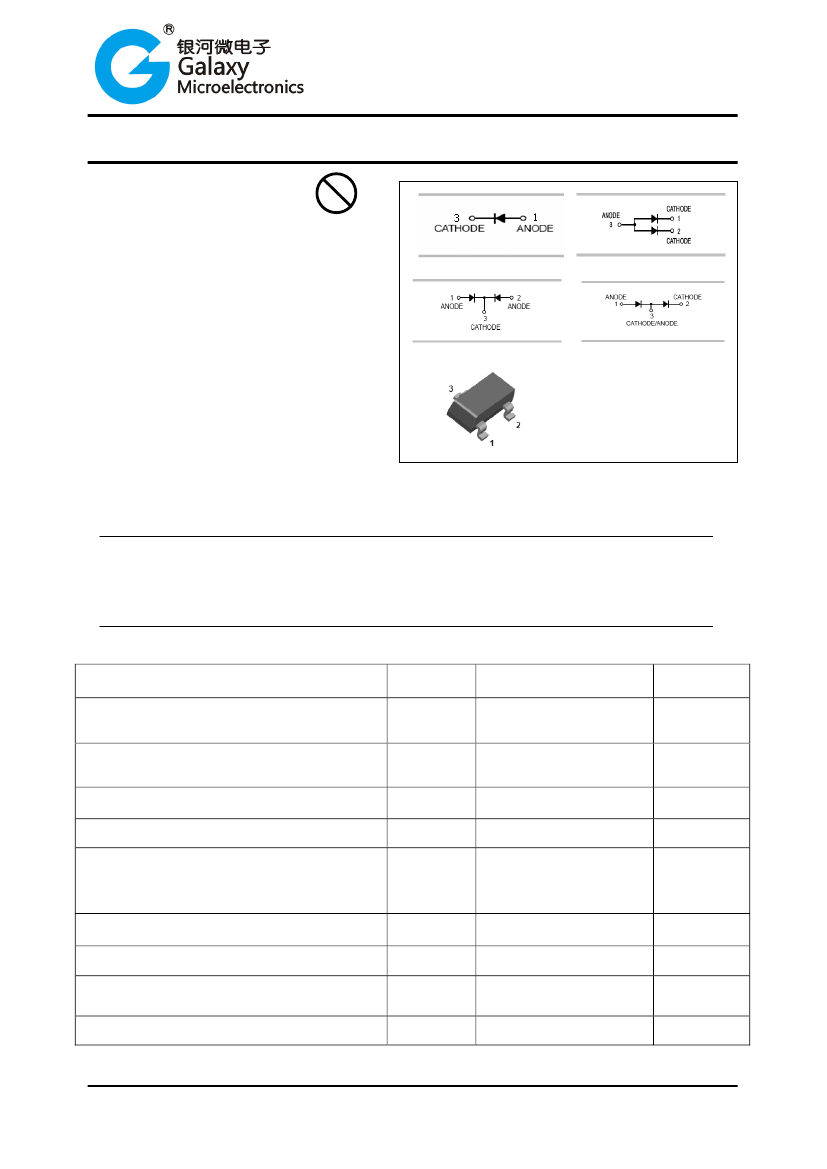

Production specification

Surface mount switching diode

FEATURES



Fast switching speed.

BAS21/A/C/S

Lead-free

Surface mount package ideally suited for

Automatic insertion.

BAS21

BAS21A



For general purpose switching applications.

High conductance.

BAS21C

BAS21S

APPLICATIONS



High speed switching application.

SOT-23

ORDERING INFORMATION

Type No.

BAS21

BAS21A

BAS21C

BAS21S

Marking

JS2

JS3

JS4

Package Code

SOT-23

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Reverse Voltage

RMS Reverse Voltage

Forward Continuous Current

Non-Repetitive Peak Forward Surge Current

@t=8.3ms

@t=1.0 ms

Power Dissipation

Thermal Resistance Junction to Ambient Air

Operating Junction Temperature Range

Storage Temperature Range

Symbol

RRM

RWM

R(RMS)

FSM

θJA

STG

Value

250

200

141

200

2.5

250

500

150

-65 to +150

Unit

℃/W

℃

C028

Rev.B

www.gmesemi.com

BAS21 Related Products

	BAS21	BAS21C	BAS21A	BAS21S
Description	Surface Mount Small Signal Switching Diode; Configuration: Single; VRRM Max (V): 250; IAV Max (A): 0.2; VFM Max (V): 1.25; @ IF (A): 0.2; IR Max (UA): 1; @VR (V): 200; TRR Max (NS): 50; Pin: F2; Package: SOT-23	Surface Mount Small Signal Switching Diode; Configuration: Dual,Common Cathode; VRRM Max (V): 250; IAV Max (A): 0.2; VFM Max (V): 1.25; @ IF (A): 0.2; IR Max (UA): 1; @VR (V): 200; TRR Max (NS): 50; Pin: F8; Package: SOT-23	0.2A,200V,Surface Mount Small Signal Switching Diodes, Dual,Common Anode, 200V, 0.2A, 1.25V, 0.2A, 2.5A, 0.1uA	0.2A,200V,Surface Mount Small Signal Switching Diodes, Dual,Common Cathode, 200V, 0.2A, 1.25V, 0.2A, 2.5A, 0.1uA
Parts packaging code	SOT-23	SOT-23	SOT-23	SOT-23
Reach Compliance Code	unknown	unknown	unknown	unknown
Configuration	SINGLE	COMMON CATHODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	2	2	2
Number of terminals	3	3	3	3
Maximum output current	0.2 A	0.2 A	0.2 A	0.2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.25 W	0.25 W	0.25 W	0.25 W
Maximum repetitive peak reverse voltage	250 V	250 V	250 V	250 V
Maximum reverse recovery time	0.05 µs	0.05 µs	0.05 µs	0.05 µs
surface mount	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum operating temperature	150	150 °C	150	150
VRRM (V) max	200	-	200	200
IF (A) max	0.2	-	0.2	0.2
VF (V) max	1.25	-	1.25	1.25
Condition1_IF (A)	0.2	-	0.2	0.2
IFSM (A) max	2.5	-	2.5	2.5
IR (uA) max	0.1	-	0.1	0.1
Condition2_VR (V)	200	-	200	200
trr (ns) max	50	-	50	50
AEC Qualified	No	-	No	No
Minimum operating temperature	-65	-	-65	-65
MSL level	1	-	1	1
Is it lead-free?	Yes	-	Yes	Yes
Comply with Reach	Yes	-	Yes	Yes
RoHS compliant	Yes	-	Yes	Yes
ECCN code	EAR99	-	EAR99	EAR99
Package Outlines	SOT-23	-	SOT-23	SOT-23
Maker	-	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics
