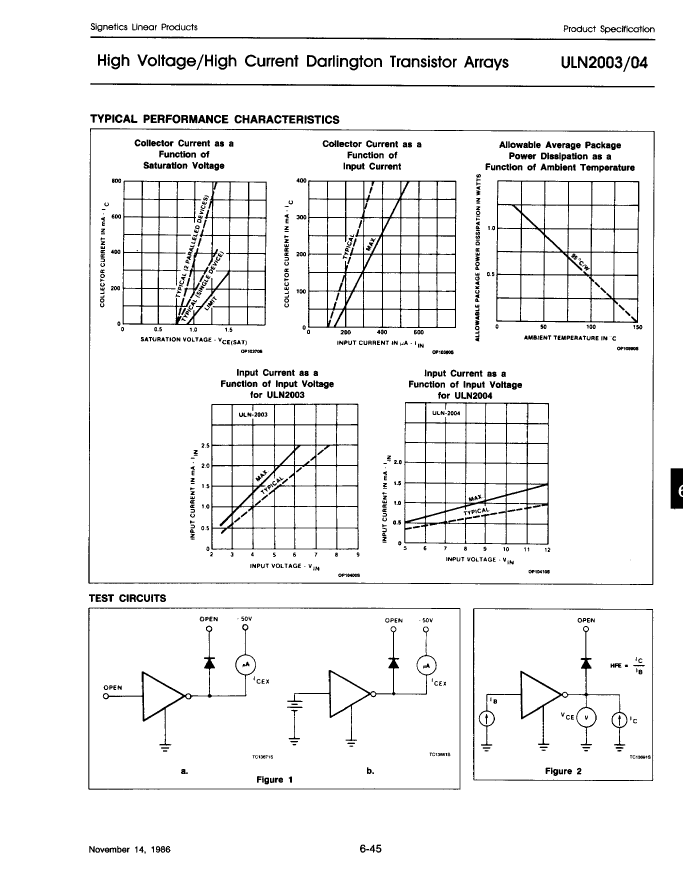

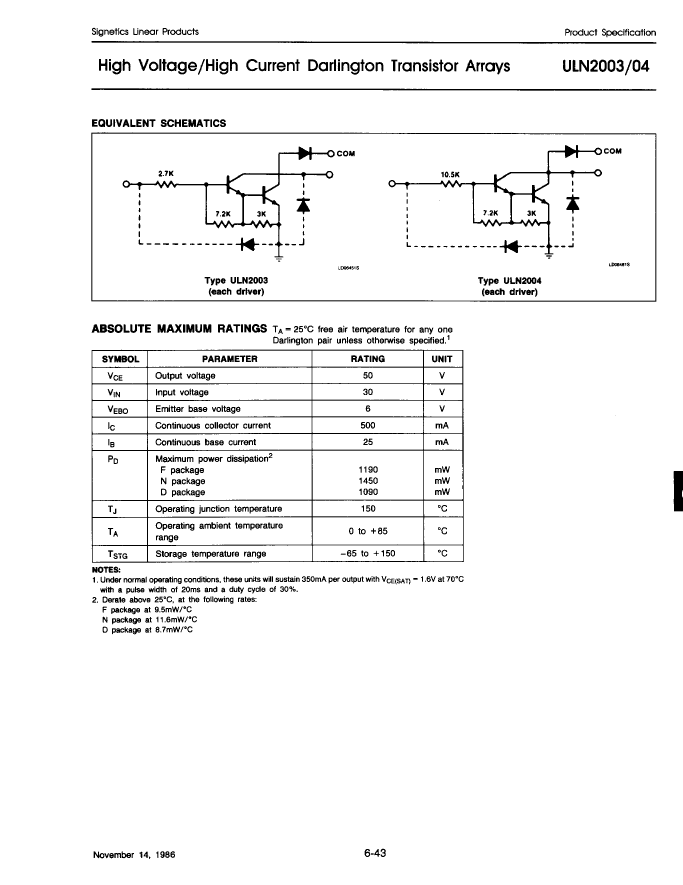

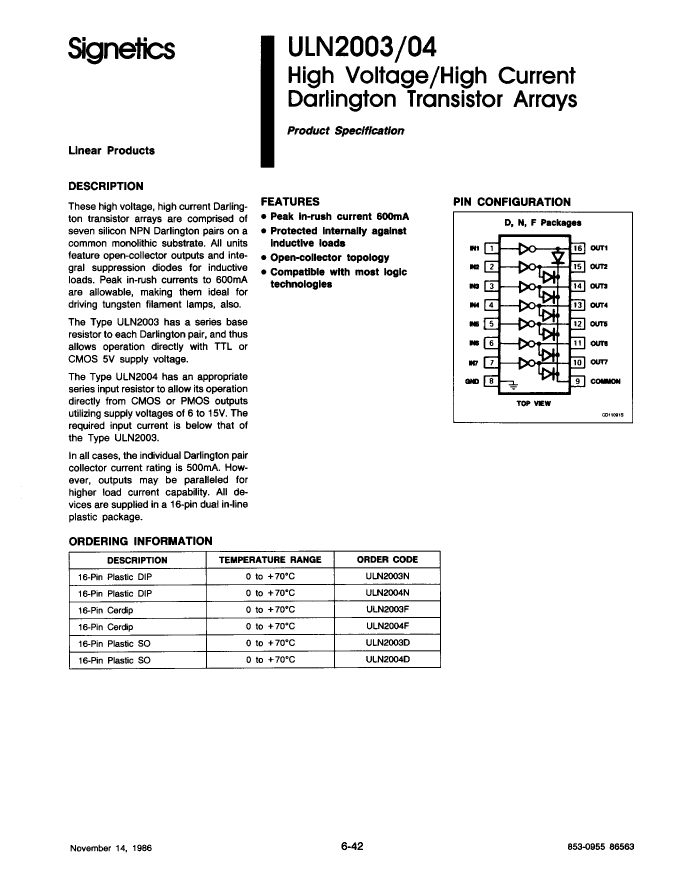

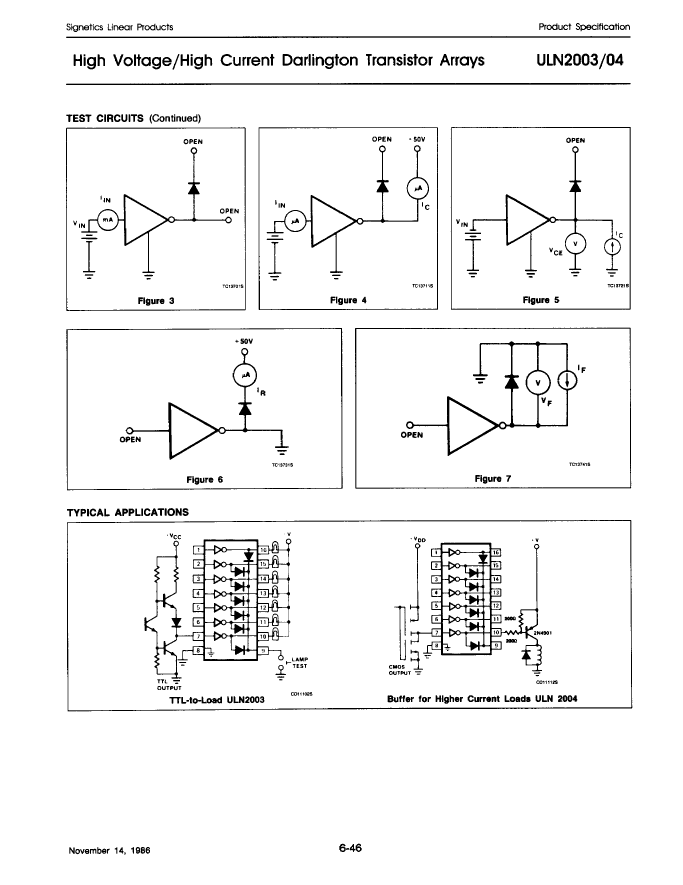

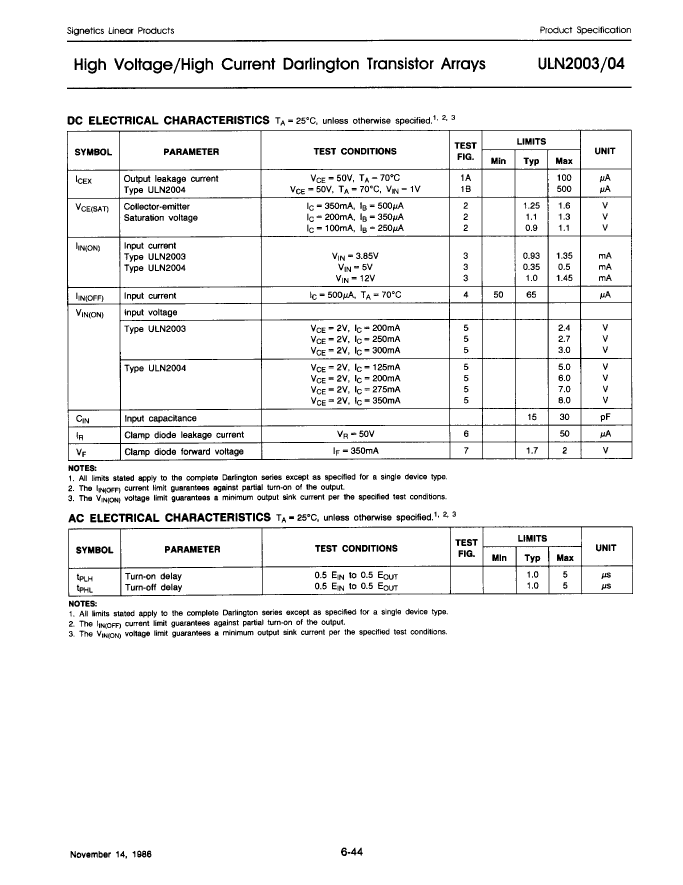

ULN2004N-B: DescriptionPeripheral Driver, 7 Driver, BIPolar, PDIP16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size224KB，5 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

ULN2004N-B Overview

Peripheral Driver, 7 Driver, BIPolar, PDIP16

ULN2004N-B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Number of drives	7
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	50 V
Nominal supply voltage	50 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

ULN2004N-B Related Products

	ULN2004N-B	ULN2003D-T	ULN2004F-B	ULN2003F-B	ULN2004D-T	ULN2003N-A
Description	Peripheral Driver, 7 Driver, BIPolar, PDIP16	Peripheral Driver, 7 Driver, BIPolar, PDSO16	Peripheral Driver, 7 Driver, BIPolar, CDIP16	Peripheral Driver, 7 Driver, BIPolar, CDIP16	Peripheral Driver, 7 Driver, BIPolar, PDSO16	Peripheral Driver, 7 Driver, BIPolar, PDIP16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP16,.3	SOP, SOP16,.25	DIP, DIP16,.3	DIP, DIP16,.3	SOP, SOP16,.25	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Number of drives	7	7	7	7	7	7
JESD-30 code	R-PDIP-T16	R-PDSO-G16	R-XDIP-T16	R-XDIP-T16	R-PDSO-G16	R-PDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of terminals	16	16	16	16	16	16
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	DIP	DIP	SOP	DIP
Encapsulate equivalent code	DIP16,.3	SOP16,.25	DIP16,.3	DIP16,.3	SOP16,.25	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE
power supply	50 V	50 V	50 V	50 V	50 V	50 V
Nominal supply voltage	50 V	50 V	50 V	50 V	50 V	50 V
surface mount	NO	YES	NO	NO	YES	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	-	-
