UA741ETC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> UA741ETC

UA741ETC: DescriptionOperational Amplifier, 1 Func, 4000uV Offset-Max, BIPolar, PDIP8,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size258KB，9 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

UA741ETC Overview

Operational Amplifier, 1 Func, 4000uV Offset-Max, BIPolar, PDIP8,

UA741ETC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	DIP
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
frequency compensation	YES
Maximum input offset voltage	4000 µV
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
low-dissonance	NO
Humidity sensitivity level	2A
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	250
power supply	+-15 V
Certification status	Not Qualified
minimum slew rate	0.3 V/us
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

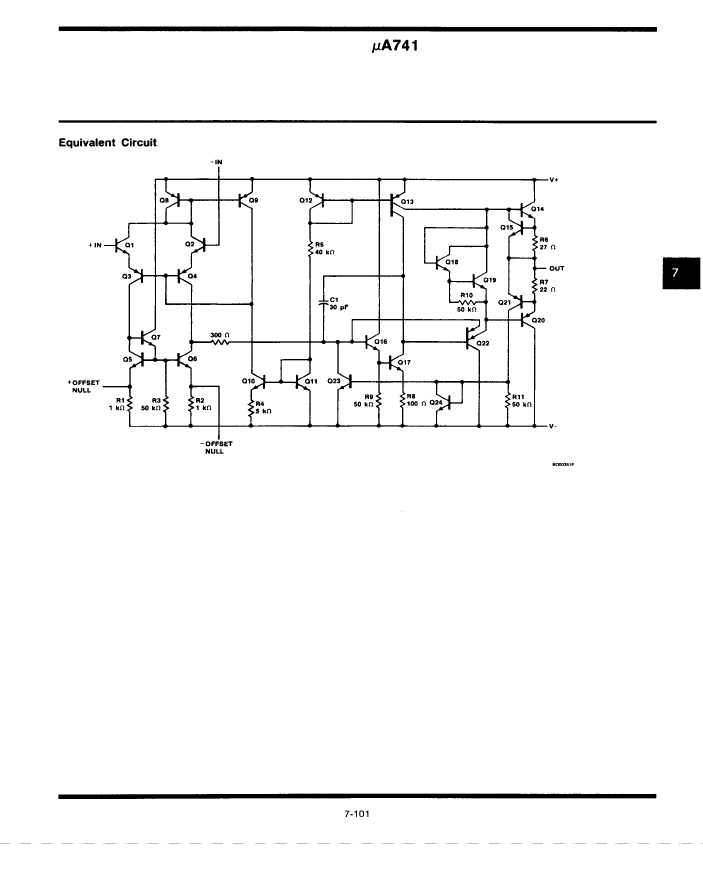

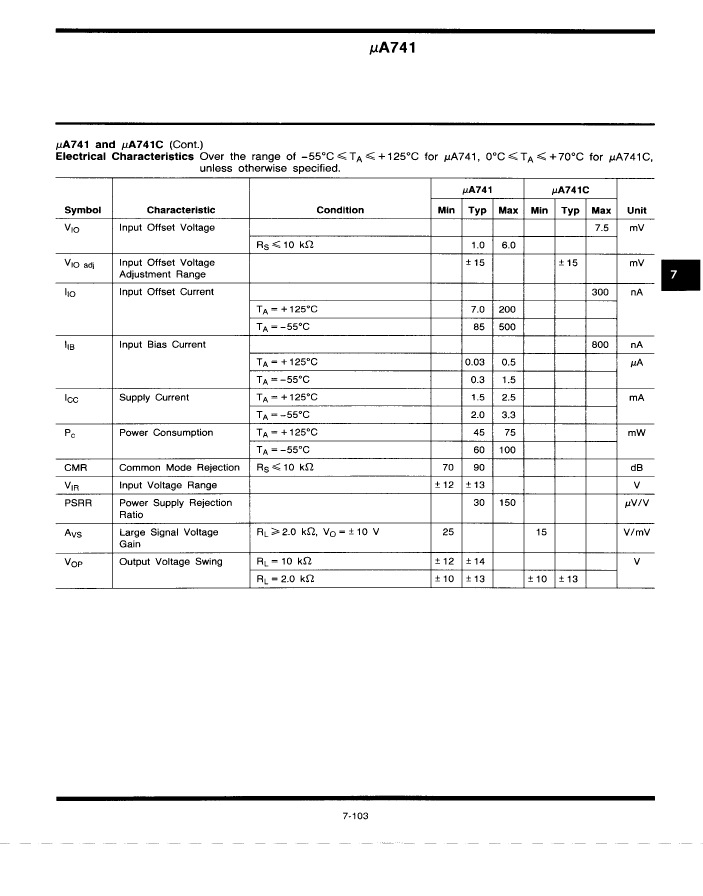

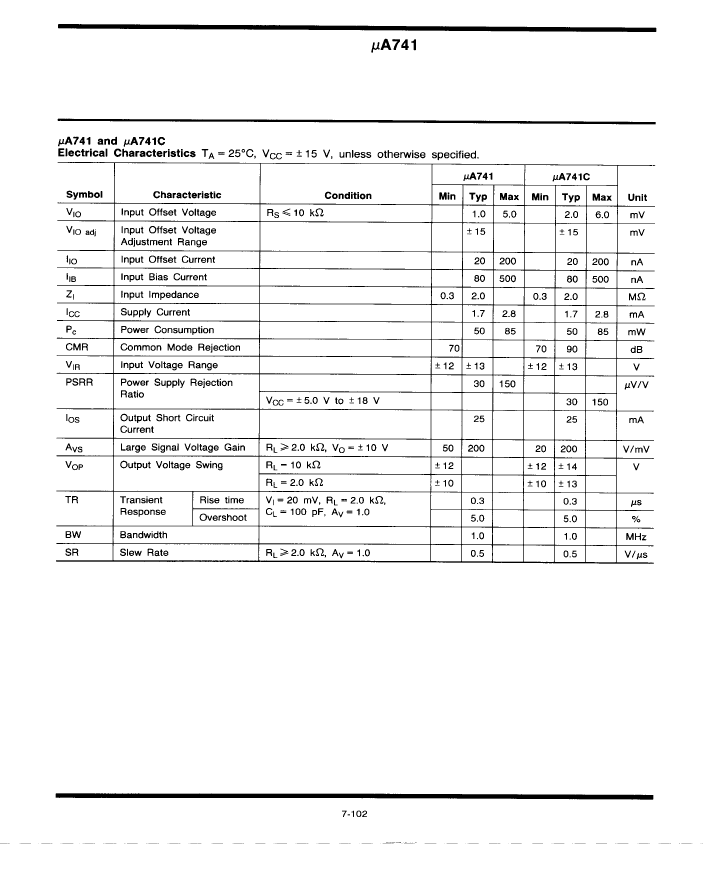

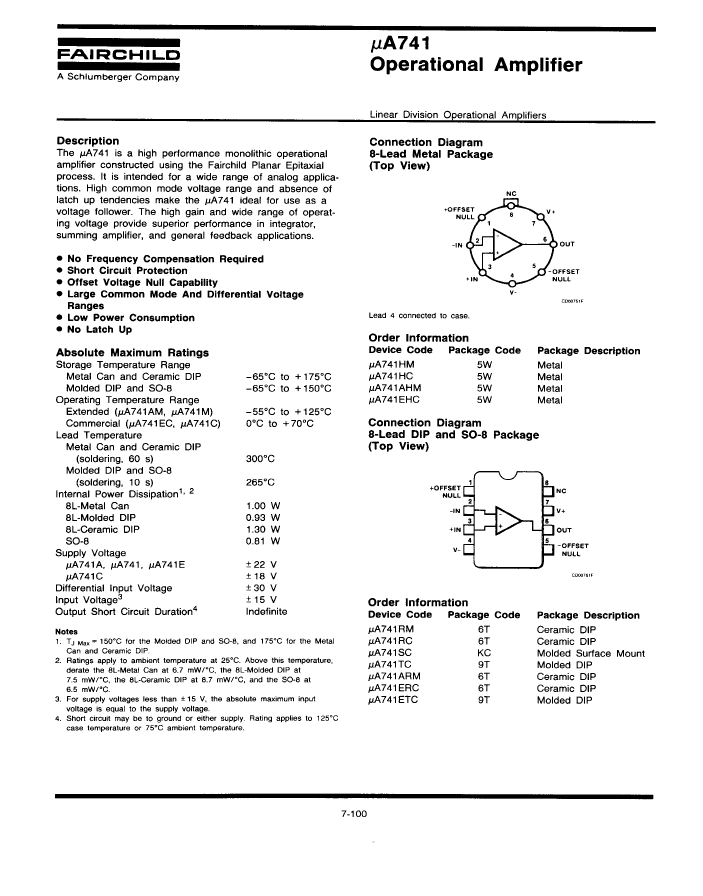

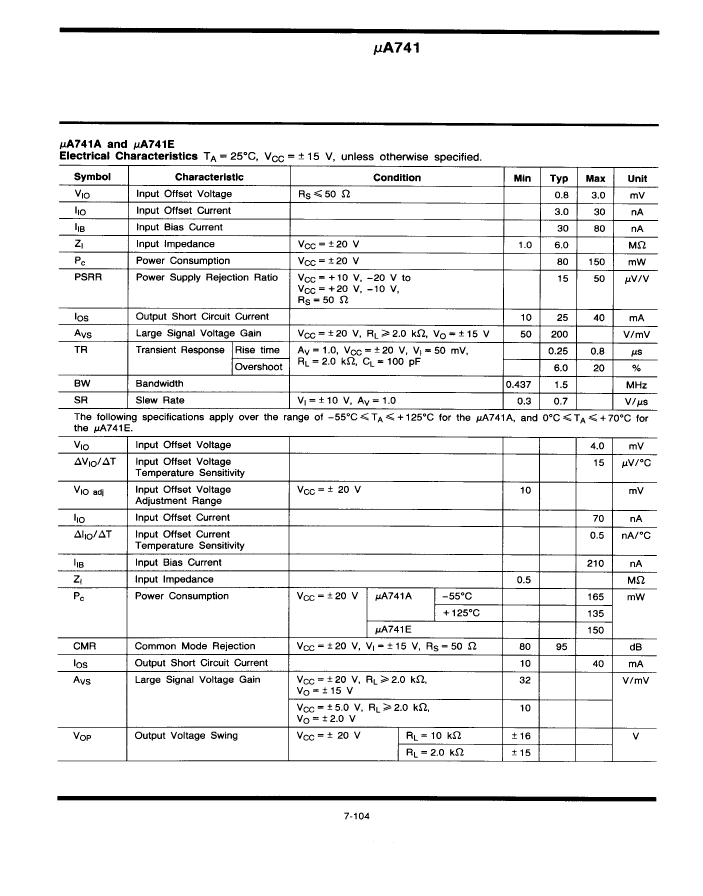

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

UA741ETC Related Products

	UA741ETC	UA741ERC	UA741EHC	UA741AHM	UA741HM	UA741TC	UA741RM	UA741HC
Description	Operational Amplifier, 1 Func, 4000uV Offset-Max, BIPolar, PDIP8,	Operational Amplifier, 1 Func, 4000uV Offset-Max, BIPolar, CDIP8,	Operational Amplifier, 1 Func, 4000uV Offset-Max, BIPolar, MBCY8,	Operational Amplifier, 1 Func, 4000uV Offset-Max, BIPolar, MBCY8,	Operational Amplifier, 1 Func, 6000uV Offset-Max, BIPolar, METAL, CAN-8	Operational Amplifier, 1 Func, 7500uV Offset-Max, BIPolar, PDIP8, DIP-8	Operational Amplifier, 1 Func, 6000uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8	Operational Amplifier, 1 Func, 7500uV Offset-Max, BIPolar, MBCY8, METAL CAN-8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	BCY	BCY	BCY	DIP	DIP	BCY
Contacts	8	8	8	8	8	8	8	8
Reach Compliance Code	compliant	compliant	compliant	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	-	Contains lead	-
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	-	-	-	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	-	-	-	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
frequency compensation	YES	YES	-	-	-	YES	YES	YES
Maximum input offset voltage	4000 µV	4000 µV	-	-	-	7500 µV	6000 µV	7500 µV
JESD-30 code	R-PDIP-T8	R-XDIP-T8	-	-	-	R-PDIP-T8	R-CDIP-T8	R-MBCY-W8
JESD-609 code	e0	e0	-	-	-	e0	e0	e0
low-dissonance	NO	NO	-	-	-	NO	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-	-	-	-15 V	-15 V	-15 V
Number of functions	1	1	-	-	-	1	1	1
Number of terminals	8	8	-	-	-	8	8	8
Maximum operating temperature	70 °C	70 °C	-	-	-	70 °C	125 °C	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC	-	-	-	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	METAL
Encapsulate equivalent code	DIP8,.3	DIP8,.3	-	-	-	DIP8,.3	DIP8,.3	CAN8,.2
Package shape	RECTANGULAR	RECTANGULAR	-	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	-	-	-	IN-LINE	IN-LINE	CYLINDRICAL
power supply	+-15 V	+-15 V	-	-	-	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	-	-	-	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V	-	-	-	15 V	15 V	15 V
surface mount	NO	NO	-	-	-	NO	NO	NO
technology	BIPOLAR	BIPOLAR	-	-	-	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	-	-	-	COMMERCIAL	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	-	-	-	THROUGH-HOLE	THROUGH-HOLE	WIRE
Terminal location	DUAL	DUAL	-	-	-	DUAL	DUAL	BOTTOM
Maker	-	-	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
package instruction	-	-	, CAN8,.2	, CAN8,.2	, CAN8,.2	DIP-8	DIP, DIP8,.3	, CAN8,.2
