UA776DCQR: DescriptionOperational Amplifier, 1 Func, BIPolar, CDIP14,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size515KB，10 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

UA776DCQR Overview

Operational Amplifier, 1 Func, BIPolar, CDIP14,

UA776DCQR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
frequency compensation	YES
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
low-dissonance	NO
micropower	YES
Humidity sensitivity level	2A
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	250
power supply	+-15 V
Programmable power	YES
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

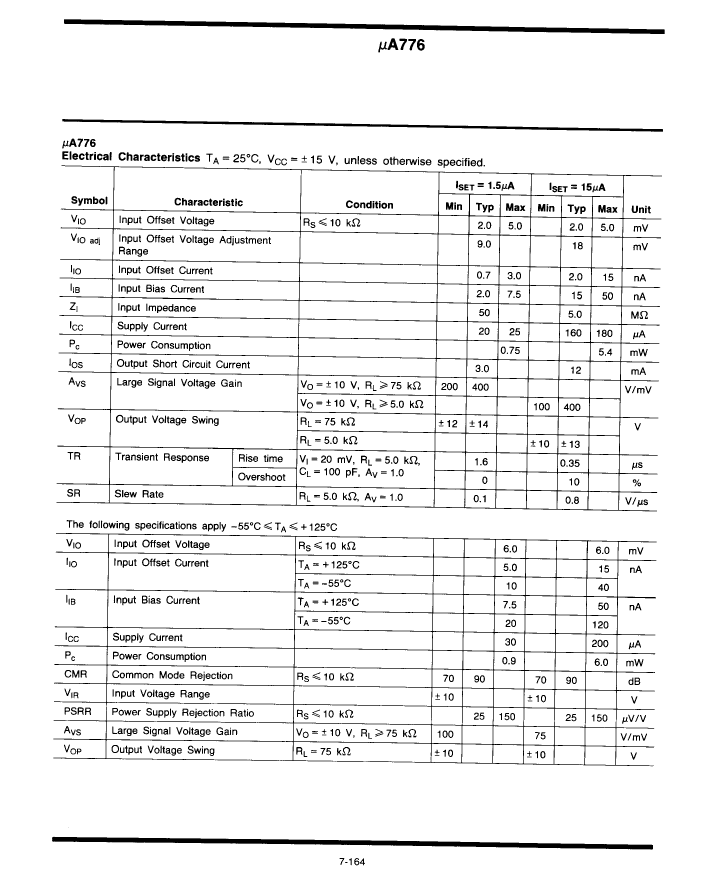

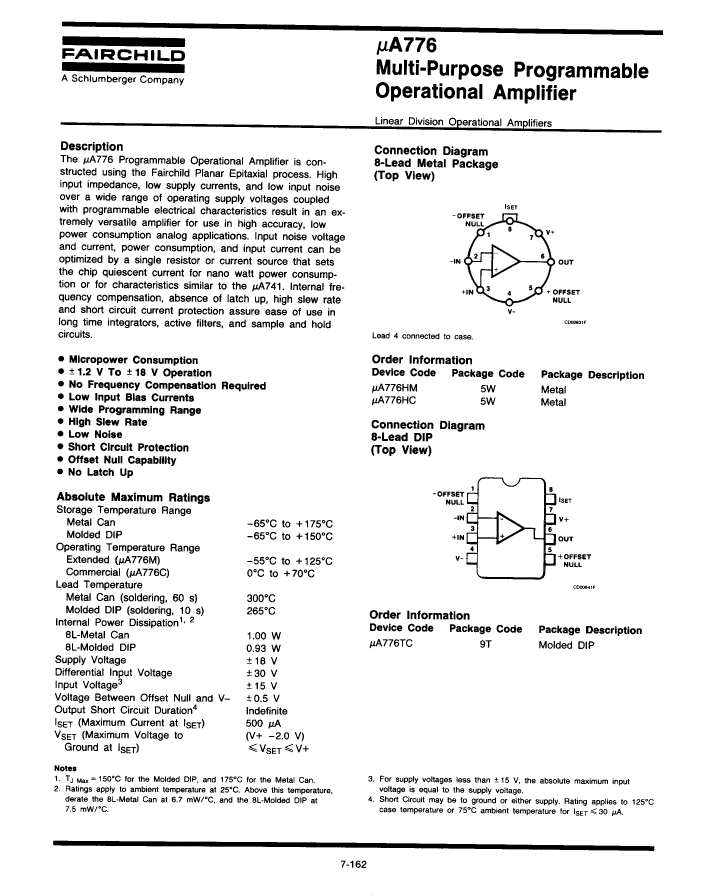

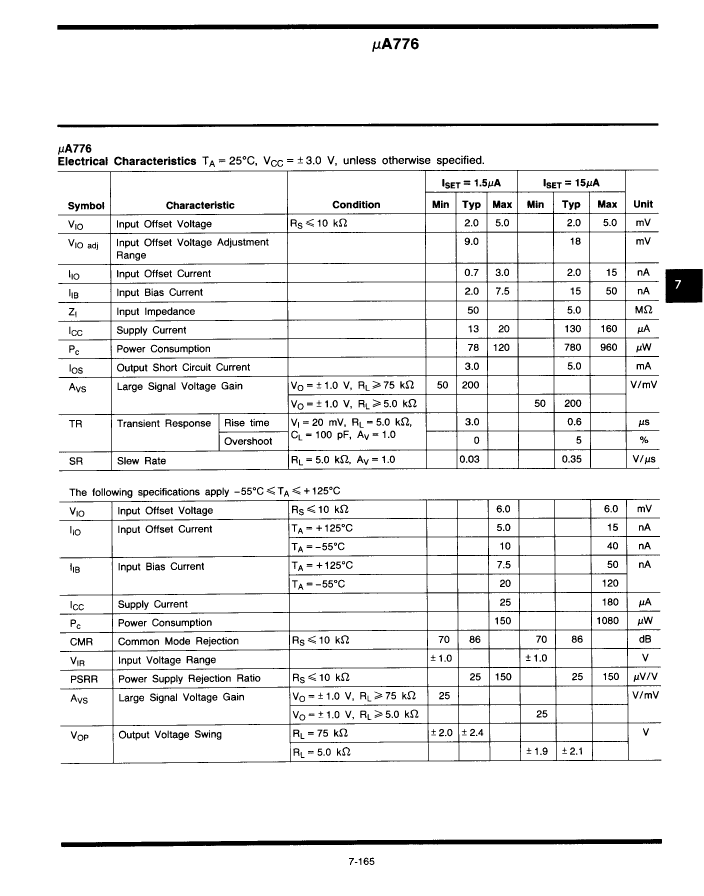

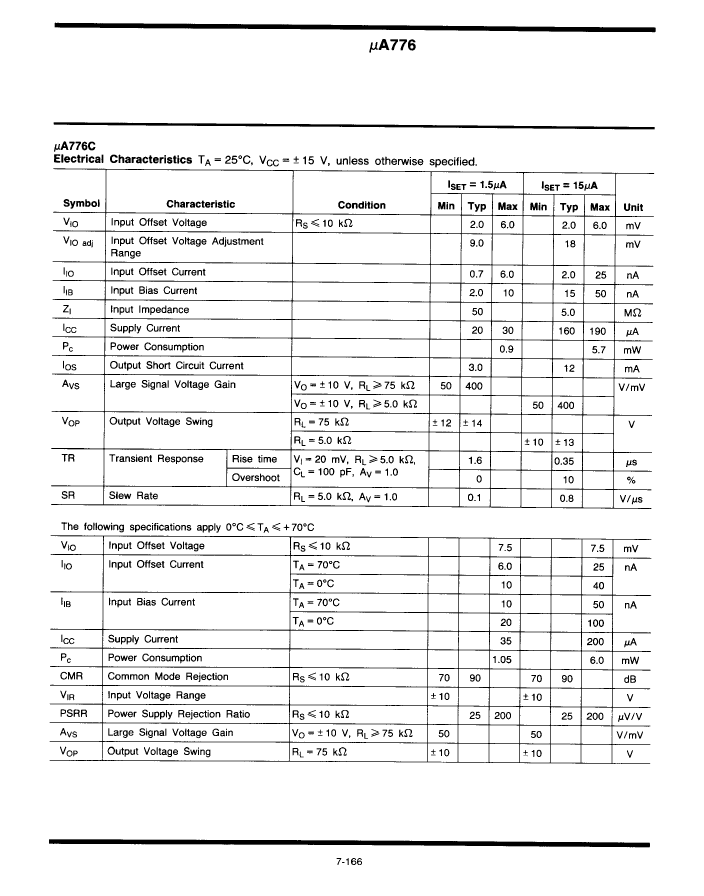

Preview

Download Datasheet

View All

UA776DCQR Related Products

	UA776DCQR	UA776DCQM	UA776DMQB	UA776HCQR	UA776DM	UA776HCQM
Description	Operational Amplifier, 1 Func, BIPolar, CDIP14,	Operational Amplifier, 1 Func, BIPolar, CDIP14,	Operational Amplifier, 1 Func, BIPolar, CDIP14,	Operational Amplifier, 1 Func, BIPolar, MBCY8,	Operational Amplifier, 1 Func, BIPolar, CDIP14,	Operational Amplifier, 1 Func, BIPolar, MBCY8,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	DIP	BCY	DIP	BCY
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	, CAN8,.2	DIP, DIP14,.3	, CAN8,.2
Contacts	14	14	14	8	14	8
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
frequency compensation	YES	YES	YES	YES	YES	YES
JESD-30 code	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	O-MBCY-W8	R-XDIP-T14	O-MBCY-W8
JESD-609 code	e0	e0	e0	e0	e0	e0
low-dissonance	NO	NO	NO	NO	NO	NO
micropower	YES	YES	YES	YES	YES	YES
Humidity sensitivity level	2A	2A	2A	2A	2A	2A
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1	1	1
Number of terminals	14	14	14	8	14	8
Maximum operating temperature	70 °C	70 °C	125 °C	70 °C	125 °C	70 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	METAL	CERAMIC	METAL
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	CAN8,.2	DIP14,.3	CAN8,.2
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR	ROUND
Package form	IN-LINE	IN-LINE	IN-LINE	CYLINDRICAL	IN-LINE	CYLINDRICAL
Peak Reflow Temperature (Celsius)	250	250	250	250	250	250
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Programmable power	YES	YES	YES	YES	YES	YES
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	WIRE	THROUGH-HOLE	WIRE
Terminal location	DUAL	DUAL	DUAL	BOTTOM	DUAL	BOTTOM
Maximum time at peak reflow temperature	30	30	30	30	30	30
encapsulated code	DIP	DIP	DIP	-	DIP	-
surface mount	NO	NO	NO	-	NO	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	-
Certification status	-	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
