GUS-QS20RLF-470-K-101-K datasheet, PDF

Datasheet> All Categories > Passive components> RC network> GUS-QS20RLF-470-K-101-K

GUS-QS20RLF-470-K-101-K: DescriptionRC Network, Tapped Filter Network, 47ohm, 0.0001uF, Surface Mount, 20 Pins, QSOP, ROHS COMPLIANT; CategoryPassive components RC network; File Size166KB，2 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

GUS-QS20RLF-470-K-101-K Overview

RC Network, Tapped Filter Network, 47ohm, 0.0001uF, Surface Mount, 20 Pins, QSOP, ROHS COMPLIANT

GUS-QS20RLF-470-K-101-K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	QSOP, ROHS COMPLIANT
Reach Compliance Code	compliant
capacitance	0.0001 µF
Capacitor Negative Tolerance	10%
Capacitor positive tolerance	10%
The first element resistor	47 Ω
JESD-609 code	e3
Manufacturer's serial number	GUS
Installation features	SURFACE MOUNT
Network Type	TAPPED FILTER NETWORK
Number of capacitor elements	8
Number of functions	1
Number of RC components	8
Number of resistor elements	8
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR; TUBE
Resistor tolerance	10%
Resistor temperature coefficient	100 ppm/°C
Resistor/Capacitor Network Type	RC NETWORK
surface mount	YES
technology	THIN FILM
Terminal surface	Matte Tin (Sn)
Terminal shape	GULL WING
Base Number Matches	1

Preview

Download Datasheet

View All

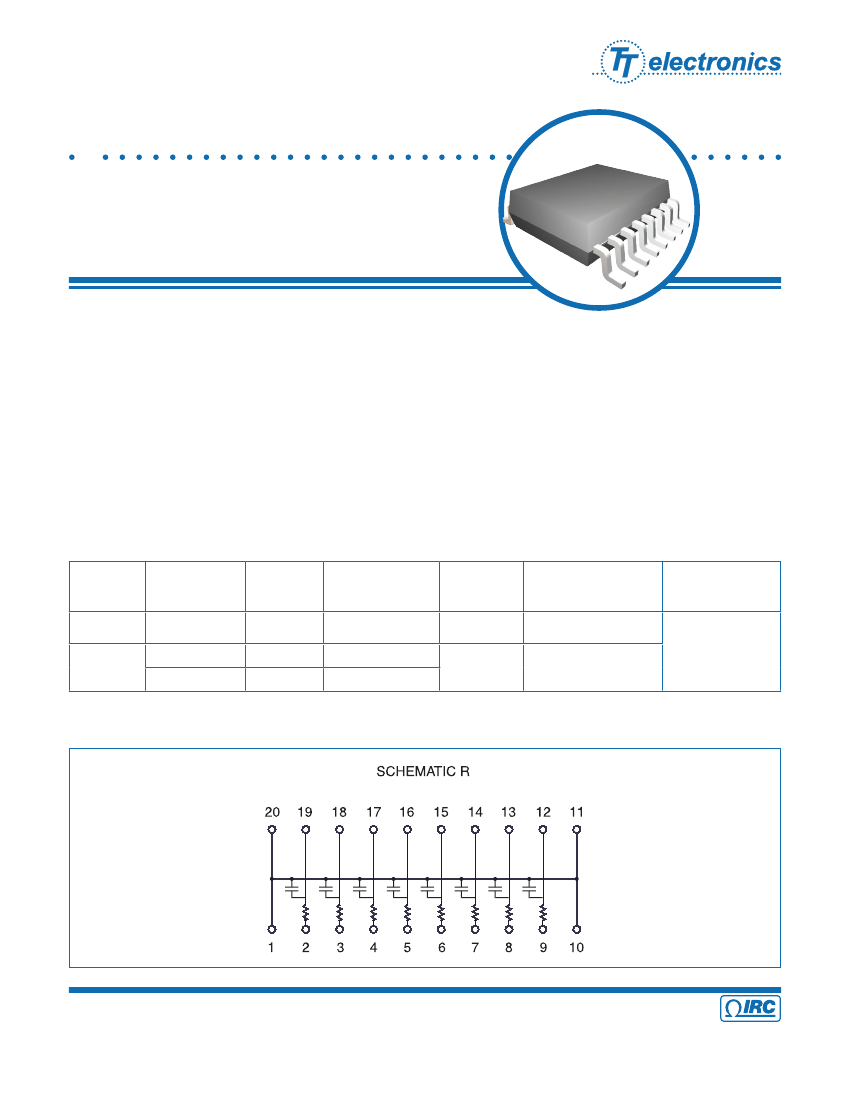

TaNCap

Tapped

Filter Network

Tapped Filter Series

•

Improves signal quality

Reduces unwanted signal transmissions

Highly integrated - replaces up to 16 discretes

RoHS compliant and Sn/Pb terminations available

Proven TaNCap

thin ﬁlm technology in QSOP, SOIC,

and TSSOP packages

IRC’s TaNCap

tapped filter networks are designed for the most demanding low pass filter applications. These

TaNSil

technology thin film networks offer attenuation of high frequency signal components wuth minimal inductive

effects. EMI/RFI reduction, improved signal quality and reduction of false triggers in digital circuits while minimizing

insertion loss are characteristics of these silicon based filter networks.

The SOIC, QSOP, and TSSOP packages offer a high level of integration in today’s most popular surface mount

conﬁgurations. One tapped ﬁlter network replaces up to 16 discrete components.

The TaNCap

series of resistor-capacitor networks are manufactured using IRC’s military and space proven

tantalum nitride thin ﬁlm technology. For high reliability combined with superior performance, use IRC TaNCap

Tapped Filter networks for your most demanding high speed analog and digital designs.

Electrical Data

Range

Resistors

Capacitors

10Ω to 100Ω

10pF to 33pF

34pF to 200pF

Tolerance

(%)

±10

±20

±10

Breakdown

Voltage (volts)

N/A

200 to 100

100 to 25

TCR

(ppm/°C)

±100

N/A

Max. Power

Dissipation

(watts)

0.1 per resistor

-55 to +125

N/A

Operating Temp.

Range (°C)

Schematic Data

General Note

IRC reserves the right to make changes in product speciﬁcation without notice or liability.

All information is subject to IRC’s own data and is considered accurate at time of going to print.

• 4222 South Staples Street • Corpus Christi Texas 78411 USA

Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com

A subsidiary of

TT electronics plc

Tapped Filter Series Issue January 2009 Sheet 1 of 2
