Thin-Film Technology
Accu-L L0603/L0805
Thin-Film RF/Microwave Inductors
®
2
25
Accu-L
®
SMD High-Q RF Inductor
2
10 nH Inductor (Top View)
ACCU-L
®
TECHNOLOGY
The Accu-L
®
SMD Inductor is based on thin-film multilayer
technology. This technology provides a level of control on the
electrical and physical characteristics of the component which
gives consistent characteristics within a lot and lot-to-lot.
The original design provides small size, excellent high-
frequency performance and rugged construction for reliable
automatic assembly.
The Accu-L
®
inductor is particularly suited for the telecom-
munications industry where there is a continuing trend
towards miniaturization and increasing frequencies. The
Accu-L
®
inductor meets both the performance and tolerance
requirements of present cellular frequencies 450MHz and
900MHz and of future frequencies, such as 1700MHz,
1900MHz and 2400MHz.
FEATURES
•
•
•
•
•
•
•
•
•
High Q
RF Power Capability
High SRF
Low DC Resistance
Ultra-Tight Tolerance on Inductance
Standard 0603 and 0805 Chip Size
Low Profile
Rugged Construction
Taped and Reeled
APPLICATIONS
•
•
•
•
•
•
Mobile Communications
Satellite TV Receivers
GPS
Vehicle Locations Systems
Filters
Matching Networks
26
Accu-L
®
0603 and 0805
SMD High-Q RF Inductor
DIMENSIONS:
millimeters (inches)
B
0603
L
1.6±0.10
(0.063±0.004)
0.81±0.10
(0.032±0.004)
0.61±0.10
(0.024±0.004)
top:
0.0 +0.3/-0.0
(0.0+0.012)
bottom:
0.35±0.20
(0.014±0.008)
0805
2.11±0.10
(0.083±0.004)
1.5±0.10
(0.059±0.004)
0.91±0.13
(0.036±0.005)
0.25±0.15
(0.010±0.006)
Operating/Storage
Temp. Range:
-55°C to +125°C
W
W
T
T
L
B
HOW TO ORDER
L
Product
Inductor
0805
Size
0603
0805
4R7
Inductance
Expressed in nH
(2 significant digits +
number of zeros)
D
Tolerance
for
L
≤
4.7nH, L
≥
10nH,
B = ±0.1nH
C = ±0.2nH
D = ±0.5nH
G = ±2%
J = ±5%
E
Specification
Code
E = Accu-L
®
0805
technology
G = Accu-L
®
0603
technology
W
Termination
Code
TR
Packaging
Code
2
for
values <10nH,
letter R denotes
decimal point.
Example:
22nH = 220
4.7nH = 4R7
W = Nickel/
TR = Tape and Reel
solder coated
(3,000/reel)
(Sn 63, Pb 37)
4.7nH<L<10nH,
C = ±0.2nH
D = ±0.5nH
ELECTRICAL SPECIFICATIONS TABLE FOR ACCU-L
®
0603
450 MHz
Test Frequency
Inductance
L (nH)
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10.0
12.0
15.0
900 MHz
Test Frequency
Q
Typical
49
26
20
20
21
24
25
23
26
23
23
28
28
28
1900 MHz
Test Frequency
L (nH)
1.2
1.52
1.73
2.24
2.75
3.39
4.06
4.92
5.94
7.3
10
11.8
14.1
25.9
2400 MHz
Test Frequency
L (nH)
1.2
1.52
1.72
2.24
2.79
3.47
4.21
5.2
6.23
8.1
12.1
14.1
17.2
49.8
Available
Inductance Tolerance
±0.1, ±0.2nH
±0.1, ±0.2nH
±0.1, ±0.2nH
±0.1, ±0.2nH
±0.1, ±0.2nH
±0.1, ±0.2, ±0.5nH
±0.1, ±0.2, ±0.5nH
±0.1, ±0.2, ±0.5nH
±0.2, ±0.5nH
±0.2, ±0.5nH
±0.2, ±0.5nH
±2%, ±5%
±2%, ±5%
±2%, ±5%
L (nH)
1.2
1.54
1.74
2.2
2.7
3.33
3.9
4.68
5.65
6.9
8.4
10
13.2
16.2
Q
Typical
70
39
30
30
30
35
57
32
36
33
31
39
38
38
Q
Typical
134
63
50
49
48
56
60
46
54
47
35
47
30
30
Q
Typical
170
76
59
56
54
64
69
49
60
39
31
41
20
15
SRF min
(MHz)
10000
10000
10000
10000
9000
8400
6500
5500
5000
4500
3800
3500
3000
2500
R
DC
max
(Ω)
0.04
0.06
0.07
0.08
0.08
0.08
0.12
0.15
0.25
0.30
0.35
0.45
0.50
0.60
I
DC
max
(mA)
(1)
1000
1000
1000
1000
750
750
500
500
300
300
300
300
300
300
(1)
IDC measured for 15°C rise at 25°C ambient temperature when soldered to FR-4 board.
Inductance and Q measured on Agilent 4291B / 4287 using the 16196A test fixture.
ELECTRICAL SPECIFICATIONS TABLE FOR ACCU-L
®
0805
450 MHz
Test Frequency
Inductance
L (nH)
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
(1) I
DC
measured
(2) I
DC
measured
900 MHz
1700 MHz
2400 MHz
Test Frequency Test Frequency Test Frequency
Q
Typical
L (nH)
Q
L (nH)
Typical
92
74
72
62
62
46
36
62
68
62
56
60
50
46
27
33
1.2
1.5
1.8
2.2
2.8
3.4
4.0
5.3
6.3
7.7
10.0
13.4
17.3
27
–
–
Available
Inductance Tolerance
Q
Typical
122
102
88
82
80
48
38
76
73
71
55
52
40
23
–
–
L (nH)
Q
Typical
SRF min
R
DC
max
∆T
= 15°C
∆T
= 70°C
(MHz)
(Ω)
(1)
(2)
I
DC
max
(mA)
60
1.2
±0.1nH, ±0.2nH, ±0.5nH
50
1.5
±0.1nH, ±0.2nH, ±0.5nH
±0.1nH, ±0.2nH, ±0.5nH
50
1.8
±0.1nH, ±0.2nH, ±0.5nH
42
2.2
±0.1nH, ±0.2nH, ±0.5nH
42
2.7
±0.1nH, ±0.2nH, ±0.5nH
38
3.3
±0.1nH, ±0.2nH, ±0.5nH
27
3.9
±0.1nH, ±0.2nH, ±0.5nH
43
4.8
±0.5nH
50
5.7
±0.5nH
43
7.0
±0.5nH
43
8.5
±2%, ±5%
46
10.6
±2%, ±5%
40
12.9
±2%, ±5%
36
16.7
±2%, ±5%
30
21.9
±2%, ±5%
36
27.5
for 15°C rise at 25°C ambient temperature
for 70°C rise at 25°C ambient temperature
1.2
92
10000
0.05
1000
2000
1.5
84
10000
0.05
1000
2000
1.9
73
10000
0.06
1000
2000
2.3
72
10000
0.07
1000
2000
2.9
70
10000
0.08
1000
2000
3.5
57
10000
0.11
750
1500
4.1
42
10000
0.20
750
1500
5.8
60
5500
0.10
750
1500
7.6
62
4600
0.10
750
1500
9.4
50
4500
0.11
750
1500
15.2
32
3500
0.12
750
1500
–
–
2500
0.13
750
1500
–
–
2400
0.20
750
1500
–
–
2200
0.20
750
1000
–
–
1700
0.35
500
1000
–
–
1400
0.40
500
1000
L, Q, SRF measured on HP 4291A, Boonton 34A and Wiltron 360
Vector Analyzer, R
DC
measured on Keithley 580 micro-ohmmeter.
27
Accu-L
®
0603 and 0805
SMD High-Q RF Inductor

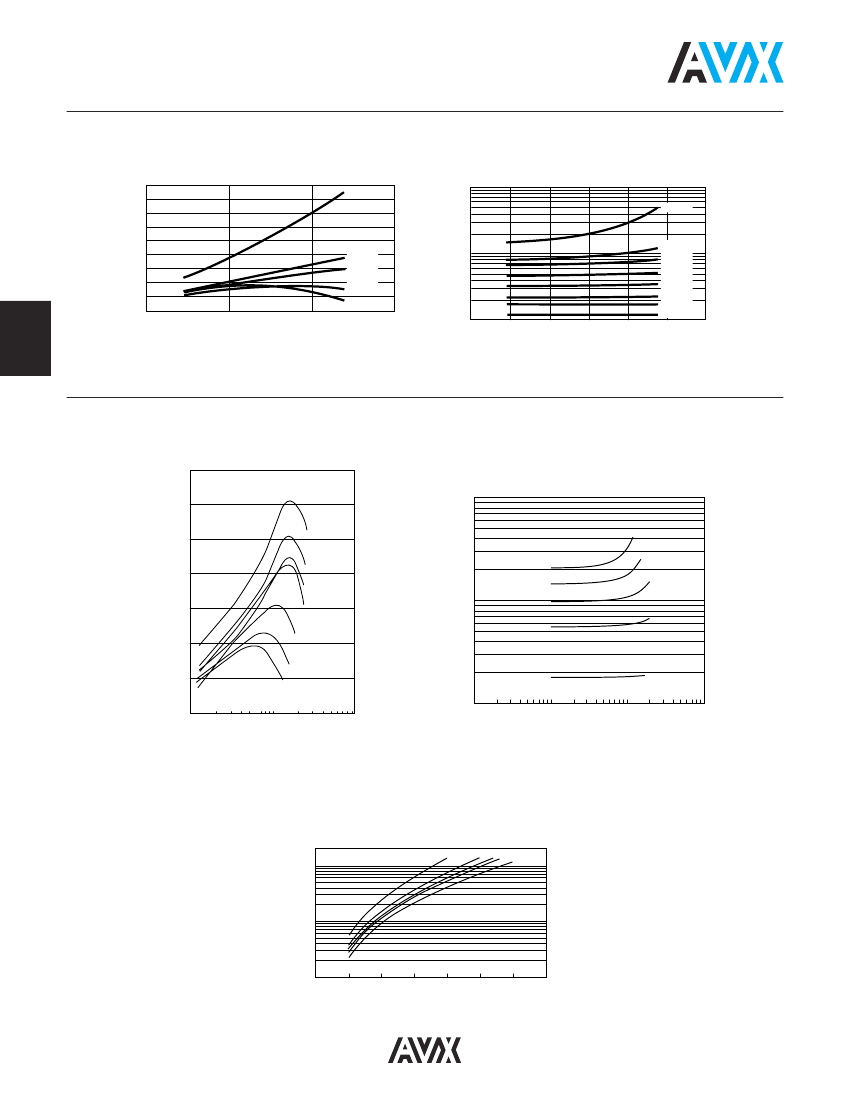

L0603
Typical Q vs. Frequency
L0603
180
160
140
120
Q 100
80
60
40
20
0
1.2nH
100
15nH
Typical Inductance vs. Frequency
L0603
L (nH)
1.5nH
5.6nH
8.2nH
15nH
0
1
Frequency (GHz)
2
3
10
2
L0805
1
0
0.5
2
1
1.5
Frequency (GHz)
8.2nH
6.8nH
4.7nH
3.3nH
2.2nH
1.8nH
1.2nH
2.5
3
Measured on AGILENT 4291B/4287
using the 16196A test fixture
Measured on AGILENT 4291B/4287
using the 16196A test fixture
Typical Q vs. Frequency
L0805
140
Typical Inductance vs. Frequency
L0805
120
100
1.2nH
100
80
Q
1.8nH
Inductance (nH)
1.5nH
22nH
15nH
60
5.6nH
10
10nH
5.6nH
10nH
40
15nH
20
22nH
1.8nH
1
0
0.1
1
Frequency (GHz)
10
0.01
0.1
1
10
Frequency (GHz)
Measured on HP4291A and
Boonton 34A Coaxial Line
Measured on HP4291A and
Wiltron 360 Vector Analyzer
Maximum Temperature Rise
at 25°C ambient temperature (on FR-4)
L0805
200
100
15nH
10nH
6.8nH 4.7nH
2.7nH
∆T
(°C)
10
1
0
0.5
1
1.5
2
Current (A)
2.5
3
3.5
Temperature rise will typically be no higher than shown by the graph
28
Accu-L
®
0603 and 0805
SMD High-Q RF Inductor
FINAL QUALITY INSPECTION
Finished parts are tested for electrical parameters and visual/
mechanical characteristics.
Parts are 100% tested for inductance at 450MHz. Parts are
100% tested for R
DC
. Each production lot is evaluated on a
sample basis for:
• Q at test frequency
• Static Humidity Resistance: 85°C, 85% RH, 160 hours
• Endurance: 125°C, I
R
, 4 hours
2
ENVIRONMENTAL CHARACTERISTICS
TEST
Solderability
Leach Resistance
CONDITIONS
Components completely immersed in
a solder bath at 235 ± 5°C for 2 secs.
Components completely immersed in
a solder bath at 260 ±5°C for 60 secs.
12 months minimum with components
stored in “as received” packaging.
Components mounted to a substrate.
A force of 5N applied normal to the
line joining the terminations and in
a line parallel to the substrate.
Components mounted to a substrate.
5 cycles -55°C to +125°C.
Tested as shown in diagram
1mm
deflection
45mm
45mm
Storage
Shear
REQUIREMENT
Terminations to be well tinned.
No visible damage.
Dissolution of termination faces
≤
15% of area.
Dissolution of termination edges
≤
25% of length.
Good solderability
No visible damage
Rapid Change of
Temperature
Bend Strength
No visible damage
No visible damage
Temperature
Coefficient of
Inductance
(TCL)
Component placed in
environmental chamber
-55°C to +125°C.
+0 to +125 ppm/°C
6
L
2
-L
1
TCL =
• 10
(typical)
L
1
(T
2
-T
1
)
T
1
= 25°C
29
