Wire-wound Chip Inductors for Telecommunications Infrastructure and Industrial Equipment / Medical Devices (LB series)[LB]
LB3218T331M8

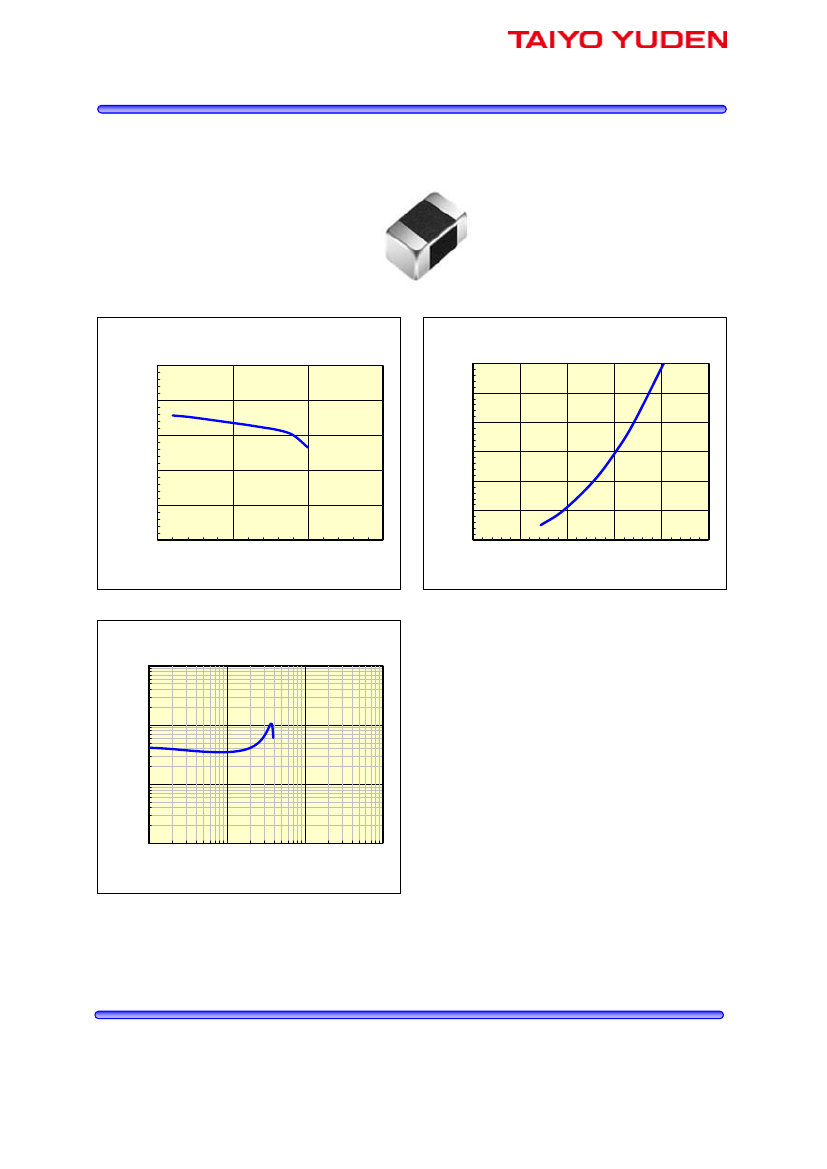

Features
Item Summary
330uH±20%, 65mA, 1207/3218 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 2000pcs
Products characteristics table
Inductance
Case Size (EIA/JIS)
Rated Current (max)
DC Resistance (max)
DC Resistance (typ)
LQ Measuring Frequency
Self Resonant Frequency (min)
Operating Temp. Range
Temperature characteristic
(Inductance change)
RoHS Compliance (10 subst.)
REACH Compliance (201 subst.)
Halogen Free
Soldering
Yes
Yes
Yes
Reflow
330 uH ± 20 %
1207/3218
65 mA
9.1 Ω
7Ω
0.796 MHz
4 MHz
-40 to +105 ℃
(Including-self-generated heat)
± 25 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
3.2 ±0.2 mm
1.8 ±0.2 mm
1.8 ±0.2 mm
0.6 ±0.2 mm
2020.01.17
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
