TLP321-2(GB-TP5) datasheet, PDF

TLP321-2(GB-TP5): DescriptionOptocoupler - Transistor Output, 2 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, PLASTIC, DIP-8; CategoryLED optoelectronic/LED photoelectric; File Size206KB，8 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

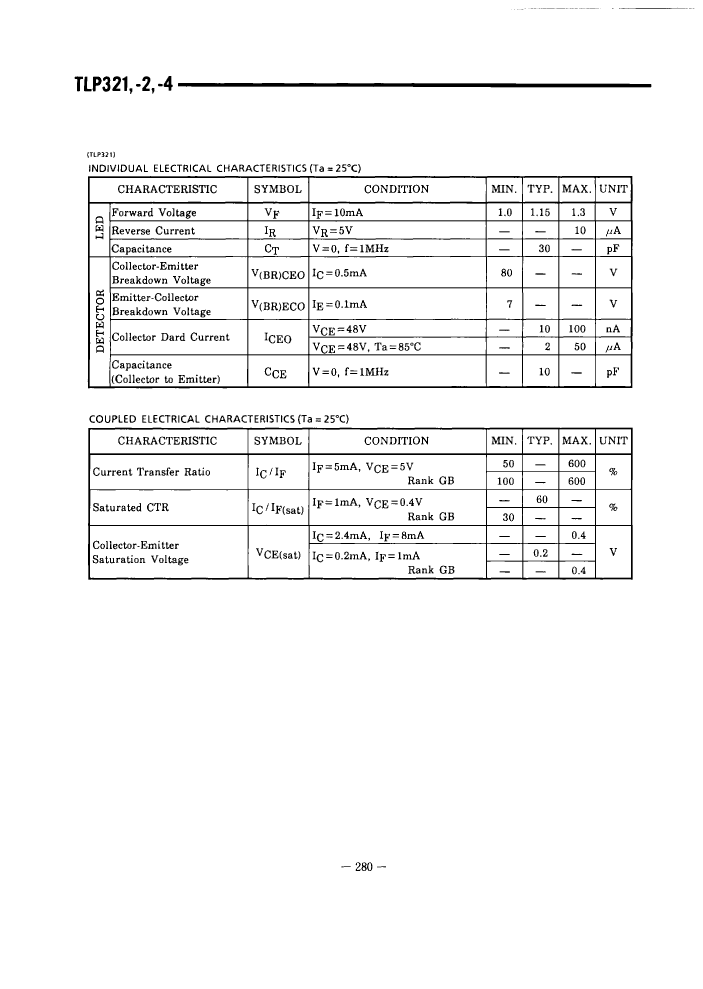

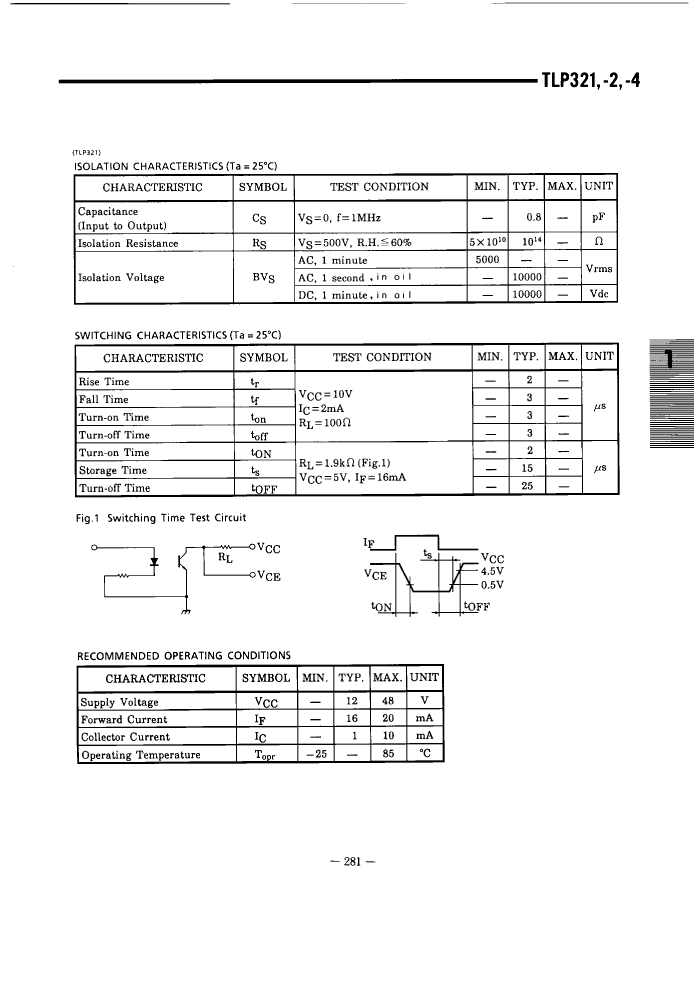

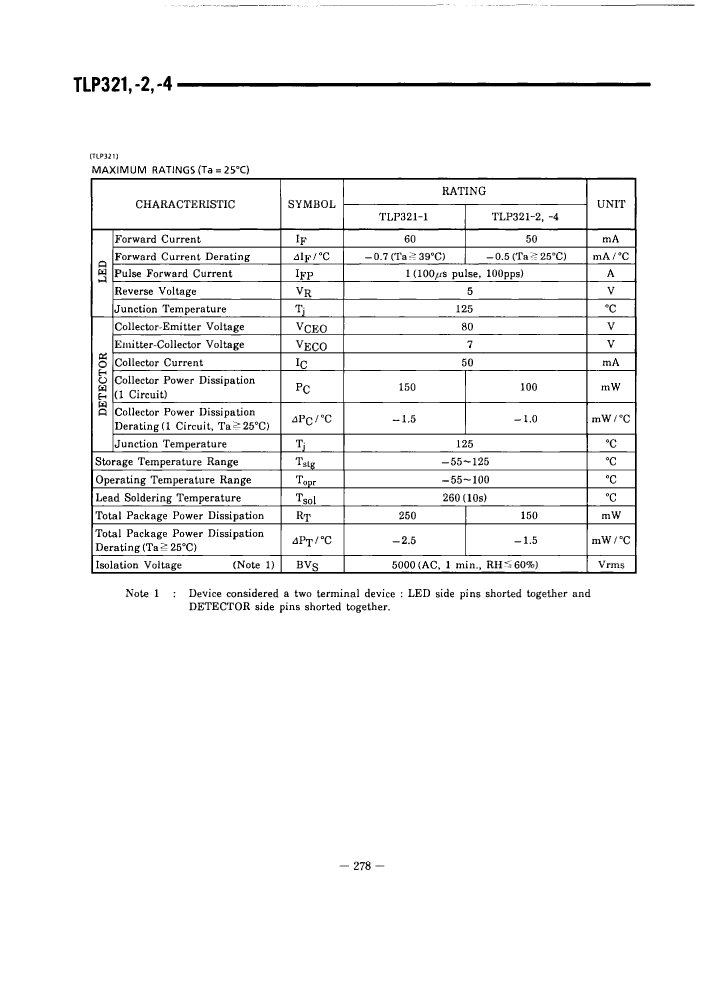

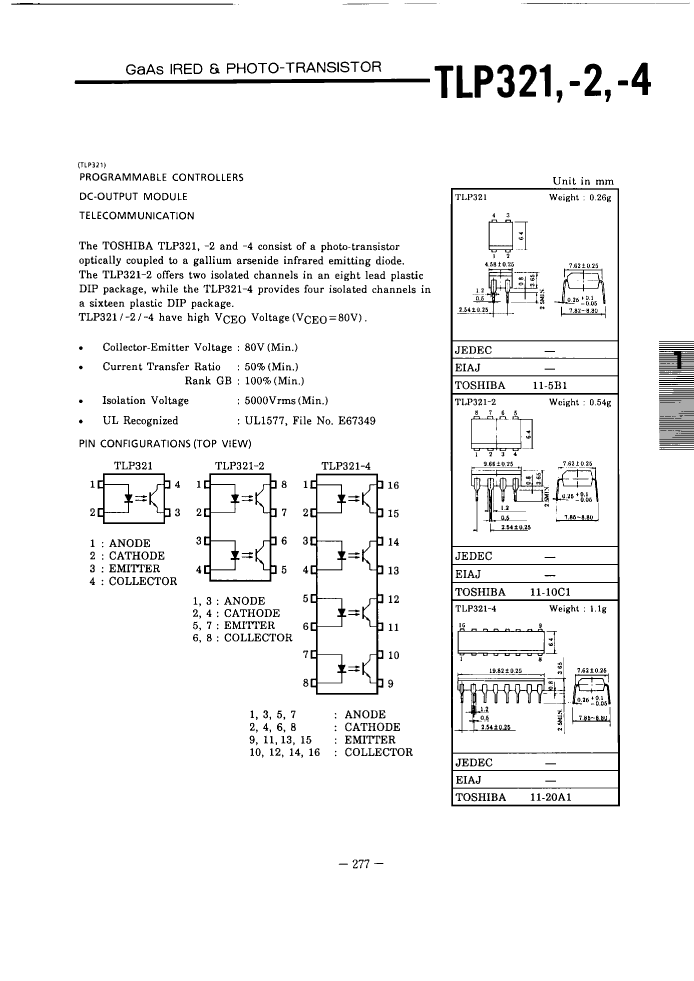

TLP321-2(GB-TP5) Overview

Optocoupler - Transistor Output, 2 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, PLASTIC, DIP-8

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	PLASTIC, DIP-8
Reach Compliance Code	unknown
Other features	UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min	80 V
Configuration	SEPARATE, 2 CHANNELS

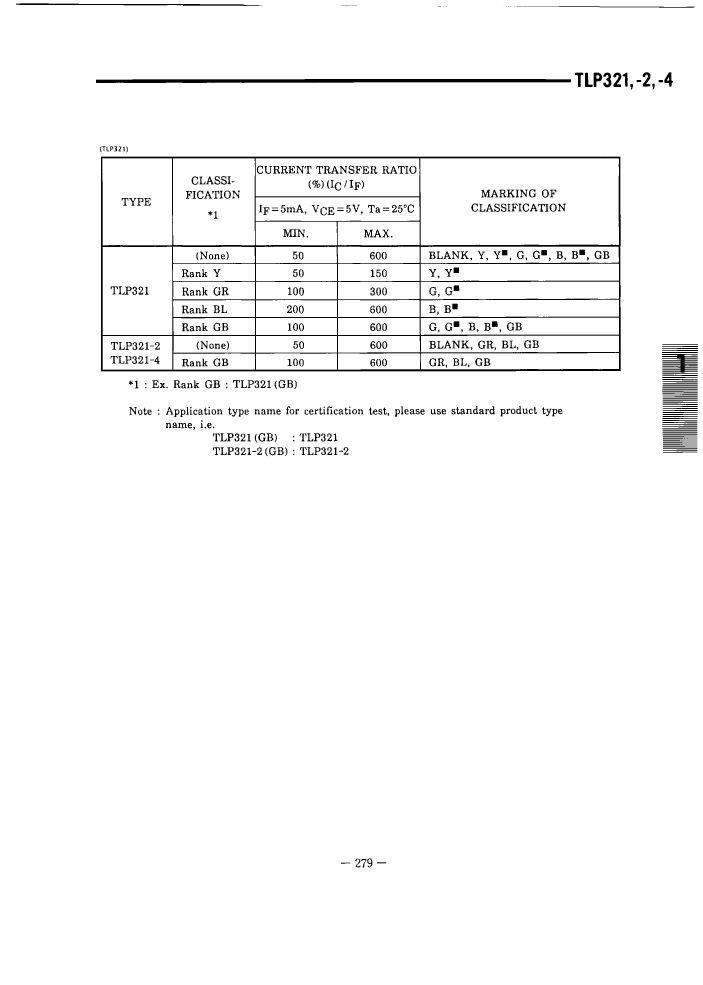

Nominal current transfer ratio	100%
Maximum dark power	100 nA
Maximum forward current	0.05 A
Maximum insulation voltage	5000 V
JESD-609 code	e0
Number of components	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1
