L-14W7R5JV4E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> L-14W7R5JV4E

L-14W7R5JV4E: DescriptionGeneral Purpose Inductor, 0.0075uH, 5%, 1 Element, Ceramic-Core, SMD, CHIP, 0603; CategoryPassive components inductor; File Size396KB，6 Pages; ManufacturerJohanson Technology; Websitehttp://www.johansontechnology.com

Download Datasheet Parametric View All

L-14W7R5JV4E Overview

General Purpose Inductor, 0.0075uH, 5%, 1 Element, Ceramic-Core, SMD, CHIP, 0603

L-14W7R5JV4E Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
core material	CERAMIC
DC Resistance	0.11 Ω
Nominal inductance(L)	0.0075 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e4
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	30
Maximum rated current	0.7 A
self resonant frequency	4700 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	GOLD
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	250 MHz
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

RF W

iReWound

hip

nduCtoRs

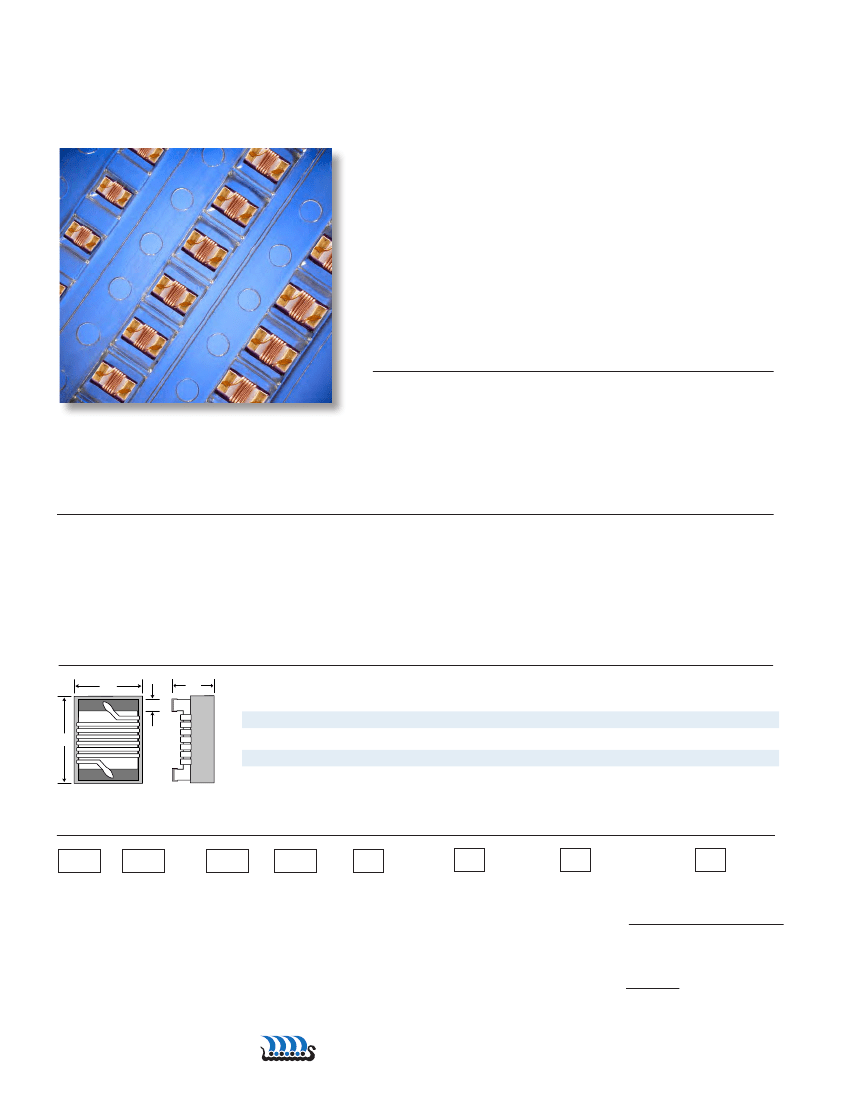

These high frequency High-Q chip inductors feature a

monolithic body made of low loss ceramic wound with wire to

achieve optimal high frequency performance.

These RF chip inductors are compact in size and are provided on

tape and reel packaging which makes them ideal for high volume RF

applications. They feature a nickel barrier with a top plating of gold

for the ceramic core types (all 0402, all 0603, and most 0805 types),

and with a top plating of 100% tin for the ferrite core types (0805

size, 470 nH and higher). Most inductance values between those

listed are available on request.

pplicAtions

• CELL/PCS Modules

• Broadband Components

• RF Tranceivers

• Cable Modem

• Bluetooth

• Wireless LAN

• RFID

• Cordless Phone

• Computer Peripherals

• ASDL

roduct

Ange

uMMAry

EIA SIZE (mm)

0402 (1005)

0603 (1608)

0805 (2012)

SIZE CODE

L-07

L-14

L-15

L RANGE

1.0 - 120 nH

2.0 - 470 nH

2.2 - 10,000 nH

Q FACTOR (Typ.)

55 (900 MHz)

60 (900 MHz)

60 (500 MHz)

SRF (Typ.)

>11 GHz (1.0 nH)

>13 GHz (2.0 nH)

>11 GHz (2.2 nH)

TEMPERATURE

-40°C to + 125°C

-40°C to + 125°C*

*-40 deg. C to +85 deg. C for ferrite core types

ecHAnicAl

HArActeristics

0402 (1005)

Inches

0603 (1608)

Inches

0805 (2012)

Inches

Length

Width

Thickness

End Band

.039 ±.004” (1.00 ±.10)

.022 ±.004” (0.55 ±.10)

.020 ±.004” (0.50 ±.10)

.008 ±.004” (0.20 ±.10)

.063 ±.008”

.041 ±.008”

.014 ±.004”

(1.60 ±.20)

(1.05 ±.20)

(0.35 ±.10)

.079 ±.008”

.049 ±.008”

.047 ±.008”

.016 ±.004”

(2.00 ±.20)

(1.25 ±.20)

(1.20 ±.20)

(0.40 ±.10)

ow to

rder

L-

DEVICE

Inductor

SIZE

07 = 0402

14 = 0603

15 = 0805

TYPE

W = Wirewound on

Ceramic Core

F = Wirewound on

Ferrite Core

4N3

VALUE

See Table

TOLERANCE*

± 0.2 nH

± 0.3 nH

± 2%

± 5%

± 10%

TERMINATION

V =

Ni / Au for “W”types,

MARKING

4 = No Marking

Tape and Reel

PACKAGING

Size Code Tape

Reel

Qty

0402

Paper

7” 10,000

0603

E Embossed 7”

3,000

0805

E Embossed 7”

2,000

Bulk (Loose Pcs.)

Size

All

Code

and V = Ni / 100% Sn for

“F” types

Example Part Number:

L-07W4N3SV4T

is: 0402 Wirewound, 4.3 nanohenry, +/- 0.3 nH tolerance, Ni / Au termination,

No Marking, Paper tape on a 7” reel.
