LPO6013-393KTB: DescriptionGeneral Purpose Inductor, 39uH, 10%, 1 Element, Ferrite-Core, SMD, 2422, ROHS COMPLIANT; CategoryPassive components inductor; File Size164KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric View All

LPO6013-393KTB Overview

General Purpose Inductor, 39uH, 10%, 1 Element, Ferrite-Core, SMD, 2422, ROHS COMPLIANT

LPO6013-393KTB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	2422
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	2422
structure	Unshielded
core material	FERRITE
DC Resistance	0.96 Ω
Nominal inductance(L)	39 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	1.3 mm
Package length	6 mm
Package form	SMT
Package width	5.6 mm
method of packing	TR
Maximum rated current	0.35 A
self resonant frequency	28 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn95.5Ag4.0Cu0.5)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

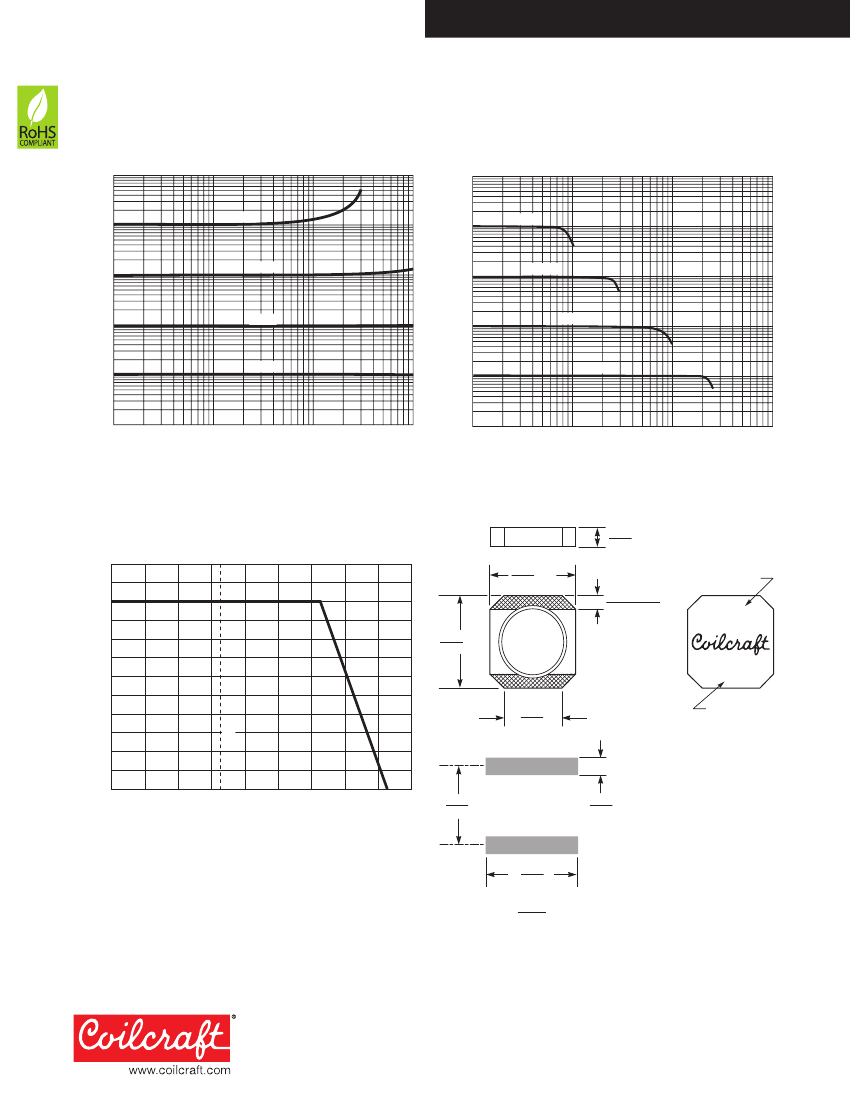

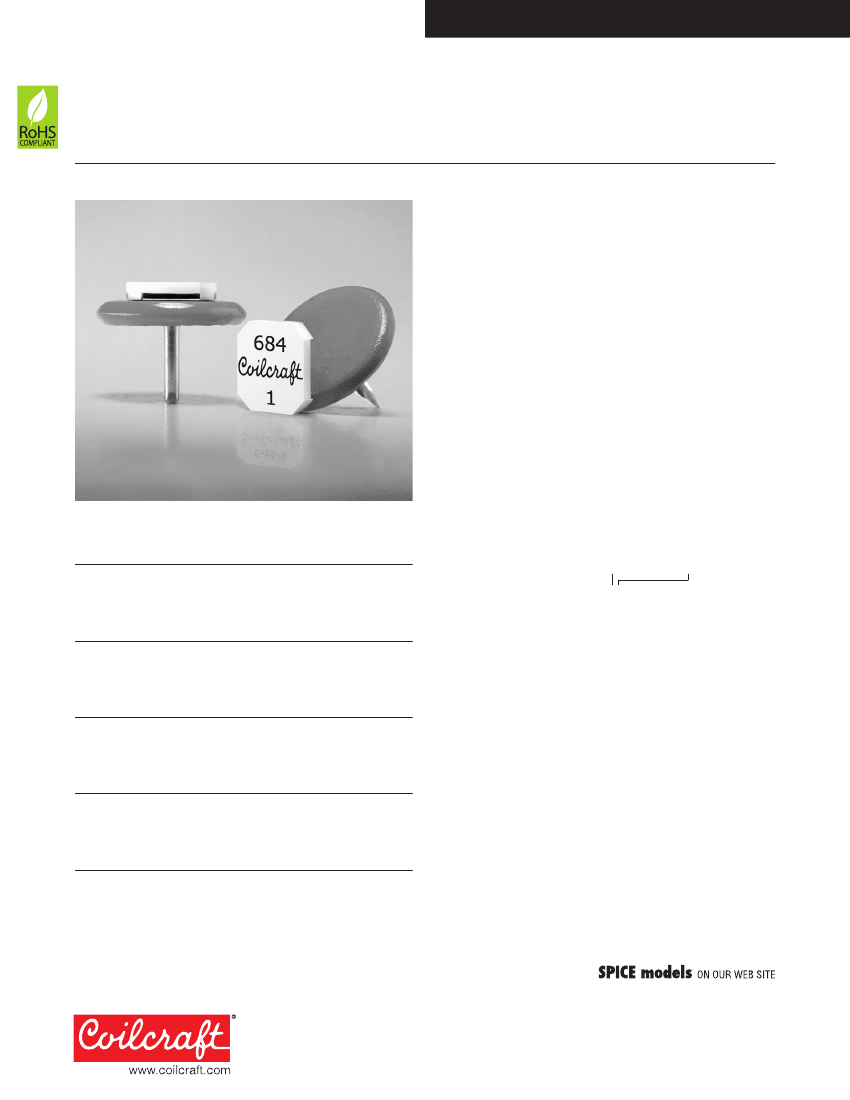

Document 286-1

SMT Power Inductors - LPO6013

• Very low profile – only 1.3 mm high!

• Handles saturating current up to 1.9 Amps

Designer’s Kit C352

contains 3 each of all values

Core material

Ferrite

Core and winding loss

See www.coilcraft.com/coreloss

Terminations

RoHS compliant silver-palladium-platinum-glass frit.

Other terminations available at additional cost.

Weight

111 – 122 mg

Ambient temperature

–40°C to +85°C with

Irms

current, +85°C to

+125°C with derated current

Storage temperature

Component: –40°C to +125°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

1000/7″ reel; 3500/13″ reel Plastic tape: 12 mm wide,

0.23 mm thick, 8 mm pocket spacing, 1.4 mm pocket depth

Recommended pick and place nozzle

OD: 5.6 mm; ID:

≤

2.8 mm

PCB washing

Tested with pure water or alcohol only. For other solvents,

see Doc787_PCB_Washing.pdf.

2

Isat

3

Irms

4

1

2

Part

number

1

(µH)

1.0 ±20%

1.5 ±20%

2.2 ±20%

3.3 ±20%

3.9 ±20%

4.7 ±20%

6.8 ±20%

8.2 ±20%

10. ±10%

15. ±10%

22. ±10%

33. ±10%

39. ±10%

47. ±10%

68. ±10%

100. ±10%

150. ±10%

220. ±10%

330. ±10%

470. ±10%

2

L

2

DCR

SRF

max

typ

(Ohms) (MHz)

0.06

0.07

0.08

0.11

0.13

0.15

0.20

0.22

0.30

0.38

0.52

0.73

0.96

1.0

1.7

3.2

4.3

5.8

7

10

14

21

200

150

110

100

90

70

65

60

47

37

30

28

25

21

17

14

10

8

7

(A)

LPO6013-102ML_

LPO6013-152ML_

LPO6013-222ML_

LPO6013-332ML_

LPO6013-392ML_

LPO6013-472ML_

LPO6013-682ML_

LPO6013-822ML_

LPO6013-103KL_

LPO6013-153KL_

LPO6013-223KL_

LPO6013-333KL_

LPO6013-393KL_

LPO6013-473KL_

LPO6013-683KL_

LPO6013-104KL_

LPO6013-154KL_

LPO6013-224KL_

LPO6013-334KL_

LPO6013-474KL_

1.9

1.6

1.3

1.1

1.0

0.90

0.70

0.60

0.55

0.45

0.40

0.35

0.30

0.28

0.22

0.19

0.15

0.13

0.10

1.5

1.4

1.3

1.2

1.0

0.85

0.80

0.74

0.67

0.60

0.49

0.35

0.30

0.26

0.23

0.20

0.18

0.13

1. When ordering, please specify

termination

and

packaging

code:

LPO6013-473KLC

Termination: L

= RoHS compliant silver-palladium-platinum-glass frit.

Special order: T

= RoHS tin-silver-copper

(95.5/4/0.5) or

S

= non-RoHS tin-lead (63/37).

Packaging: C

= 7″ machine-ready reel. EIA-481 embossed plastic

tape (1000 parts per full reel).

B

= Less than full reel. In tape, but not machine ready.

To have a leader and trailer added ($25 charge),

use code letter C instead.

D

= 13″ machine-ready reel. EIA-481 embossed plastic

tape (3500 parts per full reel).

2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.

3. DC current at which the inductance drops 10% (typ) from its value with-

out current.

4. Current that causes a 40°C temperature rise from 25°C ambient.

5. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

LPO6013-684KL_ 680. ±10%

LPO6013-105KL_ 1000. ±10%

5.6 0.09

4.7 0.07

US

+1-847-639-6400 sales@coilcraft.com

UK

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 286-1

Revised 10/15/08

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
