Datasheet> All Categories > The connector> The connector> 177-007-25S1BG4-01

177-007-25S1BG4-01: Description25 CONTACT(S), FEMALE, D MICROMINIATURE CONNECTOR, PLUG; CategoryThe connector The connector; File Size96KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

177-007-25S1BG4-01 Overview

25 CONTACT(S), FEMALE, D MICROMINIATURE CONNECTOR, PLUG

177-007-25S1BG4-01 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	_compli
Body/casing type	PLUG
Connector type	D MICROMINIATURE CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	177-007
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM/CHROMATE
Shell material	ALUMINUM ALLOY
Housing size	D
Total number of contacts	25
Base Number Matches	1

Preview

Download Datasheet

View All

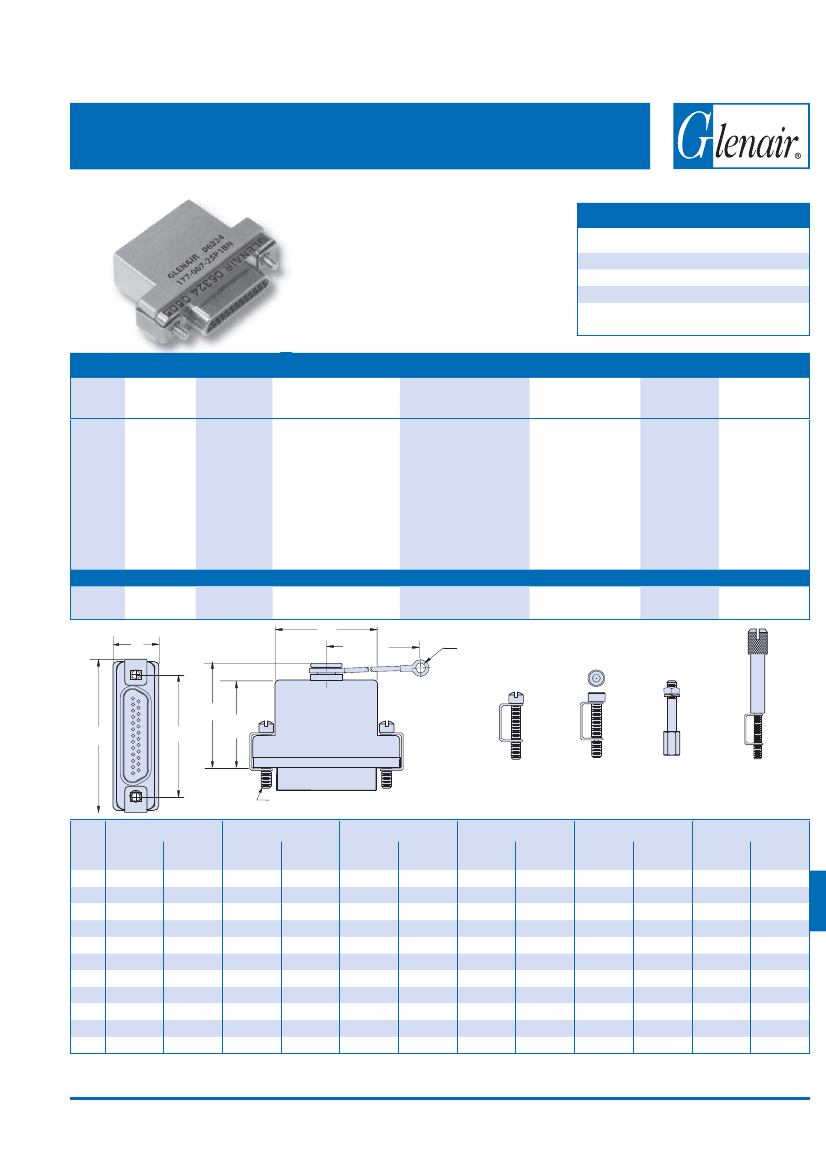

Micro-D Accessories

Shorting Plug Assembly 177-007

Shorting Plug Assemblies

are

Micro-D connectors with all contacts

bussed/shorted together. Enclosed in

a backshell and ﬁtted with jackscrews,

these shorting plugs provide ESD

protection to sensitive instrumentation.

MATERIALS & FINISHES

Shells

Contacts

Encapsulant

Insulators

Hardware

Aluminum Alloy 6061 -T6

Gold-Plated Copper Alloy

Epoxy

Glass-Filled LCP

300 Series Stainless

Steel, Passivated

HOW TO ORDER 177-007 SHORTING PLUGS

Connector

Series

Size

177-007

51-2

100

Contact

Type

–

Socket

Shell Finish

–

Cadmium, Yellow

Hardware Option

–

Fillister Head

Jackscrew

Lanyard Option

–

No Lanyard

–

Flexible Nylon

Rope

Lanyard

Length

Ring Terminal

Ordering Code

Chromate

–

Electroless

–

Hex Head

Jackscrew

Nickel

–

Black Anodize

–

Gold

–

Chem Film

–

Wire Rope,

Nylon Jacket

Length in 06

–

.125 (3.2)

One Inch 01

–

.140 (3.6)

Increments 05

–

.167 (4.2)

–

.197 (5.0)

Example: “6”

equals six

inches.

I.D. of Ring

Terminal

–

Extended

Jackscrew

–

Wire Rope,

Teﬂon Jacket

–

Jackpost, Female

–

No Hardware

Sample Part Number

177-007

– 25

LENGTH

SEE ORDERING

INFO

– 06

#2-56 UNC THDS. 9-69 PIN

#4-40 UNC THDS. 100 PIN

CODE B

CODE H

FILLISTER HEAD HEX HEAD

JACKSCREW

CODE F

FEMALE

JACKPOST

CODE E

EXTENDED

JACKSCREW

A Max.

Size

51-2

100

B Max.

In .

.370

.410

.370

.410

.460

In.

.565

.715

.865

.965

1.115

1.265

1.215

1.615

2.015

1.515

1.800

D Max.

mm.

14.35

18.16

21.97

24.51

28.32

32.13

30.86

41.02

51.18

38.48

45.72

E Max.

In.

.450

.570

.690

.750

.810

.850

.880

.940

F Max.

In.

.410

.580

.740

.850

.980

1.130

1.080

1.510

1.880

1.380

1.470

In.

.850

1.000

1.150

1.250

1.400

1.550

1.500

1.910

2.310

1.810

2.235

mm.

21.59

25.40

29.21

31.75

35.56

39.37

38.10

48.51

58.67

45.97

56.77

mm.

9.40

10.41

9.40

10.41

11.68

In.

.600

.720

.840

.900

.960

1.000

1.030

1.090

mm.

15.24

18.29

21.34

22.86

24.38

25.40

26.16

27.69

mm.

11.43

14.48

17.53

19.05

20.57

21.59

22.35

23.88

mm.

10.41

14.73

18.80

21.59

24.89

28.70

27.43

38.35

47.75

35.02

37.34

CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

M-3

E-Mail: sales@glenair.com
