DP64L4B-005KHZ: DescriptionActive Filter, 1 Func, Butterworth, Lowpass, PDIP32,; CategoryAnalog mixed-signal IC filter; File Size607KB，11 Pages; ManufacturerFrequency Devices

Download Datasheet Parametric Compare View All

DP64L4B-005KHZ Overview

Active Filter, 1 Func, Butterworth, Lowpass, PDIP32,

DP64L4B-005KHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP32,.6
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T32
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	32
Maximum operating temperature	70 °C
Minimum operating temperature
Order	4TH
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP32,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
response	LOWPASS
Maximum supply current (Isup)	5 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
transfer characteristics	BUTTERWORTH
Base Number Matches	1

Preview

Download Datasheet

View All

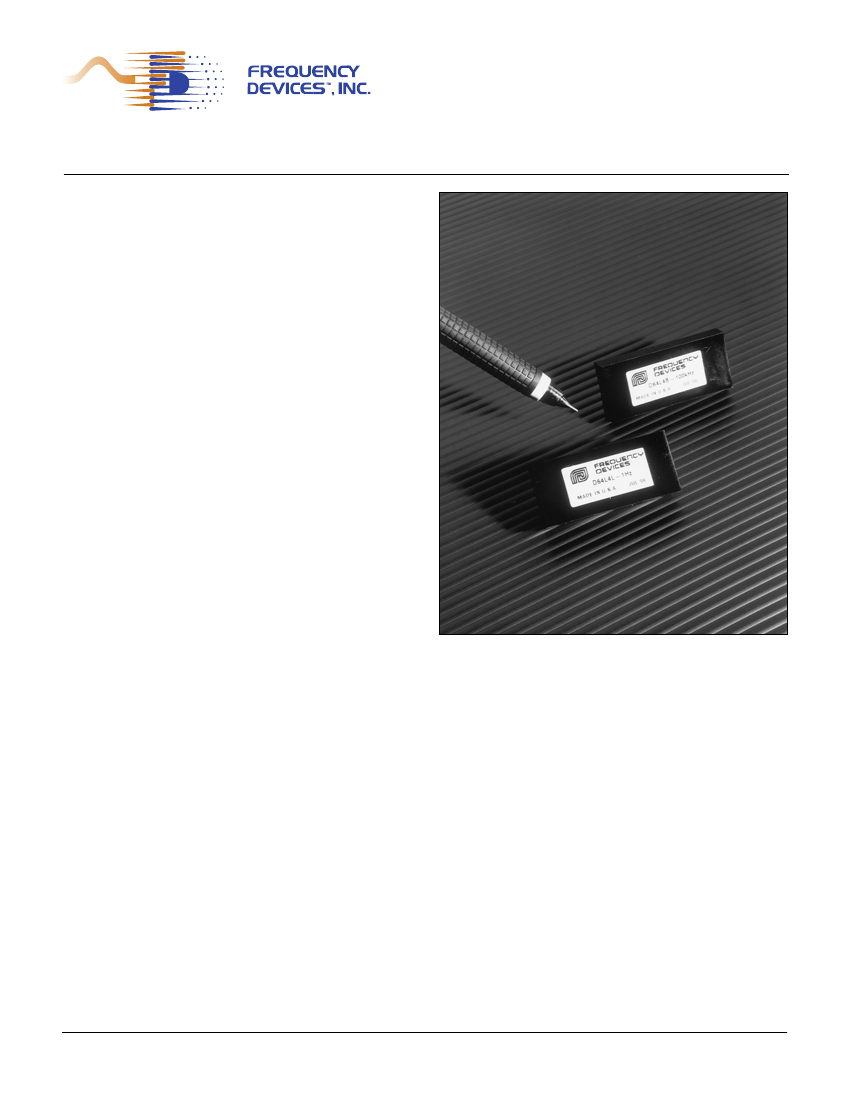

D64 & DP64 Series

1.0 Hz to 100 kHZ

Fixed Frequency

Description

The D64 and DP64 Series of small 4-pole fixed-

frequency, precision active filters provide high

performance linear active filtering in a compact 32-

pin DIP package, with a broad range of corner

frequencies and a choice of transfer functions.

Individual D64 filters can serve in low-pass or high-

pass applications (DP64, low-pass only) or be

combined to create custom band-pass or band-

reject filters. These fully self-contained units

require no external components or adjustments.

Each model comes factory tuned to a user-specified

corner frequency between 1 Hz and 100 kHz (DP64,

1 Hz to 5 kHz) and operate with low total harmonic

distortion over a wide dynamic input voltage range

from non-critical +/-5V to +/-18V power supplies.

Features/Benefits:

• Low harmonic distortion and wide signal-to-noise

ratio

• Compact 1.8"L x 0.8"W x 0.3"H minimizes board

space requirements.

• Plug-in ready-to-use, reducing engineering design

and manufacturing cycle time.

• Factory tuned, no external clocks or adjustments

needed

• Broad range of transfer characteristics and corner

frequencies to meet a wide range of applications.

Available Low-Pass Models:

. . . . . . . . . . .Page

D64L4B & DP64L4B

4-pole Butterworth . . . . . .2

D64L4L & DP64L4L

4-pole Bessel . . . . . . . . . .2

D64L4Y2 & DP64L4Y2

4-pole Cheby

(0.2 dB Ripple) . . . . . . . . .2

D64L4Y5 & DP64L4Y5

4-pole Cheby

(0.5 dB Ripple) . . . . . . . . .2

Available

D64H4B

D64H4Y2

D64H4Y5

High-Pass Models:

4-pole Butterworth . . . . . . . . . . . . . . . .3

4-pole Cheby (0.2 dB Ripple) . . . . . . . .3

4-pole Cheby (0.5 dB Ripple) . . . . . . . .3

32-Pin DIP

4 - Pole Filters

Applications

• Anti-alias filtering

• Data acquisition systems

• Communication systems and electronics

• Medical electronics equipment and research

• Aerospace, navigation and sonar applications

• Sound and vibration testing

• Acoustic and vibration analysis and control

• Noise elimination

• Signal reconstruction

General Specifications:

Pin-out/package data & ordering information . . . .4

25 Locust St, Haverhill, Massachusetts 01830 • Tel: 800/252-7074, 978/374-0761 • FAX: 978/521-1839

e-mail: sales@freqdev.com • Web Address: http://www.freqdev.com

DP64L4B-005KHZ Related Products

	DP64L4B-005KHZ	DP64L4Y2-005KHZ	DP64L4Y5-005KHZ	DP64L4Y5-001HZ	DP64L4B-001HZ	DP64L4L-005KHZ	D64H4Y2-001HZ	D64L4Y2-001HZ	D64L4L-001HZ	D64L4Y5-001HZ
Description	Active Filter, 1 Func, Butterworth, Lowpass, PDIP32,	Active Filter, 1 Func, Chebyshev, Lowpass, PDIP32,	Active Filter, 1 Func, Chebyshev, Lowpass, PDIP32,	Active Filter, 1 Func, Chebyshev, Lowpass, PDIP32,	Active Filter, 1 Func, Butterworth, Lowpass, PDIP32,	Active Filter, 1 Func, Bessel, Lowpass, PDIP32,	Active Filter, 1 Func, Chebyshev, Highpass, PDIP32,	Active Filter, 1 Func, Chebyshev, Lowpass, PDIP32,	Active Filter, 1 Func, Bessel, Lowpass, PDIP32,	Active Filter, 1 Func, Chebyshev, Lowpass, PDIP32,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP32,.6	DIP, DIP32,.6	DIP, DIP32,.6	DIP, DIP32,.6	DIP, DIP32,.6	DIP, DIP32,.6	DIP, DIP32,.6	DIP, DIP32,.6	DIP, DIP32,.6	DIP, DIP32,.6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
JESD-30 code	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	32	32	32	32	32	32	32	32	32	32
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Order	4TH	4TH	4TH	4TH	4TH	4TH	4TH	4TH	4TH	4TH
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP32,.6	DIP32,.6	DIP32,.6	DIP32,.6	DIP32,.6	DIP32,.6	DIP32,.6	DIP32,.6	DIP32,.6	DIP32,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
response	LOWPASS	LOWPASS	LOWPASS	LOWPASS	LOWPASS	LOWPASS	HIGHPASS	LOWPASS	LOWPASS	LOWPASS
Maximum supply current (Isup)	5 mA	5 mA	5 mA	5 mA	5 mA	5 mA	20 mA	20 mA	20 mA	20 mA
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
transfer characteristics	BUTTERWORTH	CHEBYSHEV	CHEBYSHEV	CHEBYSHEV	BUTTERWORTH	BESSEL	CHEBYSHEV	CHEBYSHEV	BESSEL	CHEBYSHEV
Base Number Matches	1	1	1	1	1	1	-	-	-	-
Maker	-	Frequency Devices	Frequency Devices	Frequency Devices	-	-	Frequency Devices	Frequency Devices	Frequency Devices	Frequency Devices
