DP8303NB datasheet, PDF - EEWORLD Datasheet

DP8303NB: DescriptionBus Driver/Transceiver, 1-Func, 8-Bit, Inverted Output, TTL, PDIP20; Categorylogic logic; File Size433KB，6 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric View All

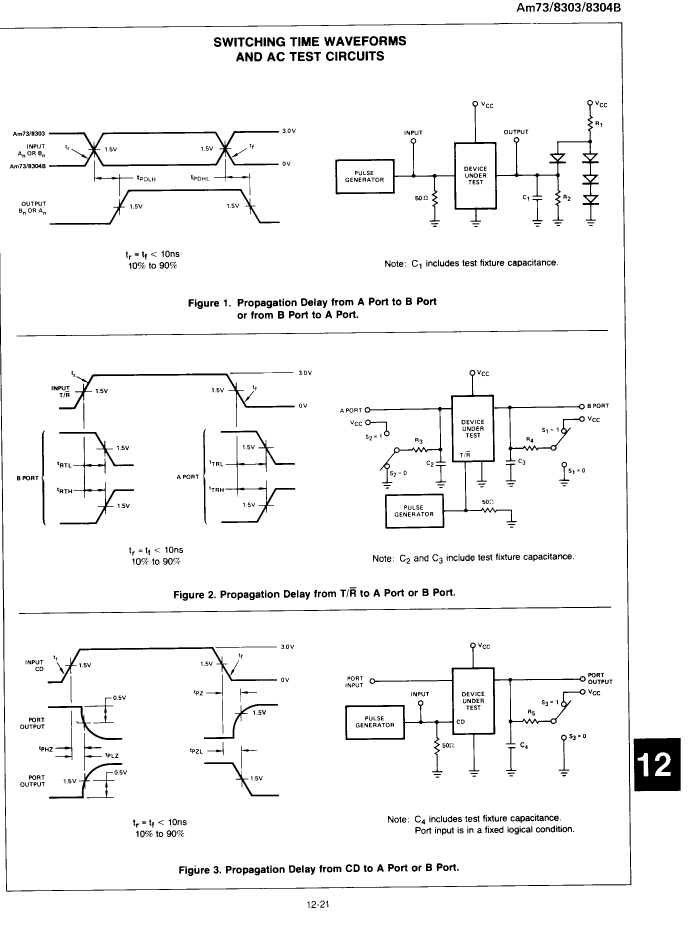

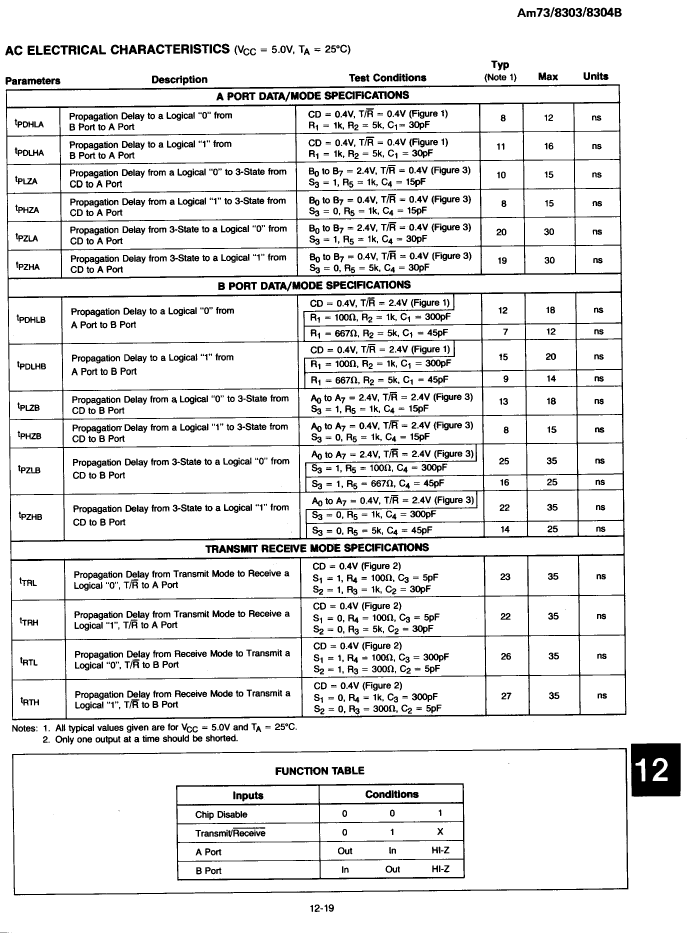

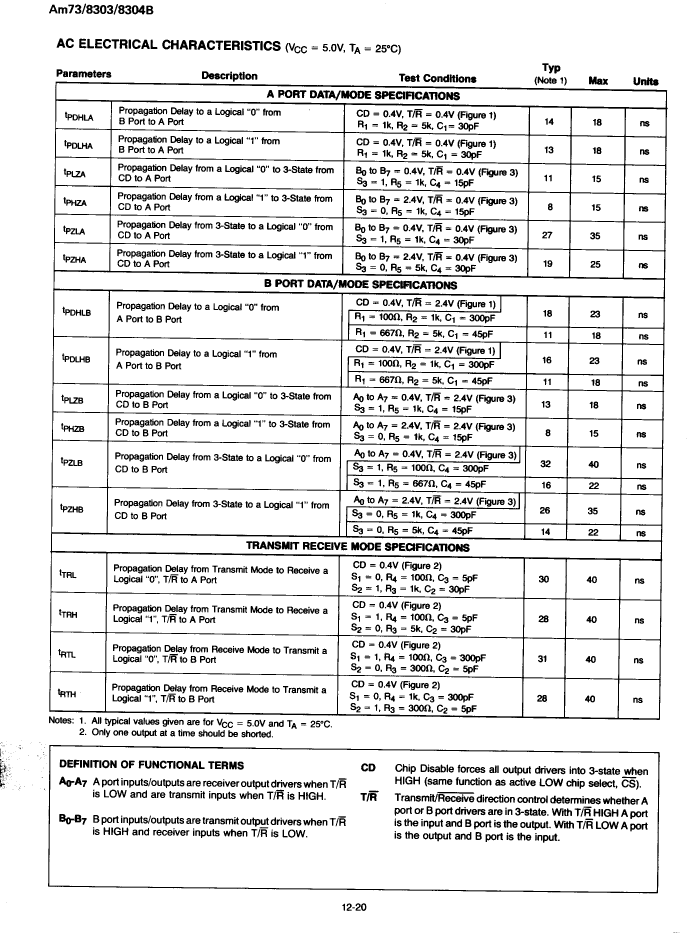

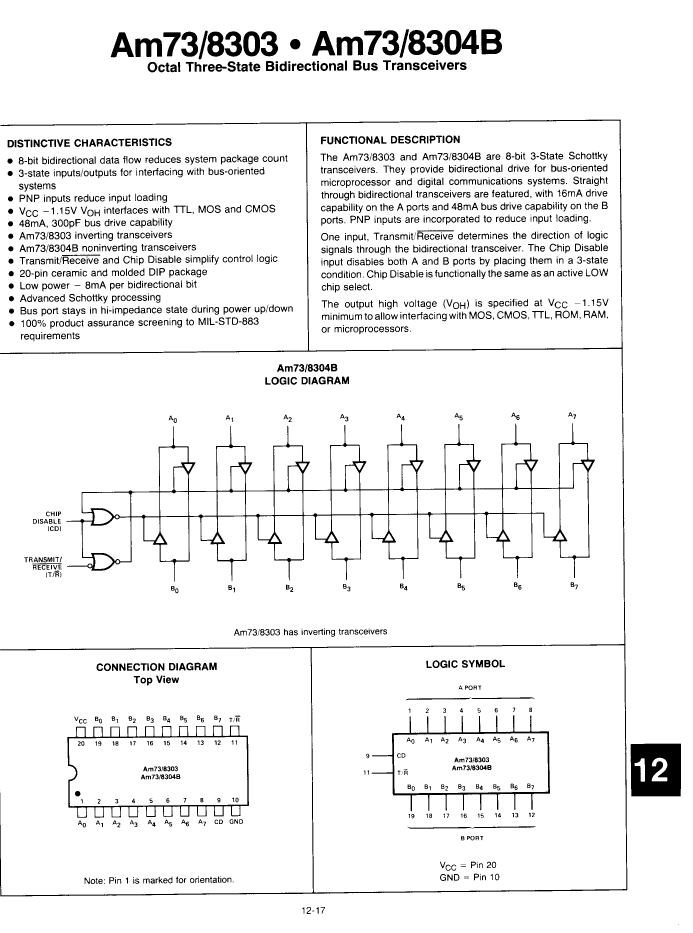

DP8303NB Overview

Bus Driver/Transceiver, 1-Func, 8-Bit, Inverted Output, TTL, PDIP20

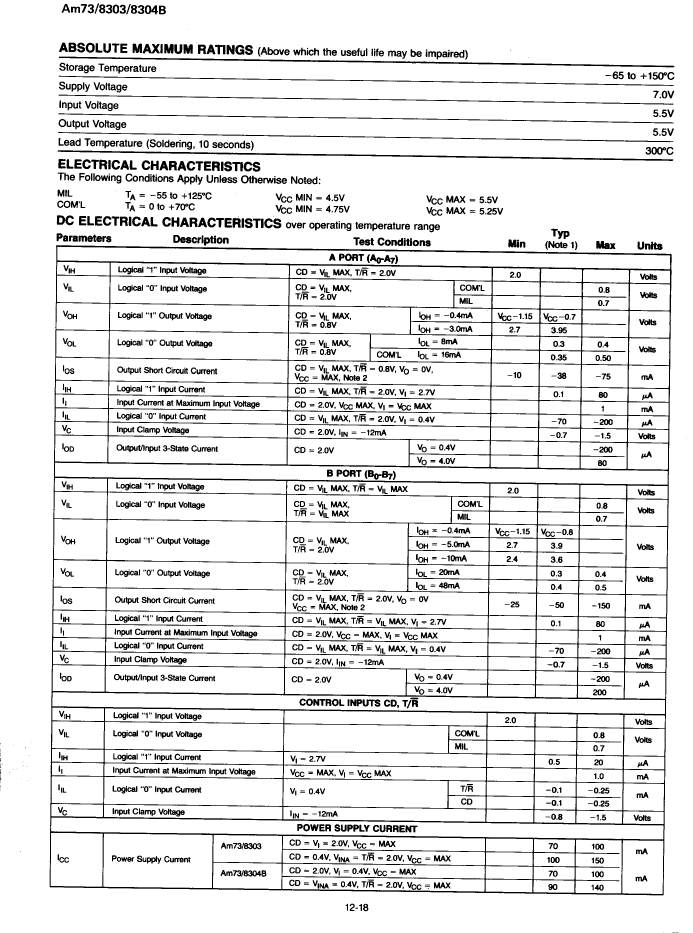

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
Control type	COMMON CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	R-PDIP-T20
JESD-609 code	e0
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
translate	N/A
Base Number Matches	1
