NJM2129M

Description
Consumer Circuit, Bipolar, PDSO14, DMP-14
CategoryOther integrated circuit (IC)    Consumption circuit
File Size200KB,5 Pages
ManufacturerNew Japan Radio Co., Ltd..
Environmental Compliance
Download Datasheet Parametric Compare View All

NJM2129M Online Shopping

Suppliers Part Number Price MOQ In stock
NJM2129M - - View Buy Now

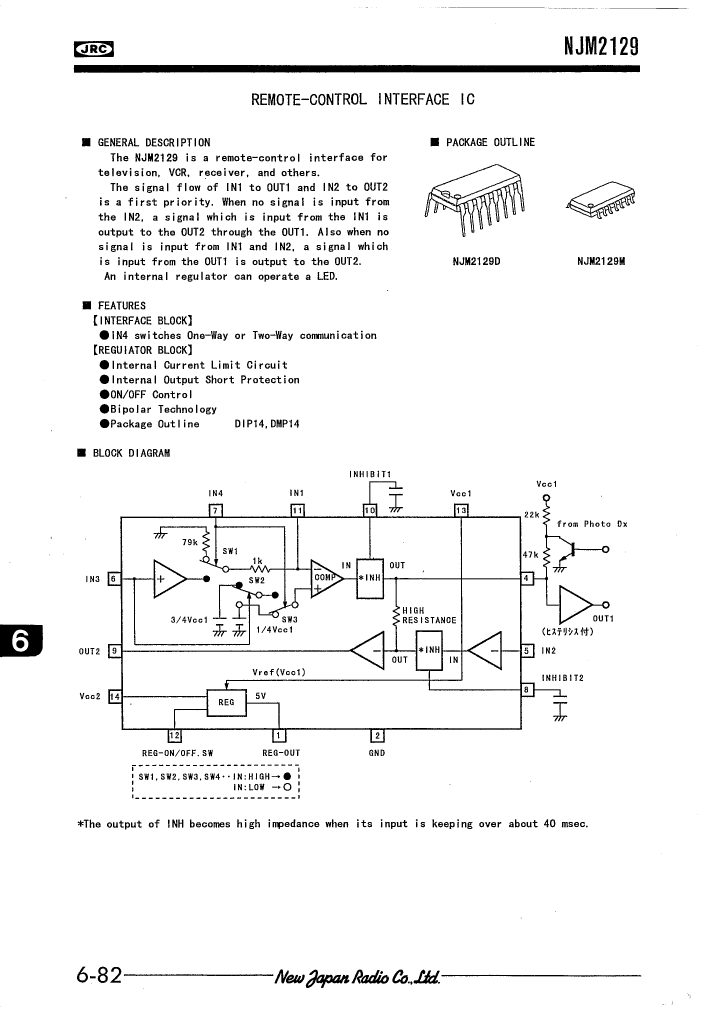

NJM2129M Overview

Consumer Circuit, Bipolar, PDSO14, DMP-14

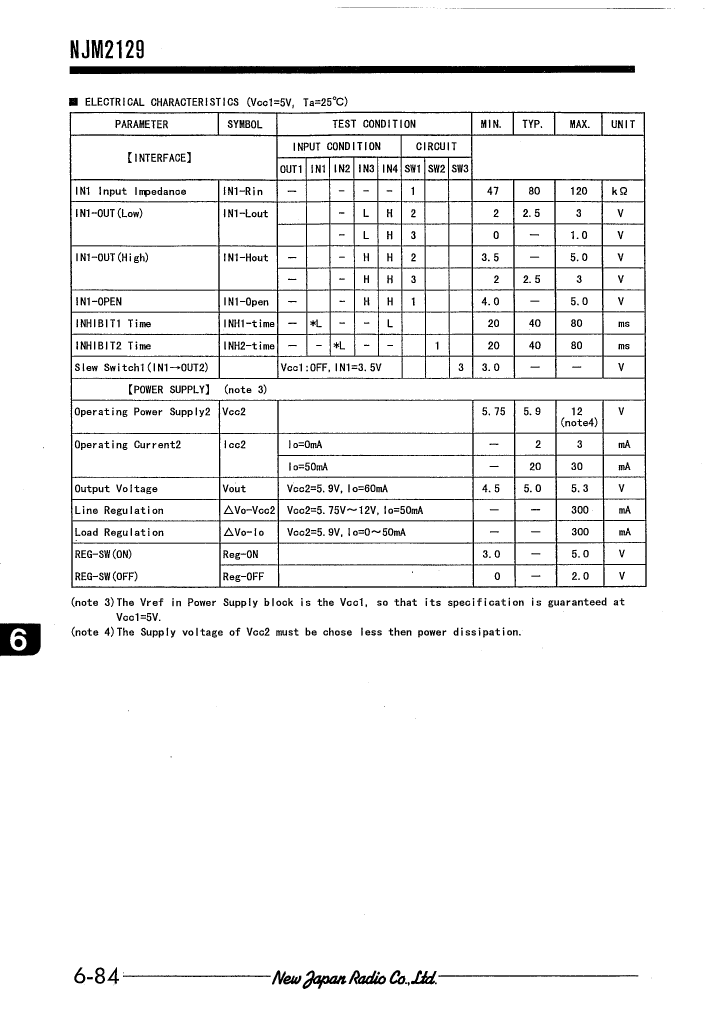

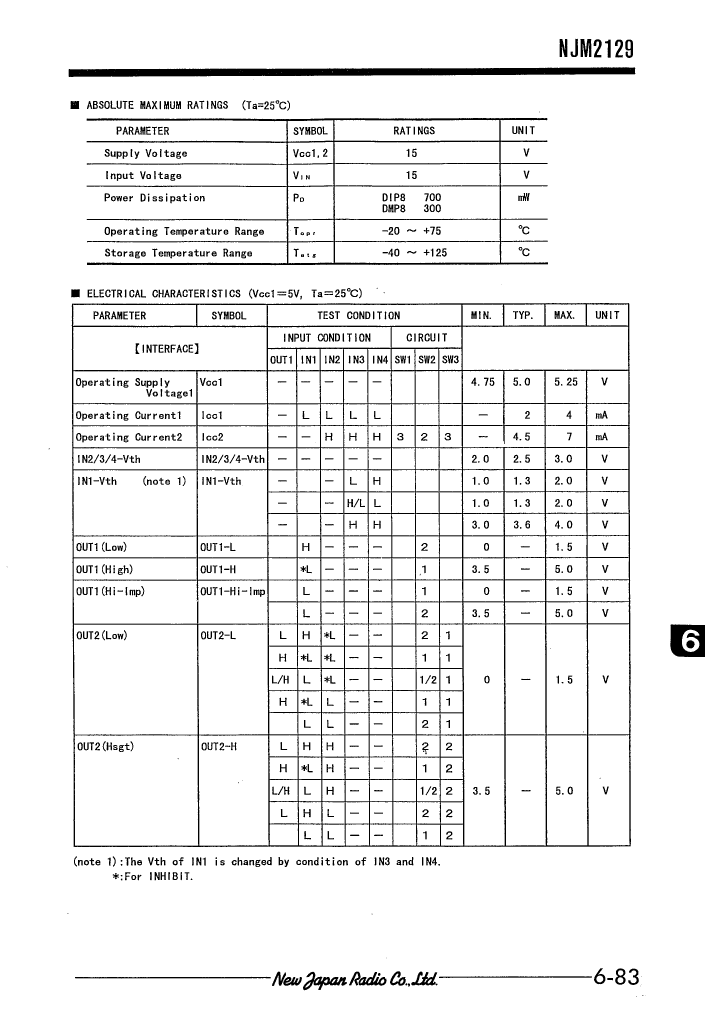

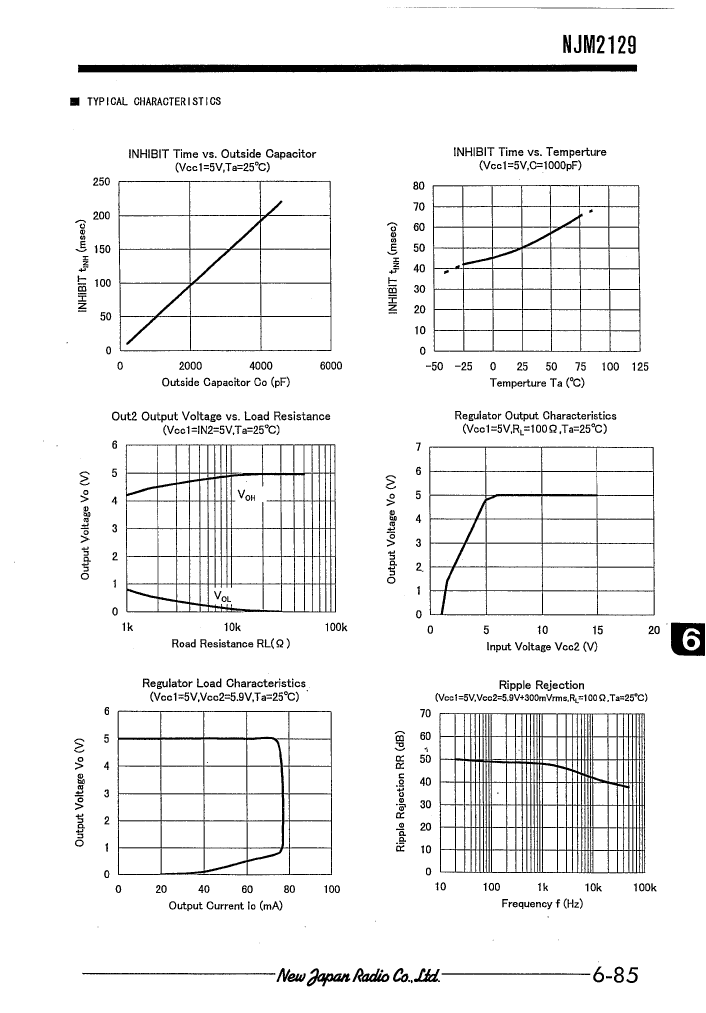

NJM2129M Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Parts packaging codeSOIC
package instructionDMP-14
Contacts14
Reach Compliance Codecompliant
Other featuresIT CAN ALSO OPERATE AT 5.75V TO 12V
Commercial integrated circuit typesCONSUMER CIRCUIT
JESD-30 codeR-PDSO-G14
JESD-609 codee6
length10 mm
Number of functions1
Number of terminals14
Maximum operating temperature75 °C
Minimum operating temperature-20 °C
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Certification statusNot Qualified
Maximum seat height2 mm
Maximum slew rate11 mA
Maximum supply voltage (Vsup)5.25 V
Minimum supply voltage (Vsup)4.75 V
surface mountYES
technologyBIPOLAR
Temperature levelCOMMERCIAL EXTENDED
Terminal surfaceTin/Bismuth (Sn/Bi)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width5 mm
Base Number Matches1

NJM2129M Related Products

NJM2129M NJM2129D
Description Consumer Circuit, Bipolar, PDSO14, DMP-14 Consumer Circuit, Bipolar, PDIP14, DIP-14
Is it lead-free? Lead free Lead free
Is it Rohs certified? conform to conform to
Parts packaging code SOIC DIP
package instruction DMP-14 DIP-14
Contacts 14 14
Reach Compliance Code compliant compliant
Other features IT CAN ALSO OPERATE AT 5.75V TO 12V IT CAN ALSO OPERATE AT 5.75V TO 12V
Commercial integrated circuit types CONSUMER CIRCUIT CONSUMER CIRCUIT
JESD-30 code R-PDSO-G14 R-PDIP-T14
JESD-609 code e6 e6
length 10 mm 19 mm
Number of functions 1 1
Number of terminals 14 14
Maximum operating temperature 75 °C 75 °C
Minimum operating temperature -20 °C -20 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SOP DIP
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE IN-LINE
Peak Reflow Temperature (Celsius) 260 NOT SPECIFIED
Certification status Not Qualified Not Qualified
Maximum seat height 2 mm 4.7 mm
Maximum slew rate 11 mA 11 mA
Maximum supply voltage (Vsup) 5.25 V 5.25 V
Minimum supply voltage (Vsup) 4.75 V 4.75 V
surface mount YES NO
technology BIPOLAR BIPOLAR
Temperature level COMMERCIAL EXTENDED COMMERCIAL EXTENDED
Terminal surface Tin/Bismuth (Sn/Bi) Tin/Bismuth (Sn/Bi)
Terminal form GULL WING THROUGH-HOLE
Terminal pitch 1.27 mm 2.54 mm
Terminal location DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
width 5 mm 7.62 mm
Base Number Matches 1 1
