STR8-H-I-L: DescriptionRF COAXIAL RELAY, SP9T, LATCHED, 0.48A (COIL), 12VDC (COIL), 5760mW (COIL), 18000MHz, 2W (RF INPUT), PANEL MOUNT; CategoryMechanical and electronic products relay; File Size81KB，1 Pages; ManufacturerRLC Electronics Inc

Download Datasheet Parametric View All

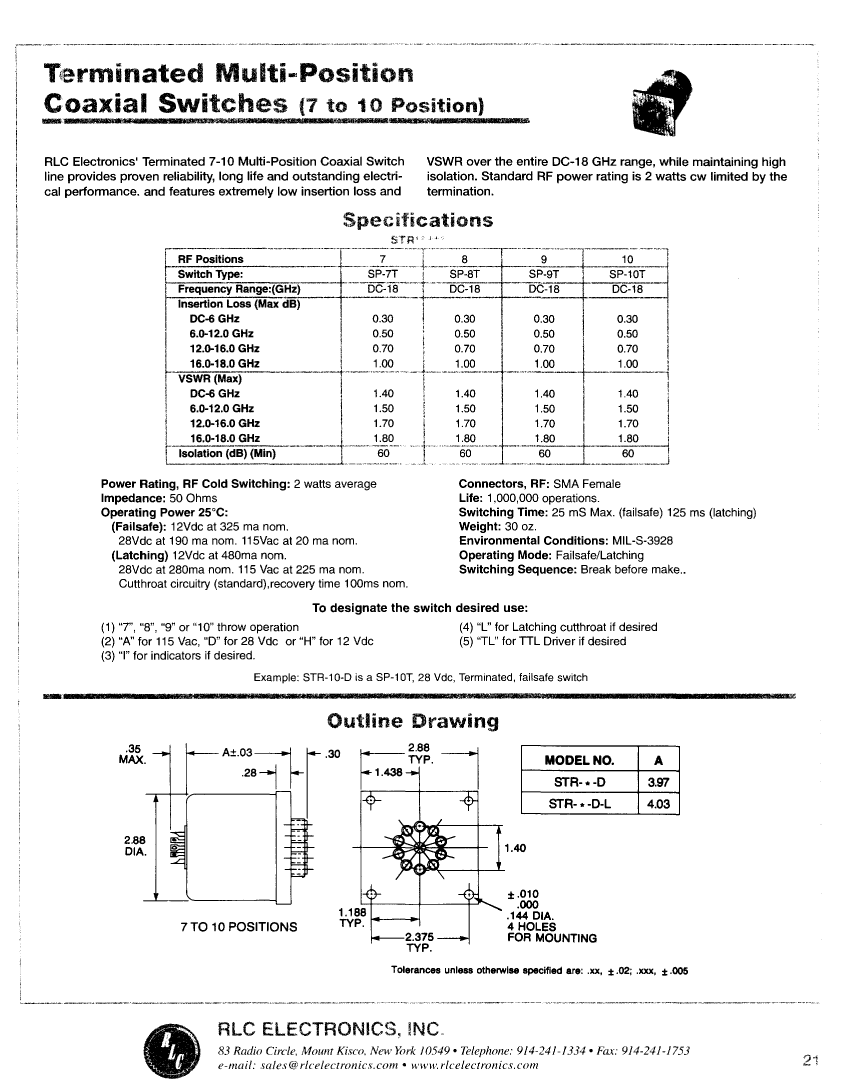

STR8-H-I-L Overview

RF COAXIAL RELAY, SP9T, LATCHED, 0.48A (COIL), 12VDC (COIL), 5760mW (COIL), 18000MHz, 2W (RF INPUT), PANEL MOUNT

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	BUILT-IN INDICATOR
Body length or diameter	73.15 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.48 A
Coil power	5760 mW
Coil resistance	25 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact/Output Power Type	DC
Electrical life	1000000 Cycle(s)
Maximum input power	2 W
Maximum insertion loss	1 dB
Maximum isolation	60 dB
Manufacturer's serial number	STR
Installation features	PANEL MOUNT
Maximum operating frequency	18000 MHz
Minimum operating frequency
Relay action	LATCHED
Relay function	SP9T
Relay type	RF COAXIAL RELAY
surface mount	NO
switching time	125 ms
Termination type	SOLDER/CONNECTOR
voltage standing wave ratio	1.8
Base Number Matches	1
