RCX-SM20B datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> RCX-SM20B

Preview

RCX-SM20B: DescriptionRF/Microwave Termination, 0MHz Min, 5000MHz Max; CategoryWireless rf/communication Radio frequency and microwave; File Size44KB，1 Pages; ManufacturerElectro Technik Industries

Download Datasheet Parametric View All

RCX-SM20B Overview

RF/Microwave Termination, 0MHz Min, 5000MHz Max

RCX-SM20B Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	SMA-M, I/P POWER-MAX(PEAK)=1000W
structure	COAXIAL
Maximum input power (CW)	43.01 dBm
Maximum operating frequency	5000 MHz
Minimum operating frequency
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Maximum voltage standing wave ratio	1.35
Base Number Matches	1

Preview

Download Datasheet

View All

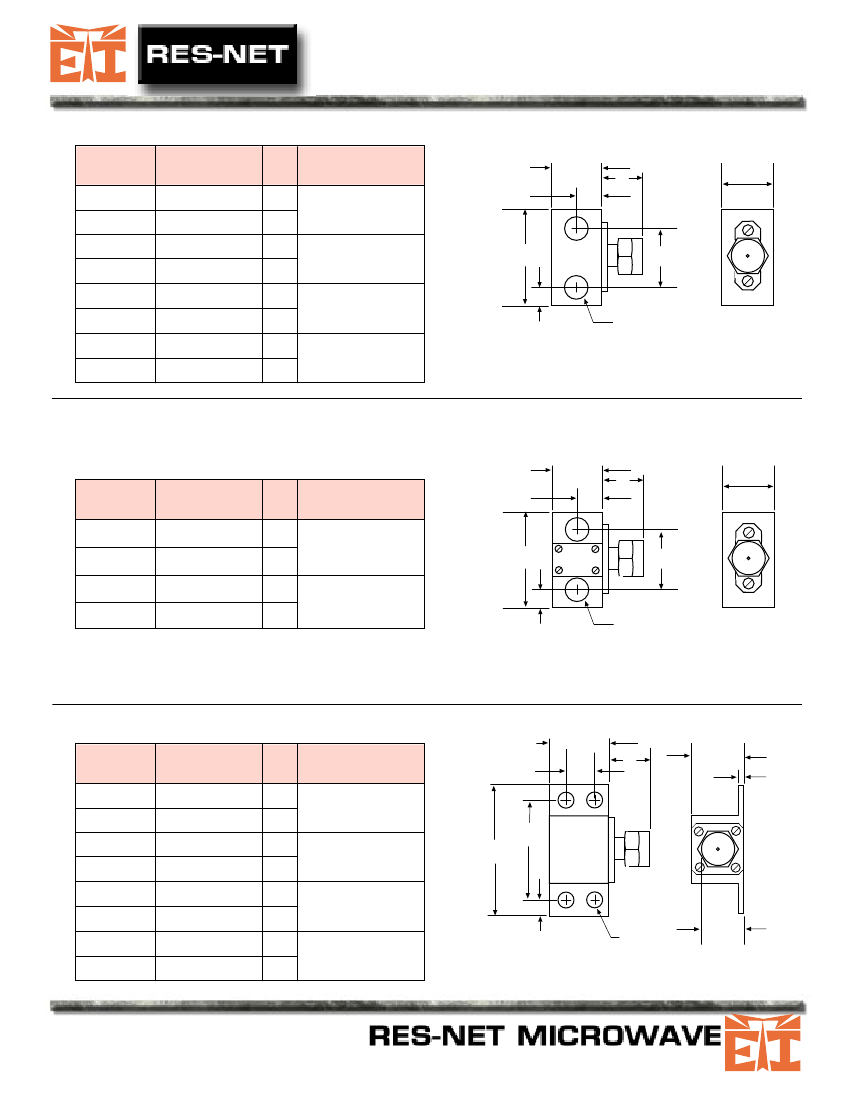

HIGH POWER

COAXIAL TERMINATIONS

ELECTRO TECHNIK

PERFORMANCE SPECIFICATIONS:

PART

NUMBER

RCX-SF15A

RCX-SM15A

RCX-SF15B

RCX-SM15B

RCX-SF15C

RCX-SM15C

RCX-SF15D

RCX-SM15D

CONNECTOR

TYPE

FEMALE

MALE

FEMALE

MALE

FEMALE

MALE

FEMALE

MALE

"X"

.375

.510

.375

.510

.375

DC to 8 GHz - 1.25:1

.510

.375

DC to 4 GHz - 1.15:1

.510

VSWR

(max.)

DC to 4 GHz - 1.15:1

4 to 8 GHz - 1.25:1

8 to 12 GHz - 1.30:1

DC to 8 GHz - 1.25:1

8 to 12 GHz - 1.30:1

12 to 18 GHz - 1.35:1

SMA CONNECTORS

.480 (12.19)

X

.240 (6.10)

.500 (12.70)

1.00 (25.40)

.614 (15.60)

.193 (4.90)

.214 dia. (4.43)

15 WATTS (1KW peak)

PERFORMANCE SPECIFICATIONS:

PART

NUMBER

RCX-SF20A

RCX-SM20A

RCX-SF20B

RCX-SM20B

CONNECTOR

TYPE

FEMALE

MALE

FEMALE

MALE

"X"

VSWR

(max.)

DC to 1 GHz - 1.15:1

1 to 3 GHz -

1.25:1

.480 (12.19)

X

.240 (6.10)

.500 (12.70)

.375

.510

.375

.510

1.00 (25.40)

.614 (15.60)

DC to 3 GHz - 1.25:1

3 to 5 GHz -

1.35:1

.193 (4.90)

.214 dia. (4.43)

20 WATTS (1KW peak)

PERFORMANCE SPECIFICATIONS:

PART

NUMBER

RCX-SF30A

RCX-SM30A

RCX-SF30B

RCX-SM30B

RCX-SF30C

RCX-SM30C

RCX-SF30D

RCX-SM30D

CONNECTOR

TYPE

FEMALE

MALE

FEMALE

MALE

FEMALE

MALE

FEMALE

MALE

"X"

.375

.510

.375

.510

.375

DC to 8 GHz - 1.30:1

.510

.375

DC to 4 GHz - 1.20:1

.510

.150 (3.81)

.166 dia.

(4.21)

.425

(12.38)

.600 (15.24)

.300 (7.62)

X

VSWR

(max.)

DC to 4 GHz - 1.20:1

4 to 8 GHz - 1.25:1

8 to 12 GHz - 1.30:1

DC to 8 GHz - 1.25:1

8 to 12 GHz - 1.30:1

12 to 18 GHz - 1.35:1

.500

(12.70)

.125

(3.18)

1.50

(38.10)

1.20

(30.48)

30 WATTS (5KW peak)

Toll Free: 800.526.0704

Phone:

727.530.9555

P.O. Box 18802 • Clearwater, FL 33762

1C

ELECTRO TECHNIK
