Body Mount 2.4 GHz Antenna
WLAN, ISM & Video Systems
s
Mounts easily to roof, trunk or bulkhead
s
2.5 dBi dipole omnidirectional configuration
s
Rugged ABS radome , mounts to 5/8" hole
s
"O"ring seal provides watertight use

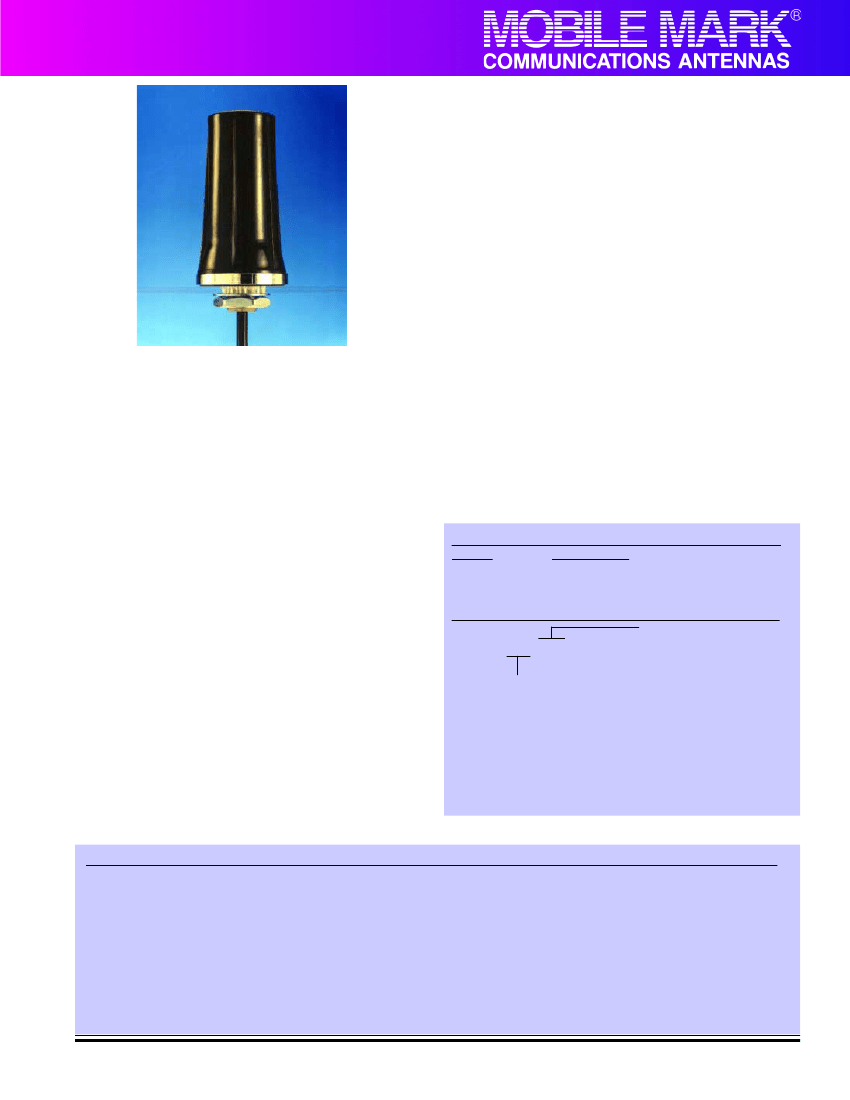

RM Body Mount Antenna
Now Available in white or black!
This new antenna compliments Mobile Mark's 2.4 GHz
antenna product line with a new mounting option. The
body mount style antenna can be mounted to any
vehicle, container or bulkhead. The rugged style is
excellent for industrial applications, yet attractive for
consumer use.
The design uses a 5/8" feed thru for securing to the
vehicle. Access to the underside of the body surface is
required to complete the installation. The antennas are
outfitted with 1 foot of LMR-200 cable & TNC female
connector. Jumper cables for completing the installation
are supplied separately, and use LMR-195 low loss
cable.
Antenna performance is 2.5 dBi, with no ground plane
required for proper operation. The antenna can even be
mounted on fiberglass or plastic housing and meet all
specifications.
The antenna radome consists of Black ABS UV resistant
plastic, with a chrome plated mounting plate and
threaded feed thru. The bottom mounting plate is
outfitted with an "O" ring for complete sealing. A mount-
ing lock nut and washer are also supplied for securing
the antenna.
Specifications
Frequency:
Gain:
VSWR:
Operating Temp:
Nominal Impedance:
Maximum Power:
Radome/Mount
Case Material:
2400-2485 MHz
2.3 dBi max
2:1 max over range
-40
o
to +85
o
C
50 ohms
10 watts
2" diameter x 3" high
ABS plastic, UV Resistant
The antenna can also be used as mini-base station or
access point. An optional mounting bracket kit is avail-
able for this purpose. It allows mounting the antenna to
any vertical surface.
Model Number
Model
Description
RM3-2400
Antenna with TNC coax pigtail and
mounting hardware
Installation Jumper Cable Model Numbers
Connector Type
MTN=Male TNC
LMXXX-YYY-MTN
FTN=Female TNC
Cable length, inches (3 digits) MSA=Male SMA
FSA=Female SMA
Example
MBC=Male BNC
LM096-MTN-MTN is a
FBC=Female BNC
jumper with 096 inches of
MMU=Male Mini-UHF
LMR-195, a male TNC to
connect to the receiver, and FMU=Female Mini-UHF
MCN=Male N
the male TNC to connect to
FCN=Female N
the antenna.
Mounting:
Hardware:
Pigtail Cable
:
Pigtail Connector:
Jumper Cable:
5/8" diameter feed thru, 1/2" long
thread for up to 1/4" thick metal
Nut, lockwasher and gasket
included
LMR-200, 1 foot, exits at bottom
TNC female, use jumpers for
longer installation
Male TNC with LMR-195 cable
and choice of connector for
receiver interface, see above
